Honeywell 2MLQ-RY2A Maintenance-Ready Spare for HC900 Automation

Honeywell 2MLQ-RY2A Maintenance-Ready Spare for HC900 Automation

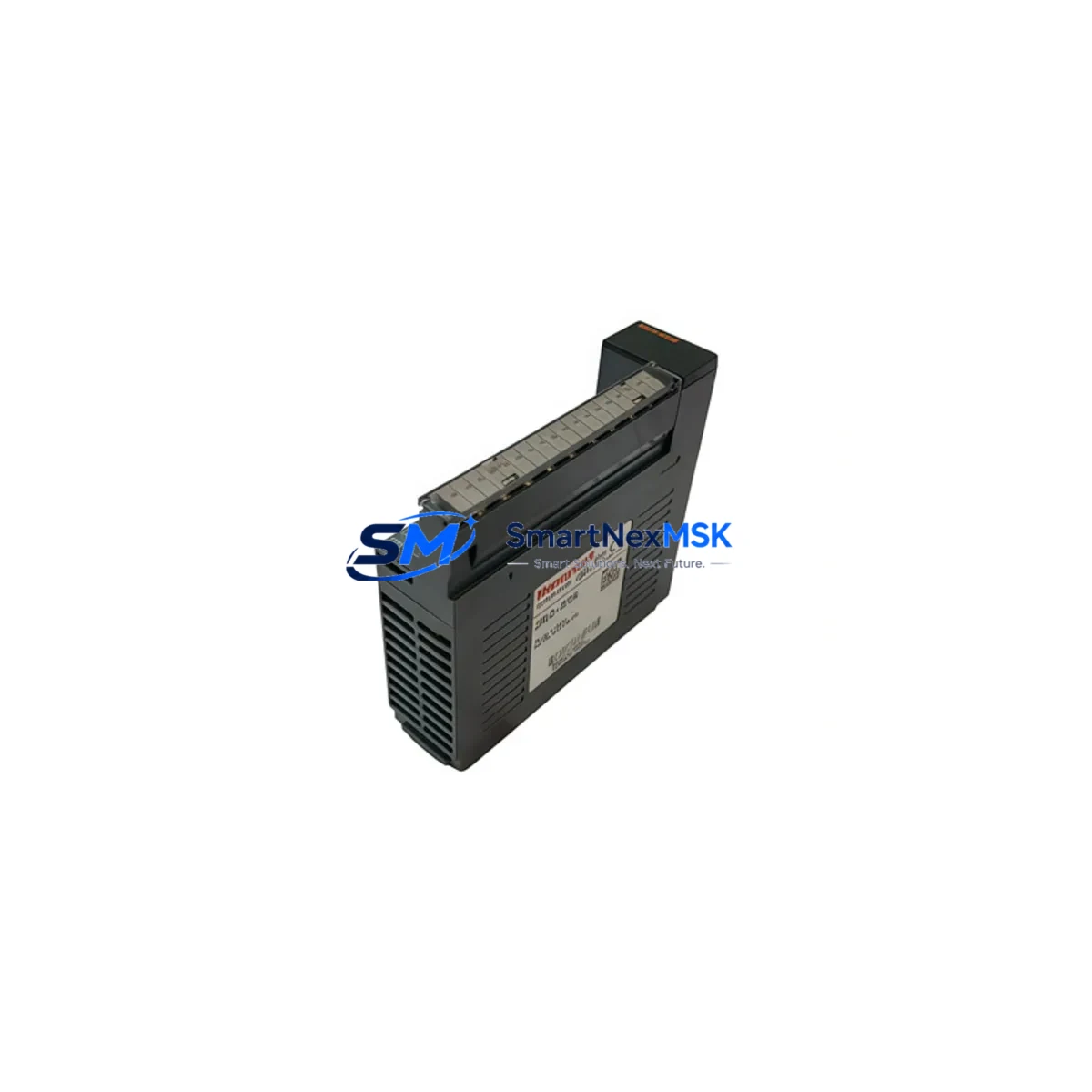

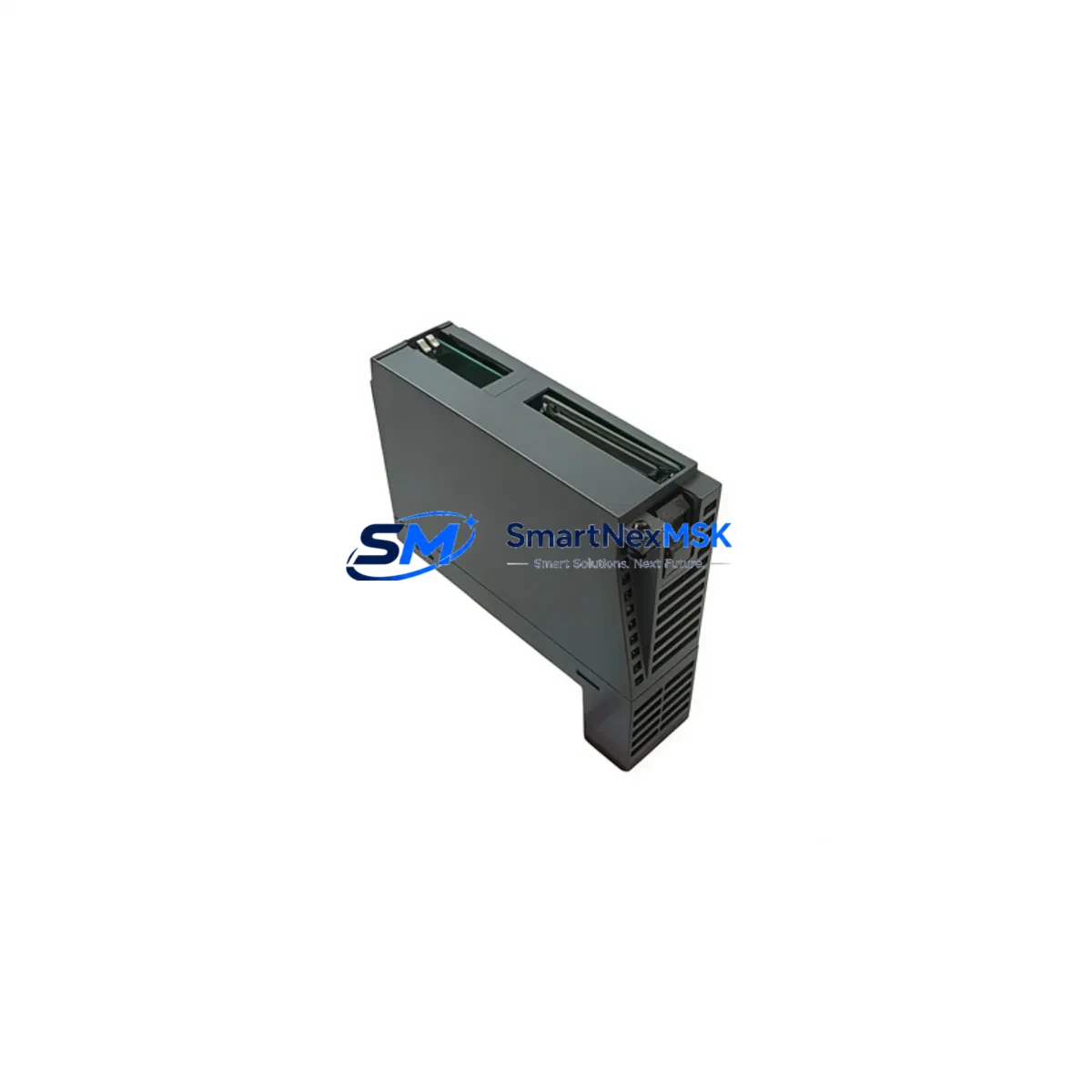

The Honeywell 2MLQ-RY2A is a Relay Digital Output Module designed for the HC900 Hybrid Controller platform — one of Honeywell’s most widely deployed process automation and hybrid control systems in refining, chemical, power, and general manufacturing environments. As a maintenance-ready original spare, the 2MLQ-RY2A provides 8 relay output channels with dry-contact switching capability, making it a critical component for discrete control, interlock circuits, and alarm annunciation within HC900 control cabinets.

For maintenance engineers managing aging HC900 installations, holding a verified 2MLQ-RY2A spare on the shelf is a direct risk-mitigation strategy. Relay output modules are among the highest-wear components in any control system — subject to contact degradation, coil fatigue, and insulation breakdown over years of switching cycles. When a relay output channel fails, the downstream consequence is immediate: actuators lose command signals, safety interlocks may trip, and production lines halt. Having a tested, ready-to-install 2MLQ-RY2A eliminates the lead time risk that turns a 2-hour repair into a 2-week procurement crisis.

This module ships fully tested, with configuration compatibility verified against HC900 rack and backplane standards. Each unit carries a 12-month warranty covering manufacturing defects and functional performance, with pre-shipment functional testing documented on request.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 2MLQ-RY2A in an HC900 control cabinet, a disciplined maintenance engineer will not stop at the module itself. The relay output module sits at the intersection of the control system’s logic layer and the field device layer — meaning its failure often reveals stress on adjacent components that may be approaching end-of-life simultaneously.

Begin by inspecting the HC900 C75 or C70R Controller Module — the CPU that drives output commands to the 2MLQ-RY2A. Verify firmware version compatibility and check for any logged diagnostic faults that may have preceded the relay failure. Next, examine the HC900 Power Supply Module (900P01-0101 or 900P02-0101): an unstable or under-rated power supply is a leading cause of premature relay coil failure and erratic output behavior. Measure output voltage under load and compare against specification.

Inspect the HC900 Digital Input Module (2MLI-DI16A or equivalent) on the same rack — input and output modules in the same control loop often experience correlated wear, especially in high-cycle applications. Check the HC900 Analog Output Module (2MLD-AO08A) if the control cabinet manages both discrete and modulating outputs; cross-contamination of ground loops can accelerate relay contact oxidation.

Review the terminal blocks and field wiring connected to the 2MLQ-RY2A output channels. Loose terminations, corroded lugs, or undersized conductors are common root causes of relay contact overheating. If the cabinet uses Phoenix Contact or Weidmüller terminal strips, inspect for discoloration or deformation indicating thermal stress.

For cabinets with communication-intensive architectures, verify the HC900 Ethernet Communication Module and any Modbus RTU or HART interface modules are operating without CRC errors or timeout faults — communication instability can cause spurious output commands that accelerate relay wear. If the system includes signal isolators or loop-powered barriers on analog channels adjacent to the relay outputs, test isolation resistance to confirm no cross-coupling.

Finally, check the HC900 rack backplane connectors for pin corrosion or mechanical damage. A degraded backplane connection can cause intermittent module faults that mimic relay failure but originate in the rack infrastructure itself. Replacing the 2MLQ-RY2A without addressing a damaged backplane will result in repeat failures.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module’s slot address in the HC900 configuration database (HC Designer software). Document all output channel assignments, tag names, and interlock logic tied to the 2MLQ-RY2A before removal. Take a photograph of field wiring terminations.

Step 2 — Safe Isolation: Place the HC900 controller in manual mode or transfer control to a backup loop if available. De-energize field devices connected to the relay outputs using local isolation switches. Do not rely solely on the software output inhibit — physically isolate field circuits.

Step 3 — Module Removal: The 2MLQ-RY2A supports hot-swap on HC900 racks. Loosen the module retention screw, pull the module straight out from the backplane, and set aside for failure analysis. Inspect the backplane connector pins for damage before inserting the replacement.

Step 4 — Replacement Installation: Insert the new 2MLQ-RY2A into the same slot. The HC900 controller will automatically recognize the module and restore the pre-configured channel assignments within seconds. No re-download of the control program is required for a like-for-like replacement.

Step 5 — Functional Verification: Force each of the 8 relay output channels individually from the HC Designer diagnostic interface. Confirm field device response for each channel. Check relay contact resistance with a milliohm meter if test points are accessible. Restore the controller to automatic mode only after all channels are verified.

Step 6 — Documentation: Record the replacement in the maintenance management system (CMMS) with the new module’s serial number, installation date, and test results. Update the spare parts inventory to trigger reorder of a replacement 2MLQ-RY2A to restore buffer stock.

Spare Parts Support FAQ

Q1: Is the 2MLQ-RY2A compatible with all HC900 rack configurations?
Yes. The 2MLQ-RY2A is compatible with all standard HC900 rack sizes (4-slot, 8-slot, and 12-slot) and does not require slot-specific placement. It is recognized automatically by the HC900 C75 and C70R controller modules running current firmware. For legacy HC900 systems running older firmware versions, verify compatibility against the HC900 Hardware Installation Guide before installation.

Q2: What is included in the 12-month warranty and pre-shipment testing?
Every 2MLQ-RY2A unit undergoes full functional testing prior to shipment, including relay coil energization, contact continuity verification on all 8 channels, and backplane interface check. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage from incorrect installation, overvoltage, or environmental conditions outside specification. A test report is available on request.

Q3: Can the 2MLQ-RY2A replace older or discontinued Honeywell relay output modules in HC900 systems?
The 2MLQ-RY2A is the current production relay output module for the HC900 platform and is the designated replacement for earlier relay output variants used in HC900 installations. In most cases, it is a direct drop-in replacement with no configuration changes required. For systems with heavily customized I/O maps or non-standard rack configurations, consult the HC900 compatibility matrix or contact our technical team before ordering.

Q4: What is the recommended spare parts stocking strategy for HC900 relay output modules?
For facilities with 3 or more HC900 racks, we recommend maintaining a minimum of 2 × 2MLQ-RY2A units in local spare stock at all times. Relay output modules have a typical field service life of 5–10 years depending on switching frequency and load type. For high-cycle applications (>100,000 operations/year), annual inspection and proactive replacement on a 3–5 year cycle is advisable. Pair the 2MLQ-RY2A buffer stock with at least one HC900 Power Supply Module spare to cover the two most common causes of unplanned HC900 downtime.
