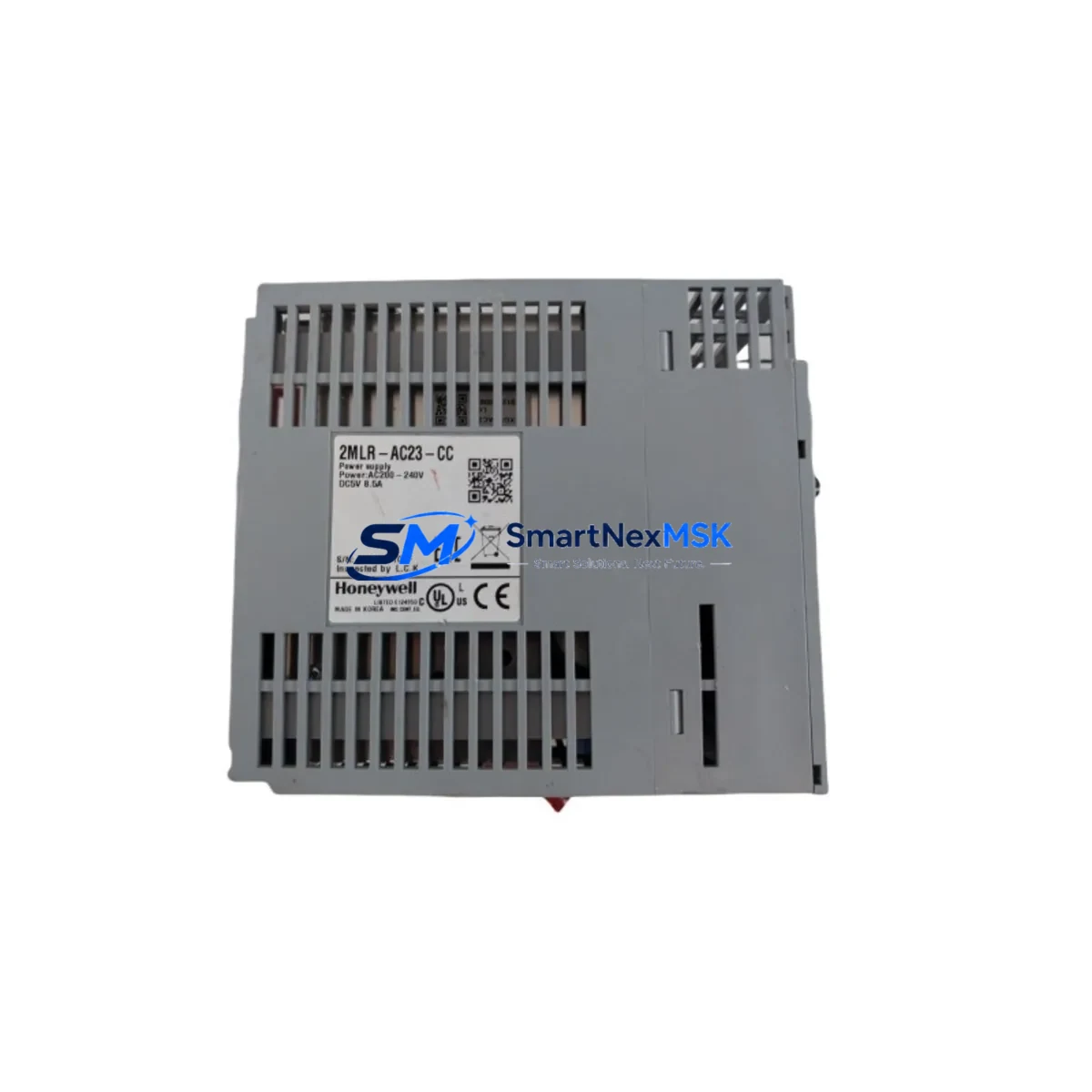

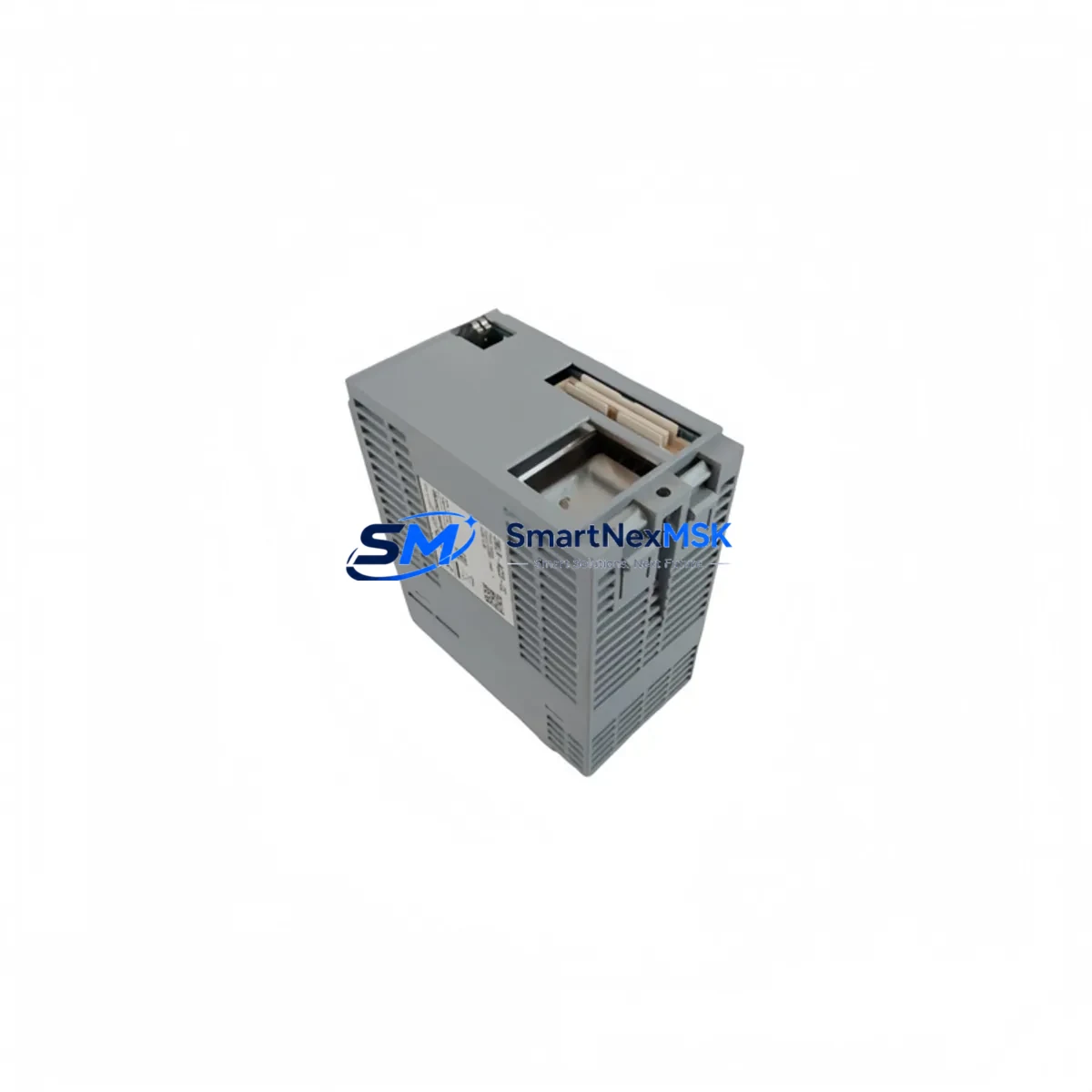

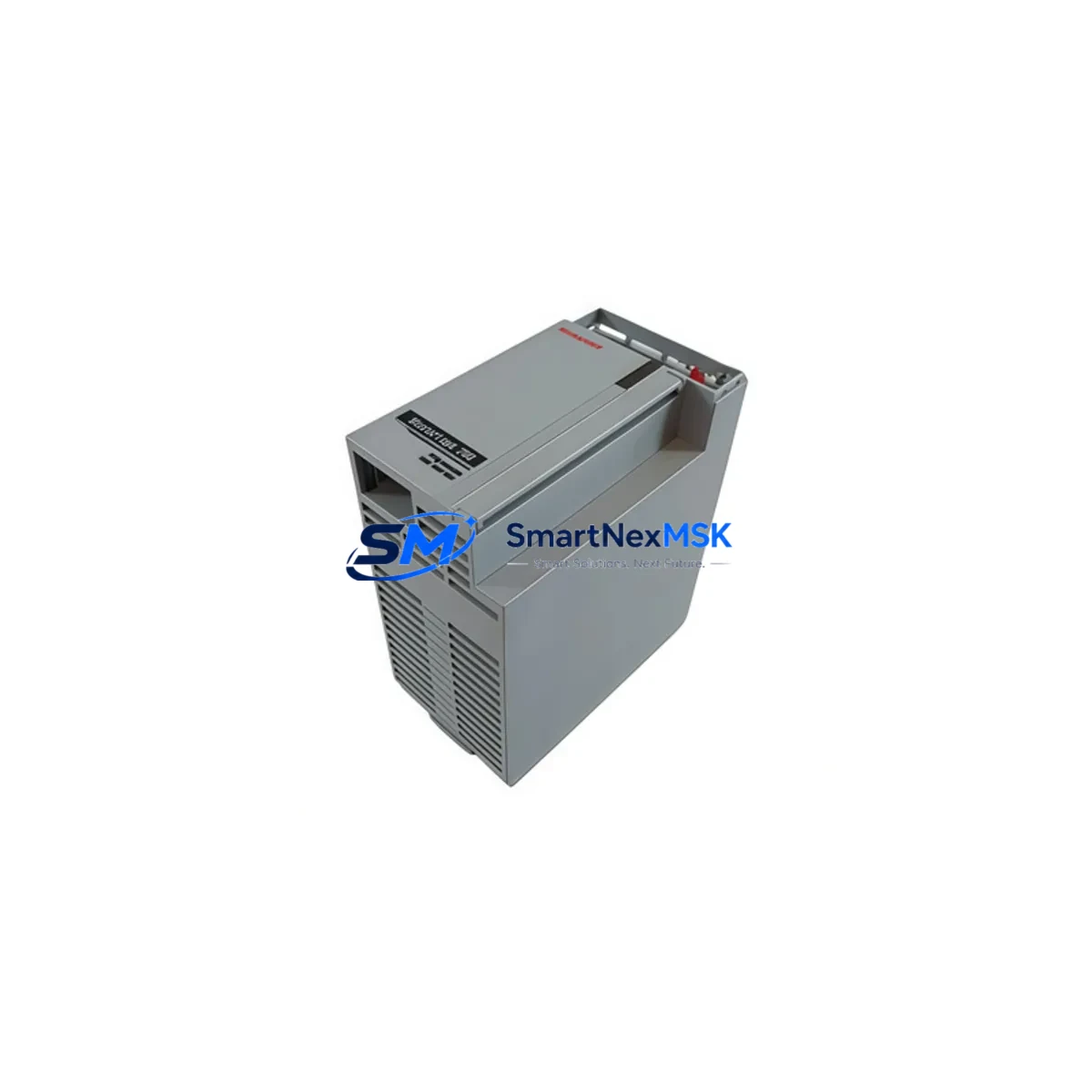

Honeywell 2MLR-AC23-CC Safety-Enhanced AC Power Supply

Honeywell 2MLR-AC23-CC Safety-Enhanced AC Power Supply for Harsh Industrial Sites

The Honeywell 2MLR-AC23-CC is a ruggedized, safety-rated AC power supply module engineered for continuous, uninterrupted operation within Honeywell Safety Manager (SM) systems deployed in the most demanding industrial environments. Designed to meet the rigorous power integrity requirements of functional safety architectures, this module delivers stable, conditioned DC power to safety-critical I/O racks, processor modules, and communication backplanes — even under conditions of severe electrical noise, voltage fluctuation, and thermal stress.

In high-hazard facilities such as petrochemical complexes, offshore platforms, power generation stations, and continuous-process manufacturing plants, power supply reliability is not a convenience — it is a safety imperative. The 2MLR-AC23-CC addresses this directly by providing robust surge suppression, wide-range AC input tolerance, and redundancy-ready architecture that prevents control loop interruption caused by upstream grid instability or transient overvoltage events. Its reinforced isolation barrier protects downstream safety logic from common-mode interference, reducing the risk of spurious trips or dangerous undetected failures in SIL 2 and SIL 3 rated safety instrumented systems.

When integrated into a Honeywell Safety Manager cabinet alongside the SM-SCU Safety Controller Unit and 2MLR-DC24-CC DC power distribution module, the 2MLR-AC23-CC forms the backbone of a fully redundant power architecture. Paired with the SM-PS-REDCY redundant power supply chassis, it enables hot-standby failover without any interruption to the safety logic execution cycle — a critical requirement in emergency shutdown (ESD) and fire-and-gas (F&G) systems where any power gap could mask a hazardous condition.

Safety Reliability Table

Control Cabinet Protection Strategy

A safety control cabinet is only as reliable as its weakest power link. The 2MLR-AC23-CC is specifically designed to anchor the power layer of a Honeywell Safety Manager cabinet, ensuring that every downstream module — from the SM-SCU processor to SM-DI32 digital input modules, SM-DO16 digital output modules, and SM-AI16 analog input modules — receives clean, stable 24 VDC regardless of upstream grid conditions.

In practice, industrial sites frequently experience voltage sags during motor start-up sequences, harmonic distortion from variable frequency drives (VFDs), and high-frequency conducted noise from welding equipment or large contactors. Without a properly rated power supply, these disturbances can cause signal drift on analog channels, false state transitions on digital I/O, or — most critically — watchdog resets on the safety controller itself. The 2MLR-AC23-CC’s wide-input tolerance and active power factor correction absorb these disturbances before they reach the logic layer.

For communication-intensive cabinets integrating SM-COM Modbus/PROFIBUS gateway modules or Honeywell HC900 hybrid controller links, stable power is equally essential to prevent CRC errors, packet loss, and communication timeouts that could trigger spurious safe-state transitions. The module’s reinforced output filtering ensures that communication backplane voltages remain within specification even during high-load switching events.

When deploying in redundant configurations, the 2MLR-AC23-CC works in tandem with a second supply unit through the SM-PS-REDCY redundancy module, providing automatic, bumpless switchover in under 20 milliseconds — well within the process safety time (PST) requirements of most ESD and burner management system (BMS) applications. Complementary protection devices such as Phoenix Contact TRABTECH surge arresters and Weidmüller ACT20P signal conditioners are commonly installed upstream and downstream respectively to complete the cabinet-level protection strategy.

Critical Industrial Safety Applications

The Honeywell 2MLR-AC23-CC is deployed across a broad spectrum of high-consequence industrial sectors where control system uptime is directly linked to personnel safety and environmental protection.

In petrochemical and refinery operations, this module powers the safety logic solvers governing high-integrity pressure protection systems (HIPPS), emergency depressurization valves, and flare ignition interlocks. Its SIL-rated power delivery ensures that the safety function remains available even during extended grid disturbances common in remote refinery locations.

In power generation facilities — including coal, gas turbine, and nuclear auxiliary systems — the 2MLR-AC23-CC supports turbine protection panels and generator excitation safety circuits, where a momentary power interruption could result in catastrophic equipment damage or grid instability.

In mining and mineral processing environments, where conveyor interlocks, crusher protection systems, and ventilation safety circuits must operate reliably in high-dust, high-vibration conditions, the module’s ruggedized construction and wide thermal operating range provide the margin needed for continuous 24/7 operation without derating.

In water and wastewater treatment plants, the 2MLR-AC23-CC supports chlorination dosing interlocks and pump protection systems, where chemical overdose or pump cavitation events must be detected and arrested within defined process safety times.

In metallurgical and steel production facilities, it powers the safety PLCs governing ladle transfer interlocks, furnace pressure relief systems, and rolling mill emergency stops — applications where the combination of extreme heat, electromagnetic interference from induction furnaces, and continuous production pressure demands the highest level of power supply robustness.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 2MLR-AC23-CC?
The 12-month warranty covers all manufacturing defects, component failures, and functional deviations from Honeywell’s published specifications. If the module fails to regulate output voltage within tolerance, exhibits abnormal thermal behavior, or fails any functional safety parameter during the warranty period, we provide direct replacement or repair at no additional cost. Warranty claims are processed within 5 business days of receipt.

Q2: What pre-shipment testing is performed on each unit?
Every 2MLR-AC23-CC unit undergoes a full functional burn-in test prior to shipment, including output voltage regulation verification across the full AC input range (85–264 VAC), load regulation testing at 25%, 50%, 75%, and 100% rated load, surge suppression continuity check, and isolation resistance measurement. A test record is available upon request for quality documentation purposes.

Q3: Is the 2MLR-AC23-CC compatible with existing Honeywell Safety Manager installations?
Yes. The 2MLR-AC23-CC is a direct form-fit-function replacement for the standard SM-series AC power supply slot. It is backward-compatible with all Safety Manager rack generations and does not require firmware changes or configuration updates. Hot-swap replacement is supported in redundant configurations, allowing field replacement without shutting down the safety system.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
We maintain dedicated buffer stock of the 2MLR-AC23-CC to support critical spare parts programs and planned maintenance schedules. Orders can be fulfilled from in-stock inventory with standard lead times of 3–7 business days for standard quantities. For large-volume or scheduled procurement programs, we offer reserved stock agreements to ensure supply continuity over multi-year maintenance contracts.
