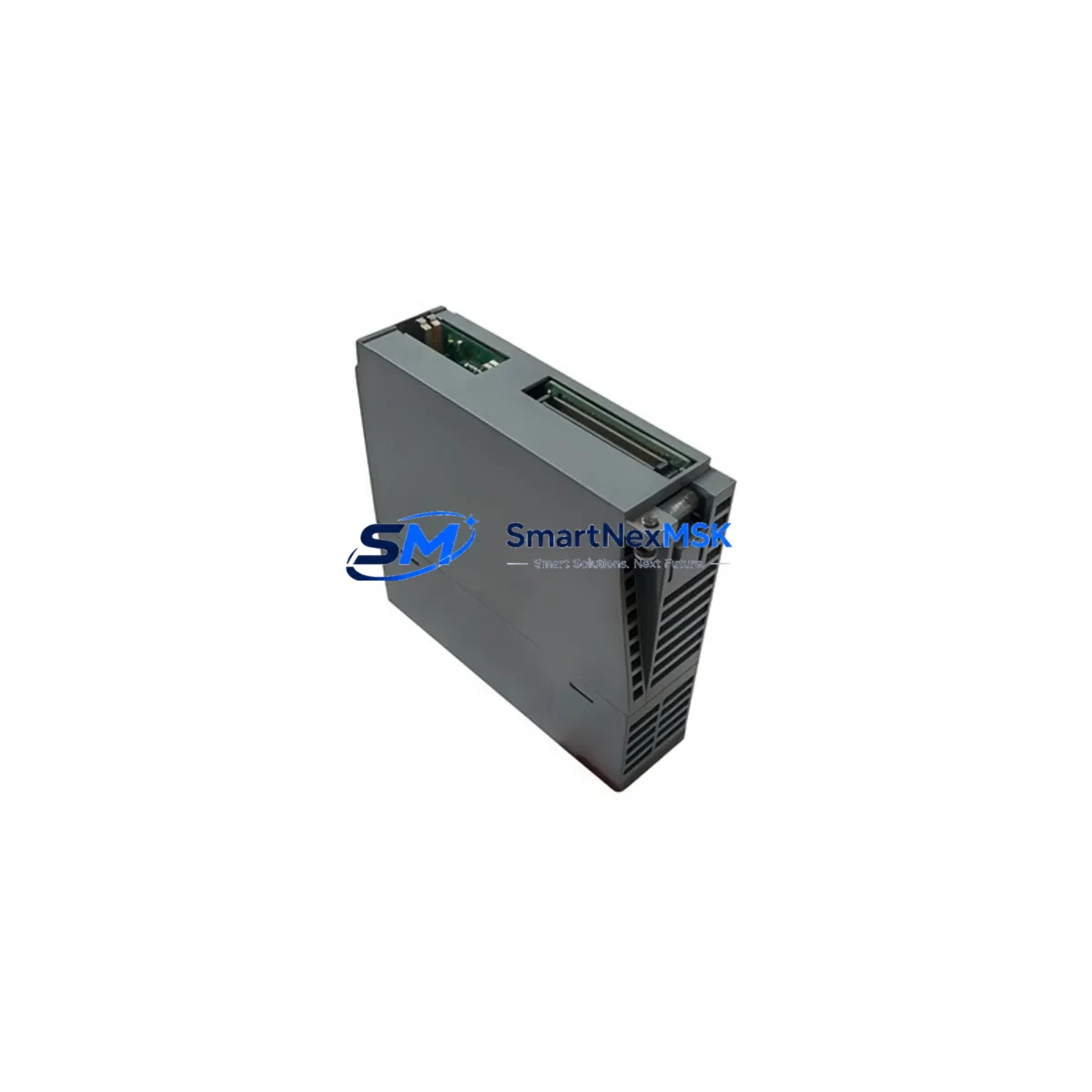

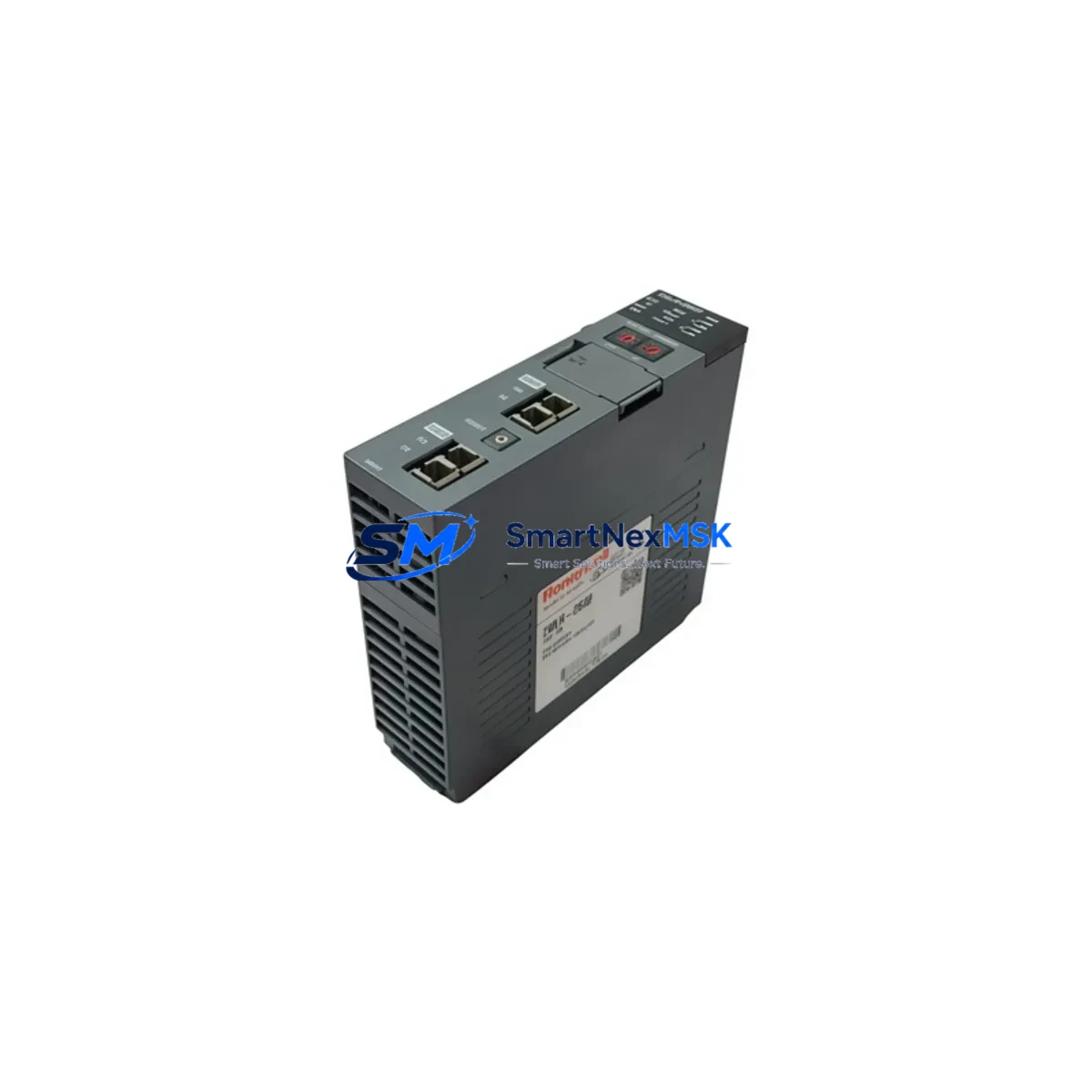

Honeywell 2MLR-DBSF Safety-Enhanced NAC Driver Module

Honeywell 2MLR-DBSF Safety-Enhanced NAC Driver Module: Reliable Control for Harsh Industrial Sites

The Honeywell 2MLR-DBSF is a ruggedized Notification Appliance Circuit (NAC) Expansion Driver Module engineered for fire alarm and life-safety control systems operating in demanding industrial environments. Designed as part of Honeywell’s 2MLR series fire alarm control panel (FACP) platform, the 2MLR-DBSF delivers stable, high-current NAC output capacity to drive horns, strobes, speakers, and combination devices across large-scale or multi-zone industrial facilities — including petrochemical plants, power generation stations, mining operations, water treatment facilities, metallurgical complexes, port terminals, and continuous manufacturing lines.

In high-load industrial control environments, NAC circuit integrity is a non-negotiable safety requirement. Signal drift, power fluctuations, ground faults, and wiring impedance variations can all compromise the reliability of notification appliance circuits, leading to delayed or failed alarm activation during critical events. The 2MLR-DBSF addresses these risks through robust output driver circuitry, supervised circuit monitoring, and compatibility with the broader Honeywell 2MLR FACP architecture — ensuring that every connected notification device activates correctly and on time, even under adverse electrical conditions.

When integrated into a properly designed fire alarm control cabinet, the 2MLR-DBSF works in concert with the Honeywell 2MLR-CPU main control processor, the 2MLR-PS power supply module, and the 2MLR-CHG battery charger module to form a complete, supervised life-safety system. The module’s NAC outputs are fully supervised for open-circuit and short-circuit faults, providing real-time fault detection that prevents silent failures — a critical capability in facilities where a missed alarm could result in catastrophic consequences. Paired with the 2MLR-ANN annunciator module and 2MLR-NET network communication card, the system supports distributed monitoring across multiple control nodes, enabling plant-wide safety coverage from a centralized command point.

For facilities operating in electrically noisy environments — such as those with large variable frequency drives (VFDs), high-voltage switchgear, arc furnaces, or heavy motor loads — the 2MLR-DBSF’s isolated output design helps prevent conducted interference from corrupting NAC signaling. This is particularly important in metallurgical and mining applications where electromagnetic interference (EMI) levels can be severe. The module’s compatibility with Class A (Style D/E) and Class B (Style B/C/Y/Z) wiring configurations provides installation flexibility for both new construction and retrofit projects, allowing engineers to select the wiring topology that best matches the facility’s fault-tolerance requirements and cable routing constraints.

In petrochemical and oil refinery applications, where continuous process operation and personnel safety are paramount, the 2MLR-DBSF supports integration with addressable loop controllers such as the Honeywell XLS or VESDA detection systems, enabling coordinated response between detection, suppression, and notification subsystems. The module’s stable DC output characteristics ensure consistent strobe synchronization across all connected devices — a regulatory requirement under NFPA 72 and IEC 60839 standards for industrial fire alarm installations. In power generation facilities, where control room and substation fire protection must remain operational during grid disturbances, the 2MLR-DBSF’s compatibility with battery-backed power supply modules such as the 2MLR-PS ensures uninterrupted NAC output even during mains power failures.

Every 2MLR-DBSF unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing, including NAC output load testing, supervision circuit verification, and communication interface checks. Units are sourced from authorized distribution channels and stored in climate-controlled facilities to preserve component integrity. Each module is covered by a 12-month warranty against manufacturing defects and operational failures, with replacement or repair support provided throughout the warranty period. Long-term supply continuity is maintained through established procurement relationships, ensuring availability for both initial project installations and ongoing spare parts programs.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial fire alarm control cabinet built around the Honeywell 2MLR-DBSF requires careful integration of complementary modules to ensure system-wide safety and fault tolerance. The 2MLR-CPU main control processor serves as the system’s decision-making core, continuously polling all input and output modules for fault conditions and executing programmed response logic. Power integrity is maintained by the 2MLR-PS regulated power supply module, which provides stable 24 VDC to all system components including the 2MLR-DBSF NAC driver, while the 2MLR-CHG battery charger module ensures seamless transition to standby battery power during mains outages — a critical capability for facilities with strict continuity-of-protection requirements.

For facilities requiring distributed annunciation, the 2MLR-ANN remote annunciator module provides local status indication at guard stations, control rooms, or building entry points, reducing response time during alarm events. Network-connected installations benefit from the 2MLR-NET network communication card, which enables multi-panel coordination and centralized monitoring across large campuses or multi-building industrial complexes. On the detection side, integration with Honeywell VESDA aspirating smoke detectors or addressable System Sensor SIGA-series detectors provides early-warning capability that triggers the 2MLR-DBSF’s NAC outputs well before conditions become life-threatening.

Surge protection at the cabinet level — using DIN-rail mounted surge protective devices (SPDs) on both power supply inputs and NAC output wiring — is strongly recommended for installations in lightning-prone regions or facilities with large inductive loads. Proper grounding of the 2MLR-DBSF chassis and cable shields, combined with the use of shielded twisted-pair wiring on long NAC runs, further reduces susceptibility to conducted and radiated interference. For high-reliability installations, maintaining a dedicated spare 2MLR-DBSF module in the facility’s critical spare parts inventory ensures rapid restoration of NAC capacity in the event of module failure, minimizing system downtime and maintaining continuous life-safety coverage.

Critical Industrial Safety Applications

Petrochemical & Refinery: In petroleum refining and chemical processing facilities, the 2MLR-DBSF drives notification appliances across process units, control rooms, and hazardous area boundaries. Its supervised NAC outputs ensure that horn/strobe devices in classified areas activate reliably during gas detection or fire events, supporting emergency evacuation and process shutdown procedures.

Power Generation & Substation: Power plants and electrical substations require fire alarm systems that remain fully operational during grid disturbances. The 2MLR-DBSF’s compatibility with battery-backed power supply modules ensures uninterrupted NAC output during mains failures, protecting turbine halls, transformer bays, and control buildings where fire suppression system activation must be coordinated with notification.

Mining & Mineral Processing: Underground and surface mining operations present extreme challenges for fire alarm systems, including high dust concentrations, vibration, and wide temperature swings. The 2MLR-DBSF’s ruggedized construction and supervised circuit monitoring make it suitable for deployment in mine headframes, crusher buildings, conveyor galleries, and processing plants where reliable alarm notification is essential for personnel safety.

Water & Wastewater Treatment: Water treatment facilities operate continuously and house electrical equipment in high-humidity environments. The 2MLR-DBSF’s humidity tolerance and supervised NAC outputs support reliable notification in pump stations, chemical dosing buildings, and control structures, ensuring that personnel are alerted to fire conditions even in remote or unmanned locations.

Metallurgy & Steel Production: Steel mills and foundries generate intense electromagnetic interference from arc furnaces, induction heaters, and large motor drives. The 2MLR-DBSF’s isolated output design and compatibility with the 2MLR FACP platform’s noise-immune communication architecture make it a reliable choice for fire alarm notification in these electrically hostile environments.

Port & Logistics Terminals: Port facilities and intermodal terminals require fire alarm coverage across large, open areas with diverse occupancy types. The 2MLR-DBSF’s high-current NAC output capacity supports the connection of multiple horn/strobe devices per circuit, reducing wiring complexity and installation cost while maintaining full supervision and fault detection across the entire notification network.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Honeywell 2MLR-DBSF?
Every 2MLR-DBSF supplied by SMARTNEXMSK is covered by a 12-month warranty against manufacturing defects and operational failures. If a unit fails under normal operating conditions within the warranty period, we provide replacement or repair support with priority processing to minimize system downtime.

Q2: What pre-shipment testing is performed on each 2MLR-DBSF unit?
Each unit undergoes functional testing prior to shipment, including NAC output load verification, supervision circuit continuity checks, and communication interface validation. Units that do not meet performance specifications are quarantined and not shipped. Test records are available upon request for quality-critical installations.

Q3: Is the 2MLR-DBSF compatible with existing Honeywell 2MLR FACP installations?
Yes. The 2MLR-DBSF is designed as a native expansion module for the Honeywell 2MLR fire alarm control panel platform and is fully compatible with the 2MLR-CPU, 2MLR-PS, 2MLR-CHG, and 2MLR-ANN modules. It supports both Class A and Class B NAC wiring configurations, making it suitable for both new installations and retrofit expansions of existing 2MLR systems.

Q4: Can long-term supply of the 2MLR-DBSF be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains established procurement relationships and inventory reserves for the 2MLR-DBSF to support both project-based procurement and ongoing spare parts programs. We recommend that facilities with critical fire alarm infrastructure maintain at least one spare 2MLR-DBSF module on-site. Contact our sales team to discuss volume pricing, scheduled delivery programs, and long-term supply agreements.
