Honeywell 2MLR-E08P Spare for Safety Manager SC Automation

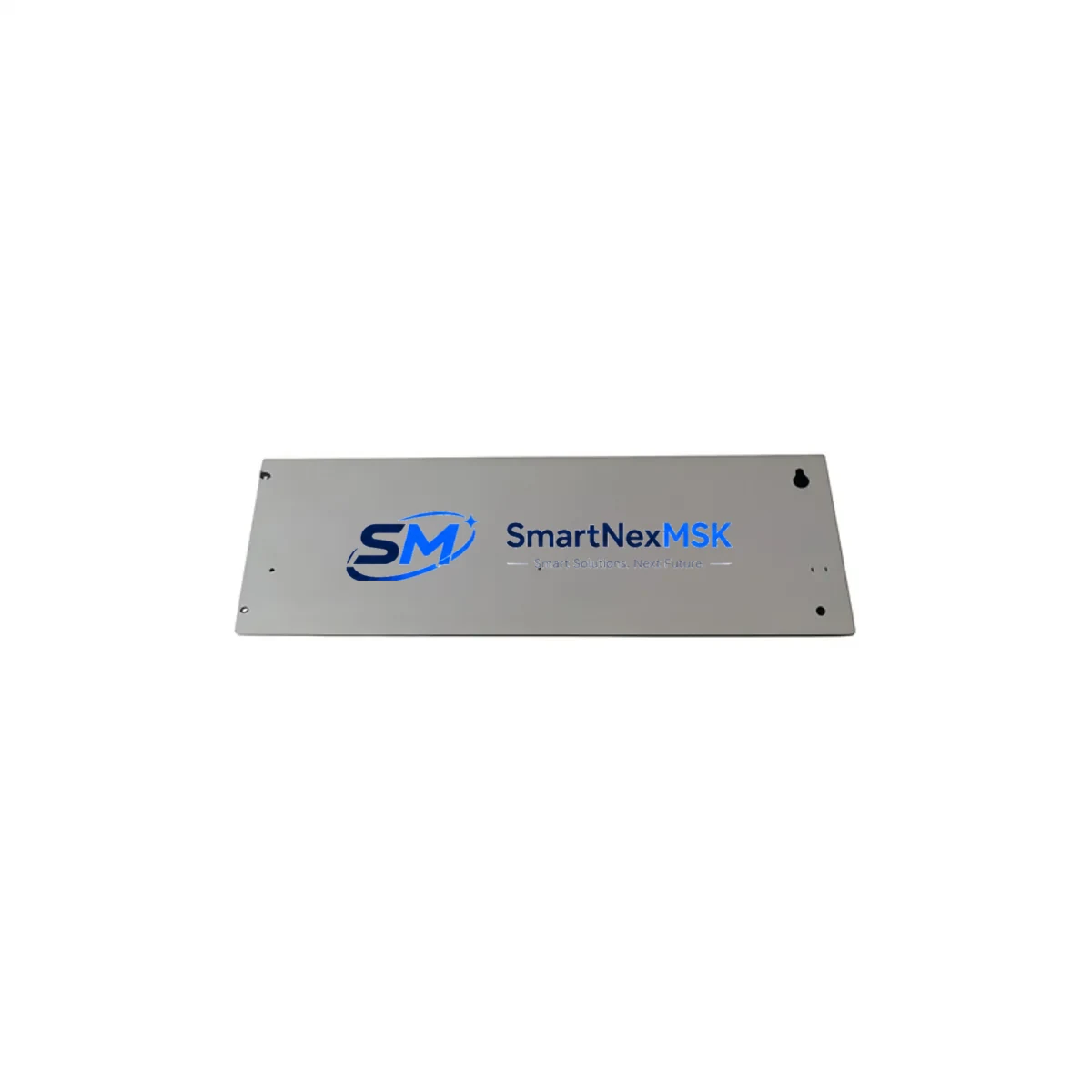

The Honeywell 2MLR-E08P is an 8-slot I/O expansion base designed for the Safety Manager SC (SMSC) safety instrumented system — a SIL 2/3-certified platform widely deployed in oil & gas, petrochemical, power generation, and process manufacturing facilities. As a maintenance-ready original spare, the 2MLR-E08P enables rapid slot restoration and I/O capacity recovery without requiring system reconfiguration or firmware changes. Every unit shipped by SMARTNEXMSK is sourced from verified supply channels, functionally tested prior to dispatch, and backed by a 12-month warranty.
Unplanned downtime caused by a failed or degraded I/O expansion base can cascade across an entire safety loop. Maintenance engineers managing Safety Manager SC installations should treat the 2MLR-E08P as a critical line item in their site spare parts inventory — particularly in aging facilities where original Honeywell hardware is no longer available through standard distribution channels.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 2MLR-E08P |
| Brand | Honeywell |
| Series | Safety Manager SC (SMSC) |
| Module Type | 8-Slot I/O Expansion Base |
| Safety Integrity Level | SIL 2 / SIL 3 Capable |
| Compatibility | Safety Manager SC chassis and I/O modules; compatible with SMSC I/O cards including digital input, digital output, and analog I/O modules |
| Backplane Interface | Internal SMSC backplane bus |
| Power Supply Requirement | Supplied via SMSC chassis power rail; verify 24 VDC bus integrity before installation |
| Operating Temperature | 0°C to +60°C |
| Mounting | DIN rail / panel mount per SMSC chassis standard |
| Weight | 470 g (approx.) |
| Origin | United States |
| Condition | Original, New or Refurbished-to-New Standard |
| Warranty | 12 Months from date of shipment |
| Pre-shipment Testing | Functional verification performed on every unit |
| Typical Lead Time | In-stock: 1–3 business days; sourced: 5–10 business days |
Maintenance Planning for Continuous Operation
When a 2MLR-E08P I/O expansion base is flagged for replacement during a scheduled turnaround or emergency callout, the scope of inspection should extend well beyond the base itself. A thorough maintenance review of the surrounding Safety Manager SC cabinet is essential to prevent repeat failures and ensure the restored safety loop meets its required SIL performance.
Begin by auditing the SMSC chassis power supply modules — a degraded or undersized power rail is a common root cause of I/O base instability. Verify that the Safety Manager SC controller module (such as the 2MLR-C200 or equivalent SMSC CPU card) is running current firmware and that its diagnostic LEDs show no latent faults. If the expansion base serves digital input channels, inspect the associated SMSC digital input modules (e.g., 2MLR-DI16P series) for contact wear, wiring integrity, and channel-level diagnostics.
For output-side circuits, check the SMSC digital output modules and any downstream safety relay modules or solenoid valve drivers connected to the I/O base slots. Relay coil resistance and contact continuity should be verified with a calibrated multimeter before the system is returned to service. Terminal blocks and field wiring terminations on the expansion base should be re-torqued to manufacturer specification — loose terminations are a leading cause of intermittent I/O faults in high-vibration process environments.
Communication integrity between the expansion base and the SMSC controller should be confirmed via the Safety Manager engineering workstation and its diagnostic software. If the site uses Honeywell Experion PKS as the supervisory DCS layer, verify that the SMSC node is correctly enumerated and that no communication alarms are present on the FTE (Fault Tolerant Ethernet) network interface. Where signal isolators or Zener barriers are installed between field instruments and the I/O base, inspect these components for thermal discoloration or degraded isolation resistance.
Procurement engineers should also consider stocking companion spares: the 2MLR-E04P 4-slot expansion base for smaller cabinet configurations, SMSC I/O module fuses, and backplane connector assemblies. Maintaining a minimum of one 2MLR-E08P unit on-site — alongside matched I/O cards — reduces mean time to repair (MTTR) from days to hours in the event of an unplanned failure.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the 2MLR-E08P part number against the installed unit’s label and the site’s as-built documentation. Cross-reference with the Safety Manager SC system configuration file to identify which I/O modules are seated in the expansion base and their channel assignments.
Step 2 — Safe isolation: Follow the site’s Management of Change (MOC) and Permit to Work (PTW) procedures. Place the affected safety loop in bypass or manual mode per the site’s Safety Instrumented Function (SIF) bypass procedure. Do not remove the expansion base while the safety system is in active demand mode.
Step 3 — Module extraction and documentation: Record the slot positions of all I/O modules before removal. Photograph the wiring and label all field cables. Remove I/O modules in sequence, then extract the 2MLR-E08P base from the chassis.
Step 4 — Spare installation: Seat the replacement 2MLR-E08P into the chassis, ensuring the backplane connector is fully engaged. Re-install I/O modules in their original slot positions. Reconnect and re-torque all field wiring terminations.
Step 5 — System restoration and functional test: Power up the chassis and confirm that the Safety Manager SC controller recognizes the expansion base and all I/O modules without fault codes. Perform a channel-level functional test for each I/O point before releasing the safety loop from bypass. Document the replacement in the site’s maintenance management system (CMMS).
This workflow is applicable whether replacing a failed unit on an emergency basis or executing a planned swap during a scheduled shutdown. The 2MLR-E08P’s form-factor compatibility with the SMSC chassis means no mechanical modifications are required, minimizing installation time and reducing the risk of configuration errors.
Spare Parts Support FAQ
Q1: Is the 2MLR-E08P still available as a new original spare?
A: Yes. SMARTNEXMSK maintains stock of original Honeywell 2MLR-E08P units sourced from verified supply channels. Each unit undergoes functional testing before shipment. For long-lead or high-volume requirements, contact our team for availability confirmation and lead time.
Q2: What is the warranty coverage and what does it include?
A: All 2MLR-E08P units ship with a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating conditions. Units are tested prior to dispatch; if a unit fails on arrival or within the warranty period, SMARTNEXMSK will arrange replacement or repair at no additional cost.
Q3: How do I verify compatibility with my existing Safety Manager SC installation?
A: The 2MLR-E08P is designed for the Safety Manager SC (SMSC) platform. Compatibility is confirmed by matching the chassis model, backplane revision, and SMSC firmware version against Honeywell’s published compatibility matrix. Our technical team can assist with compatibility verification if you provide your system’s configuration details.
Q4: Can you support long-term or recurring spare parts supply for our maintenance program?
A: Yes. SMARTNEXMSK supports planned maintenance programs with scheduled supply agreements, priority stock reservation, and multi-unit pricing for 2MLR-E08P and related SMSC components. Contact us to discuss a tailored spare parts support arrangement for your facility.
