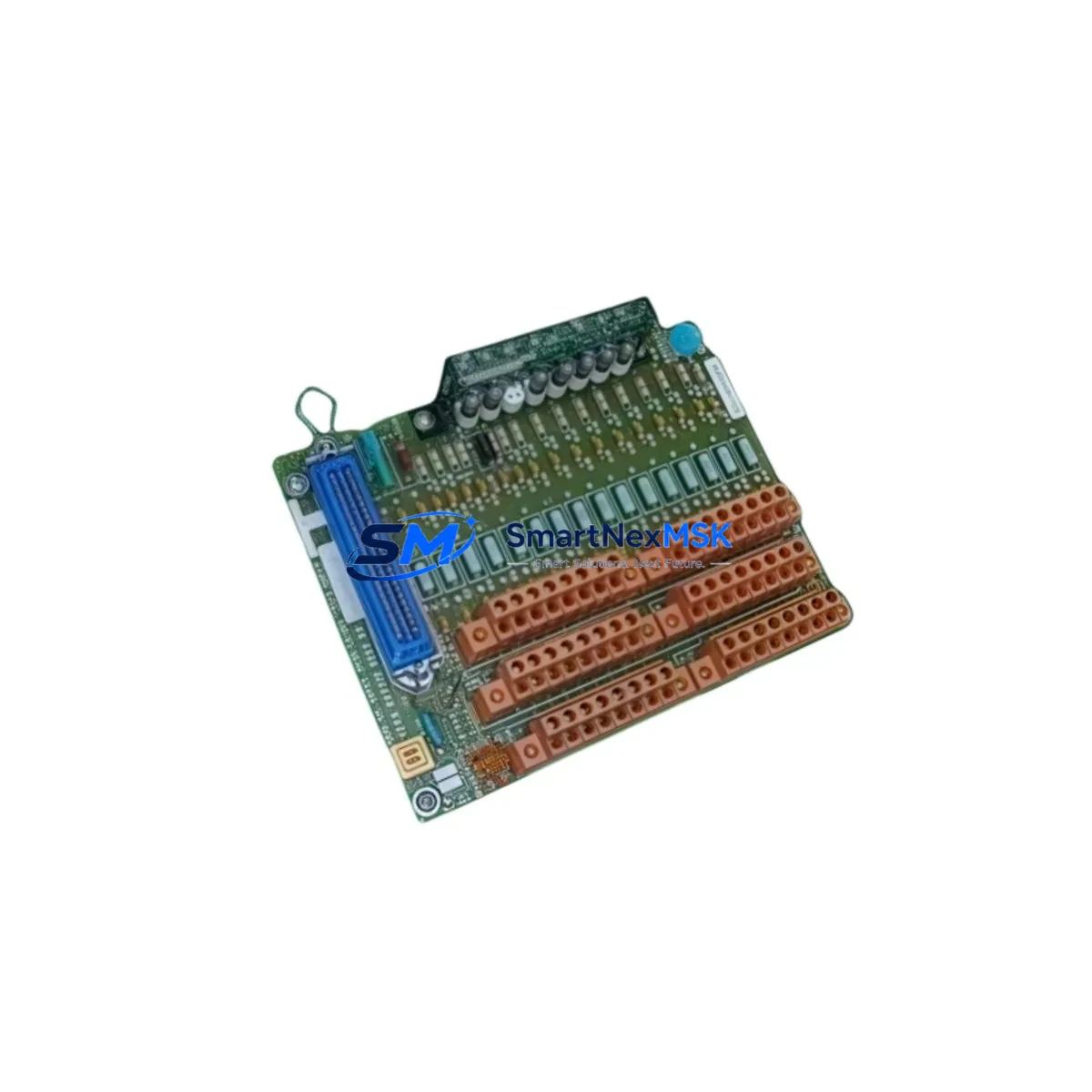

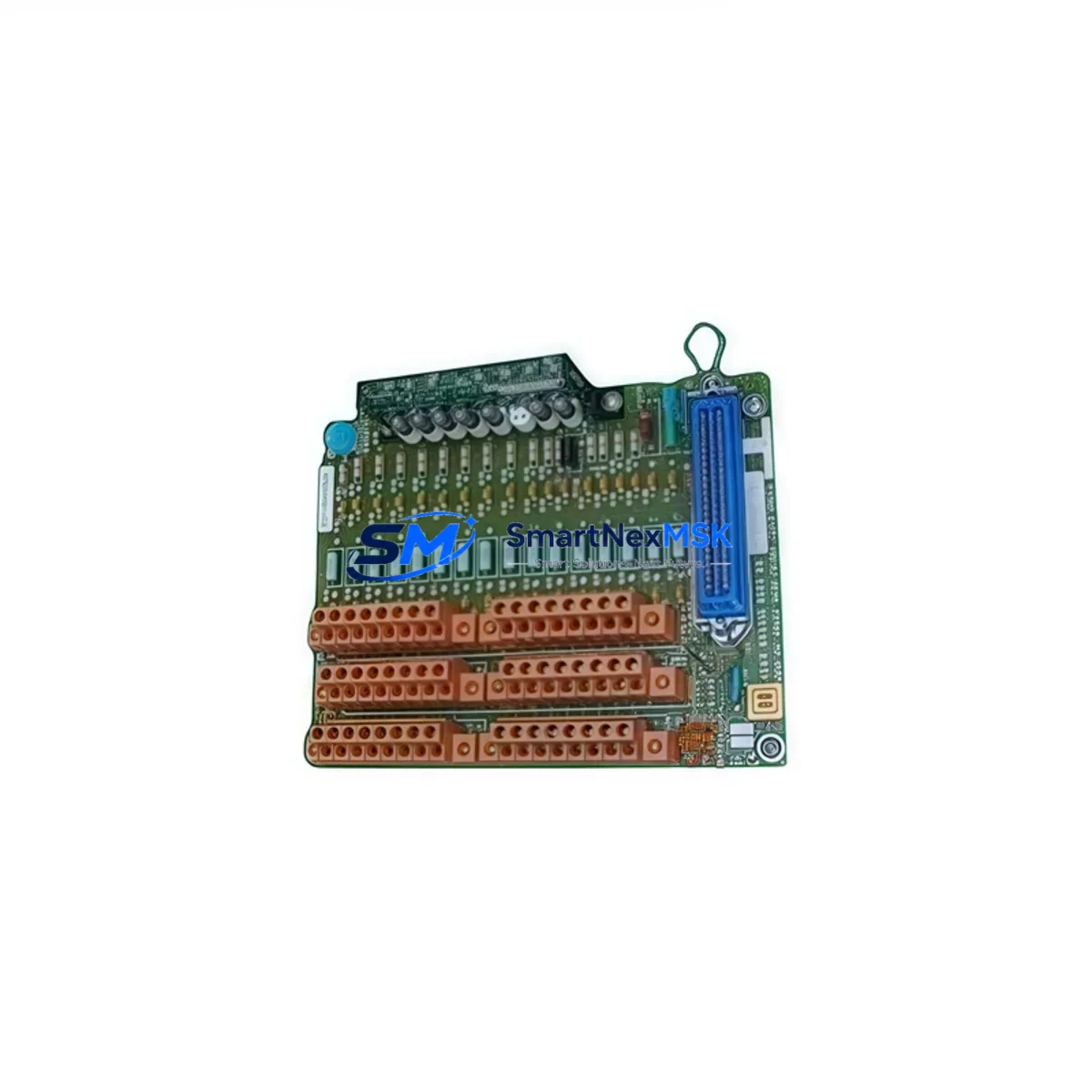

Honeywell 38001680-100 Safety-Enhanced DCS Control Module

Honeywell 38001680-100 Safety-Enhanced DCS Control Module for Harsh Industrial Sites

The Honeywell 38001680-100 is a ruggedized DCS control module engineered for the TDC 3000 distributed control system platform — one of the most widely deployed process automation architectures in the global petrochemical, power generation, and continuous manufacturing industries. Designed to operate reliably in high-load, high-interference environments, this module delivers the signal integrity, loop stability, and fault tolerance demanded by critical safety instrumented systems (SIS) and process control cabinets operating around the clock.

In heavy industrial environments — including offshore platforms, refinery control rooms, metallurgical smelting facilities, and municipal water treatment plants — control interruptions carry severe operational and safety consequences. The 38001680-100 addresses these risks directly. Its robust internal architecture resists signal drift caused by electromagnetic interference (EMI) and radio-frequency interference (RFI), which are endemic in environments where large variable-frequency drives, high-voltage switchgear, and motor control centers operate in close proximity to process control infrastructure.

Power supply fluctuations and transient surges are among the leading causes of module malfunction in industrial DCS environments. The Honeywell 38001680-100 is built to withstand these conditions, maintaining stable operation even when upstream power conditioning — such as the Honeywell MC-PDPY22 power distribution module or compatible 24 VDC bus systems — experiences momentary instability. When integrated with a properly configured TDC 3000 Universal Control Network (UCN) and supported by redundant power feeds, this module significantly reduces the risk of unplanned process shutdowns.

Communication integrity is equally critical in safety-sensitive control loops. The 38001680-100 interfaces seamlessly with the TDC 3000 data highway architecture, maintaining reliable node communication even under high network traffic loads. When paired with Honeywell Highway Gateway Modules (HGM) and Network Interface Modules (NIM), the system sustains deterministic communication latency — a prerequisite for time-critical interlock and emergency shutdown (ESD) sequences. Any communication anomaly that delays a safety response in a critical interlock loop can escalate into a process hazard; this module’s proven communication stability is therefore a direct safety asset.

For control cabinet integrators and plant maintenance engineers, the 38001680-100 is a direct replacement for aging or failed TDC 3000 control modules without requiring firmware reconfiguration or hardware redesign. It is compatible with standard TDC 3000 card cage assemblies and backplane connectors, enabling rapid field swap-out that minimizes mean time to repair (MTTR) during unplanned outages. Alongside complementary components such as the Honeywell MC-TAIH02 analog input module, MC-TAOY22 analog output module, and MC-TDIY22 digital input module, the 38001680-100 forms part of a coherent, interoperable control architecture that supports both legacy system maintenance and phased modernization programs.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing, including power-on verification, communication handshake confirmation, and visual inspection for connector integrity and board-level damage. Units are shipped in anti-static packaging with protective foam inserts to prevent transit damage. A 12-month warranty is provided on all modules, covering manufacturing defects and functional failures under normal operating conditions. Long-term supply continuity is maintained through established sourcing channels, ensuring availability for both immediate replacement needs and planned maintenance schedules.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust TDC 3000 control cabinet deployment extends well beyond a single module. The Honeywell 38001680-100 operates most reliably when integrated within a fully coordinated protection architecture. On the power side, a dedicated Honeywell MC-PDPY22 Power Distribution Module ensures stable, conditioned 24 VDC supply to all active modules in the card cage, buffering against upstream voltage sags and transient spikes that could otherwise cause module resets or data corruption. For applications requiring uninterrupted operation during grid disturbances, an external UPS (Uninterruptible Power Supply) rated for DCS panel loads provides an additional layer of power continuity.

On the signal side, the 38001680-100 works in concert with Honeywell MC-TAIH02 Analog Input Modules to receive 4–20 mA process signals from field transmitters — pressure, temperature, flow, and level instruments — with high common-mode rejection to suppress ground loop interference. Analog outputs are managed through MC-TAOY22 Analog Output Modules, which drive control valves and positioners with the precision required for tight regulatory control. Digital interlock signals are handled by MC-TDIY22 Digital Input Modules and MC-TDOY22 Digital Output Modules, forming the discrete logic backbone of emergency shutdown and safety interlock circuits.

Network integrity is maintained through Honeywell Highway Gateway Modules (HGM) and Network Interface Modules (NIM), which bridge the TDC 3000 data highway to higher-level supervisory systems and historian platforms. Surge protection on field wiring terminals — using DIN-rail mounted signal surge protectors rated for the applicable signal type — prevents lightning-induced or switching transients from propagating into the control module backplane. Together, these components form a layered defense against the most common causes of control system failure in harsh industrial environments.

Critical Industrial Safety Applications

The Honeywell 38001680-100 is deployed across a broad spectrum of safety-critical industrial sectors. In petrochemical and refinery operations, it supports continuous process control for distillation columns, reactor temperature regulation, and pressure relief interlock circuits — environments where a single control failure can trigger a cascade of safety events. In power generation facilities, including coal-fired, gas turbine, and combined-cycle plants, TDC 3000 modules manage boiler combustion control, turbine governor interfaces, and grid synchronization sequences that demand microsecond-level response consistency.

In mining and mineral processing operations, the module’s resistance to vibration, dust ingress, and wide ambient temperature swings makes it suitable for crusher control panels, conveyor interlock systems, and flotation cell automation. Water and wastewater treatment facilities rely on TDC 3000 infrastructure for dosing pump control, filtration sequencing, and effluent quality monitoring — applications where regulatory compliance and public safety are directly tied to control system reliability.

In metallurgical and steel production environments, the 38001680-100 withstands the intense electromagnetic noise generated by electric arc furnaces and induction heating systems, maintaining stable loop control for casting temperature regulation and rolling mill speed control. Port and bulk material handling facilities use TDC 3000 systems for ship loader sequencing, conveyor weighing, and dust suppression automation — all of which require continuous, unattended operation with minimal maintenance intervention. Across all these sectors, the 38001680-100 serves as a dependable, field-proven component that supports both ongoing production safety and long-term asset reliability.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Honeywell 38001680-100?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified control and communication functions within the warranty period, SMARTNEXMSK will provide a replacement unit or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or physical mishandling.

Q2: What pre-shipment testing is performed on each unit?
Every 38001680-100 module undergoes a structured pre-shipment inspection that includes power-on functional verification, TDC 3000 communication handshake testing, and a thorough visual inspection of backplane connectors, board components, and housing integrity. Units that do not pass all test criteria are quarantined and not shipped. Test records are maintained for traceability.

Q3: Is the 38001680-100 compatible with all TDC 3000 card cage configurations?
Yes. The 38001680-100 is designed to the TDC 3000 standard backplane specification and is compatible with all standard TDC 3000 card cage assemblies. It is a direct plug-in replacement for the original module without requiring firmware changes, hardware modifications, or system reconfiguration. Compatibility with specific system revisions can be confirmed by contacting our technical team with your system configuration details.

Q4: Can SMARTNEXMSK support long-term or repeat supply of this module?
Yes. SMARTNEXMSK maintains established sourcing channels for Honeywell TDC 3000 components, including the 38001680-100, to support both immediate emergency replacement needs and planned preventive maintenance programs. Customers operating large TDC 3000 installations are encouraged to discuss standing supply agreements to ensure priority access to stock. Contact our team at [email protected] or +86 18259474341 to discuss your long-term spare parts strategy.
