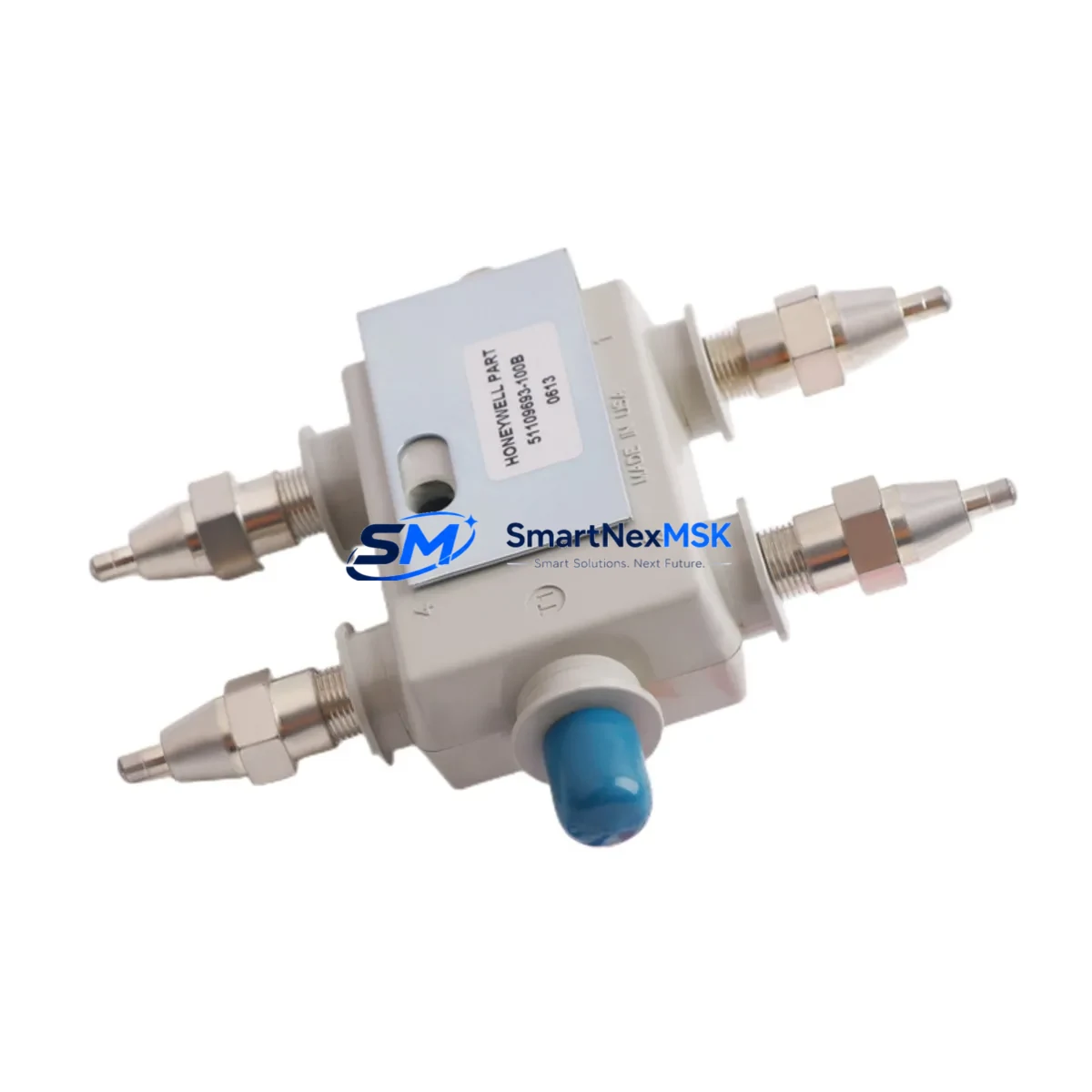

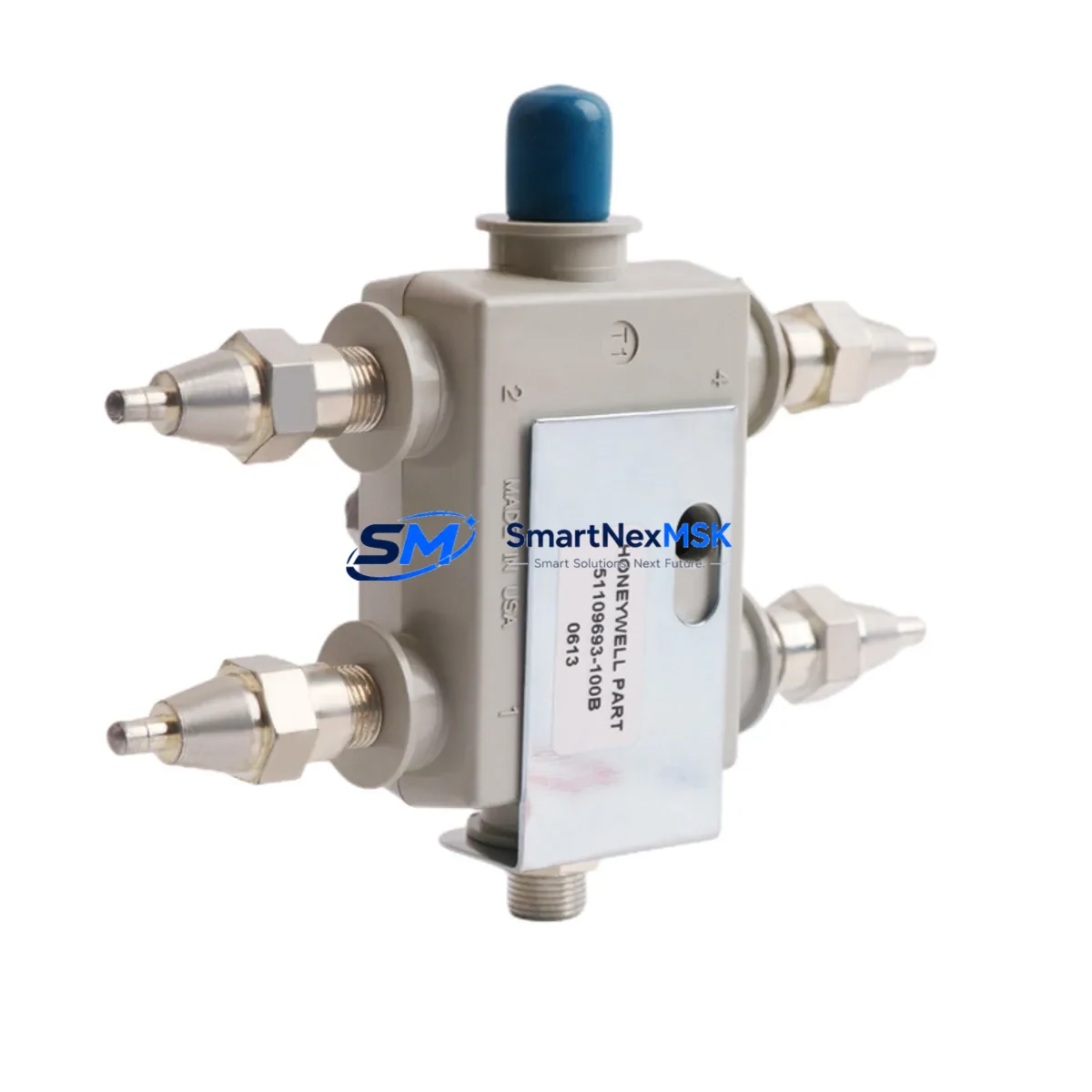

Honeywell 51109693-100B Retrofit-Ready Ground Tap for TDC 3000 Control Systems
The Honeywell 51109693-100B Ground Tap is a precision grounding component engineered for seamless integration into legacy TDC 3000 distributed control system architectures and their modern successors in the Experion PKS platform. As aging TDC 3000 installations approach end-of-support milestones, plant engineers and system integrators increasingly rely on verified drop-in replacements like the 51109693-100B to maintain electrical safety, signal integrity, and regulatory compliance without triggering a full control system overhaul. This component provides a reliable chassis ground reference point within the TDC 3000 card file and Universal Control Network (UCN) cabinet assemblies, ensuring that sensitive I/O modules, communication cards, and power supply units operate within their specified noise immunity thresholds.
When planning a retrofit or spare-parts replenishment for a TDC 3000 system, procurement teams must account for the full grounding chain. The 51109693-100B interfaces directly with the standard TDC 3000 card file backplane, and its terminal geometry is compatible with the existing cabinet wiring harnesses used across the High-Performance Process Manager (HPPM) and Advanced Process Manager (APM) subsystems. Engineers migrating from older Local Control Network (LCN) nodes to Experion PKS C300 controllers will find that the grounding topology remains consistent, allowing the 51109693-100B to serve as a validated carry-over component during phased migration projects.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platforms | Honeywell TDC 3000, Experion PKS (R400–R520), TPS (Total Plant Solution) |
| Replaces / Supersedes | 51109693-100, 51109693-100A (earlier revisions) |
| Installation Requirement | Standard TDC 3000 card file slot; no backplane modification required |
| Communication Compatibility | Passive grounding component; compatible with UCN, LCN, FTE (Fault Tolerant Ethernet) cabinet environments |
| Replacement Recommendation | Direct drop-in for 51109693-100A; verify torque spec on ground lug terminal (per TDC 3000 Installation Guide) |
| Commissioning Notes | Confirm chassis ground continuity with milliohm meter post-installation; re-verify shield drain wire terminations on adjacent I/O modules |
| Warranty | 12-Month Warranty — covers manufacturing defects and functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
A successful TDC 3000 retrofit begins well before the maintenance window opens. The 51109693-100B Ground Tap is typically addressed alongside a broader bill of materials that includes the Honeywell 51304485-100 Power Entry Module, which supplies regulated DC power to the card file, and the 51401469-200 UCN Interface Card, which maintains the high-speed process data highway between the HPPM and the operator console. When the grounding infrastructure is compromised — evidenced by intermittent I/O faults, nuisance alarms on the 51304516-150 Analog Input Module, or communication retries on the UCN — replacing the 51109693-100B is a low-risk, high-impact first step before escalating to more invasive card-level diagnostics.
For sites transitioning to the Experion PKS architecture, the retrofit scope typically expands to include the C300 Controller module, the IOTA (I/O Termination Assembly) panels, and the Series C FIM (Field Interface Module) for FOUNDATION Fieldbus or HART device integration. During this transition, the existing TDC 3000 cabinet grounding scheme — anchored by components like the 51109693-100B — must be preserved or replicated in the new enclosure to prevent ground loops that could corrupt 4–20 mA analog signals or introduce noise into the 51309276-175 Redundancy Module’s watchdog circuitry. Integrators should also verify that the 51198685-100 Cabinet Fan Assembly is operational, as thermal management directly affects the long-term reliability of grounding connections under load.
Terminal wiring adaptation is another critical checkpoint. The 51109693-100B uses standard M4 screw terminals compatible with the existing TDC 3000 cabinet wire gauge (typically 14–18 AWG stranded). When upgrading to Experion PKS IOLINK or Series C I/O, engineers must confirm that the new IOLINK Termination Panel’s ground bus accepts the same wire gauge and that the shield termination blocks — often the Honeywell 51309218-175 type — are re-torqued to specification. Skipping this step is a common source of post-retrofit EMI complaints in high-density I/O cabinets.
Downtime Control During System Migration
Minimizing unplanned downtime during a TDC 3000 grounding component replacement requires a structured hot-standby approach. Because the 51109693-100B is a passive component, its replacement does not require a controller restart or a UCN segment shutdown in most configurations — however, site-specific safety procedures must always govern the final decision. The recommended sequence is: (1) isolate the affected card file slot using the TDC 3000 Maintenance Panel, (2) document all existing wire terminations with photographic reference before removal, (3) install the 51109693-100B and re-terminate in reverse order, (4) perform a ground continuity check, and (5) restore the slot and monitor the HPPM status display for fault-free operation over a 15-minute observation window.
For sites running redundant HPPM pairs, the replacement can be staged across the primary and secondary controllers independently, ensuring continuous process control throughout the maintenance activity. The Honeywell Universal Station (US) or GUS (Global User Station) operator console should be monitored in parallel to catch any transient alarms triggered by the brief interruption of the ground reference. Program logic stored in the HPPM’s battery-backed RAM is not affected by this procedure, and no checkpoint or download operation is required post-replacement — preserving the integrity of all PID loops, sequence logic, and alarm configurations without reloading from the Engineering Workstation.
Retrofit Support FAQ
Q1: Is the 51109693-100B a direct replacement for the 51109693-100A?
Yes. The 51109693-100B is the current revision and is a verified drop-in replacement for the 51109693-100A and the original 51109693-100. No backplane modification, firmware update, or address reconfiguration is required. Verify the ground lug torque specification in the TDC 3000 Installation and Maintenance Guide before finalizing installation.
Q2: Does this component require any configuration or addressing after installation?
No. The 51109693-100B is a passive grounding component with no firmware, DIP switches, or software-configurable parameters. Installation is purely mechanical and electrical. Post-installation verification is limited to a continuity check and visual inspection of terminal connections.
Q3: What pre-shipment testing is performed on the 51109693-100B?
Each unit undergoes dimensional inspection and electrical continuity verification prior to shipment. Units are packaged in anti-static, moisture-resistant packaging consistent with IPC/JEDEC standards for sensitive electronic components. A 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment.
Q4: Can this component be used in an Experion PKS cabinet during a phased TDC 3000 migration?
Yes. The 51109693-100B is compatible with the grounding architecture used in both legacy TDC 3000 card file enclosures and Experion PKS cabinet assemblies that retain the original TDC 3000 backplane infrastructure during phased migration. For fully new Experion PKS Series C enclosures, consult the Experion PKS Cabinet Grounding Specification to confirm terminal compatibility before installation.
