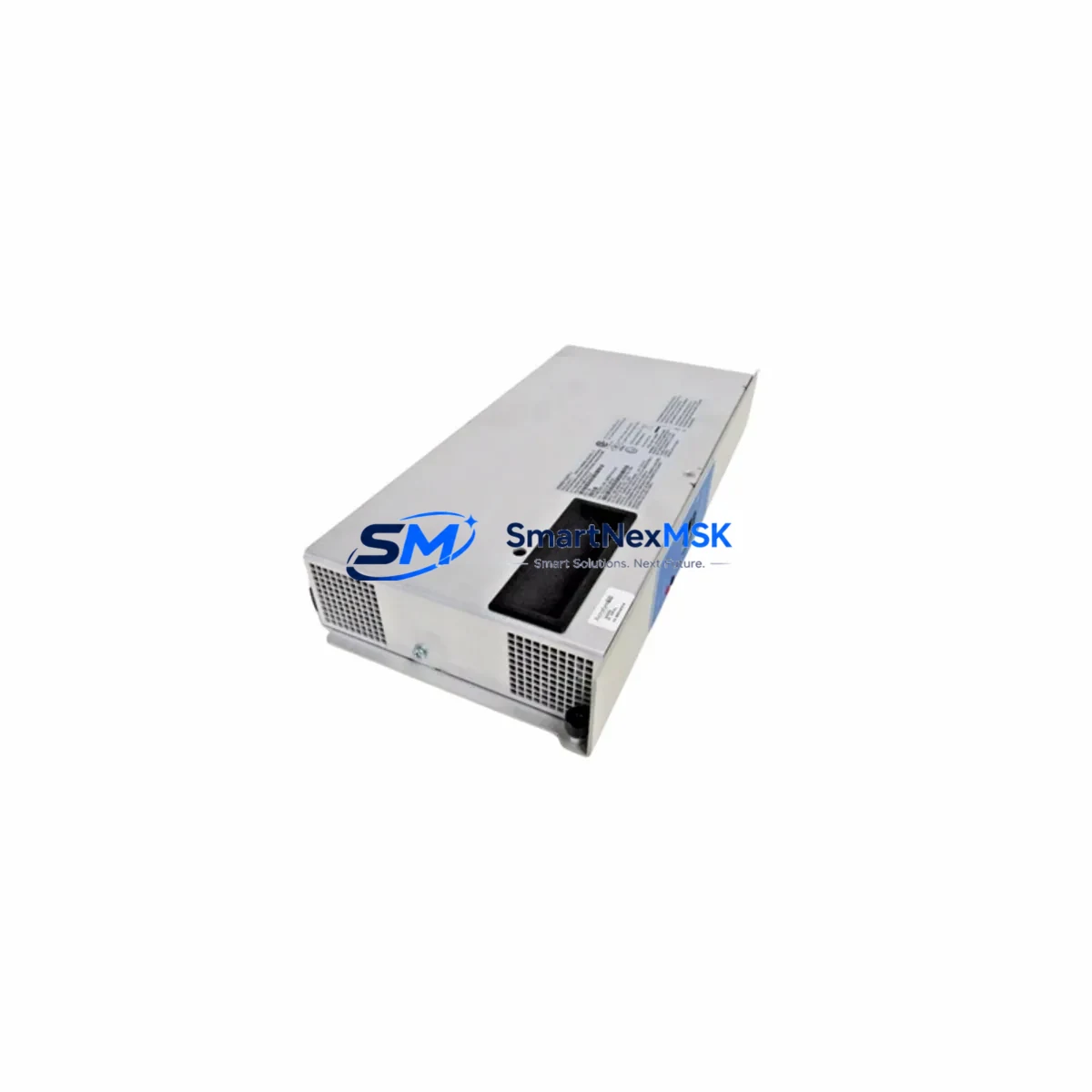

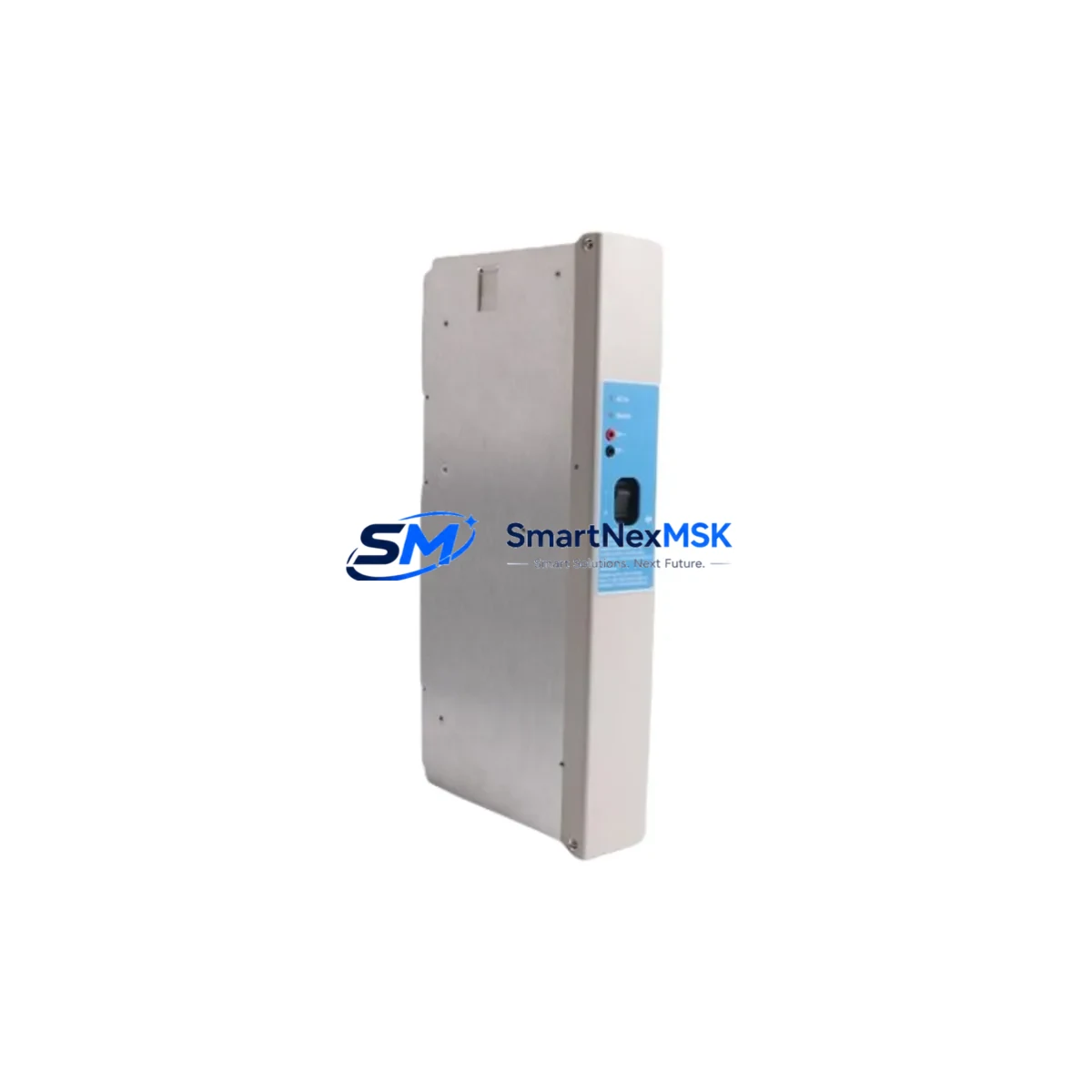

Honeywell 51198685-100 SPS5710-2-LF Retrofit-Ready DCS Power Supply

Honeywell 51198685-100 SPS5710-2-LF Retrofit-Ready DCS Power Supply for Experion PKS & TPS Control Systems

The Honeywell 51198685-100 (SPS5710-2-LF) is a high-reliability DCS power supply module engineered for seamless integration into Honeywell Experion PKS and legacy TPS (TotalPlant Solution) distributed control architectures. As aging power supply modules reach end-of-life or become unavailable through standard procurement channels, the 51198685-100 SPS5710-2-LF serves as a verified retrofit-ready replacement that preserves existing backplane wiring, rack mounting geometry, and system power budgets — minimizing engineering rework and unplanned downtime during modernization projects.

Industrial facilities operating Honeywell C300 controllers, EPLCG gateway modules, or legacy LCN (Local Control Network) nodes frequently encounter power supply degradation as the primary cause of unplanned shutdowns. The SPS5710-2-LF addresses this directly by delivering stable, regulated DC output within the original form factor, allowing maintenance teams to execute hot-swap replacements on redundant power configurations without interrupting the control loop or triggering process alarms.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 51198685-100 SPS5710-2-LF into an existing control cabinet begins with a thorough power audit. Engineers should calculate the aggregate current draw of all installed modules — including Honeywell SM Series I/O modules, HLAI (High-Level Analog Input) cards, LLAI (Low-Level Analog Input) cards, and any co-located communication modules such as the Honeywell FTE (Fault Tolerant Ethernet) switch or ENIM (Ethernet Network Interface Module) — to confirm the replacement supply can sustain the full rack load with adequate margin.

Terminal wiring on the power carrier assembly should be inspected and re-torqued to specification before the new module is seated. In systems where the original SPS5710 series supply has been in service for more than five years, it is common to find oxidized terminal contacts or loose backplane connector pins that can cause intermittent power faults even after a module swap. Cleaning and re-seating the backplane connector on the Honeywell I/O chassis is recommended as part of the retrofit procedure.

For facilities running parallel LCN and Experion PKS architectures during a phased migration, the power supply replacement must be coordinated with the C200 or C300 controller redundancy switchover sequence. Maintenance teams should confirm that the standby controller node — often housed in an adjacent Honeywell FTA (Field Termination Assembly) cabinet — is fully operational before initiating the primary power supply swap. This ensures that any transient voltage dip during module insertion does not propagate to field instruments or cause the Honeywell UCN (Universal Control Network) to log spurious communication errors.

Where the control system includes Honeywell PMIO (Process Manager I/O) racks or legacy HPM (High-Performance Process Manager) nodes, the power supply replacement sequence should be documented in the site’s Management of Change (MOC) procedure. The SPS5710-2-LF’s compatibility with standard Honeywell power carrier assemblies means that no modifications to the HPM chassis or PMIO backplane are required, significantly reducing the scope of the MOC and the associated safety review timeline.

After physical installation, verify the output voltage at the backplane test points using a calibrated multimeter before restoring the rack to service. Cross-reference the measured values against the Honeywell system power specification sheet for the installed I/O complement. Once confirmed, restore the redundant power path and monitor the Experion PKS Station alarm summary for a minimum of 15 minutes to confirm stable operation before releasing the system to process control.

Downtime Control During System Migration

Minimizing process interruption during a DCS power supply replacement requires disciplined pre-staging and a clearly defined rollback plan. Before the maintenance window opens, the replacement 51198685-100 SPS5710-2-LF should be bench-tested under a representative load to confirm output stability and verify that all LED indicators respond correctly. This pre-shipment functional test — included as standard with every unit supplied by SMARTNEXMSK — eliminates the risk of installing a non-functional module during a live maintenance window.

Where the Honeywell Experion PKS system is configured with redundant power supplies, the migration can be executed without a full process shutdown. The procedure involves transferring the load to the healthy supply, removing the failed or end-of-life module, inserting the SPS5710-2-LF, confirming output, and then rebalancing the load across both supplies. This approach keeps the C300 controller, associated SM I/O modules, and the Experion Station HMI displays continuously powered throughout the procedure, preserving all active control loops and historian data collection without interruption.

For single-supply configurations or systems without redundancy, the maintenance window should be coordinated with the process operations team to identify the lowest-impact period. The original PLC or DCS program logic stored in the C200/C300 controller’s non-volatile memory is not affected by a power supply replacement — program integrity is maintained across power cycles, so there is no requirement to reload or re-download the control strategy after the swap. HMI faceplates on the Experion Station will resume normal display automatically once the controller re-establishes communication with the I/O network following power restoration.

Communication links — including Profibus DP segments, HART field device connections, and FTE network paths — should be verified post-restoration using the Experion PKS diagnostic tools before the system is returned to automatic control mode. Any communication faults logged during the power interruption should be acknowledged and cleared from the alarm summary before handover to the operations team.

Retrofit Support FAQ

Q1: Is the 51198685-100 SPS5710-2-LF a direct drop-in replacement for the original SPS5710 series power supply?
Yes. The SPS5710-2-LF is dimensionally and electrically compatible with the standard Honeywell DCS power carrier assembly used across Experion PKS and TPS platforms. No chassis modification, wiring change, or firmware update is required. The module seats directly into the existing power slot and is recognized by the system immediately upon power-up.

Q2: What commissioning steps are required after installing the replacement module?
After seating the module, verify DC output voltage at the backplane test points, confirm LED status indicators show normal operation, and monitor the Experion PKS alarm summary for a minimum of 15 minutes. For redundant configurations, confirm load sharing between the primary and secondary supplies. No software configuration or address assignment is required for this passive power module.

Q3: Will the replacement affect existing wiring, terminal connections, or field instrument calibration?
No field wiring changes are required. The SPS5710-2-LF connects exclusively via the backplane power connector. Field instrument wiring, HART device configurations, and I/O channel calibration data stored in the Honeywell SM I/O modules are unaffected by the power supply replacement. Terminal blocks on associated FTA panels do not need to be disturbed.

Q4: What does the 12-month warranty cover, and what is the shipping lead time?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. SMARTNEXMSK maintains stock of the 51198685-100 SPS5710-2-LF for prompt dispatch. Units are pre-tested prior to shipment. For urgent requirements, expedited shipping options are available. Contact sales@smartnexmsk.com or call +86 18259474341 to confirm current stock availability and lead time.
