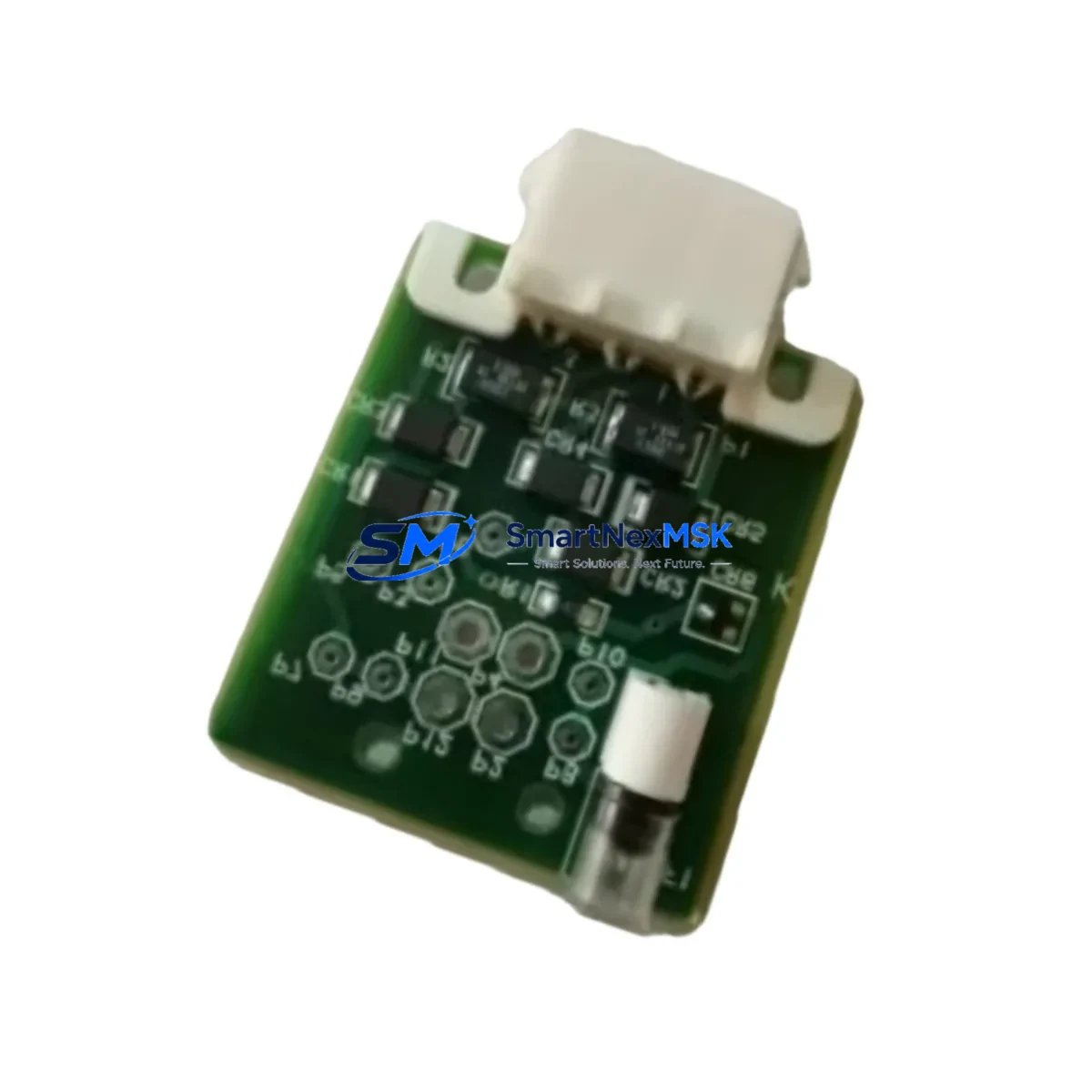

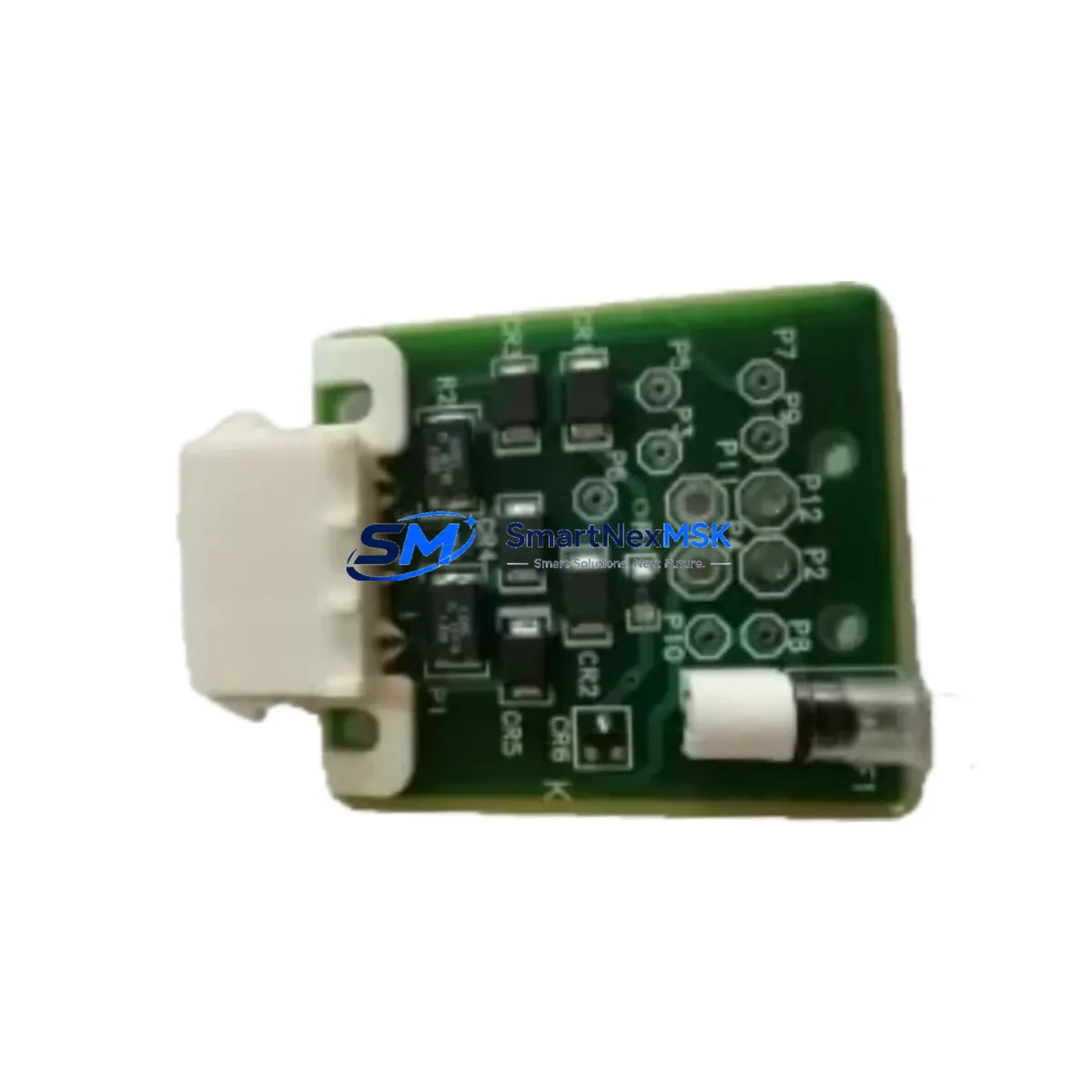

Honeywell 51202304-100 Safety-Enhanced Digital Input Module

Honeywell 51202304-100 Safety-Enhanced Digital Input Module: Reliable Control in Harsh Industrial Sites

The Honeywell 51202304-100 is a ruggedized DCS digital input module engineered for continuous, safety-critical operation within the Honeywell TDC 3000 Process Manager (PM) and Advanced Process Manager (APM) control architectures. Designed to perform reliably under high electrical noise, thermal stress, and demanding process environments, this module serves as a foundational component in industrial control cabinets where signal integrity and uptime are non-negotiable.

In high-load continuous production facilities — including petrochemical plants, power generation stations, metallurgical smelters, and water treatment infrastructure — digital input modules are the first line of defense against control loop disruption. The 51202304-100 captures discrete field signals from limit switches, proximity sensors, valve position feedback, and safety interlock devices, converting them into reliable process data for the DCS controller. Any signal drift, contact bounce, or input misread at this stage can cascade into false alarms, spurious shutdowns, or — in worst-case scenarios — undetected process hazards. The 51202304-100 is built to prevent exactly these failure modes.

Its ruggedized design addresses the core vulnerabilities of digital input circuits in harsh environments: susceptibility to electromagnetic interference (EMI), ground loop noise, power supply transients, and surge events from nearby high-voltage switching equipment. The module’s isolated input channels suppress common-mode noise and protect the backplane from field-side voltage spikes, ensuring that the Honeywell PM/APM processor card receives clean, stable logic signals even when installed adjacent to variable frequency drives, large motor starters, or high-current bus bars.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered TDC 3000 control cabinet, the 51202304-100 digital input module does not operate in isolation — it functions as part of a coordinated protection and control architecture. Upstream, field signals arrive through marshalling panels and terminal blocks, often routed via Honeywell 51304485-100 cable assemblies or equivalent field wiring harnesses that maintain signal shielding integrity from the junction box to the card cage. Proper cable management at this stage is critical to preventing induced noise from corrupting the discrete input states read by the module.

Within the same PM or APM chassis, the 51202304-100 works alongside Honeywell 51202329-100 digital output modules to form complete interlock and control loops — inputs confirming field device states, outputs commanding actuators in response. For analog process variables feeding into the same control strategy, Honeywell 51304516-150 analog input modules handle 4–20 mA signals from transmitters, while the digital input module manages the discrete status signals from safety valves, motor run contacts, and high-level switches.

Power stability across the card cage is maintained by the Honeywell 51190947-100 power supply module, which provides regulated DC power to all installed cards. A failed or degraded power supply is one of the most common root causes of intermittent module faults and unexplained input state changes — making the power supply a critical companion component to inspect and maintain alongside the digital input module. For redundant power architectures, a secondary Honeywell 51190947-200 unit is recommended to eliminate single-point power failure risk.

Communication integrity between the PM/APM and the plant-wide control network depends on the Honeywell 51401642-150 UCN node card and associated LCN interface modules. If the network card develops faults, the digital input module’s status data may fail to reach the operator console — creating a dangerous blind spot in process monitoring. Regular diagnostics on both the network cards and the input modules are essential in safety-instrumented system (SIS) environments. Additionally, the Honeywell 51198685-100 personality module paired with the digital input card defines its channel configuration and must be verified for compatibility during any module replacement.

Critical Industrial Safety Applications

The Honeywell 51202304-100 is deployed across a wide range of heavy industrial and process-critical environments where control system reliability directly impacts personnel safety and production continuity.

In petrochemical and refinery operations, this module monitors emergency shutdown (ESD) valve position feedback, high-pressure switch inputs, and flame detector discrete outputs within safety instrumented systems. Its optically isolated channels prevent ground faults in hazardous area field wiring from propagating into the DCS backplane — a critical protection feature in ATEX and IECEx classified zones.

In thermal and hydroelectric power generation, the module captures turbine trip signals, breaker status inputs, and generator protection relay contacts. The ability to reliably read high-speed discrete transitions without debounce errors is essential in these applications, where a missed or delayed input can result in equipment damage or grid instability.

In mining and mineral processing, the 51202304-100 monitors conveyor belt safety switches, crusher overload contacts, and ventilation fan run-status inputs. These environments subject control hardware to extreme vibration, dust ingress, and wide temperature swings — conditions the ruggedized module is specifically designed to withstand over extended service intervals.

In water and wastewater treatment, the module reads pump run/fault contacts, valve open/close limit switches, and level switch inputs across distributed pump stations. Reliable discrete input monitoring prevents overflow events and ensures compliance with environmental discharge regulations.

In metallurgical and steel production facilities, the module is integrated into furnace control and rolling mill interlock systems, where it reads high-temperature safety switch inputs and equipment protection relay contacts in environments with intense electromagnetic interference from induction heating equipment.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Honeywell 51202304-100?
The 12-month warranty covers all functional defects arising under normal operating conditions. If the module fails to perform its specified digital input functions within the warranty period, we provide a replacement or full refund. The warranty period begins from the date of shipment and applies to the specific unit supplied.

Q2: How is the 51202304-100 tested before shipment?
Every unit undergoes a multi-stage outgoing inspection process: visual inspection for physical damage, board-level continuity checks, and functional verification in a TDC 3000-compatible test environment. Input channel response, isolation integrity, and backplane communication are all validated before the module is cleared for shipment. A test record is available upon request.

Q3: Is this module compatible with all TDC 3000 PM and APM configurations?
The 51202304-100 is designed for use within the Honeywell TDC 3000 Process Manager and Advanced Process Manager card cage architectures. Compatibility depends on the specific backplane revision and personality module pairing in your installation. We recommend confirming your existing card cage revision and personality module part number before ordering. Our technical team can assist with compatibility verification.

Q4: Can you guarantee long-term supply availability for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated inventory of Honeywell TDC 3000 series modules to support long-term spare parts programs for facilities that cannot migrate to newer DCS platforms. We can accommodate blanket orders, scheduled releases, and priority allocation agreements for customers with critical uptime requirements. Contact our sales team to discuss a supply continuity arrangement tailored to your maintenance schedule.
