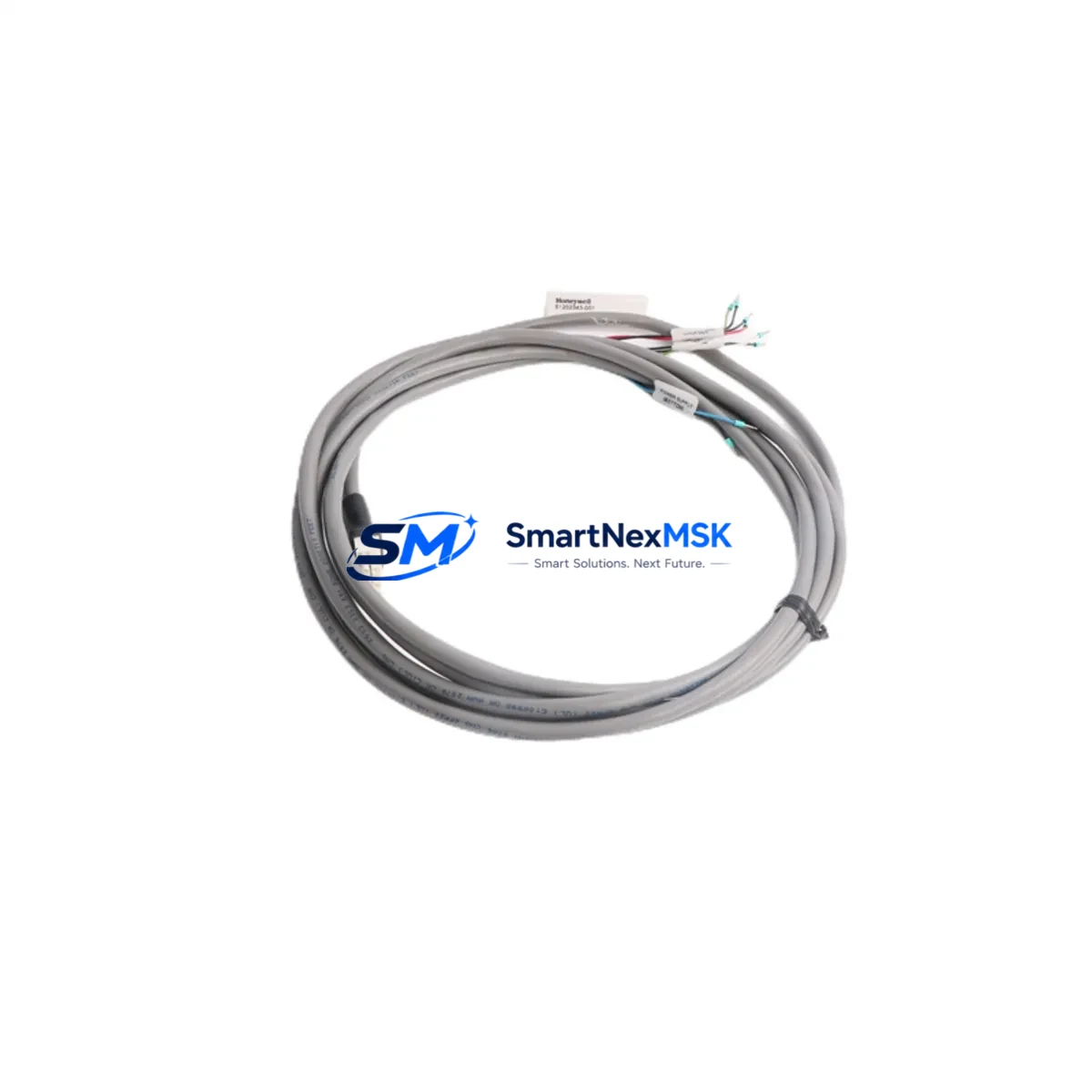

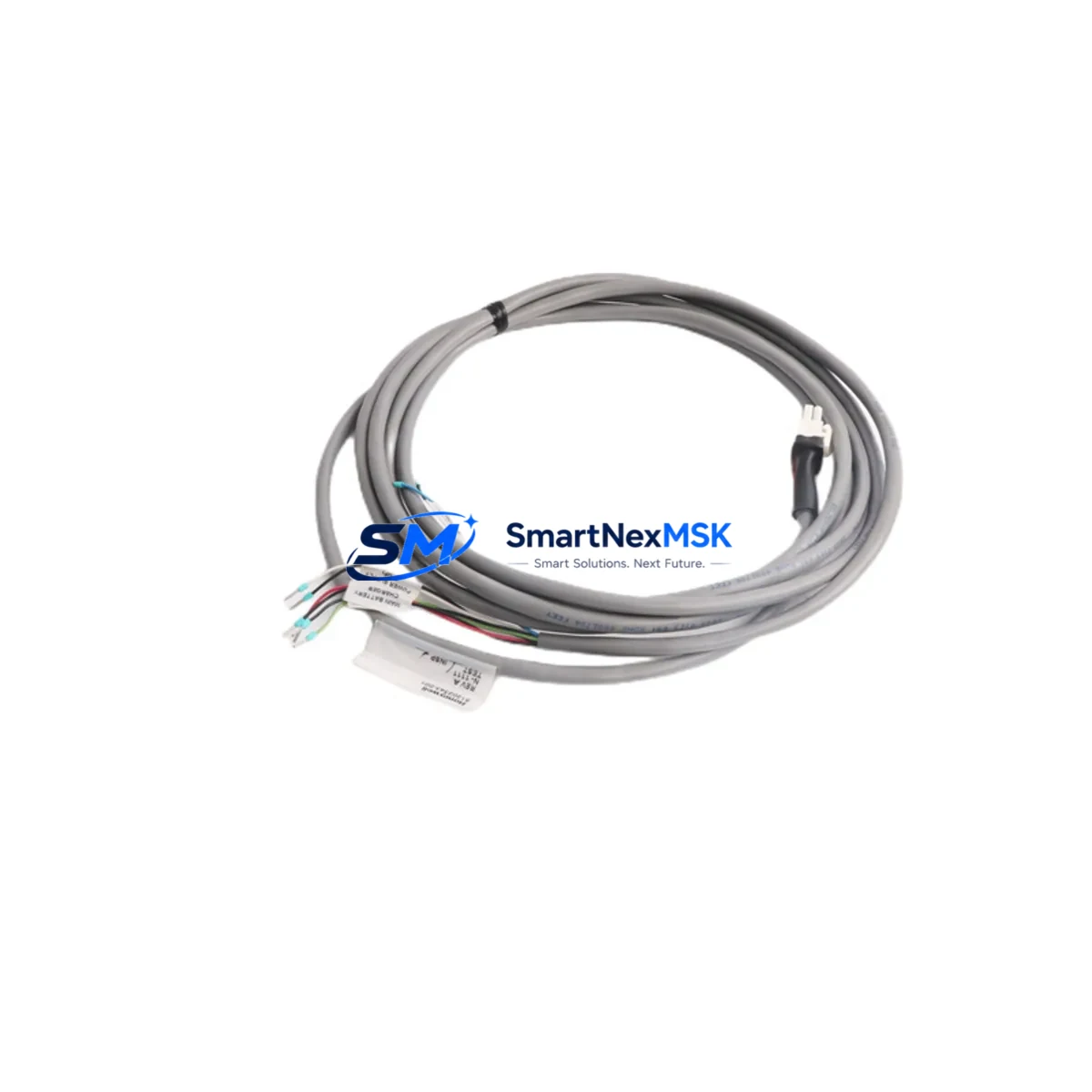

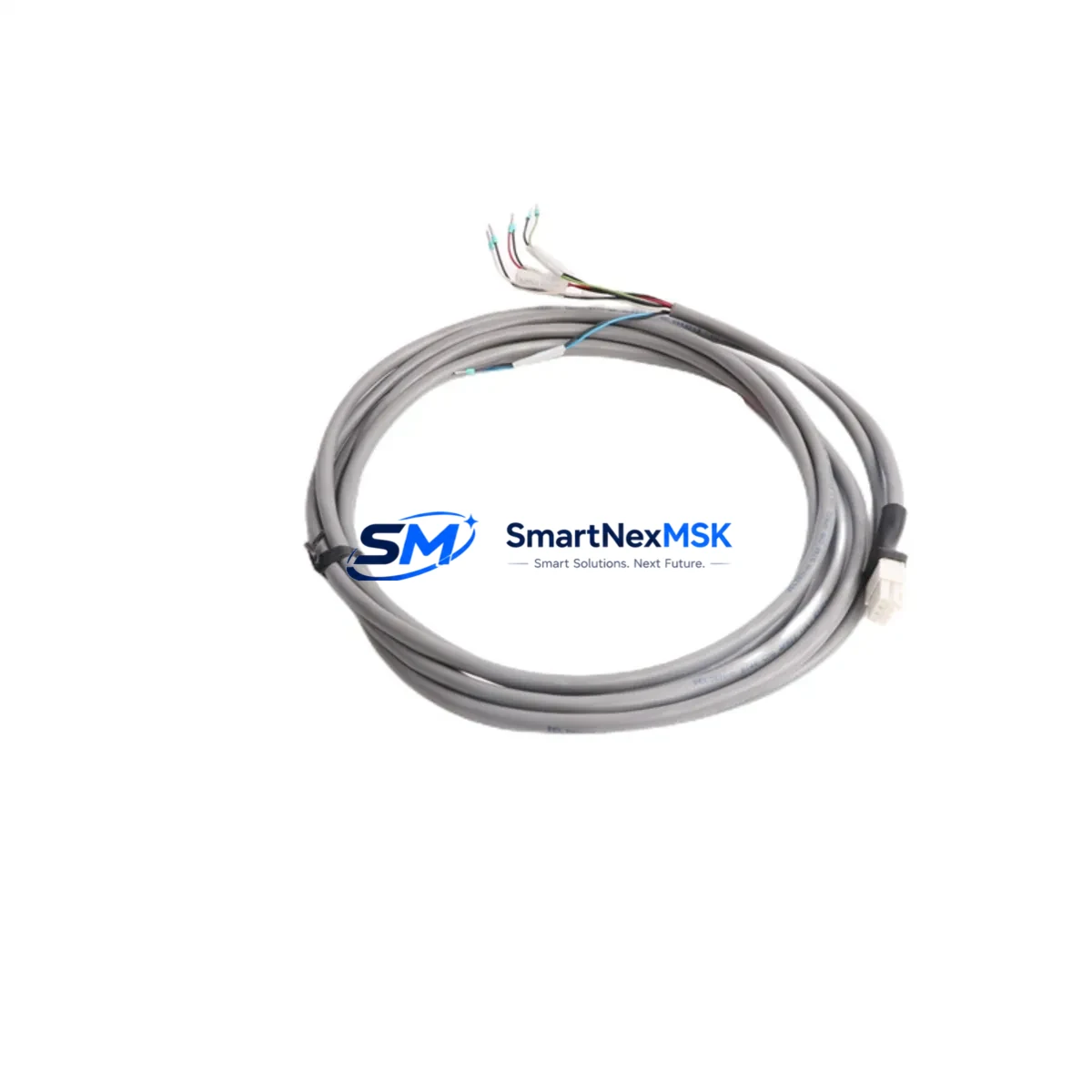

Honeywell 51202343-001 Retrofit-Ready PSU Status Cable for Experion PKS Control Systems
The Honeywell 51202343-001 is a PSU Status Cable designed for use within the Experion PKS distributed control system platform. As legacy Honeywell TDC 3000 and PlantScape systems reach end-of-life, the 51202343-001 serves as a critical retrofit component enabling engineers to maintain power supply monitoring continuity during control cabinet upgrades, backplane replacements, and I/O expansion projects. This cable assembly provides a direct, wiring-compatible replacement path for facilities transitioning from older Honeywell DCS architectures to current Experion PKS C300 and C200 controller environments.
Before integrating the 51202343-001 into an existing control cabinet, engineers should verify the power supply rail voltage (typically 24 VDC), confirm terminal block pinout compatibility against the existing PSU module — such as the Honeywell MC-PDOY22 or MC-PAIH02 power distribution assemblies — and validate that the cable routing does not conflict with adjacent I/O modules or the IOTA backplane assembly. Where the original cable was routed through a Honeywell CC-TAIX11 or CC-TAOX11 termination assembly, the 51202343-001 should be verified for connector keying and locking tab orientation prior to final installation.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 51202343-001 |
| Compatible Platform | Honeywell Experion PKS (C200, C300), TDC 3000, PlantScape |
| Cable Function | PSU Status Signal Monitoring |
| Connector Interface | Compatible with Experion PKS backplane and PSU module connectors |
| Installation Requirement | No backplane modification required; direct drop-in replacement |
| Communication Compatibility | Passive signal cable; compatible with FTE (Fault Tolerant Ethernet) and CEE network architectures |
| Replacement Recommendation | Replaces OEM 51202343-001; suitable for obsolete TDC 3000 PSU cable assemblies |
| Commissioning Note | Verify PSU status LED response after installation; confirm signal continuity with multimeter before energizing |
| Warranty | 12-Month Warranty — covers manufacturing defects and signal integrity |
| Origin | China (Xiamen) |
Retrofit Planning for Existing Automation Systems
Successful integration of the 51202343-001 into a live Experion PKS environment requires a structured retrofit plan. Engineers typically begin by auditing the existing control cabinet layout, identifying the PSU module slot position on the Honeywell IOTA backplane, and confirming that the Honeywell CC-PWRR01 or equivalent redundant power supply module is correctly seated. The 51202343-001 cable connects the PSU status output to the controller chassis monitoring circuit, and any interruption in this signal path can trigger nuisance alarms on the Experion PKS Station HMI or the Honeywell Experion PKS Console Station running on Windows Server.
During cabinet upgrades that involve replacing a Honeywell MC-PDOY22 digital output module or adding a Honeywell CC-TAIX11 analog input termination assembly, the PSU status cable routing must be re-verified. In projects where the control system is being migrated from TDC 3000 to Experion PKS, the 51202343-001 is often required alongside a Honeywell C300 Process Controller, a CC-PCNT01 pulse counter module, and updated FTE network switches to complete the migration bill of materials. Communication protocol migration from legacy Modbus RTU to FTE should be validated at the network layer before the PSU status cable is reconnected to the live backplane.
For I/O expansion projects, where additional Honeywell CC-TAIX11 or CC-TAOX11 IOTA assemblies are being added to an existing rack, the 51202343-001 must be re-routed to accommodate the new module positions. Engineers should also confirm that the Honeywell Experion PKS Control Builder software reflects the updated I/O map and that any associated Cause and Effect matrix entries referencing PSU status alarms are updated accordingly. Where a Honeywell HC900 hybrid controller is present in the same control room, cross-system PSU status monitoring should be validated independently.
Downtime Control During System Migration
Minimizing unplanned downtime during a PSU status cable replacement or DCS migration is a primary concern for plant operations teams. The recommended approach is to pre-stage the 51202343-001 alongside all associated components — including the replacement PSU module, spare IOTA backplane connectors, and updated Experion PKS Control Builder configuration files — before scheduling a planned maintenance window. Where the process allows, a hot-standby redundant PSU configuration using the Honeywell CC-PWRR01 can maintain control continuity while the primary PSU status cable is being replaced.
Engineers should export and archive the current Experion PKS Control Builder project, including all controller tags, alarm setpoints, and HMI faceplates, before beginning any physical cable work. This ensures that if a configuration rollback is required, the original program logic can be restored without re-engineering. After the 51202343-001 is installed, a staged power-up sequence — energizing the PSU module first, then confirming status signal continuity, then bringing the C300 controller online — reduces the risk of nuisance trips or false PSU fault alarms propagating to the Experion PKS Station HMI. Field commissioning should include a functional test of the PSU status alarm in the DCS historian and a confirmation that the Experion PKS Alarm Summary reflects the correct PSU health state before returning the system to automatic control.
Retrofit Support FAQ
Q1: Is the 51202343-001 a direct drop-in replacement for the original Honeywell PSU status cable?
Yes. The 51202343-001 is manufactured to OEM specifications and is a direct wiring-compatible replacement. No backplane modification or re-termination is required in standard Experion PKS C200 and C300 installations. Verify connector orientation and locking tab engagement before energizing.
Q2: What commissioning steps are required after installing the 51202343-001?
After physical installation, use a calibrated multimeter to verify signal continuity across the cable assembly. Power up the PSU module and confirm that the PSU status LED on the Honeywell controller chassis illuminates correctly. Check the Experion PKS Station HMI Alarm Summary to confirm no PSU fault alarms are active. Log the installation in the plant maintenance management system.
Q3: Can the 51202343-001 be used in TDC 3000 to Experion PKS migration projects?
Yes. The 51202343-001 is commonly specified in TDC 3000 to Experion PKS migration bills of materials. During migration, confirm that the PSU module slot assignment in the new Experion PKS rack matches the original TDC 3000 cabinet layout, and update the Experion PKS Control Builder I/O configuration to reflect the new PSU status signal source.
Q4: What warranty coverage applies to the 51202343-001?
All 51202343-001 units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and signal integrity failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims are supported by our technical team at sales@smartnexmsk.com.
