Honeywell 51301874-100 Spare for TDC 3000 Automation: Spare Parts Replacement & Industrial Downtime Risk Control

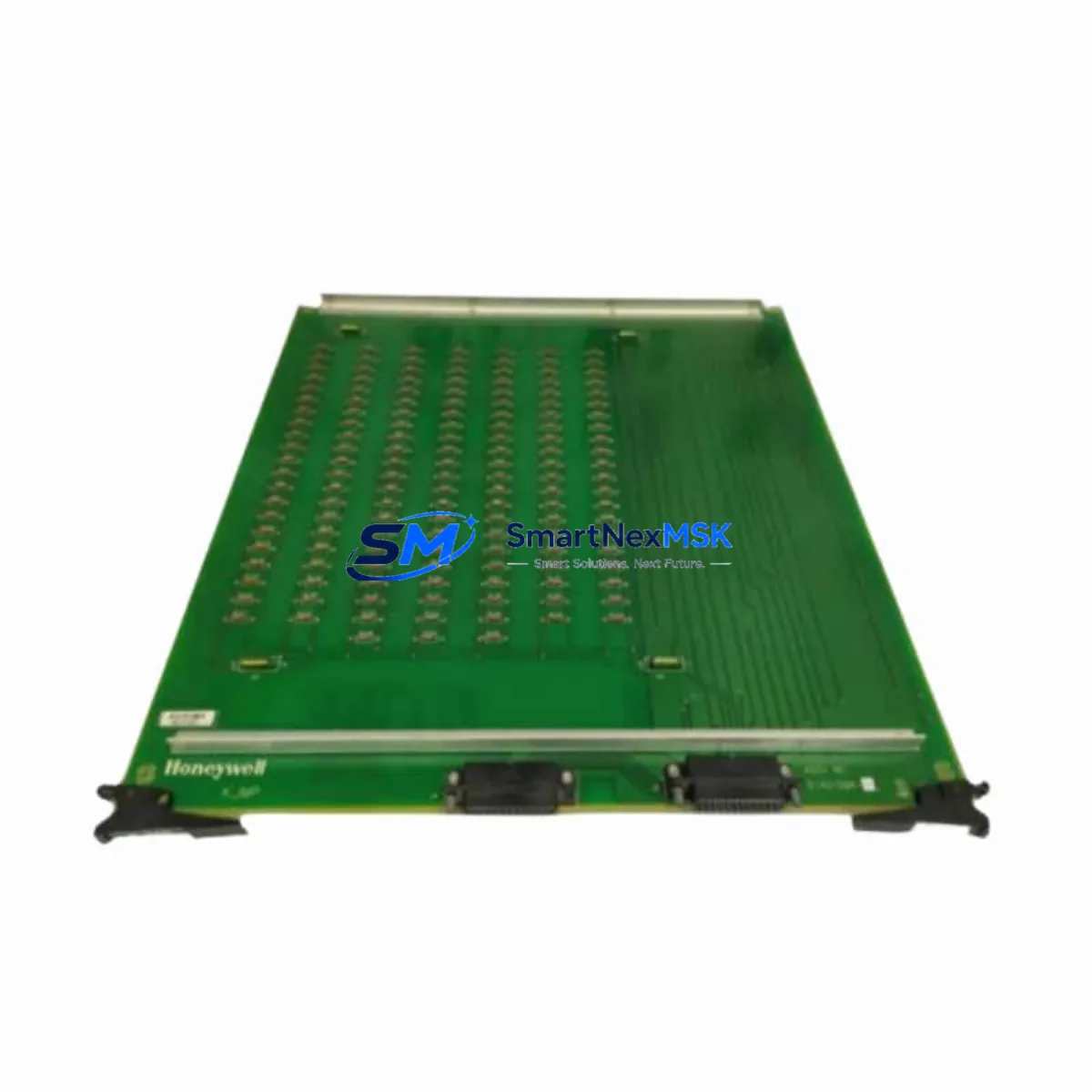

The Honeywell 51301874-100 (cross-reference: 51301875-100) is an original thermocouple multiplexer module designed for the Honeywell TDC 3000 Distributed Control System. In process industries — including refining, petrochemical, power generation, and continuous manufacturing — this module serves as a critical signal acquisition component, collecting thermocouple inputs from field instruments and routing them to the TDC 3000 control network. When this module fails or degrades, the result is loss of temperature visibility across multiple process loops, triggering unplanned shutdowns and costly production interruptions.
Maintaining a verified, tested spare of the 51301874-100 in your site inventory is one of the most effective strategies for reducing mean time to repair (MTTR) on TDC 3000 systems. Our stock units are sourced from original Honeywell manufacturing runs, individually inspected, and shipped with a 12-month warranty — giving maintenance engineers and procurement teams the confidence to act fast when a fault is detected.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | 51301874-100 / 51301875-100 |
| Brand | Honeywell |
| Series / Platform | TDC 3000 Distributed Control System |
| Module Type | Thermocouple Multiplexer (TC Mux) Board |
| Input Type | Thermocouple (multi-channel signal acquisition) |
| Compatibility | Honeywell TDC 3000 / TDC 3000X control cabinets; compatible with standard Honeywell IPC and HPM configurations |
| Installation | Card-slot insertion into TDC 3000 card cage / backplane |
| Application Environment | Industrial process control: refining, petrochemical, power, utilities |
| Condition | Original spare — tested prior to shipment |
| Maintenance Recommendation | Inspect signal wiring, thermocouple field connections, and backplane connector pins during replacement |
| Origin | USA (Honeywell original manufacturing) |
| Warranty | 12 Months |
| Lead Time | In stock — ships within 1–3 business days |
Maintenance Planning for Continuous Operation
When a thermocouple multiplexer module such as the 51301874-100 is flagged for replacement during a planned turnaround or emergency fault response, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough inspection of the surrounding system is essential to prevent repeat failures and ensure a clean restart.
Begin by verifying the TDC 3000 backplane and card cage for bent connector pins, oxidation, or mechanical damage — a degraded backplane slot can cause premature failure of a newly installed module. Check the Honeywell Power Supply Module (51401469-100 or equivalent) that feeds the card cage; voltage irregularities are a common root cause of TC Mux faults. Inspect the field termination assembly (FTA) and associated marshalling cabinet wiring for loose thermocouple leads, corroded terminals, or incorrect polarity — errors here will produce erratic readings even with a new module installed.
For sites running the Honeywell HPM (High-Performance Process Manager) alongside TDC 3000 infrastructure, confirm that the UCN (Universal Control Network) communication cable and associated network interface modules are intact, as signal loss at the network layer can mimic TC Mux hardware faults. If the system includes Honeywell Data Hiway segments, inspect the Hiway Gateway module for firmware consistency after any hardware swap.
During the replacement window, it is also advisable to audit nearby analog input modules (AI modules) in the same card cage, particularly those handling RTD or millivolt inputs, as they share the same environmental stresses. Check signal isolators and barriers on thermocouple circuits — especially in hazardous-area installations — to confirm they remain within calibration. Fuse holders and terminal block assemblies in the marshalling cabinet should be inspected for heat discoloration or loose connections that could introduce ground loops.
Finally, if the site operates an Honeywell GUS (Global User Station) or HMI workstation connected to the TDC 3000 network, verify that the process display updates correctly after module reinstatement and that no latent alarms remain masked in the historian. Proactive spare management — keeping verified units of the 51301874-100, associated FTA boards, and power supply modules on the shelf — is the most reliable way to compress downtime from days to hours.
Site Replacement Workflow
Step 1 — Fault Isolation: Use the TDC 3000 system diagnostics or GUS alarm summary to confirm the 51301874-100 as the fault source. Cross-check against field thermocouple readings using a handheld calibrator to rule out wiring or sensor faults before pulling the module.
Step 2 — Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures. De-energize the card cage slot per the TDC 3000 maintenance manual. Do not hot-swap unless the system configuration explicitly supports it.
Step 3 — Module Removal & Inspection: Extract the faulty 51301874-100 carefully. Inspect the backplane connector and card edge for damage. Document the slot address and any configuration DIP switch settings before removal.
Step 4 — Spare Installation: Insert the replacement 51301874-100 / 51301875-100 into the correct slot. Confirm DIP switch or jumper settings match the removed unit. Re-energize and observe system diagnostics for module recognition.
Step 5 — Functional Verification: Confirm all thermocouple channels return valid readings at the GUS or operator station. Compare live values against field calibrator readings. Clear any residual alarms and update the maintenance log.
Step 6 — Spare Replenishment: Immediately initiate procurement of a replacement spare to restore your on-site buffer. Long-term supply continuity for legacy TDC 3000 components requires proactive sourcing — do not wait for the next fault event.
Spare Parts Support FAQ
Q1: Is the 51301874-100 still available as a new original spare, or only as refurbished?
We supply original Honeywell 51301874-100 units from verified industrial surplus and authorized distribution channels. Each unit undergoes functional testing prior to shipment. Condition is clearly stated on the order confirmation. We do not relabel or misrepresent refurbished units as new.
Q2: What is the cross-reference relationship between 51301874-100 and 51301875-100?
The 51301875-100 is the direct cross-reference and functional equivalent of the 51301874-100 within the TDC 3000 platform. Both part numbers are interchangeable in standard TDC 3000 card cage configurations. Always verify the slot address and DIP switch settings match your system documentation before installation.
Q3: How is the module tested before shipment, and what does the 12-month warranty cover?
Each 51301874-100 unit is powered up and subjected to functional verification testing prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling on site.
Q4: What is the recommended spare inventory strategy for TDC 3000 sites?
For sites with active TDC 3000 systems, we recommend maintaining a minimum of one verified spare 51301874-100 per control cabinet, alongside spares for the associated power supply module and FTA boards. Given the end-of-life status of TDC 3000 hardware, sourcing windows are narrowing — establishing a multi-year spare buffer now significantly reduces long-term operational risk.
