Honeywell 51304362-100 MU-PLAM02 Spare for TDC 3000 Automation

Honeywell 51304362-100 MU-PLAM02 Spare for TDC 3000 Automation

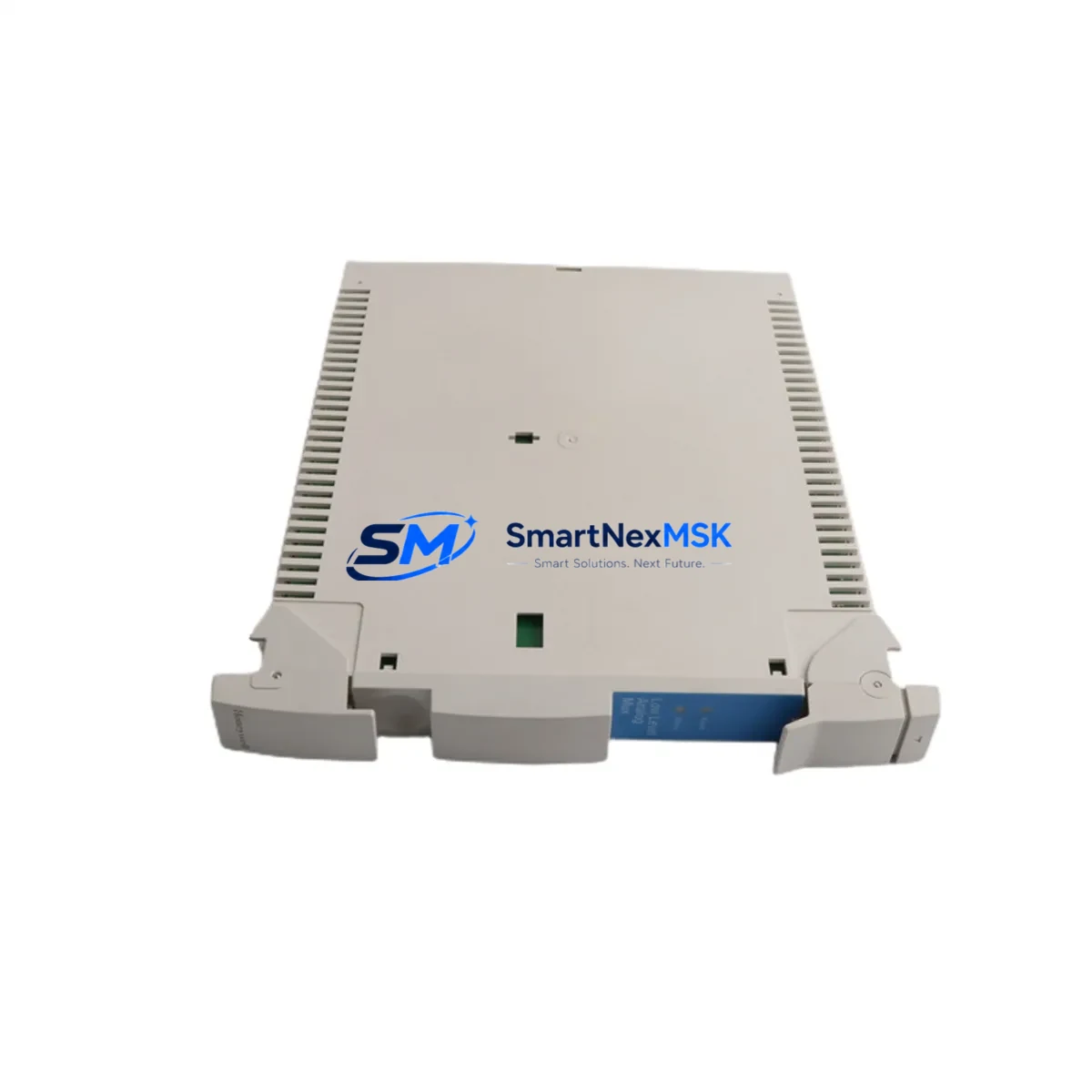

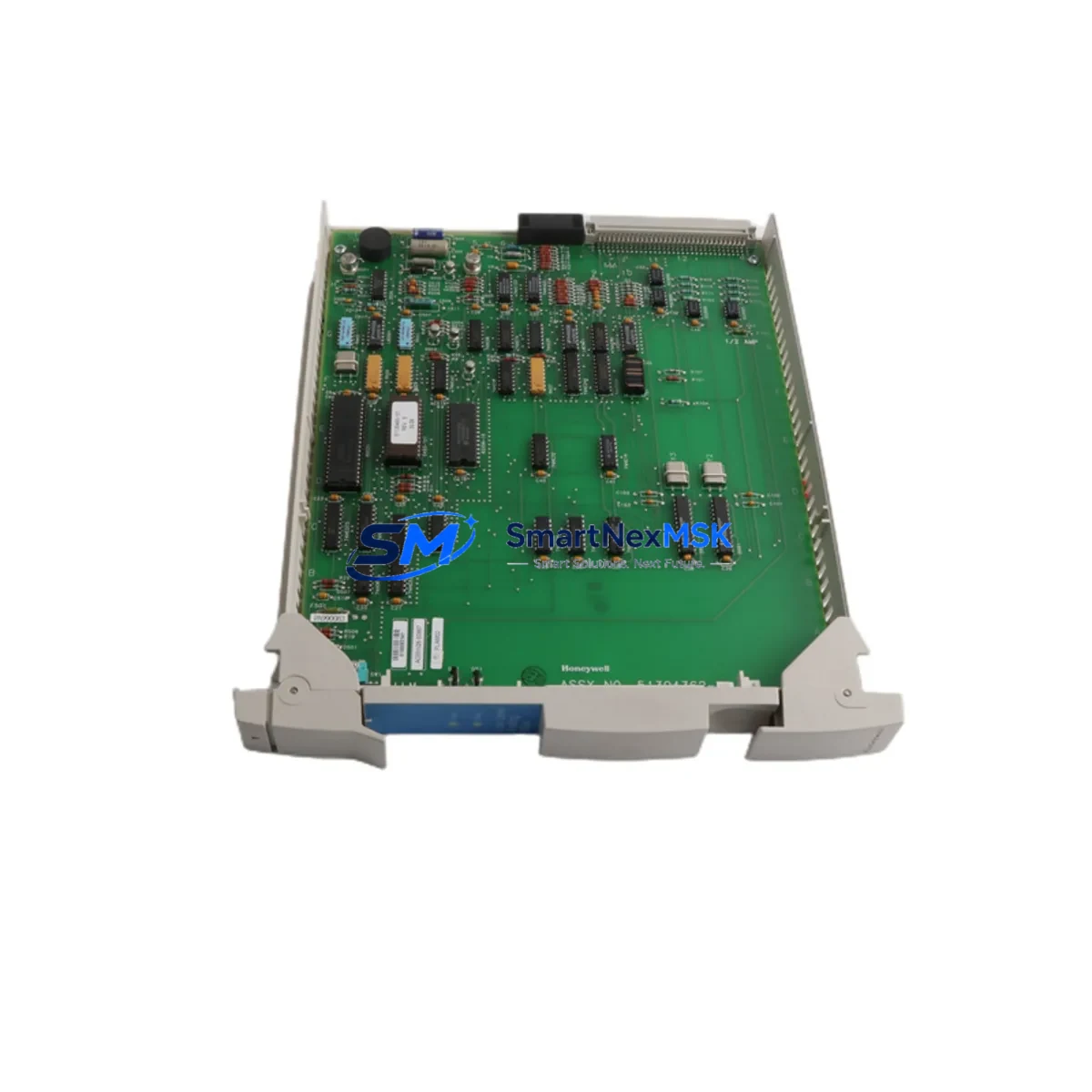

The Honeywell 51304362-100, also identified by its module designation MU-PLAM02, is a Low Level Analog Multiplexer Module designed for use within the Honeywell TDC 3000 Distributed Control System. As a critical analog signal conditioning component, this module serves maintenance engineers and procurement teams who need a reliable, original-specification spare to sustain continuous plant operations. Whether you are managing a scheduled turnaround, responding to an unplanned fault, or building a strategic spare parts inventory for an aging TDC 3000 installation, the 51304362-100 MU-PLAM02 is a direct-fit replacement that eliminates the guesswork from field substitution.

The MU-PLAM02 multiplexes low-level analog signals — typically from thermocouples, RTDs, or millivolt transmitters — and routes them to the system’s analog input processing chain. Its role in the signal path means that a failed or degraded unit can affect multiple process variables simultaneously, making rapid, verified replacement essential for minimizing production impact. Maintenance teams should confirm that the associated Analog Input Module, such as the MU-TAIM12 or compatible variants, is functioning correctly before and after replacement, as signal integrity issues can sometimes originate upstream or downstream of the multiplexer itself.

When sourcing the 51304362-100 MU-PLAM02 as a maintenance spare, it is equally important to inspect the surrounding infrastructure. The TDC 3000 backplane and card cage assembly should be checked for bent connector pins, oxidized contacts, or mechanical damage that could prevent proper module seating. The associated field termination assembly and marshalling cabinet wiring — including shielded twisted-pair cables from field instruments — should be verified for continuity and correct shield grounding before the replacement module is powered. Loose or corroded terminal connections at the field junction box are a common secondary cause of analog signal errors that can be misdiagnosed as module failure.

From a power perspective, the TDC 3000 system relies on a distributed power supply architecture. Before replacing the 51304362-100, maintenance personnel should verify that the local card cage power supply — often a Honeywell PM-PSAM01 or equivalent — is delivering stable voltage within specification. A marginal power supply can cause intermittent module faults that appear as hardware failures but recur after replacement. Checking the power supply output under load, and inspecting the associated fuse holders and power distribution bus, is a recommended step in any structured fault isolation procedure.

For sites operating TDC 3000 alongside newer control infrastructure, the 51304362-100 MU-PLAM02 may also appear in hybrid architectures where legacy analog I/O is retained while higher-level control functions have been migrated to a Honeywell Experion PKS platform. In these configurations, the multiplexer module continues to serve its original function, and its replacement procedure remains unchanged. However, maintenance teams should coordinate with the control system engineer to confirm that any Experion server or C300 controller polling the associated data points is placed in manual or hold mode during the replacement to prevent spurious alarms or control actions.

Communication integrity is another area to verify during planned maintenance involving the 51304362-100. The TDC 3000 Data Hiway — the proprietary communication backbone connecting controllers, operator stations, and I/O subsystems — should be checked for segment loading and termination resistance if any related communication faults are observed concurrently. The Local Control Network interface modules and Highway Gateway units that bridge the Data Hiway to the LCN should also be confirmed as healthy before concluding that the analog multiplexer is the sole fault source.

All units supplied by SMARTNEXMSK are sourced from verified industrial channels, functionally tested prior to dispatch, and shipped with full anti-static packaging appropriate for sensitive analog electronics. Each 51304362-100 MU-PLAM02 is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Long-term supply continuity is maintained through established procurement networks, ensuring that customers with multi-unit requirements or ongoing maintenance contracts can rely on consistent availability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a TDC 3000 installation requires a systems-level view that extends well beyond any single module. When scheduling replacement of the 51304362-100 MU-PLAM02, maintenance engineers should use the opportunity to perform a broader inspection of the analog I/O subsystem. The field termination cables connecting process instruments to the marshalling cabinet should be checked for insulation integrity, particularly in high-temperature or chemically aggressive environments where cable degradation accelerates.

The card cage housing the MU-PLAM02 typically also contains Analog Input Modules and may share a backplane with Digital Input Modules and Digital Output Modules serving the same process unit. A visual inspection of all modules in the cage — checking for indicator fault LEDs, discoloration from heat stress, or physical damage — is a low-cost step that can identify latent failures before they become unplanned outages. Signal isolators installed between field instruments and the TDC 3000 input terminals should also be tested for output accuracy, as a drifting isolator can produce analog errors that are incorrectly attributed to the multiplexer module.

Relay output modules and discrete I/O assemblies in adjacent cabinets that interact with the same process loop — for example, interlock relays driven by the analog values processed through the MU-PLAM02 — should be confirmed as operational. Terminal blocks and DIN rail assemblies throughout the control cabinet should be inspected for loose screws and signs of thermal cycling fatigue. Fuse holders protecting analog input circuits should be checked and spare fuses of the correct rating stocked alongside the replacement module.

For sites with Honeywell operator stations running the Universal Station or GUS platform, the HMI display associated with the affected process tags should be monitored during and after module replacement to confirm that analog values return to expected ranges and that no residual alarms remain latched. Programming cables and configuration tools used to verify module addressing and channel assignments should be available on-site during the replacement procedure.

Site Replacement Workflow

Before beginning the physical replacement of the 51304362-100 MU-PLAM02, the maintenance team should obtain a copy of the current loop drawings and I/O assignment documentation for the affected card cage. The module’s slot address and channel assignments should be recorded and verified against the as-built documentation to confirm that the replacement unit will be installed in the correct position.

The affected process loops should be placed in manual control mode at the operator station to prevent automatic control actions during the replacement. Field instruments connected to the multiplexer channels should be noted, and operators should be informed of the expected duration of the maintenance window. If the system supports hot-swap of the module type, the procedure should be confirmed with the system documentation before proceeding; if not, a controlled shutdown of the card cage power may be required.

After physical installation of the replacement 51304362-100, the module should be allowed to complete its self-test sequence before analog values are verified at the operator station. Each channel should be checked against a known reference — either a calibrated signal source or a stable process value — to confirm that the replacement module is reading correctly. Once all channels are verified, the affected loops can be returned to automatic control and the maintenance record updated with the replacement date, module serial number, and post-installation test results. This documentation supports warranty claims and provides traceability for future maintenance planning.

Spare Parts Support FAQ

Q: Is the 51304362-100 MU-PLAM02 a direct drop-in replacement for the original Honeywell module?
A: Yes. The 51304362-100 MU-PLAM02 is an original-specification module designed for direct installation in TDC 3000 card cage slots. No hardware modification or reconfiguration is required for a like-for-like replacement.

Q: How do I verify compatibility before ordering?
A: Confirm the part number from the module label or your system’s I/O assignment documentation. The MU-PLAM02 designation and 51304362-100 part number should match. If you have any uncertainty, contact our technical team with your system configuration details for pre-order verification.

Q: What testing is performed before shipment?
A: Each unit undergoes functional testing to verify analog signal processing performance and communication integrity with the TDC 3000 backplane interface. Modules are shipped in anti-static packaging with a test report available on request.

Q: What does the 12-month warranty cover?
A: The warranty covers functional failure under normal operating conditions for 12 months from the date of shipment. It includes free replacement or repair for defects in materials and workmanship. Damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specification is excluded.
