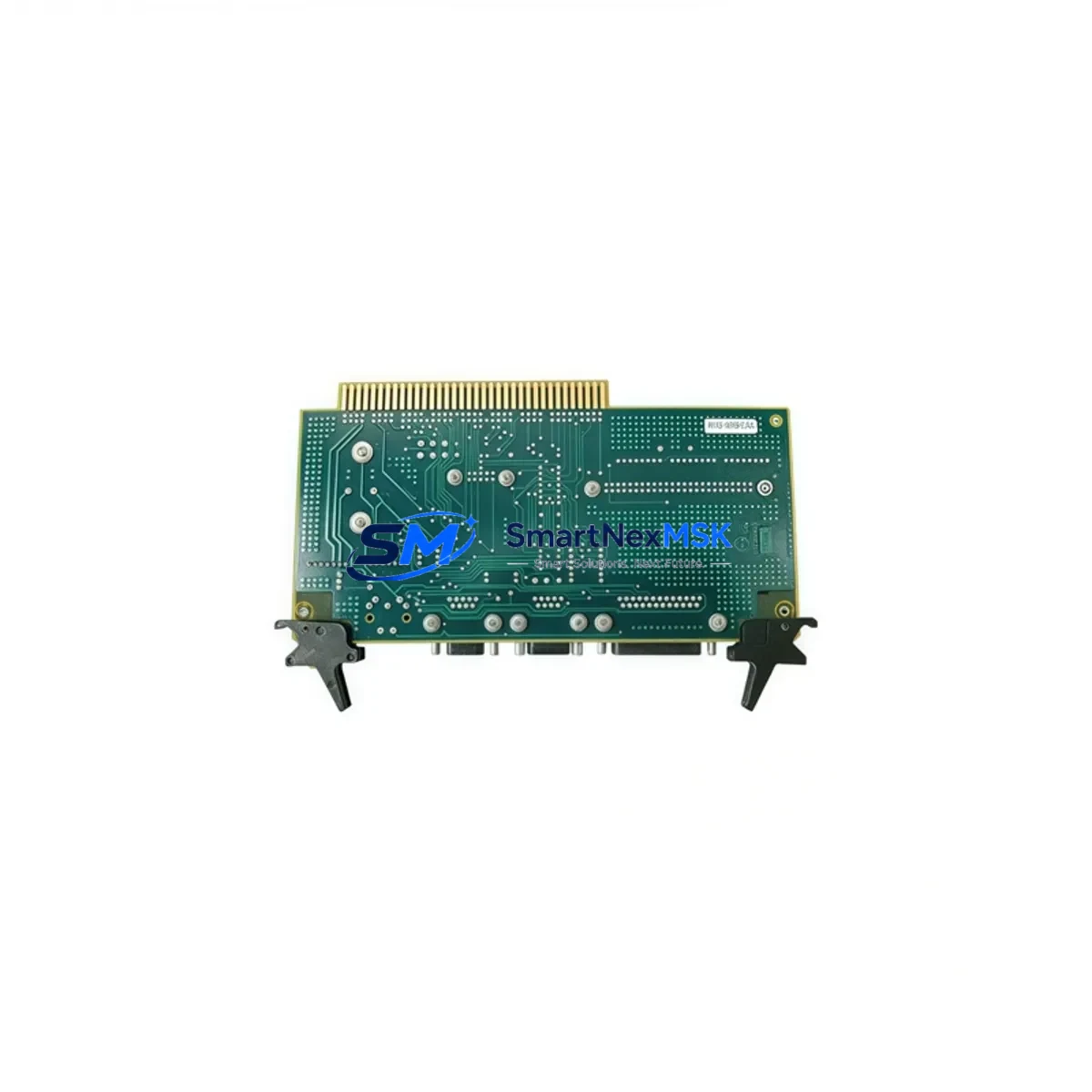

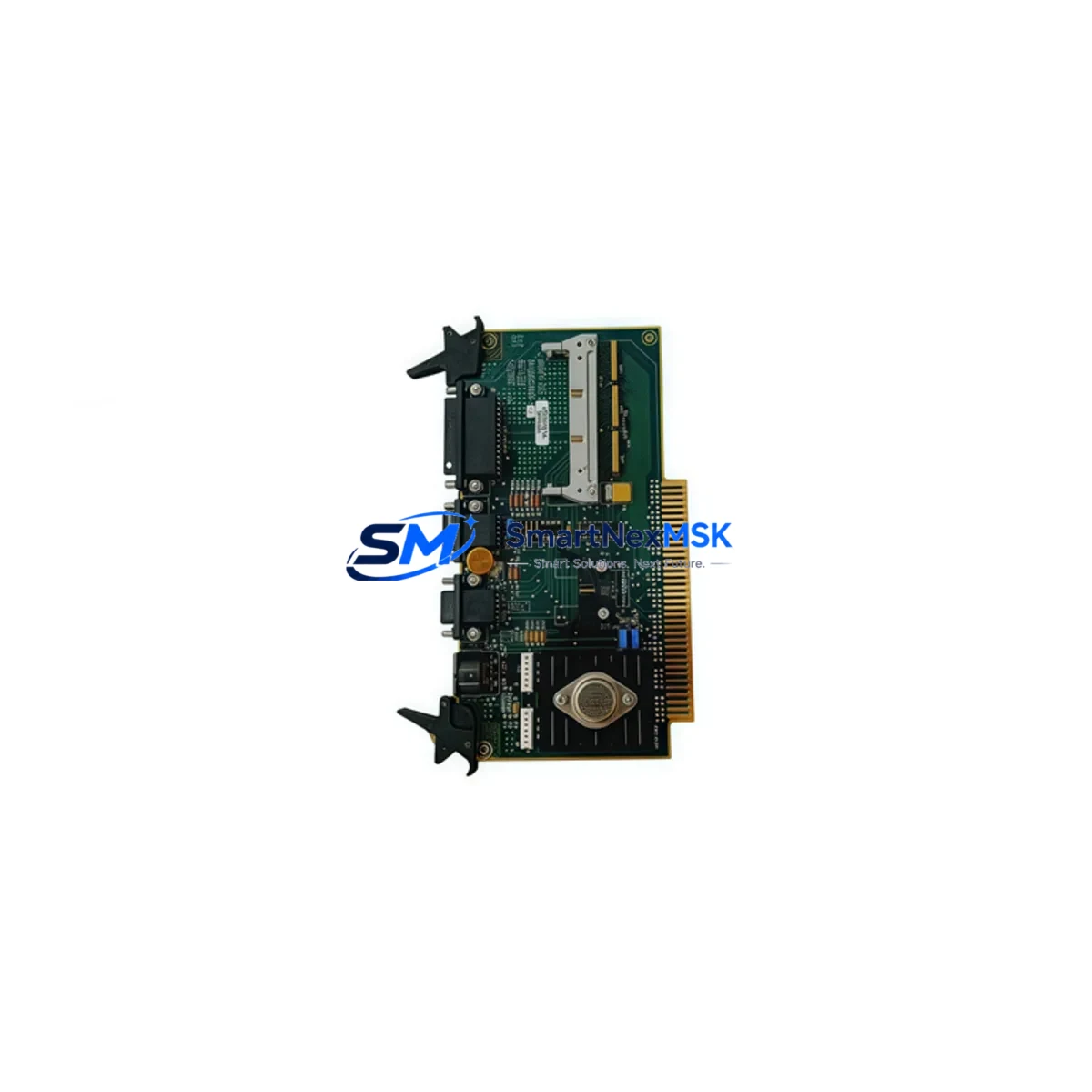

Honeywell 51304584-200 Maintenance-Ready Spare for TDC-3000 Automation
The Honeywell 51304584-200 is an original analog I/O module designed for the TDC-3000 Distributed Control System — one of the most widely deployed process automation platforms in refining, petrochemical, and power generation facilities worldwide. As aging TDC-3000 infrastructure continues to operate well beyond its original design life, maintaining a verified stock of genuine spare modules such as the 51304584-200 is a critical element of any plant’s uptime strategy.
For maintenance engineers managing legacy DCS environments, unplanned downtime caused by a failed analog I/O board can cascade rapidly into process shutdowns, safety system activations, and significant production losses. The 51304584-200 addresses this risk directly: it is a drop-in replacement that preserves signal integrity, channel mapping, and loop configuration without requiring software reconfiguration or hardware adaptation. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty covering manufacturing defects and operational failure under normal service conditions.
Spare Maintenance Table
| Part Number | 51304584-200 |
| Brand | Honeywell |
| Series | TDC-3000 |
| Module Type | Analog I/O Module (DCS) |
| Signal Type | Analog Input / Output (4–20 mA, ±10 VDC typical) |
| Compatibility | Honeywell TDC-3000 High-Performance Process Manager (HPM), Basic Process Manager (BPM), and compatible I/O Link backplanes |
| Installation | Card cage / backplane slot insertion; no tools required for hot-swap capable configurations |
| Operating Environment | 0–60°C ambient; humidity 5–95% non-condensing; DIN rail or panel-mount enclosure |
| Origin | USA (Original Honeywell manufacture) |
| Condition | Original spare — new or refurbished-to-spec with full functional test |
| Maintenance Recommendation | Replace on first sign of channel drift, CRC fault, or I/O Link communication error; inspect backplane connector pins during replacement |
| Warranty | 12 Months — covers manufacturing defects and operational failure under normal service conditions |
| Lead Time | In stock — same-day or next-business-day dispatch available |
Maintenance Planning for Continuous Operation
Replacing the 51304584-200 in a live TDC-3000 system is rarely an isolated task. Experienced maintenance engineers treat any analog I/O module swap as an opportunity to audit the surrounding control loop infrastructure. Before returning the loop to service, it is advisable to inspect the associated field termination assembly (FTA) or marshalling panel wiring for insulation degradation, loose screw terminals, or corrosion on signal conductors — particularly in high-humidity or chemically aggressive environments.
The I/O Link cable connecting the 51304584-200 to the HPM or BPM controller should be checked for continuity and shielding integrity. A degraded I/O Link cable is a common root cause of intermittent channel faults that are frequently misdiagnosed as module failure. Similarly, the backplane power supply feeding the card cage — typically a Honeywell TDC-3000 compatible 24 VDC or 5 VDC rail — should be load-tested to confirm it is within specification before the replacement module is inserted.
For facilities running mixed analog and digital I/O architectures, it is also worth verifying the status of adjacent digital output modules and relay output cards in the same cage. A failing power rail will often degrade multiple modules simultaneously, and replacing only the 51304584-200 without addressing the upstream power issue will result in repeat failures. Signal isolators installed between field instruments and the analog input channels should be tested for output accuracy, as a drifting isolator can produce symptoms identical to a faulty I/O module.
Procurement engineers sourcing the 51304584-200 as a long-term spare should also consider stocking the associated Honeywell TDC-3000 personality modules, I/O Link interface cards, and HPM controller boards that share the same maintenance cycle. For plants with multiple HPM cabinets, a minimum recommended spare holding of two 51304584-200 units per cabinet is a widely accepted industry practice for critical analog loops. Fuse holders and blade fuses rated for the FTA circuit protection should also be included in the spare parts kit, as these are frequently overlooked until a fault event occurs.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the fault is isolated to the 51304584-200 by reviewing the TDC-3000 system console for active alarms on the affected I/O Link address. Document the channel assignments and engineering unit ranges configured in the HPM database before removal.
Step 2 — Safe isolation: Place the affected control loops in manual mode at the operator station. If the process permits, inhibit the associated safety interlocks to prevent spurious trips during the swap. Follow your site’s lock-out/tag-out (LOTO) procedure for the card cage power supply if a cold swap is required.
Step 3 — Module extraction and inspection: Remove the 51304584-200 from its backplane slot. Inspect the backplane connector for bent pins, carbon tracking, or moisture ingress. Clean with appropriate contact cleaner if contamination is present.
Step 4 — Replacement insertion: Insert the new 51304584-200 into the same slot. Confirm the module latch engages fully. For systems supporting hot-swap, the TDC-3000 I/O Link will automatically re-enumerate the module and restore channel configuration from the HPM database within seconds.
Step 5 — Loop verification: Return loops to automatic mode one at a time. Verify live readings against field instrument outputs using a calibrated loop calibrator or HART communicator. Confirm no residual alarms remain on the system console before closing the work order.
This workflow is applicable to both planned maintenance windows and emergency replacement scenarios. SMARTNEXMSK ships the 51304584-200 with pre-shipment test documentation, reducing the time required for incoming inspection and accelerating return-to-service.
Spare Parts Support FAQ
Q: Is the 51304584-200 compatible with all TDC-3000 HPM and BPM configurations?
A: The 51304584-200 is designed for the Honeywell TDC-3000 platform and is compatible with standard HPM and BPM card cage configurations using the I/O Link architecture. Compatibility with specific backplane revisions or custom hardware configurations should be verified against your system’s as-built documentation. Our technical team can assist with compatibility confirmation prior to order.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and operational failure under normal service conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority dispatch of a replacement unit to minimize downtime.
Q: How is the module tested before shipment?
A: Each 51304584-200 unit undergoes functional verification prior to dispatch, including power-on self-test, channel continuity checks, and where applicable, signal accuracy verification across the analog range. Test records are available upon request for quality-critical applications.
Q: Can SMARTNEXMSK support long-term supply for TDC-3000 spare parts programs?
A: Yes. SMARTNEXMSK maintains ongoing sourcing relationships for Honeywell TDC-3000 components including analog and digital I/O modules, controller boards, power supplies, and communication interface cards. We support both one-time emergency procurement and structured annual spare parts agreements for facilities managing long-term TDC-3000 life extension programs.
