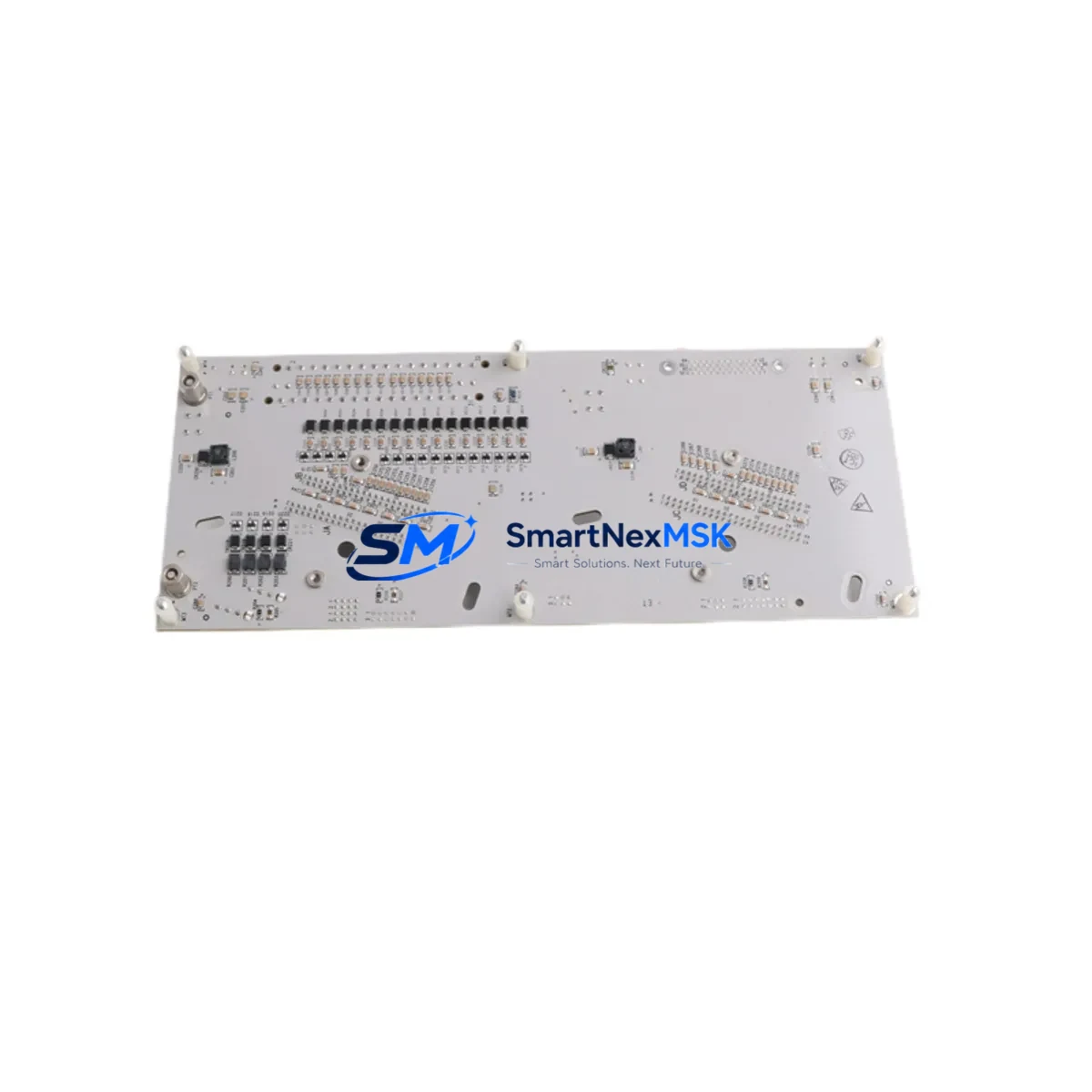

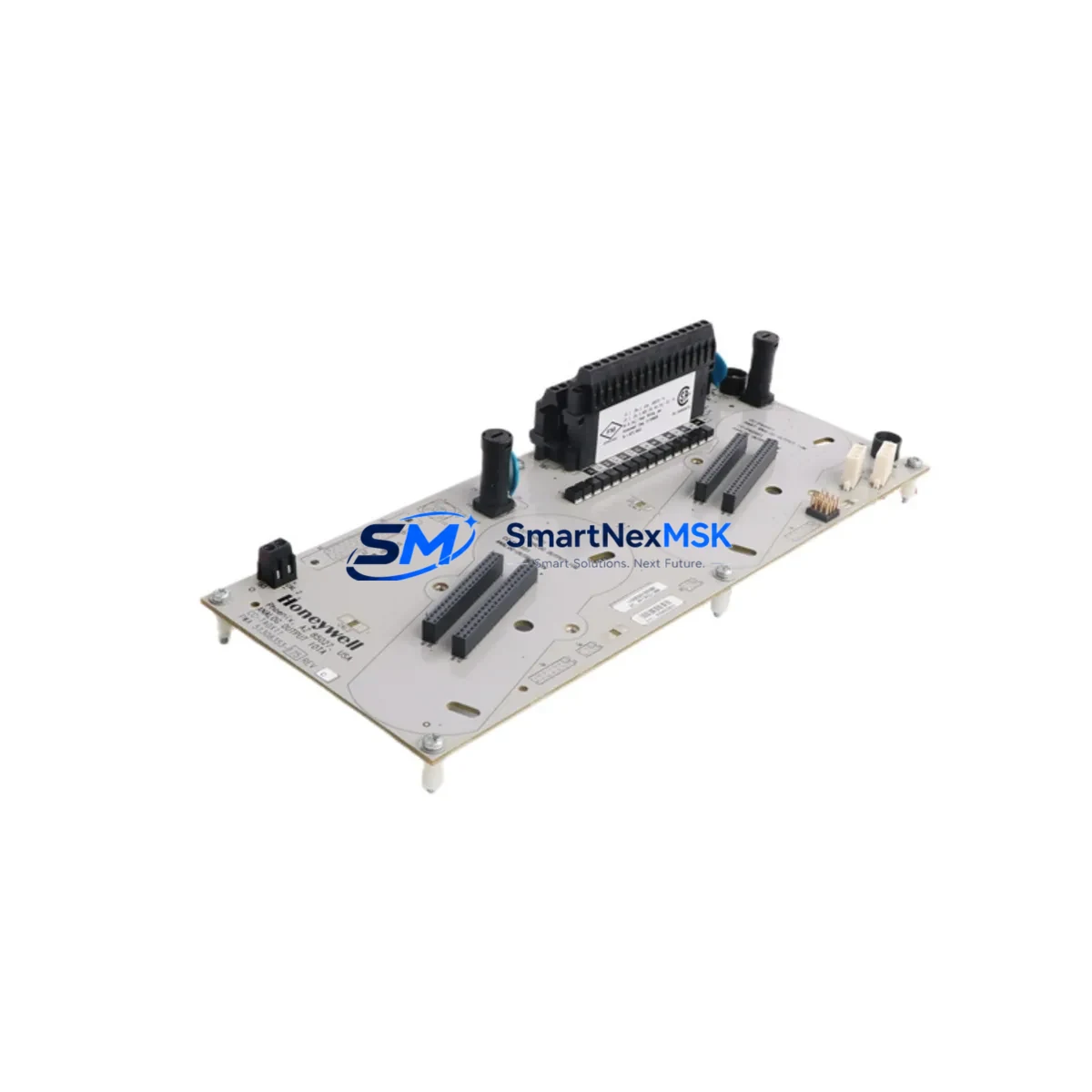

Honeywell 51308353-175 CC-TAOX11 Spare for Experion PKS Automation
The Honeywell 51308353-175 CC-TAOX11 is an original analog output module designed for the Experion PKS distributed control system. As a maintenance-ready spare, it supports rapid field replacement in process automation environments where unplanned downtime carries significant operational and financial risk. Whether you are managing a scheduled turnaround, responding to an emergency fault, or building a strategic spare parts inventory for aging Experion PKS infrastructure, the CC-TAOX11 delivers verified compatibility, stable signal output, and long-term supply assurance.
Maintenance engineers working on Experion PKS C300 controller cabinets rely on the CC-TAOX11 to sustain 4–20 mA analog output loops to final control elements including control valves, variable frequency drives, and positioners. When this module fails or degrades, the affected control loop goes to a safe state or manual override — but restoring automatic control requires a tested, original replacement. Stocking the 51308353-175 CC-TAOX11 as a critical spare eliminates the lead-time risk associated with sourcing obsolete or end-of-life DCS components under pressure.
Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty, giving procurement engineers confidence in both quality and post-sale support.
Spare Maintenance Table
| Part Number | 51308353-175 |
| Model | CC-TAOX11 |
| Brand | Honeywell |
| Series | Experion PKS — CC Series I/O |
| Module Type | Analog Output Module |
| Output Signal | 4–20 mA (current loop, isolated) |
| Output Channels | 8 channels (typical for CC-TAOX series) |
| Communication | C300 Controller backplane bus |
| Compatibility | Honeywell Experion PKS C300 Controller, CC-series I/O chassis |
| Installation | Hot-swap capable; mounts to CC I/O chassis rail |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Application Environment | Process industries: refining, petrochemical, power generation, pulp & paper |
| Origin | Original Honeywell manufacture |
| Condition | New / Refurbished-tested (specify at order) |
| Warranty | 12 Months — covers functional defects under normal operating conditions |
| Pre-shipment Test | Functional verification performed before dispatch |
| Lead Time | In-stock: ships within 2 business days |
Maintenance Planning for Continuous Operation
When a CC-TAOX11 analog output module is flagged during routine control cabinet inspection or fails during operation, the replacement workflow should extend beyond the module itself. A thorough maintenance review of the surrounding system components reduces the risk of repeat failures and ensures the restored control loop performs reliably.
Begin by inspecting the CC-TAIM01 analog input module on the same I/O chassis — cross-loop signal drift between input and output modules is a common diagnostic indicator of power rail degradation. Verify the CC-PWR01 or CC-PWR02 power supply module output voltage is within specification; an under-voltage condition on the I/O chassis bus is a frequent root cause of intermittent analog output faults. Check the C300 controller module (51309276-175 or equivalent) for firmware version compatibility with the replacement CC-TAOX11, particularly if the installed system has not been updated in several years.
Inspect all field termination assemblies (FTA) connected to the CC-TAOX11 output channels. Corroded or loose terminal connections on the FTA introduce loop resistance errors that can mimic module faults. Review the CC-TCNT01 communication module and associated FTE (Fault Tolerant Ethernet) network switch health — a degraded network path can cause the C300 to report false I/O module faults. If the cabinet includes a CC-PDOB01 digital output module on the same chassis, inspect it simultaneously as part of the planned maintenance window to maximize uptime efficiency.
For older Experion PKS installations approaching end-of-support, consider stocking the CC-TAIX11 analog input module, CC-TDOB01 digital output module, and CC-TCNT01 communication module alongside the CC-TAOX11 as a coordinated spare set. This approach supports a single-visit restoration strategy during emergency callouts, avoiding the compounding delays of sourcing multiple components under production pressure. Fuse holders and 24 VDC field power distribution terminals within the marshalling cabinet should also be inspected and replaced if signs of heat stress or discoloration are present.
Site Replacement Workflow
Step 1 — Confirm compatibility: Verify the replacement 51308353-175 CC-TAOX11 matches the installed firmware baseline of the C300 controller. Cross-reference the module revision label against the Experion PKS system configuration database before installation.
Step 2 — Safe loop isolation: Place all affected analog output loops in manual mode at the DCS operator station. Notify field operators of the impending module swap to prevent unintended valve or drive movement during the transition.
Step 3 — Hot-swap procedure: The CC-TAOX11 supports hot-swap on a live I/O chassis. Remove the faulty module by releasing the locking lever, slide the replacement into the chassis slot, and confirm the module status LED transitions from fault (red) to normal (green) within 30 seconds of seating.
Step 4 — Loop verification: From the Experion PKS operator station, perform a channel-by-channel output verification using the manual output test function. Confirm field device response (valve position feedback, drive speed reference) matches the commanded output value before returning loops to automatic control.
Step 5 — Documentation: Record the replacement in the plant maintenance management system (CMMS) with the module serial number, installation date, and post-replacement test results. Update the spare parts inventory to trigger reorder of a replacement CC-TAOX11 unit, maintaining minimum stock levels for critical DCS components.
This workflow minimizes mean time to repair (MTTR), preserves system compatibility, and supports the long-term operational continuity of legacy Experion PKS installations without requiring a full system upgrade.
Spare Parts Support FAQ
Q1: Is the 51308353-175 CC-TAOX11 still available as a new original part?
Yes. SMARTNEXMSK maintains stock of original Honeywell CC-TAOX11 modules. Each unit is sourced through verified supply channels and undergoes pre-shipment functional testing. For end-of-life or discontinued revisions, refurbished-tested units with equivalent specifications are available upon request.
Q2: How do I confirm compatibility with my installed Experion PKS system before ordering?
Provide your C300 controller part number, I/O chassis model, and current Experion PKS software version. Our technical team will cross-reference your system configuration and confirm the correct CC-TAOX11 revision for your installation. Contact us at sales@smartnexmsk.com with your system details.
Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers functional defects arising under normal operating conditions, including signal output failure, communication faults, and module non-recognition by the C300 controller. To initiate a claim, contact sales@smartnexmsk.com with your order number, fault description, and site test results. Replacement or repair is processed within 5 business days of fault confirmation.
Q4: Can I stock multiple CC-TAOX11 units as part of a long-term DCS spare parts strategy?
Yes, and it is strongly recommended for facilities operating multiple Experion PKS C300 controller cabinets. Volume pricing is available for orders of 3 or more units. SMARTNEXMSK supports long-term supply agreements for critical DCS spare parts, ensuring consistent availability as original stock becomes increasingly scarce in the secondary market.
