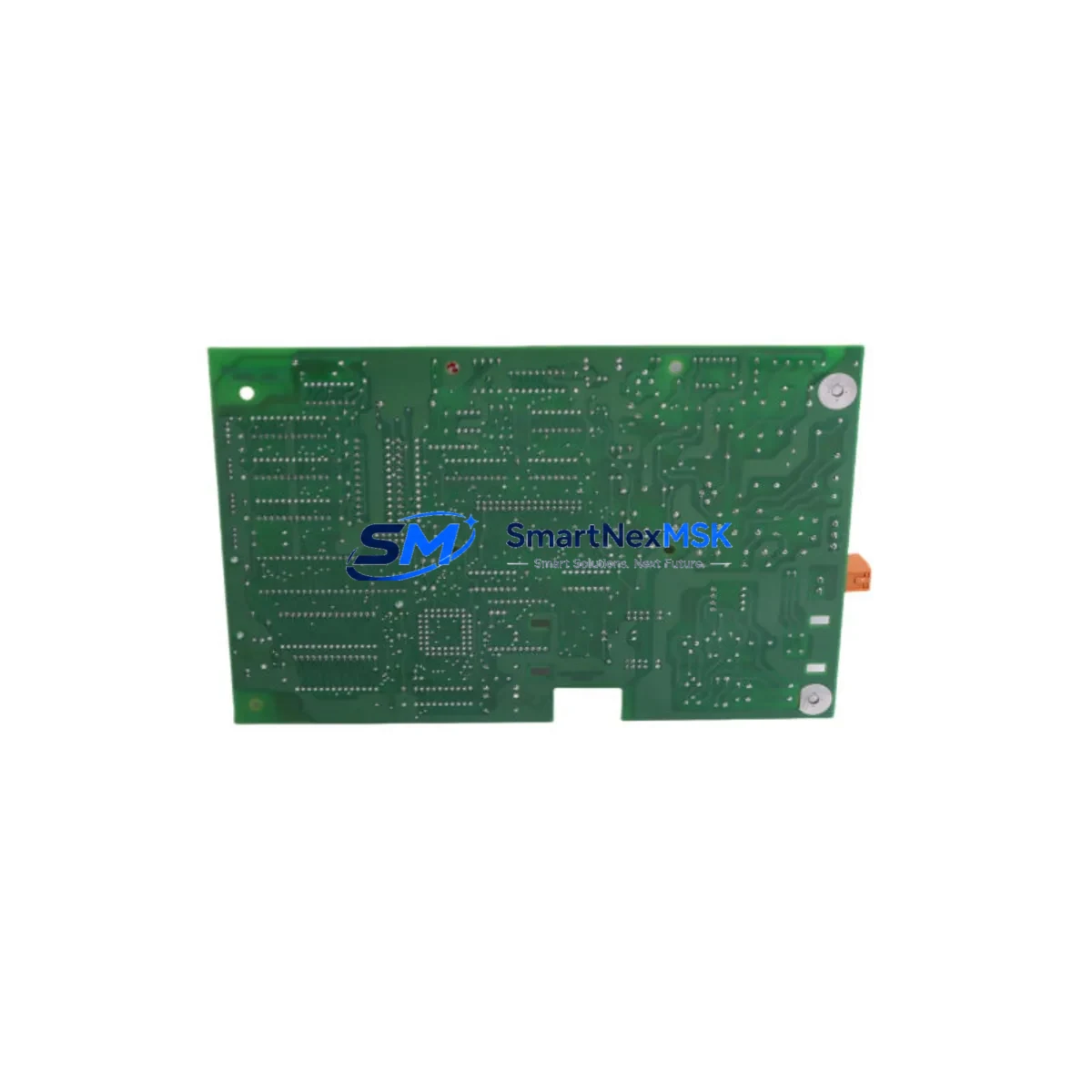

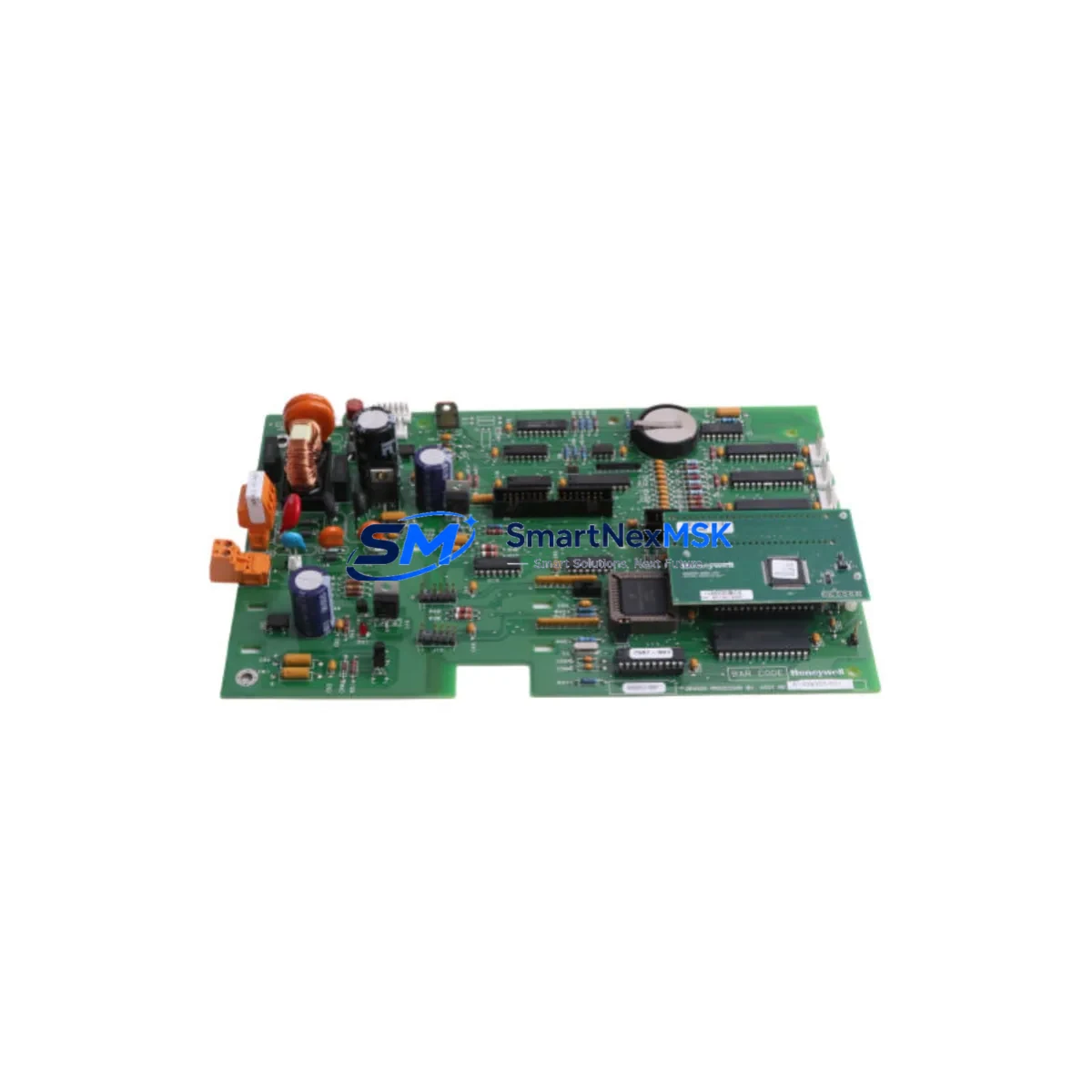

Honeywell 51309355-501 Retrofit-Ready Control Module for TDC 3000

Honeywell 51309355-501 Retrofit-Ready Control Module for TDC 3000 Control Systems

The Honeywell 51309355-501 is a DCS control module engineered for seamless integration into legacy TDC 3000 distributed control system architectures. As aging TDC 3000 platforms approach end-of-support milestones and original spare parts become increasingly scarce, the 51309355-501 serves as a verified retrofit-ready replacement that enables plant engineers to extend operational life, restore system integrity, and defer costly full-system migrations. Whether you are recovering from an unplanned module failure, executing a scheduled control cabinet upgrade, or migrating from a decommissioned platform, this module delivers the compatibility and reliability your process demands.

SMARTNEXMSK maintains in-stock inventory of the 51309355-501 with pre-shipment functional testing, ensuring that every unit dispatched meets original Honeywell performance specifications. Each module is covered by a 12-month warranty from the date of shipment, providing procurement teams and maintenance engineers with the confidence needed for critical infrastructure decisions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 51309355-501 into a live TDC 3000 environment requires systematic pre-installation planning. Begin by auditing the existing control cabinet layout: confirm that the target backplane slot is physically compatible and that the Honeywell PM/APM (Process Manager / Advanced Process Manager) chassis has sufficient available capacity. In many retrofit scenarios, engineers also need to evaluate the associated Honeywell 51304485-100 power supply module to ensure it can sustain the additional load introduced by the replacement card.

Terminal wiring is a critical checkpoint. Pull the original I/O termination drawing and verify that field cable assignments match the 51309355-501 pinout. In older TDC 3000 installations, wiring may have been modified over decades of operation; discrepancies between as-built drawings and actual field wiring are common and must be resolved before energizing the new module. If the installation involves a Honeywell FTA (Field Termination Assembly) such as the 51304441-150 or 51304441-175, confirm that the FTA revision is compatible with the replacement module’s I/O channel configuration.

For sites running Honeywell UCN-connected I/O subsystems, verify that the UCN coaxial cable segment serving the target node is within specification — signal degradation on aging UCN segments can cause intermittent communication faults that are often misdiagnosed as module failures. Similarly, if the control loop interfaces with a Honeywell Data Hiway (HW) segment, confirm that the Highway Gateway module is operating correctly before commissioning the 51309355-501.

In multi-node TDC 3000 architectures, module address assignment is performed through the Honeywell Engineering Console (formerly Universal Engineering Station / UES). Before removing the failed module, document the existing node address, personality module settings, and any custom configuration parameters stored in the module’s non-volatile memory. This data is essential for restoring the replacement module to the correct operational state without requiring a full database reload from the Honeywell History Module or backup server.

Where the retrofit scope extends beyond a single module replacement — for example, when upgrading an entire PM chassis or migrating from TDC 3000 to a Honeywell Experion PKS platform — the 51309355-501 can serve as an interim stabilization component while the broader migration is planned. In such projects, it is common to also source Honeywell 51401584-100 communication interface modules, Honeywell 51304516-100 analog input cards, and compatible Honeywell MC-PAIH03 or MC-TAIH72 I/O modules to complete the I/O expansion or channel reassignment required by the new control architecture.

HMI screen updates are frequently overlooked during module-level retrofits. If the 51309355-501 replacement changes any tag names, loop identifiers, or alarm setpoint references, the corresponding Honeywell GUS (Global User Station) or Experion HMI displays must be updated to reflect the new configuration. Failure to synchronize HMI data with the updated control database can result in operator confusion and masked alarms during the post-commissioning period.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any TDC 3000 module replacement. The recommended approach is to pre-stage the 51309355-501 with its module address and personality configuration loaded offline — using a Honeywell Engineering Console connected to a test chassis — before the scheduled maintenance window begins. This eliminates the configuration phase from the critical path and reduces live system exposure to under 30 minutes in most single-module swap scenarios.

Where process conditions permit, place the affected control loop in manual mode at the operator station before initiating the physical swap. This preserves the last known output value and prevents the process from responding to the transient state that occurs during module removal and reinsertion. For loops controlling critical process variables — flow, pressure, temperature, or level — coordinate with the process team to confirm that manual operation is safe for the expected swap duration.

After reinserting the 51309355-501 and confirming that the module has achieved online status on the LCN/UCN network, perform a point-by-point I/O verification against the loop drawing before returning the loop to automatic mode. Check that all analog input channels are reading within expected engineering unit ranges, that digital output states match the pre-swap baseline, and that no new alarms have appeared on the GUS or Experion console. Document the as-found and as-left conditions in the maintenance management system to support future audits and warranty claims.

For sites without a redundant control path, SMARTNEXMSK recommends maintaining at least one spare 51309355-501 in the on-site critical spares inventory. Given the discontinued status of many TDC 3000 components, lead times for emergency procurement can be unpredictable. Holding a tested, warranted spare eliminates this risk and ensures that the next unplanned failure can be resolved within a single shift.

Retrofit Support FAQ

Q: Is the 51309355-501 a direct replacement for the 51309355-500?
A: In most TDC 3000 configurations, the -501 revision is backward compatible with the -500 slot position and backplane interface. However, you should verify the personality module revision and firmware compatibility using the Honeywell TDC 3000 hardware compatibility matrix before installation. SMARTNEXMSK can provide technical cross-reference support prior to order confirmation.

Q: What pre-shipment testing is performed on the 51309355-501?
A: Every unit undergoes functional power-on testing and I/O channel verification before dispatch. Test records are available upon request. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment.

Q: Can the 51309355-501 be installed without taking the entire TDC 3000 system offline?
A: In most cases, yes — TDC 3000 supports card-level replacement without a full system shutdown, provided the affected loop is placed in manual mode and the replacement module is pre-configured with the correct node address. Always follow your site’s management of change (MOC) procedure and consult the Honeywell TDC 3000 installation guide for your specific chassis revision.

Q: What wiring changes are required when installing the 51309355-501?
A: The 51309355-501 uses the standard TDC 3000 FTA interface — no field wiring changes are required if the existing FTA is compatible. Verify the FTA model number and terminal block revision against the module’s I/O drawing. If the FTA has been modified or replaced with a non-standard assembly, a wiring audit is recommended before energizing the new module.
