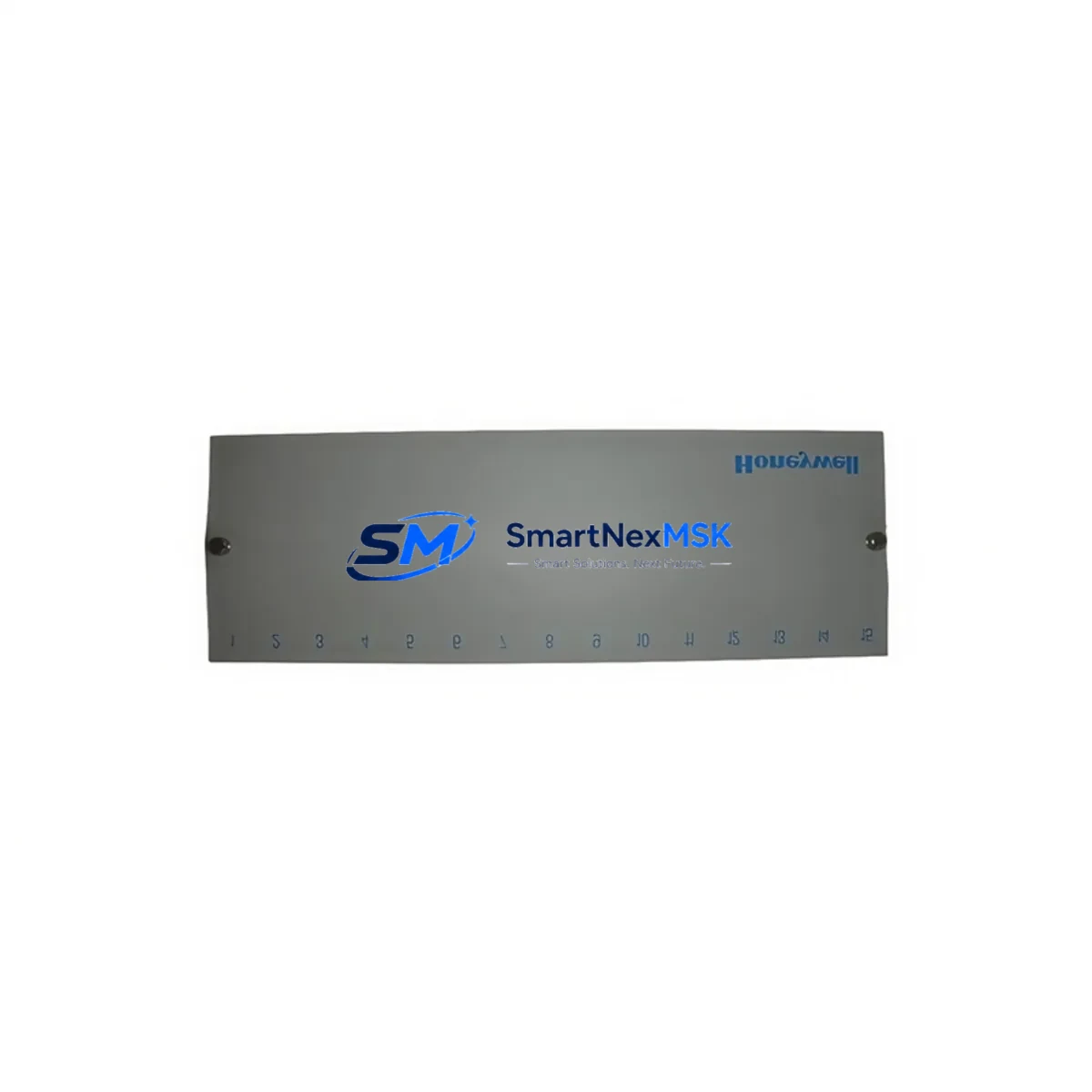

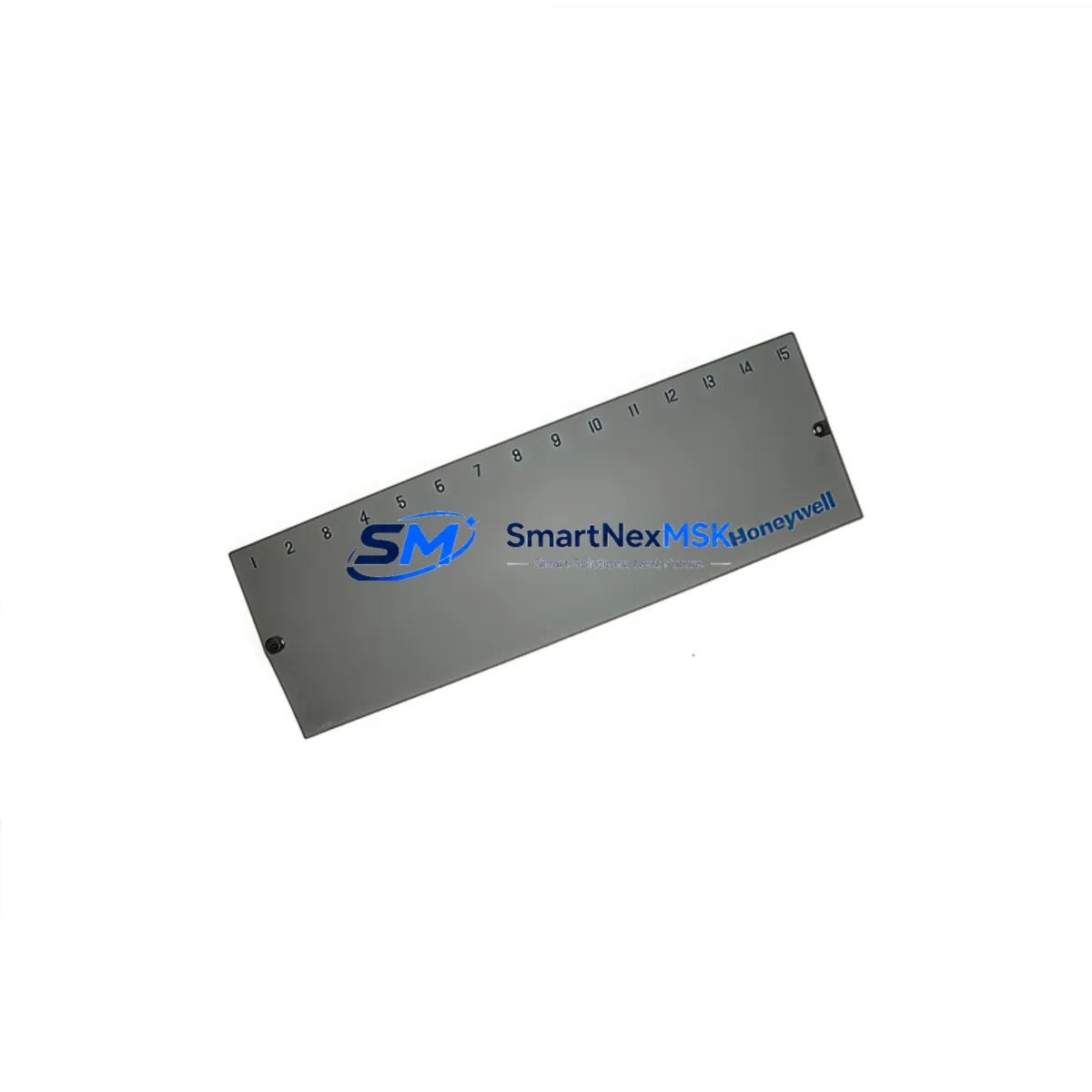

The Honeywell 51401529-100C is an original DCS Communication Module designed for the TotalPlant Solution (TPS) distributed control system platform. For maintenance engineers managing aging TPS installations, this module represents a critical spare that directly impacts system uptime and process continuity. Whether you are executing a planned turnaround, responding to an unplanned fault, or building a strategic spare parts inventory, the 51401529-100C provides a verified, drop-in replacement that restores communication integrity without requiring system reconfiguration or firmware migration.

Industrial facilities running Honeywell TPS architectures depend on reliable inter-module communication to maintain loop integrity across process units. A failed or degraded 51401529-100C can interrupt data exchange between the Universal Control Network (UCN) and the Local Control Network (LCN), causing cascading alarms, loss of operator visibility, and potential process shutdown. Stocking this module as a ready spare eliminates the lead-time risk associated with sourcing obsolete or long-cycle DCS components during an active fault condition.

Each unit supplied by SMARTNEXMSK is functionally tested prior to shipment, packaged to ESD-safe standards, and backed by a 12-month warranty covering manufacturing defects and operational failure under normal service conditions. Long-term supply continuity is maintained through established sourcing channels, ensuring availability even as the TPS platform approaches end-of-life support from the OEM.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 51401529-100C in a TPS control cabinet, a disciplined maintenance engineer will treat the module swap as an opportunity to inspect the surrounding system components for wear, degradation, or latent faults. The communication module does not operate in isolation — its performance depends on the health of the entire control network infrastructure.

Begin by verifying the integrity of the UCN cable and termination resistors; a marginal cable plant can cause intermittent communication errors that are misdiagnosed as module failure. Inspect the LCN interface cards in adjacent slots, as communication faults often propagate across the network before isolating to a single module. Check the TPS card cage backplane for corrosion, bent pins, or contamination that could affect the new module’s seating and signal integrity.

Review the condition of the power supply modules feeding the card cage — the Honeywell TPS platform uses dedicated DC power distribution, and a sagging supply rail can cause intermittent resets that mimic communication module failure. If the cabinet houses a Hiway Gateway (HG) or Application Module (AM), verify their firmware versions are compatible with the replacement 51401529-100C revision level.

For I/O integrity, inspect the Process Manager I/O Link (PMIO) cards and associated field termination assemblies (FTAs) for loose wiring or moisture ingress. Signal isolation barriers and intrinsic safety barriers in the field loop should be tested for leakage current and response time. Relay output modules in the same control loop should be checked for contact wear, particularly if the communication fault triggered repeated relay cycling during the fault period.

If the TPS system includes a Data Hiway segment, verify that the redundant communication path is active and healthy before returning the replaced module to service. For facilities using Honeywell PHD (Process Historian Data) or third-party OPC servers, confirm that historian connectivity is restored after the module replacement and that no data gaps require manual reconciliation.

Proactive spare parts planning for TPS installations should include the 51401529-100C alongside related modules such as the 51401544-100 UCN Node Module, 51304485-100 LCN Interface Module, and 51402573-100 Power Entry Module to ensure that a single-event failure does not extend into a multi-day outage due to parts availability constraints.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module’s part number and revision against the 51401529-100C. Cross-reference the TPS system configuration database to identify which UCN nodes and LCN segments are served by the module. Notify the control room operator and obtain a work permit if required by site safety procedures.

Step 2 — Backup and isolation: Where the TPS architecture supports redundant communication paths, verify that the redundant module or path is active and carrying traffic before removing the failed unit. Download the current system configuration snapshot from the Honeywell Engineering Workstation (EWS) as a precaution.

Step 3 — Physical replacement: Follow ESD precautions. Remove the failed 51401529-100C from the card cage slot. Inspect the backplane connector for damage. Insert the replacement module firmly until the ejector latches engage. The TPS system should automatically recognize the new module and begin initialization.

Step 4 — Commissioning and verification: Monitor the module status LEDs and the operator station for communication restoration alarms clearing. Verify that all UCN nodes and LCN segments previously served by the module are reporting correctly. Run a loop check on critical control loops to confirm I/O integrity. Document the replacement in the site maintenance management system (CMMS) with the new module’s serial number and installation date.

Step 5 — Spare stock replenishment: Immediately initiate a purchase order for a replacement 51401529-100C to restore your on-hand spare inventory. For facilities with multiple TPS cabinets, a minimum of two units on-hand is recommended to cover simultaneous or rapid-succession failures in aging systems.

Spare Parts Support FAQ

Q1: Is the 51401529-100C compatible with earlier TPS revisions such as the 51401529-100 and 51401529-100B?
The 51401529-100C is the current revision of this communication module and is designed to be backward-compatible with earlier revision installations within the TPS platform. However, compatibility should always be verified against your specific system configuration and firmware version using the Honeywell TPS compatibility matrix or by consulting your system documentation before installation.

Q2: What pre-shipment testing is performed on the 51401529-100C?
Each unit undergoes functional testing prior to shipment to verify basic operational integrity. Modules are packaged in ESD-safe materials to prevent electrostatic damage during transit. A 12-month warranty covers manufacturing defects and operational failure under normal service conditions from the date of delivery.

Q3: How should the 51401529-100C be stored as a long-term spare?
Store the module in its original ESD-safe packaging in a climate-controlled environment away from direct sunlight, moisture, and corrosive atmospheres. Recommended storage conditions are 10–40 °C with relative humidity below 80% non-condensing. Inspect the module annually for any signs of corrosion or physical damage and rotate stock on a first-in, first-out basis.

Q4: What is the lead time and long-term supply availability for the 51401529-100C?
SMARTNEXMSK maintains sourcing channels for TPS legacy components to support facilities operating beyond the OEM’s standard support lifecycle. In-stock units are available for prompt shipment. For facilities requiring guaranteed availability under a long-term maintenance contract, contact our sales team to discuss scheduled supply agreements and consignment stocking options.
