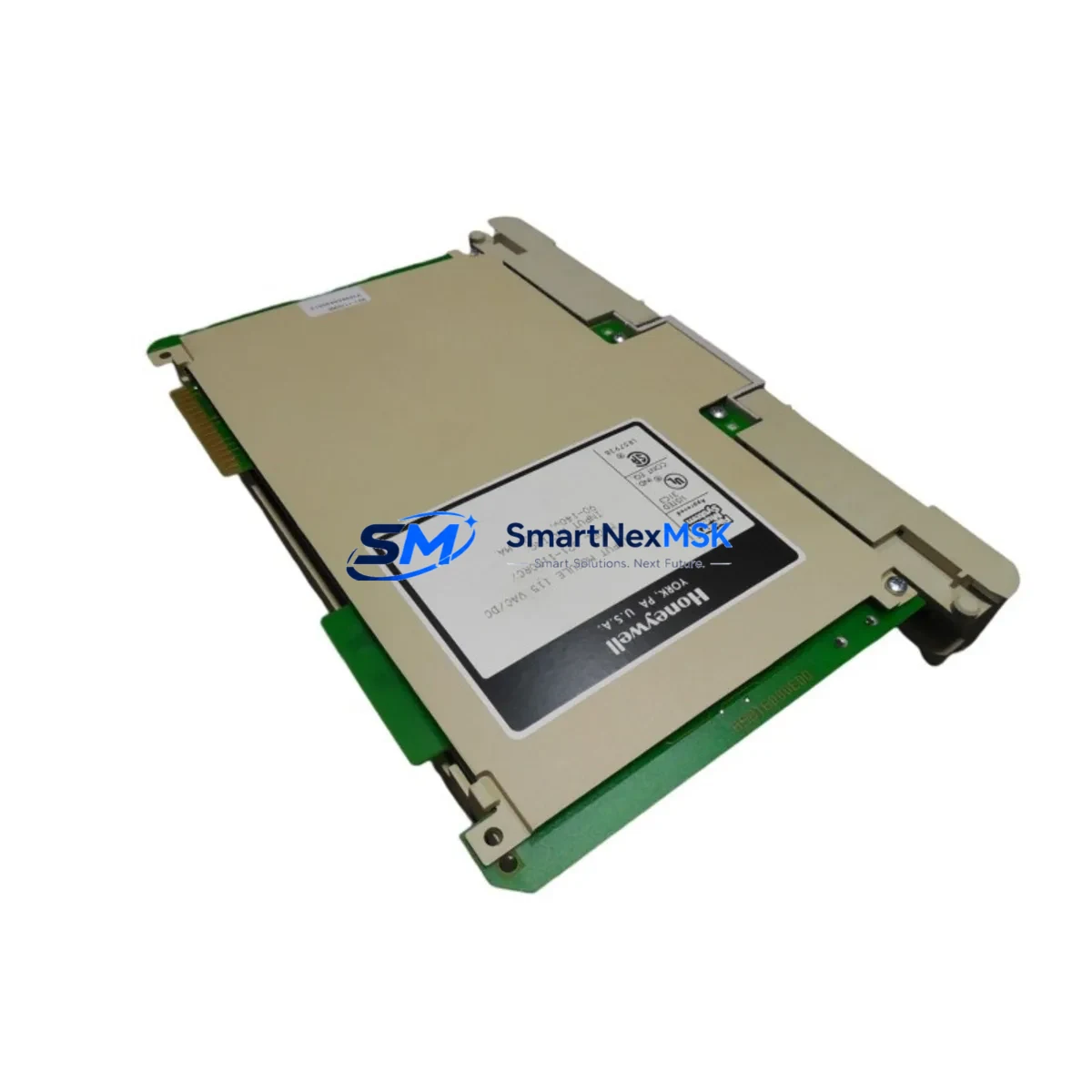

Honeywell 621-1100RC Maintenance-Ready Spare for 621 Series

Honeywell 621-1100RC Maintenance-Ready Spare for 621 Series Automation

In continuous industrial operations, unplanned downtime caused by a failed discrete input module can cascade into hours of lost production, safety interlock failures, and costly emergency maintenance calls. The Honeywell 621-1100RC is a factory-original discrete input module designed for the Honeywell 621 Series programmable controller platform — a proven architecture widely deployed in petrochemical plants, power generation facilities, water treatment stations, and heavy manufacturing environments. Keeping a verified spare of the 621-1100RC in your maintenance inventory is one of the most cost-effective strategies for protecting control system uptime and ensuring rapid recovery when field failures occur.

The 621-1100RC accepts discrete (digital) field input signals and interfaces them to the 621 Series processor backplane. It is engineered to operate reliably in electrically noisy industrial environments, with robust signal conditioning that filters contact bounce and transient interference from adjacent relay coils, motor starters, and high-current switching loads. For maintenance engineers managing aging 621 Series control cabinets, this module represents a direct, plug-compatible replacement that requires no firmware changes, no rack reconfiguration, and no PLC program modification — minimizing the skill demand and time pressure during an emergency swap.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules a 621-1100RC replacement, the scope of inspection should extend beyond the module itself. A thorough control cabinet audit during the same maintenance window significantly reduces the risk of repeat failures and secondary faults. Begin by verifying the integrity of the 621 Series rack backplane and chassis — a degraded backplane connector can cause intermittent input read errors that mimic module failure. Inspect the 621-1100R power supply module that feeds the rack; voltage sag or ripple on the 5 VDC backplane bus is a common root cause of discrete I/O misreads and should be measured before the new module is commissioned.

Field wiring terminations at the associated terminal blocks and I/O wiring harnesses should be checked for loose connections, insulation degradation, and corrosion — particularly in humid or chemically aggressive environments. If the 621-1100RC is part of a safety interlock or emergency shutdown loop, the associated relay output modules (such as the 621-6550 or equivalent 621 Series relay output cards) should be functionally tested to confirm coil integrity and contact resistance. Signal isolation barriers or signal conditioners installed between field sensors and the module input terminals should also be inspected for drift or failure, as a degraded isolator can introduce false input states that are difficult to distinguish from module faults.

For systems using the 621 Series processor module (such as the 621-0020 or 621-0035 CPU variants) in conjunction with the 621-1100RC, confirm that the processor firmware revision is compatible with the replacement module revision level. Communication modules within the same rack — including data highway or Modbus interface cards — should be checked for error counters and communication timeouts that may indicate backplane signal integrity issues. HMI panels connected to the 621 Series system should be tested post-replacement to confirm that all discrete input status displays update correctly, validating end-to-end signal path integrity before returning the system to automatic operation.

Site Replacement Workflow

Replacing the Honeywell 621-1100RC in a live industrial environment requires a structured approach to minimize exposure time and eliminate the risk of incorrect module insertion. Begin by documenting the current I/O channel assignments and field wiring labels associated with the module slot. Power down the affected rack section or isolate the module slot per your site’s lockout/tagout procedure. Remove the failed 621-1100RC by releasing the module locking mechanism and sliding it clear of the backplane connector — avoid rocking the module laterally, as this can damage the backplane pins.

Insert the replacement 621-1100RC firmly and evenly until the front panel latch engages. Restore rack power and observe the module status LED: a steady green indicates successful backplane communication and self-test completion. From the 621 Series programming terminal or connected HMI, force-read each input channel to verify that field signal states are correctly reflected in the processor data table. Document the replacement in the site maintenance log, including the module serial number, slot address, date, and technician ID. This record supports warranty claims and provides traceability for future audits.

For sites managing multiple 621 Series racks across a facility, a standardized spare parts kit — including at least one 621-1100RC discrete input module, one 621-1100R power supply, and one set of rack connector cleaning tools — reduces mean time to repair (MTTR) to under 30 minutes for most discrete I/O failures. Long-term supply continuity for the 621-1100RC is supported through SMARTNEXMSK’s industrial spare parts inventory program, ensuring availability even as the 621 Series platform matures.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the Honeywell 621-1100RC?
A: Every 621-1100RC shipped by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify backplane communication, input channel response, and LED status indication before dispatch.

Q2: How do I confirm compatibility before ordering?
A: The 621-1100RC is compatible with all standard Honeywell 621 Series rack chassis and backplane configurations. If your system uses a non-standard rack revision or a modified I/O configuration, please provide your rack model number and processor revision to our technical team at [email protected] for compatibility confirmation before ordering.

Q3: Can the 621-1100RC replace older or discontinued input module variants in the 621 Series?
A: In most cases, yes. The 621-1100RC is a current-production replacement for earlier 621 Series discrete input module variants. Minor differences in LED labeling or connector keying may exist between production revisions, but electrical and functional compatibility with the 621 Series backplane is maintained. Our team can advise on cross-reference compatibility for specific legacy part numbers.

Q4: What is your long-term supply commitment for the 621-1100RC?
A: SMARTNEXMSK maintains dedicated inventory of the 621-1100RC to support industrial customers with long-lifecycle 621 Series installations. We provide advance notification of any supply changes and can support blanket order arrangements for customers requiring guaranteed annual supply volumes for planned maintenance programs.
