Honeywell 8C-PAON01 Safety-Enhanced Analog Output Module

Honeywell 8C-PAON01 Safety-Enhanced Analog Output Module for Harsh Industrial Sites

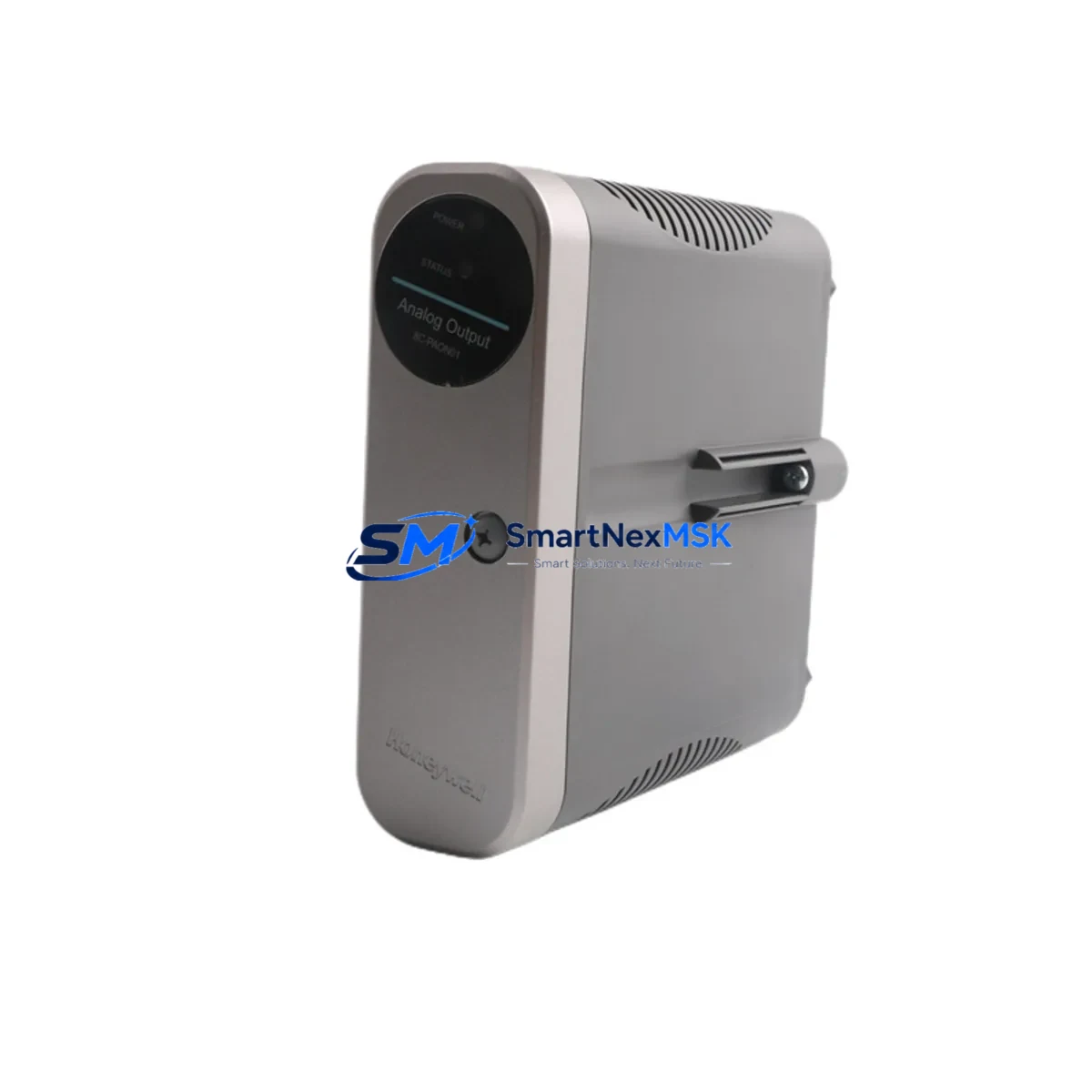

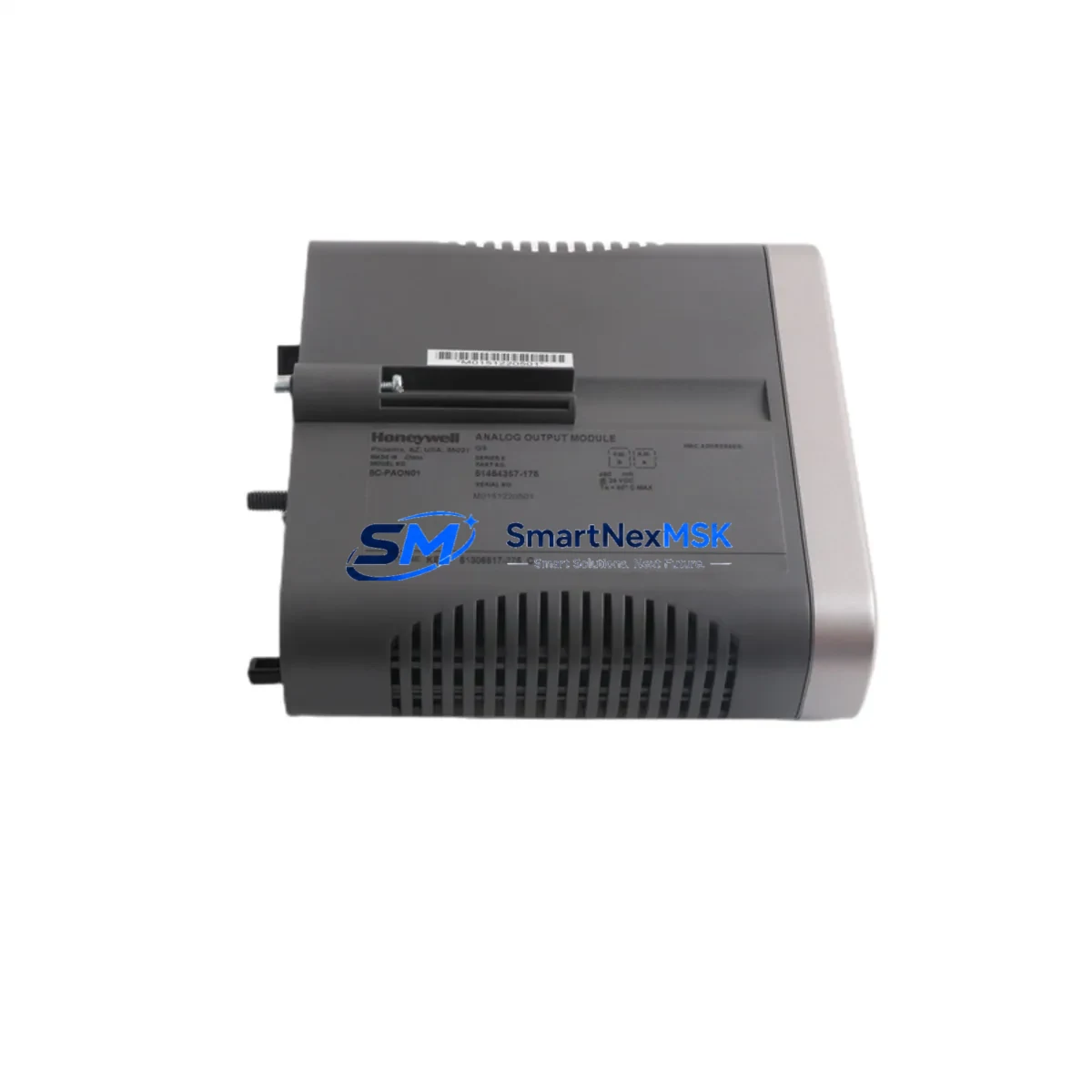

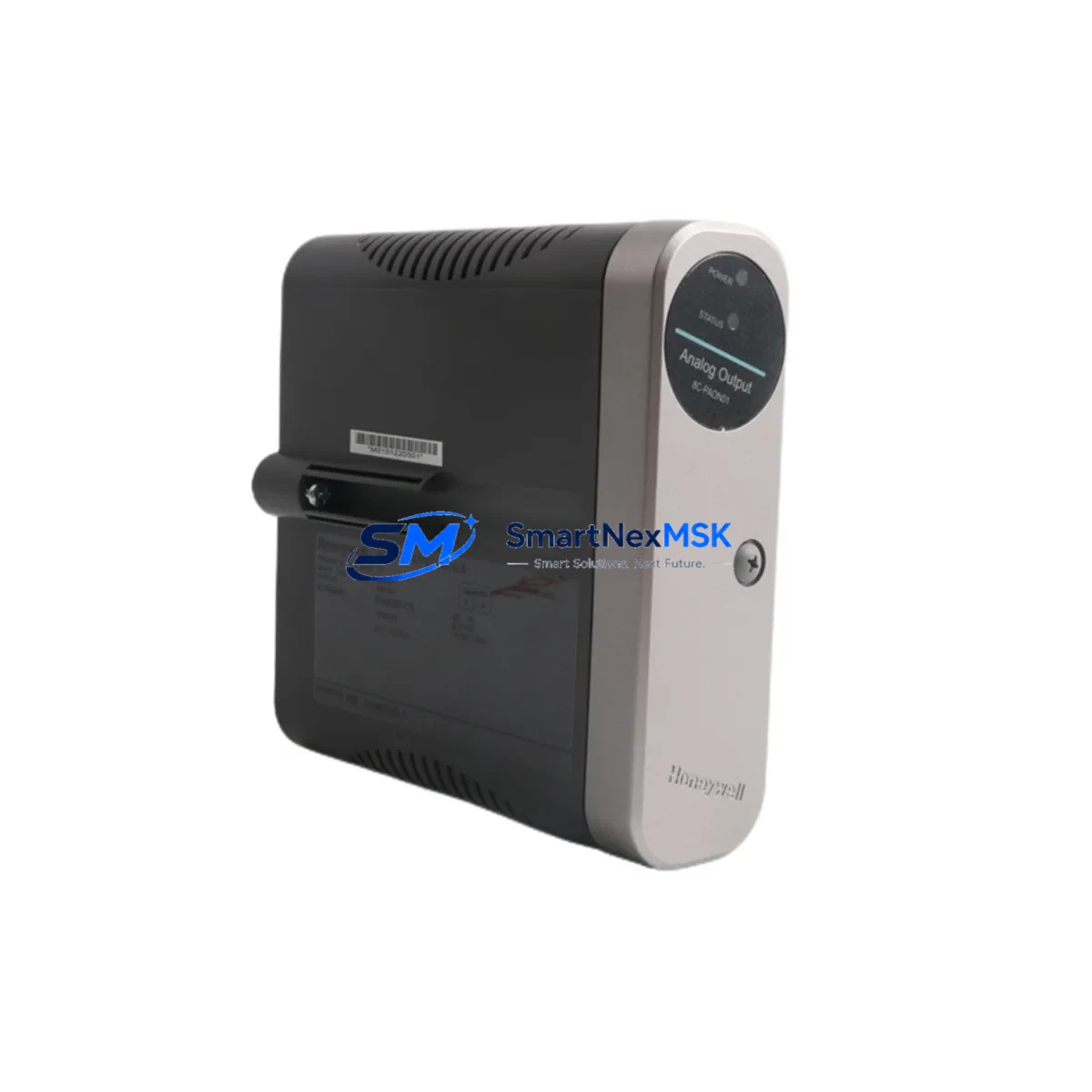

The Honeywell 8C-PAON01 (Part No. 51454357-175) is an 8-channel analog output module engineered for mission-critical process control within the Honeywell Experion PKS C300 DCS platform. Designed to deliver precise, stable 4–20 mA or 0–10 V output signals in high-load, high-interference industrial environments, this module is a cornerstone component for control engineers who cannot afford signal drift, module mis-operation, or unplanned process shutdowns.

In continuous production facilities — petrochemical plants, power generation stations, metallurgical smelters, water treatment works, mining operations, and port logistics systems — the integrity of every analog output channel directly governs the safety of the control loop. A single channel failure in a critical interlock circuit can cascade into a full process trip, equipment damage, or a safety incident. The 8C-PAON01 addresses this risk through robust hardware isolation, tight output accuracy, and proven compatibility with the C300 Controller and its associated I/O FTA (Field Termination Assembly), including the FC-TSAI-1620M and FC-TSAO-0824 termination assemblies.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 8C-PAON01 within a well-engineered control cabinet requires a layered protection strategy that addresses power quality, signal integrity, communication reliability, and physical environment. In a typical Experion PKS C300 control cabinet, the module operates alongside the C300 Controller itself, which manages the real-time execution of control strategies and communicates with the 8C-PAON01 over the high-speed FIM backplane bus. Any instability in the backplane power rail — caused by load spikes from adjacent modules or external power disturbances — can introduce output jitter or trigger protective shutdowns.

To mitigate power-related risks, the cabinet design should incorporate a dedicated Honeywell CC-PWR01 Power Supply Module or equivalent 24 V DC regulated supply with redundant feed capability. Pairing the 8C-PAON01 with a Honeywell CC-PDOB01 Digital Output Module in the same chassis allows the control strategy to implement output validation logic — comparing analog demand signals against discrete valve position feedback to detect actuator faults before they escalate into process deviations.

On the field wiring side, the FC-TSAO-0824 Field Termination Assembly provides the physical interface between the 8C-PAON01’s output channels and the field instrument cable pairs. Proper shielding and grounding of these cables — particularly in environments with variable-frequency drives (VFDs), large motor starters, or high-voltage switchgear — is essential to prevent induced noise from corrupting the 4–20 mA signal. In installations where cable runs exceed 200 meters or pass through high-EMI zones, supplementary signal conditioners or loop isolators should be installed at the FTA terminal block.

For communication architecture integrity, the C300 controller relies on the Honeywell FIM4 Field Interface Module to bridge the I/O backplane to the Fault-Tolerant Ethernet (FTE) supervisory network. Redundant FIM4 modules in a primary/secondary configuration ensure that a single communication path failure does not interrupt the analog output commands reaching the 8C-PAON01. Complementing this, the Honeywell EPLCG2 Ethernet Switch or equivalent managed switch with VLAN segmentation protects the FTE network from broadcast storms and unauthorized access.

In safety instrumented system (SIS) adjacent applications, the 8C-PAON01 is often deployed in the basic process control system (BPCS) layer, with a separate Honeywell Safety Manager SC or FSC (Fail-Safe Controller) module handling the SIL-rated interlock outputs. The analog outputs from the 8C-PAON01 drive control valves, variable-speed pump drives, and heater power controllers, while the FSC monitors process variables and initiates safe-state actions independently. This architectural separation ensures that a fault in the BPCS analog output layer does not compromise the integrity of the safety layer.

Rounding out the cabinet protection strategy, a Honeywell CC-TAIX11 Analog Input Module installed in the same chassis can be configured to read back the actual field current from each output channel, enabling the C300 controller to perform continuous output verification — a technique increasingly required by functional safety standards such as IEC 61511 for partial stroke testing and proof-test automation.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In crude distillation units, catalytic crackers, and hydrocracker reactors, the 8C-PAON01 drives control valve positioners that regulate feed flow, reflux ratios, and reactor pressure. Signal drift or output failure in these loops can lead to off-spec product, pressure excursions, or emergency shutdowns. The module’s tight output accuracy (±0.1% FS) and channel isolation ensure that cross-channel interference — common in dense I/O cabinets near high-current motor control centers — does not corrupt adjacent loop outputs.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, analog output modules control boiler feedwater control valves, turbine governor actuators, and burner management system (BMS) fuel valves. The 8C-PAON01’s compatibility with the C300 platform’s redundant controller architecture means that a controller failover event does not interrupt the analog output signals — the backup C300 assumes control within milliseconds, maintaining valve positions and preventing turbine trips.

Mining and Mineral Processing: Grinding mill circuits, flotation cell reagent dosing systems, and thickener underflow pump controls all rely on stable 4–20 mA outputs to maintain throughput and product quality. In these environments, the control cabinet is often located close to high-vibration equipment and exposed to conductive dust. The 8C-PAON01’s sealed module housing and conformal-coated PCB provide protection against particulate ingress and humidity-induced corrosion.

Water and Wastewater Treatment: Dosing pump speed control, UV disinfection intensity regulation, and aeration blower output modulation are typical applications in water treatment plants. Regulatory compliance requires that these control outputs remain within calibrated accuracy bands at all times. The 8C-PAON01’s factory calibration and pre-shipment functional test ensure that replacement modules can be installed without field recalibration, minimizing process interruption during planned maintenance windows.

Metallurgy and Steel Production: Electric arc furnace electrode positioning, continuous caster mold level control, and rolling mill tension control demand sub-millisecond output update rates and high current-drive capability. The 8C-PAON01’s fast scan-cycle compatibility with the C300 controller ensures that dynamic process demands are met without output lag, reducing the risk of breakouts, cobbles, or surface defects in the finished product.

Safety and Quality FAQ

Q1: What warranty does the 8C-PAON01 51454357-175 carry?
Every unit is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with Honeywell’s published specifications for the Experion PKS C300 platform. Warranty claims are supported by our technical team at sales@smartnexmsk.com.

Q2: How is each module tested before shipment?
All 8C-PAON01 modules undergo a full functional test prior to dispatch. This includes channel-by-channel output verification across the 4–20 mA range, isolation resistance measurement, and backplane communication handshake validation. A test record is available upon request for quality-assurance documentation purposes.

Q3: Is the 8C-PAON01 compatible with all C300 chassis and FTA configurations?
The 8C-PAON01 is designed for use with the Honeywell Experion PKS C300 I/O subsystem. It is compatible with standard C300 I/O chassis and the FC-TSAO-0824 Field Termination Assembly. Compatibility with specific firmware revisions of the C300 Controller should be confirmed against Honeywell’s compatibility matrix. Our technical team can assist with cross-referencing your existing system configuration before purchase.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain dedicated stock of the 8C-PAON01 and related Experion PKS C300 I/O modules to support both planned maintenance schedules and emergency replacement requirements. Orders are typically processed and dispatched within 1–3 business days. For critical spares programs requiring reserved stock allocation, please contact our sales team to discuss a supply agreement tailored to your plant’s maintenance strategy.
