Honeywell 8C-PCNT02 Maintenance-Ready Spare C300: Spare Replacement & Industrial Downtime Risk Control

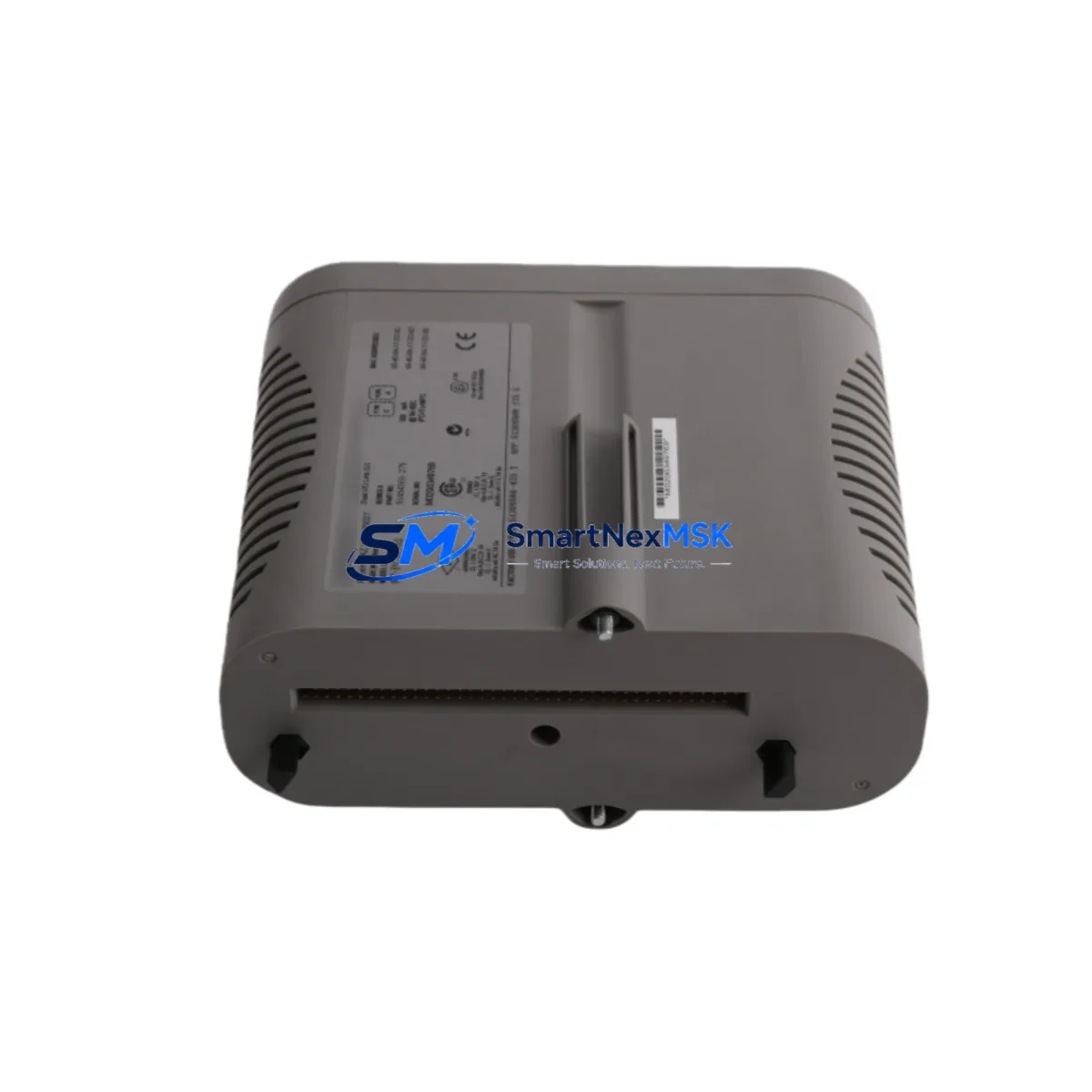

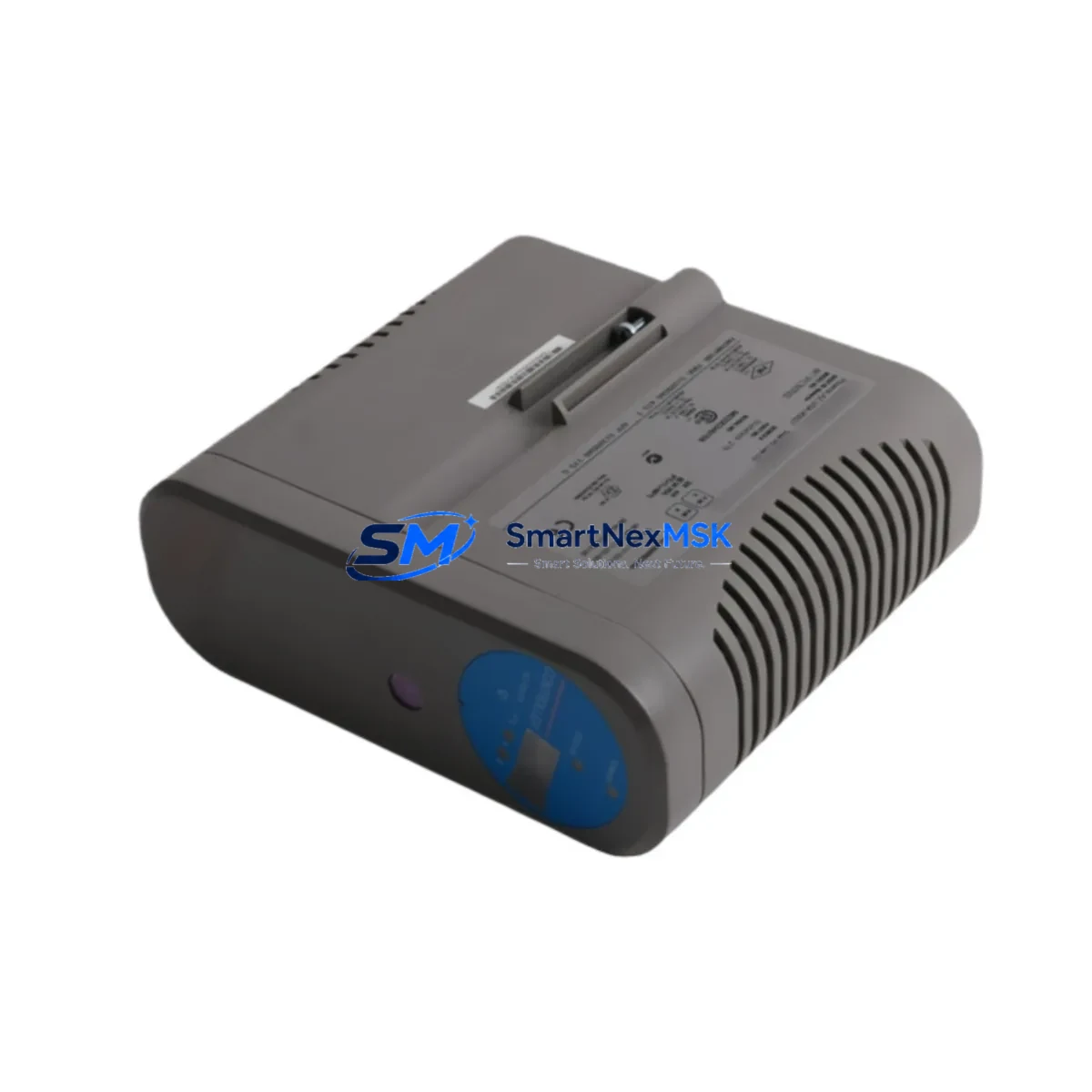

The Honeywell 8C-PCNT02 is an original process controller module designed for the Experion PKS C300 distributed control system platform. As a critical component in continuous process automation environments — including oil & gas, petrochemical, power generation, and advanced manufacturing — the 8C-PCNT02 serves as the execution core for control strategies, I/O coordination, and real-time process regulation. Maintaining a verified spare of this module is a fundamental requirement for any maintenance engineer managing uptime-critical DCS infrastructure.

At SMARTNEXMSK, every 8C-PCNT02 unit is sourced as an original Honeywell component, individually tested prior to shipment, and backed by a 12-month warranty. Our supply chain supports both planned maintenance cycles and emergency replacement scenarios, with fast dispatch and full compatibility documentation provided on request.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules a planned inspection or responds to an unplanned fault involving the 8C-PCNT02, the replacement workflow should extend beyond the controller module itself. The C300 platform integrates tightly with surrounding components, and a thorough site assessment significantly reduces the risk of repeat failures or cascading downtime.

Begin by verifying the C300 chassis backplane and its associated IOTA mounting base for signs of corrosion, loose connectors, or thermal stress. The backplane carries both power and CEE communication signals — any degradation here can cause intermittent faults that mimic controller module failure. Inspect the chassis power supply module (such as the Honeywell CC-PWR01 or equivalent) for output voltage stability; an unstable 24 VDC rail is a common root cause of controller resets and memory errors.

Next, audit the FTE network switch and associated Ethernet cabling connecting the C300 to the Experion server. Degraded FTE links can trigger redundancy switchovers that appear as controller faults. If the system uses a redundant controller pair, confirm that the secondary 8C-PCNT02 module is also current and firmware-matched — a mismatched firmware version between primary and secondary controllers is a known source of synchronization failures.

On the I/O side, inspect the Series C I/O Link Interface Module (IOLI) and connected Series C I/O modules — including analog input modules such as the CC-TAIX11, analog output modules like the CC-TAOX11, and digital I/O modules such as the CC-TDIL01. Loose field wiring terminations at the I/O terminal assembly can introduce signal noise that the controller interprets as process anomalies. Verify that all signal isolators in the field loop are functioning within specification, particularly on high-impedance 4–20 mA circuits.

For facilities running legacy Honeywell TDC 3000 or PlantScape systems alongside Experion PKS, also check the Universal Control Network (UCN) interface and any gateway modules bridging older fieldbus segments. These integration points are often overlooked during C300 maintenance but can affect overall system stability. Additionally, inspect relay output modules and associated terminal blocks in the control cabinet for contact wear, especially in high-cycle applications such as compressor control or batch sequencing.

A complete spare parts kit for a C300 controller node should include: a verified 8C-PCNT02 spare, a redundant power supply module, at least one spare I/O link interface, a set of commonly used Series C I/O modules, and a spare FTE network switch. Maintaining this kit on-site reduces mean time to repair (MTTR) from days to hours in the event of an unplanned outage.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the fault is isolated to the 8C-PCNT02 by reviewing Experion alarm logs and controller diagnostics. Check whether the redundant controller has taken over. If redundancy is active, the replacement can proceed without a process shutdown in most configurations.

Step 2 — Firmware and revision matching: Before installing the spare 8C-PCNT02, verify that its hardware revision and firmware version are compatible with the installed Experion PKS release. Mismatched revisions can prevent the module from loading the control strategy. SMARTNEXMSK provides firmware documentation and revision history upon request.

Step 3 — Physical installation: Power down the affected controller slot if a hot-swap is not supported in your chassis configuration. Seat the 8C-PCNT02 firmly into the IOTA backplane, ensuring all connector pins are fully engaged. Secure the module latch and restore power.

Step 4 — System synchronization: After power-up, monitor the Experion console for controller load status. The module should automatically download the control strategy from the Experion server. Confirm that all I/O points are scanning correctly and that process values are within expected ranges before returning the loop to automatic control.

Step 5 — Post-replacement documentation: Record the replaced module’s serial number, installation date, and firmware version in your CMMS or maintenance log. Update your spare parts inventory to trigger reorder of a replacement spare, maintaining your on-site buffer stock.

This workflow applies equally to planned maintenance replacements and emergency swap-outs, and is compatible with Experion PKS R400 through current releases. For older C300 installations running earlier firmware, contact SMARTNEXMSK for compatibility guidance before proceeding.

Spare Parts Support FAQ

Q1: What is the expected service life of the 8C-PCNT02, and when should I plan a proactive replacement?
Honeywell DCS controller modules are designed for long service life in stable industrial environments, typically 10–15 years under normal operating conditions. However, proactive replacement is recommended when the module has experienced multiple redundancy failover events, when the installed Experion PKS version approaches end-of-support, or when the module is more than 8 years old in a high-criticality loop. Maintaining a verified spare on-site ensures you can act immediately without waiting for procurement lead times.

Q2: How do I confirm compatibility between a spare 8C-PCNT02 and my existing Experion PKS installation?
Compatibility depends on three factors: hardware revision, firmware version, and Experion PKS release. The 8C-PCNT02 is compatible with C300 chassis configurations running Experion PKS R400 and above. SMARTNEXMSK provides hardware revision documentation and can advise on firmware matching for your specific installation. We recommend sharing your current Experion release version when placing an order so we can confirm compatibility before shipment.

Q3: What pre-shipment testing does SMARTNEXMSK perform on the 8C-PCNT02?
Every 8C-PCNT02 unit undergoes functional verification prior to dispatch, including power-on self-test, communication interface check, and visual inspection for physical damage or connector wear. Units that do not pass all checks are not shipped. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available for emergency replacement scenarios.

Q4: Can the 8C-PCNT02 replace older Honeywell C300 controller variants, and what should I check before substituting?
The 8C-PCNT02 is a specific hardware revision within the C300 controller family. Before substituting it for an older variant, verify that the hardware revision is supported by your installed Experion PKS firmware, and that the IOTA backplane slot assignment is compatible. In redundant configurations, both the primary and secondary controller modules must be the same hardware revision. SMARTNEXMSK can assist with cross-reference verification and provide documentation to support your engineering review before installation.
