Honeywell 8C-PDILA1 51454471-175 Safety-Enhanced Digital Input

Honeywell 8C-PDILA1 51454471-175 Safety-Enhanced Digital Input Module for Harsh Industrial Control

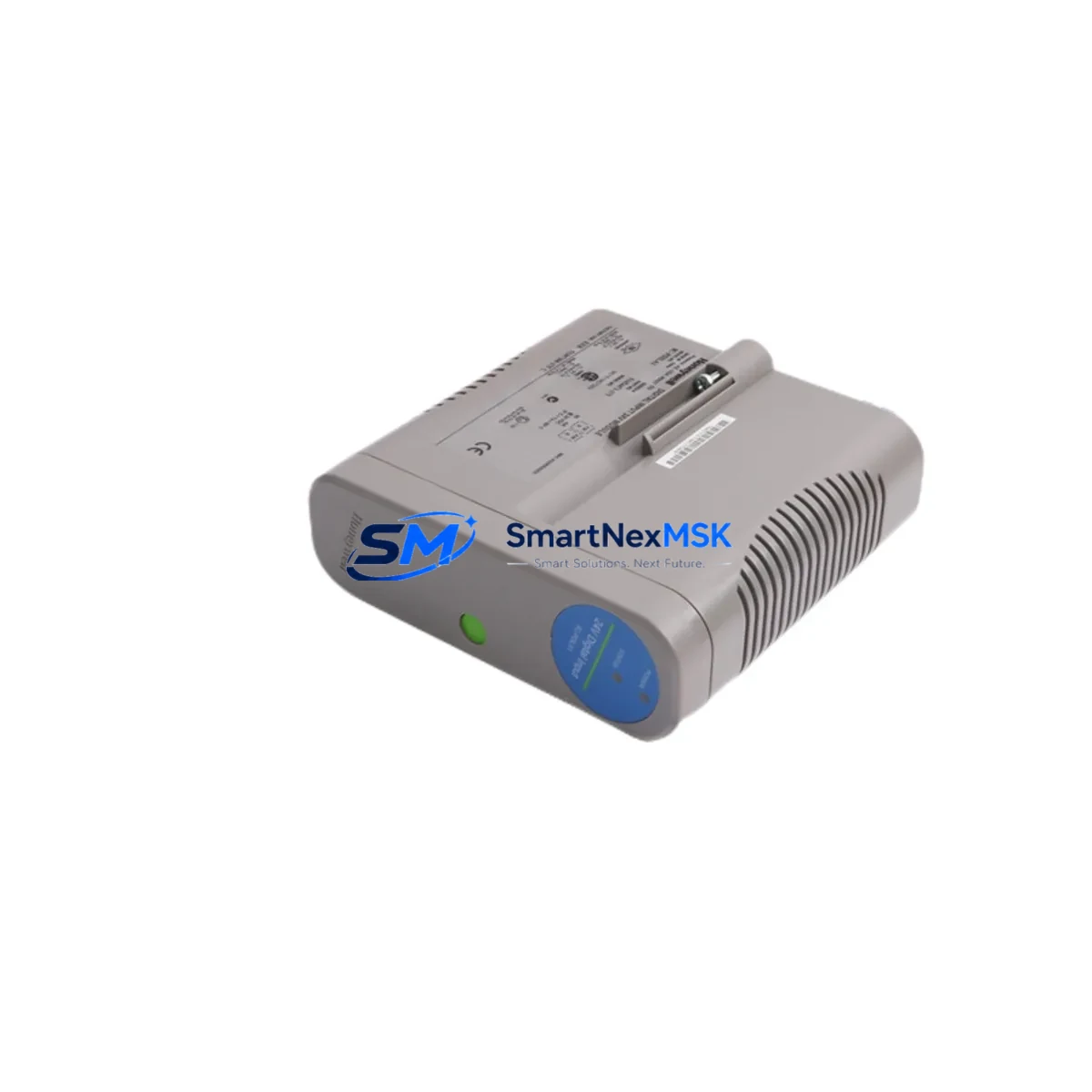

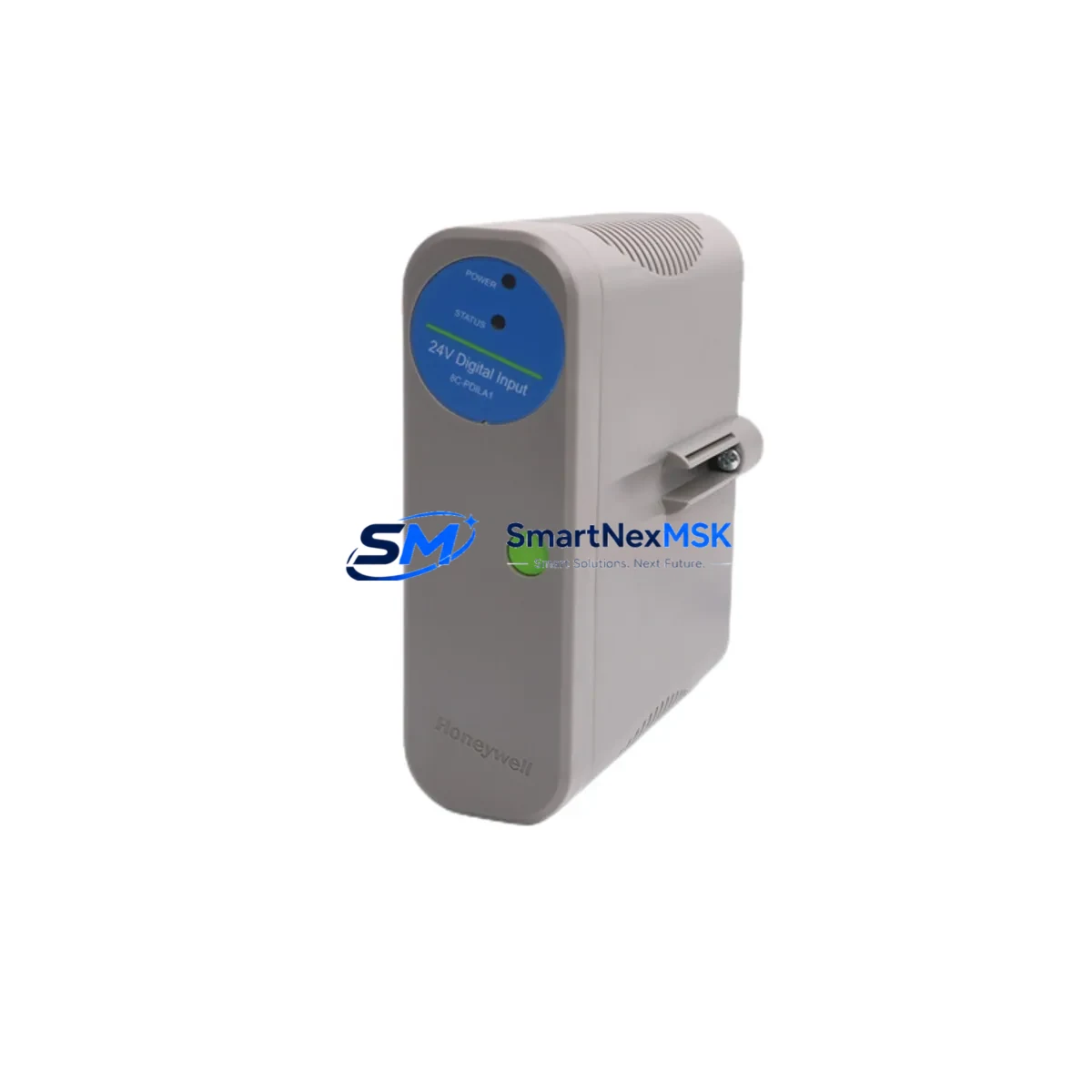

The Honeywell 8C-PDILA1 (P/N 51454471-175) is a ruggedized 8-channel 24V DC digital input module engineered for mission-critical process control environments where signal integrity, electrical isolation, and continuous uptime are non-negotiable. Designed for deployment within the Honeywell TDC 3000 Process Manager (PM) and Advanced Process Manager (APM) distributed control system architecture, this module serves as a front-line defense against control loop interruption, signal drift, and field-side electrical disturbances in the most demanding industrial sites.

In petrochemical complexes, power generation facilities, metallurgical plants, and continuous-process manufacturing environments, a single failed digital input channel can cascade into unplanned shutdowns, safety interlock failures, or regulatory non-compliance events. The 8C-PDILA1 addresses these risks through robust hardware design, tight noise immunity margins, and full compatibility with the TDC 3000 I/O subsystem — ensuring that field signals from limit switches, proximity sensors, valve position feedback, and emergency shutdown (ESD) circuits are faithfully captured and transmitted to the controller without ambiguity.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable digital input acquisition is only as strong as the surrounding control cabinet ecosystem. In a well-engineered TDC 3000 control cabinet, the 8C-PDILA1 51454471-175 operates in close coordination with complementary I/O and power infrastructure to form a layered protection strategy against the most common causes of field-side failures.

On the power supply side, the module draws regulated 24V DC from the Honeywell MC-PDIY22 Power Distribution Module or equivalent TDC 3000 power bus assembly. Voltage stability is critical: even brief sags below the module’s input threshold can cause false-state transitions on ESD or interlock circuits. Pairing the 8C-PDILA1 with a Honeywell 51304516-150 Power Supply Module and a redundant power feed ensures that power fluctuations on one rail do not propagate into spurious digital input events.

For applications involving long field cable runs — common in refinery pipe racks, mining conveyor galleries, or port crane control rooms — surge and transient energy from lightning strikes or motor switching can couple into the 24V DC field wiring. Installing Phoenix Contact TRABTECH surge protection terminal blocks or equivalent DIN-rail surge arrestors at the marshalling cabinet entry point significantly reduces the transient energy that reaches the 8C-PDILA1’s input terminals, extending module service life and preventing nuisance trips in safety interlock loops.

Within the same I/O chassis, the 8C-PDILA1 typically operates alongside Honeywell 8C-PDODA1 (51454468-175) Digital Output Modules for valve actuator and relay drive functions, and Honeywell 8C-PAIMA1 Analog Input Modules for 4–20 mA process variable acquisition. Together, these modules form a complete mixed I/O assembly capable of handling both discrete safety signals and continuous process measurements within a single PM or APM controller node.

Communication integrity between the I/O subsystem and the operator station is maintained through the Honeywell TDC 3000 Local Control Network (LCN) and Universal Control Network (UCN) infrastructure. Network interface modules such as the Honeywell NIM (Network Interface Module) and ENIM (Enhanced Network Interface Module) bridge the I/O data from the PM/APM chassis to the plant-wide control highway. Any communication anomaly — whether caused by cable degradation, termination resistance drift, or network card faults — can result in the controller losing visibility of the 8C-PDILA1’s channel states, making periodic network health checks and spare NIM/ENIM inventory essential elements of a robust maintenance strategy.

For facilities operating under IEC 61511 functional safety requirements, the digital input channels of the 8C-PDILA1 are frequently integrated into Safety Instrumented System (SIS) voting logic alongside Triconex TRICON or Triconex 3700A Safety Controllers, where the TDC 3000 DCS provides the basic process control layer and the SIS provides the independent safety layer. Proper channel segregation, dedicated field termination assemblies (FTAs), and periodic proof testing of each input channel are mandatory to maintain SIL compliance in such architectures.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In crude distillation units, hydrotreaters, and catalytic cracking sections, the 8C-PDILA1 monitors high-temperature valve position feedback, pump run/stop status, and emergency depressurization valve confirmation signals. Its optical isolation prevents ground loops between field instruments operating at different potential references — a common source of spurious ESD activations in large refinery complexes.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, digital input modules like the 8C-PDILA1 capture turbine trip signals, generator breaker status, and boiler drum level switch states. The module’s high noise immunity is essential in environments where large transformers, bus bars, and high-current switchgear generate intense electromagnetic fields that can corrupt lower-quality digital input hardware.

Mining & Mineral Processing: Conveyor belt emergency stop circuits, crusher overload relay contacts, and ventilation fan run-status signals are typical inputs managed by the 8C-PDILA1 in underground and surface mining operations. The module’s wide operating temperature range accommodates the thermal cycling experienced in outdoor electrical rooms and underground drive stations.

Water & Wastewater Treatment: In municipal and industrial water treatment facilities, the 8C-PDILA1 reads pump seal failure contacts, UV disinfection system status, and chemical dosing pump run signals. Reliable digital input acquisition is critical to maintaining regulatory compliance and preventing chemical overdose or underdose events that could affect public health.

Metallurgy & Steel Production: Electric arc furnace (EAF) control systems, continuous casting lines, and rolling mill automation rely on fast, reliable digital input acquisition to coordinate high-speed mechanical sequences. The 8C-PDILA1’s deterministic scan behavior within the TDC 3000 PM/APM architecture ensures that time-critical interlock signals are processed within the controller’s defined scan cycle without latency-induced sequencing errors.

Port & Terminal Automation: Ship-to-shore crane control systems, automated stacking crane (ASC) interlocks, and conveyor transfer tower safety circuits benefit from the 8C-PDILA1’s robust field isolation, which prevents common-mode voltage differences between crane structures and ground reference from corrupting digital input states during high-current motor operations.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Honeywell 8C-PDILA1 51454471-175?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes a pre-shipment functional verification test to confirm channel integrity, isolation resistance, and backplane communication before dispatch. Warranty claims are supported by our technical team with replacement or repair turnaround commitments.

Q2: How is the module tested before shipment?
Every 8C-PDILA1 unit is subjected to a structured outgoing quality inspection that includes channel-by-channel input state verification, power consumption measurement, optical isolation integrity check, and visual inspection for connector pin condition and PCB integrity. Test records are retained and available upon request for quality-audited procurement processes.

Q3: Is the 8C-PDILA1 51454471-175 compatible with all TDC 3000 PM and APM configurations?
Yes. The 8C-PDILA1 is a standard TDC 3000 I/O module designed for direct installation into PM and APM I/O card cages using the standard backplane slot interface. It is compatible with both legacy and later-revision TDC 3000 controller firmware. For specific firmware revision compatibility questions, our technical team can advise based on your system’s current software baseline.

Q4: Can long-term supply continuity be guaranteed for this module?
SMARTNEXMSK maintains dedicated inventory of TDC 3000 legacy I/O modules, including the 8C-PDILA1 51454471-175, to support plants operating extended lifecycle DCS systems. We actively source, test, and stock these modules to provide reliable spare parts supply for facilities that cannot migrate to newer DCS platforms on short notice. Blanket order arrangements and reserved stock agreements are available for high-volume or time-critical maintenance programs.
