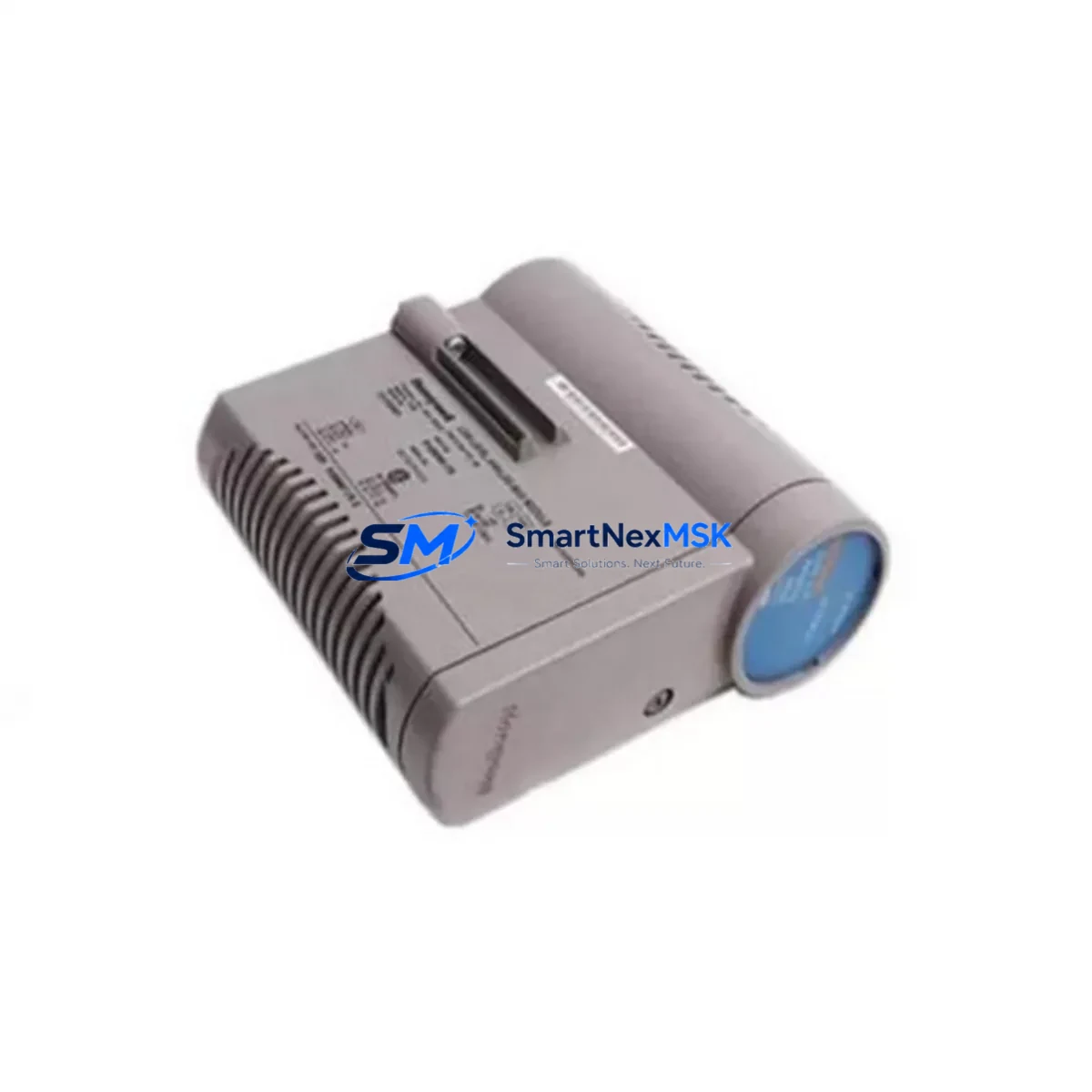

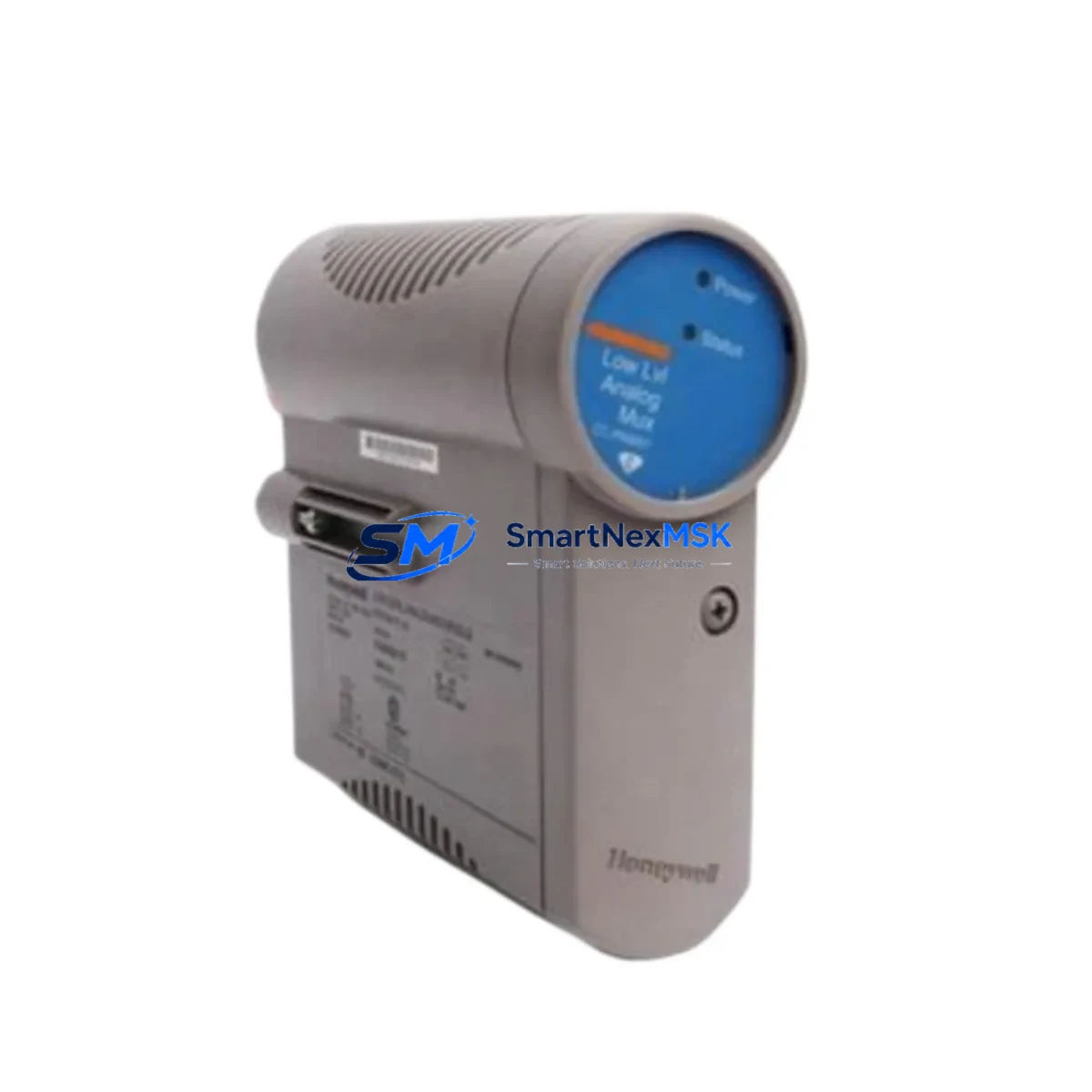

Honeywell 8C-TAOXA1 51307135-175 Maintenance-Ready Spare C300 Automation
The Honeywell 8C-TAOXA1 (P/N 51307135-175) is an 8-channel analog output module engineered for the Experion PKS C300 distributed control system platform. In process industries where continuous uptime is non-negotiable — refining, petrochemical, power generation, pulp and paper, and pharmaceutical manufacturing — this module serves as a critical interface between the C300 controller and field-mounted control valves, positioners, and variable-speed drives. When this module fails or degrades, the consequences extend far beyond a single loop: entire process trains can trip, safety interlocks may activate, and unplanned downtime costs can escalate rapidly. Maintaining a verified, tested spare of the 8C-TAOXA1 in your site inventory is one of the most cost-effective risk mitigation strategies available to maintenance and reliability engineers.
At SMARTNEXMSK, every 8C-TAOXA1 51307135-175 unit is sourced as an original Honeywell component, subjected to functional bench testing prior to dispatch, and shipped with a 12-month warranty. Our global logistics network supports urgent same-day quotation and expedited air freight to minimize your mean time to repair (MTTR).
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | 8C-TAOXA1 / 51307135-175 |
| Manufacturer | Honeywell Process Solutions |
| Compatible Platform | Experion PKS — C300 Controller Series |
| Module Type | 8-Channel Analog Output (AO) |
| Output Signal | 4–20 mA (current loop, HART-capable) |
| Resolution | 16-bit DAC per channel |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Power Supply | Supplied via C300 I/O Link backplane (IOLIM) |
| Mounting | C300 I/O chassis / FTA (Field Termination Assembly) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Certifications | CE, UL, FM (per Honeywell product documentation) |
| Country of Origin | United States |
| Condition | Original spare — tested before shipment |
| Warranty | 12 Months from date of shipment |
| Lead Time | In-stock: ships within 1–3 business days |
Maintenance Planning for Continuous Operation
Replacing the 8C-TAOXA1 51307135-175 in a live Experion PKS environment is rarely an isolated task. Experienced maintenance engineers know that a degraded analog output module is often a symptom of broader stress in the I/O subsystem. Before returning the loop to service, a thorough site inspection should cover the following associated components and assemblies.

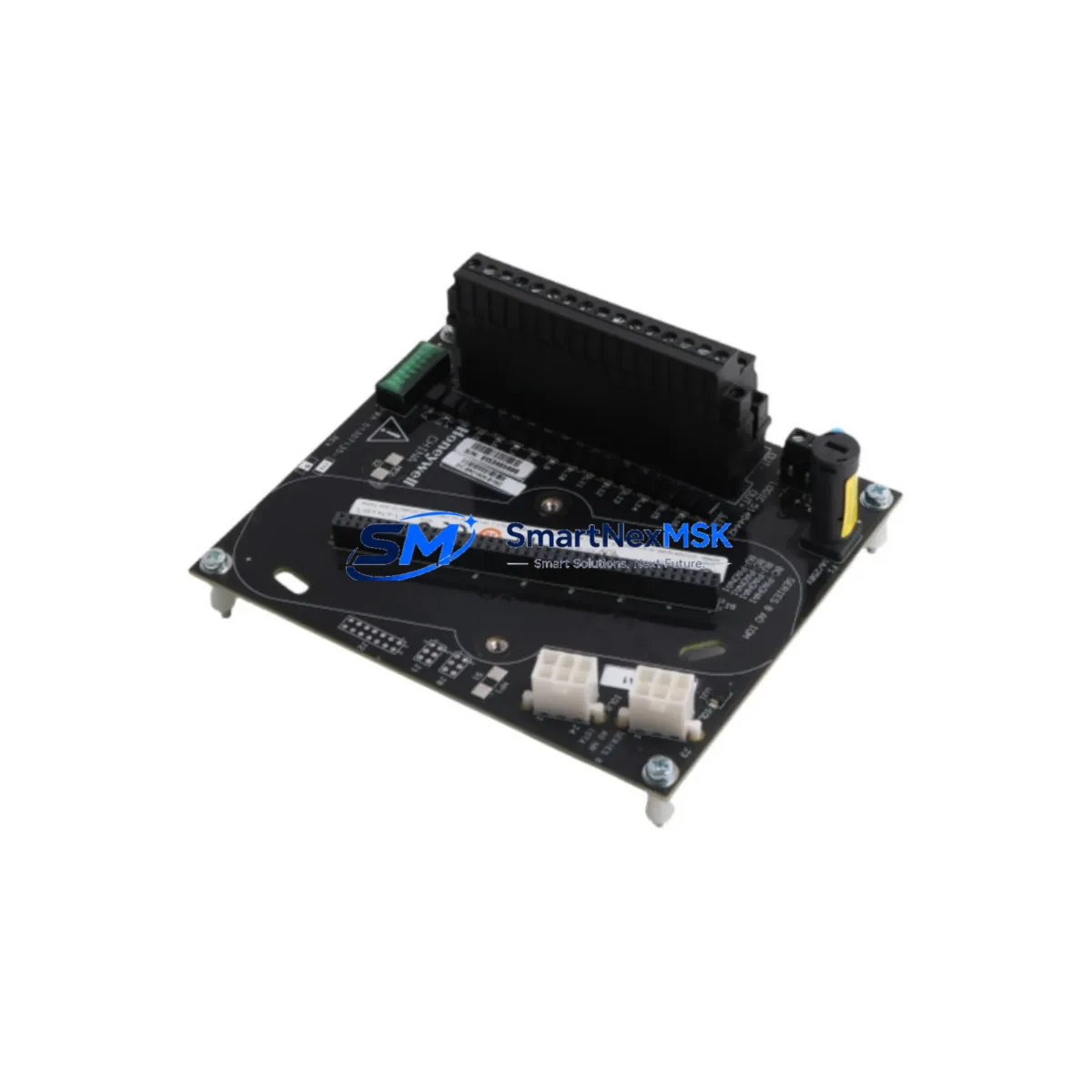

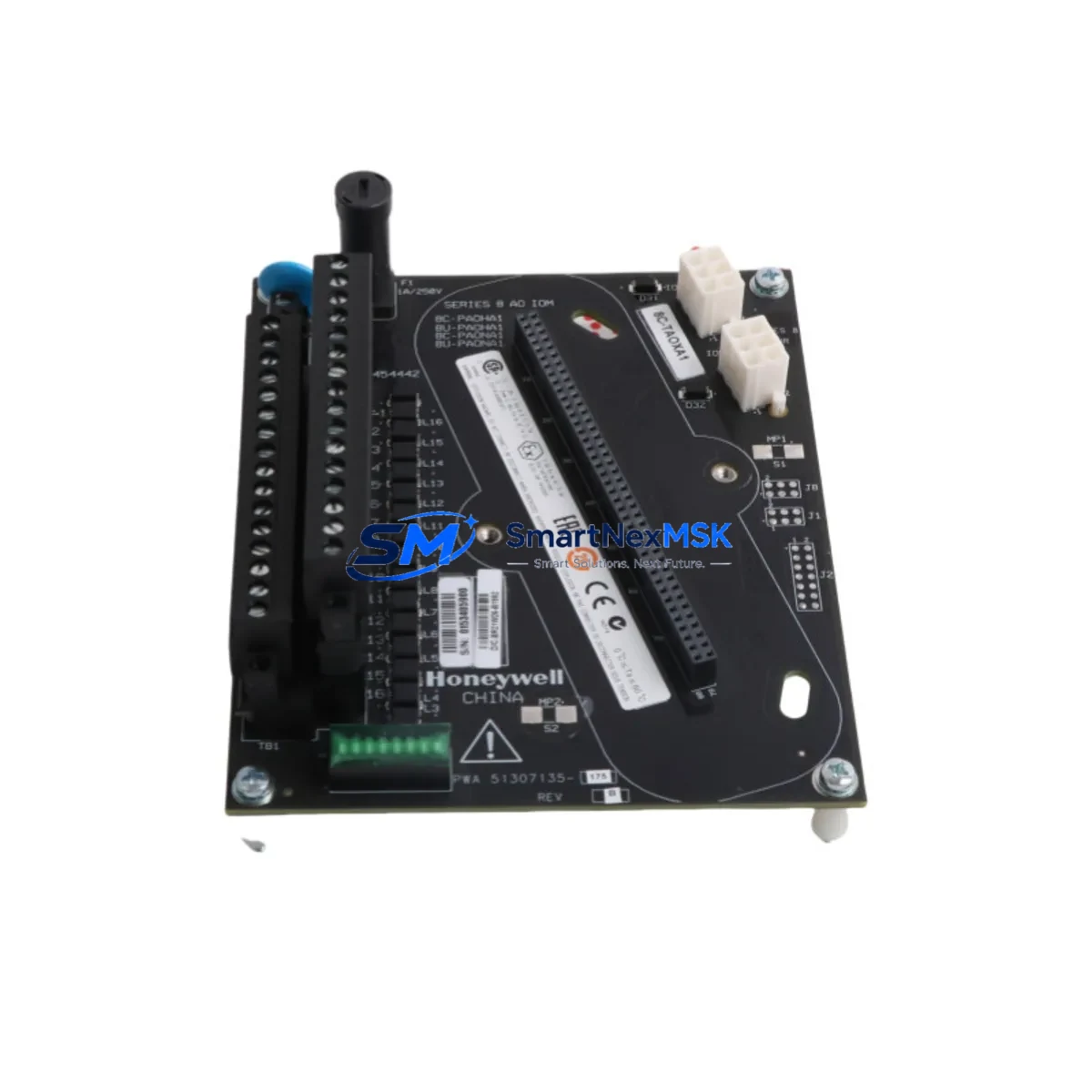

The C300 Controller module itself should be checked for firmware revision compatibility and diagnostic alarms — a faulty AO module can sometimes mask underlying controller faults. The IOLIM (I/O Link Interface Module) that bridges the C300 to its I/O chassis is a frequent co-failure point; inspect its status LEDs and verify link integrity. The FTA (Field Termination Assembly) paired with the 8C-TAOXA1 — typically a model such as the 51304453-150 or equivalent marshalling panel — should be inspected for corroded terminals, loose wiring, and blown channel fuses.
On the power side, the 24 VDC I/O power supply module feeding the chassis should be load-tested; marginal power supplies are a leading cause of intermittent AO channel faults. If the plant uses HART multiplexers or asset management software connected to these AO channels, verify that HART communication is re-established after module swap. For loops driving electro-pneumatic positioners or I/P converters, a full loop calibration (4 mA = 0%, 20 mA = 100%) should be performed post-replacement.
In the same control cabinet, it is good practice to inspect adjacent 8C-TAIX51 or 8C-TAIX11 analog input modules for similar wear indicators, as they share the same backplane environment and thermal stress profile. Redundant C300 controller pairs should be synchronized and their switchover tested after any I/O module replacement. If the system includes Safety Manager (SM) modules or FSC (Fail-Safe Controller) I/O in the same cabinet, verify that safety loop integrity has not been affected. Finally, review the Experion PKS Server alarm history for any latent faults on neighboring I/O points that may have been masked during the fault period.
Stocking a recommended spare kit alongside the 8C-TAOXA1 — including at least one IOLIM, one FTA, and a set of channel fuses — reduces average repair time from hours to minutes and is strongly recommended for any site running Honeywell C300-based control systems.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the replacement unit part number (8C-TAOXA1) and revision matches the installed module. Check Experion PKS Station for active alarms on the affected I/O module tag. Place affected control loops in manual mode at the DCS operator station before proceeding.
Step 2 — Safe removal: The C300 I/O chassis supports hot-swap of I/O modules without powering down the chassis, provided the module is properly decommissioned in software first. Navigate to the module hardware tree in Experion Configuration Studio, set the module to Offline, then physically remove the 8C-TAOXA1 by releasing the module latch. Avoid touching the backplane connector pins.
Step 3 — Installation of replacement spare: Insert the new 8C-TAOXA1 51307135-175 into the same slot. The module will auto-configure from the C300 database if the slot assignment is unchanged. Verify the module status LED transitions from red/amber to solid green within 30–60 seconds.
Step 4 — Loop verification: Force each AO channel to 4 mA and 20 mA from the Experion operator station and confirm field device response. Re-enable automatic control mode only after all channels pass verification. Document the replacement in the site CMMS with the new module serial number and warranty expiry date.
Step 5 — Spare replenishment: Immediately initiate a purchase order for a replacement spare to restore your on-site buffer stock. Contact SMARTNEXMSK at sales@smartnexmsk.com for fast quotation and availability confirmation.
Spare Parts Support FAQ
Q1: Is the 8C-TAOXA1 51307135-175 compatible with all C300 controller revisions?
The 8C-TAOXA1 is designed for the Honeywell Experion PKS C300 I/O subsystem. Compatibility across C300 hardware revisions is generally maintained by Honeywell backward-compatible I/O architecture. We recommend confirming your C300 firmware version against Honeywell compatibility matrix. Our technical team can assist with compatibility verification prior to order.
Q2: What testing is performed before shipment?
Every unit shipped by SMARTNEXMSK undergoes functional bench testing to verify channel output accuracy, communication with the I/O Link bus, and absence of physical damage. A test report is available upon request. All units are shipped in anti-static packaging with a 12-month warranty from the date of shipment.
Q3: Can this module replace older or discontinued Honeywell AO modules in legacy C300 systems?
The 8C-TAOXA1 51307135-175 is the current production spare for this slot type in the C300 I/O family. For sites running older Experion R2xx or R3xx releases with legacy I/O modules, a firmware or configuration update may be required. We advise customers to consult their Experion release notes or contact us for legacy compatibility guidance before ordering.
Q4: What is your lead time and do you support emergency orders?
In-stock units ship within 1–3 business days via standard freight. For emergency plant shutdowns, we offer same-day quotation and expedited air freight globally. Contact sales@smartnexmsk.com or call +86 18259474341 to discuss urgent requirements. Long-term supply agreements and consignment stocking programs are also available for high-volume maintenance customers.
