Honeywell 8C-TDIL51 51306969-175 Safety Digital Input Module

Honeywell 8C-TDIL51 51306969-175 Safety Digital Input Module: Reliable Control in Harsh Industrial Sites

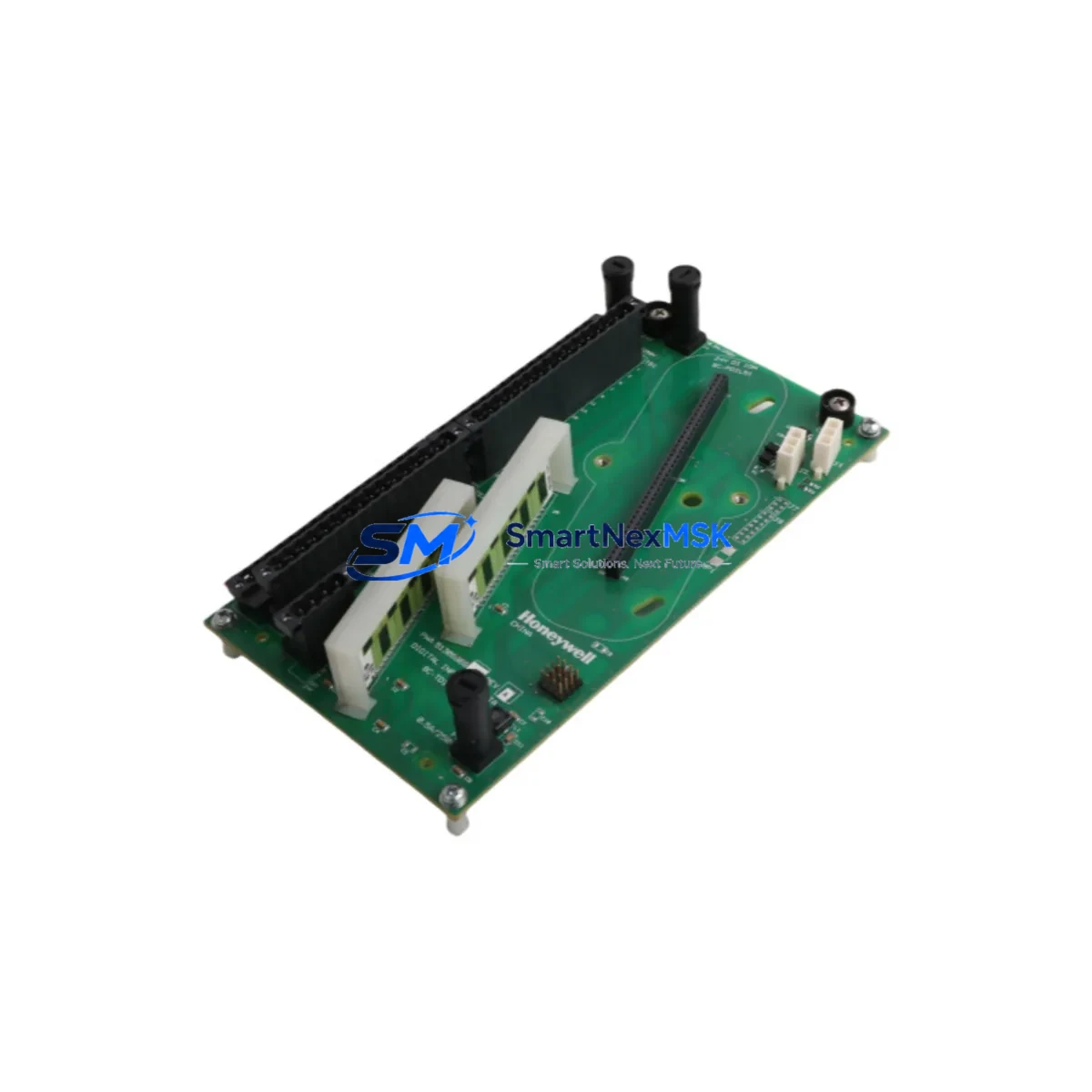

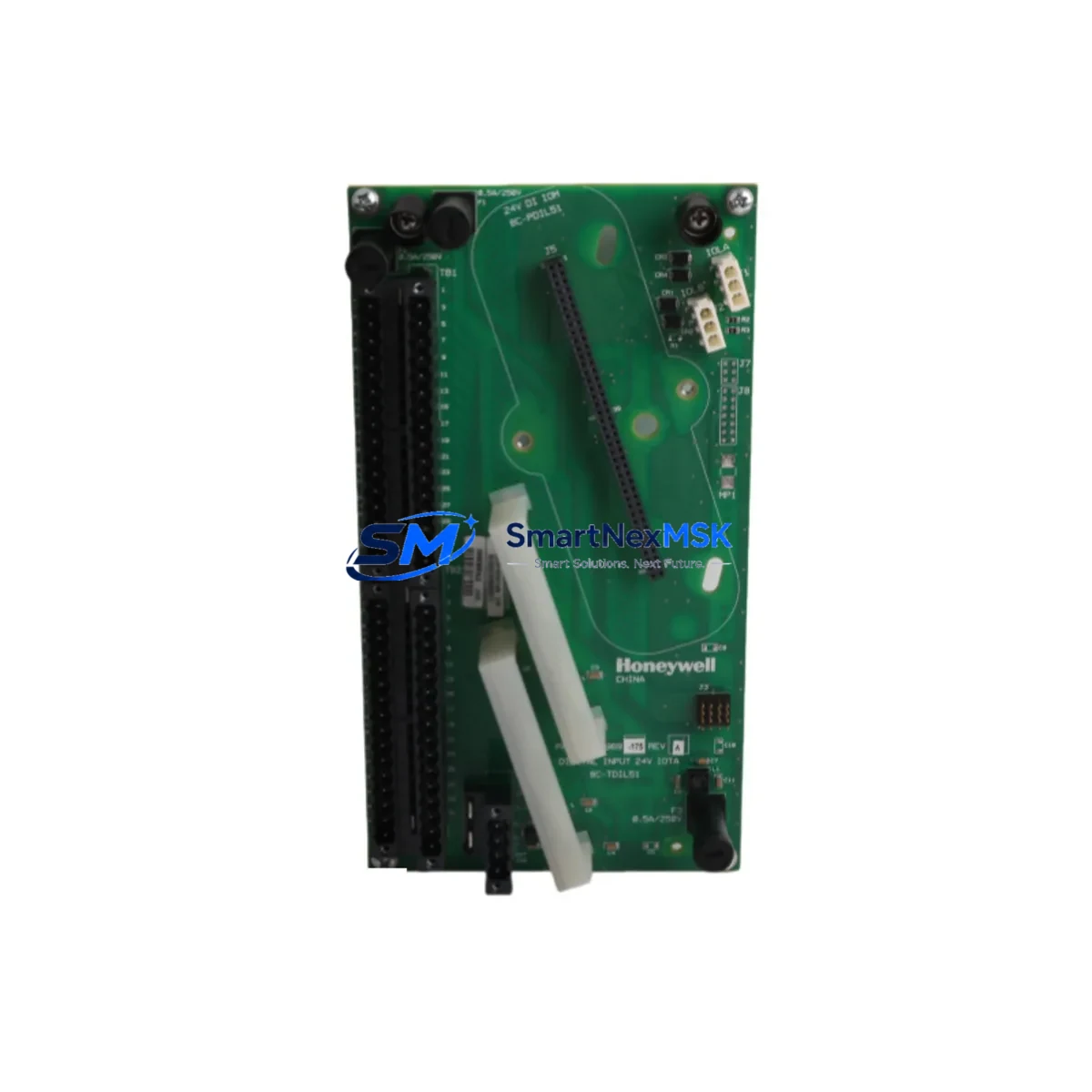

The Honeywell 8C-TDIL51 51306969-175 is a ruggedized 8-channel digital input module engineered for the Experion PKS Series C I/O platform — one of Honeywell’s most widely deployed distributed control system architectures in safety-critical process industries. Designed to operate reliably in high-noise, high-vibration, and thermally demanding environments, this module serves as a foundational element in control loops where signal integrity and continuous availability are non-negotiable.

In continuous production facilities — including petrochemical complexes, power generation plants, mineral processing operations, and water treatment infrastructure — digital input modules are the first line of signal acquisition in any safety interlock or process monitoring loop. The 8C-TDIL51 51306969-175 addresses the most common field failure modes: signal drift caused by electromagnetic interference, contact bounce from aging field devices, and module brownout during power transients. Its hardened input circuitry filters spurious signals before they propagate to the controller, reducing the risk of nuisance trips or, more critically, missed safety events.

Within a typical Experion PKS control cabinet, the 8C-TDIL51 works in close coordination with complementary Series C I/O modules. Digital output modules such as the 8C-TDOL51 handle actuator commands on the same backplane, while analog input modules like the 8C-TAIM51 provide continuous process variable monitoring alongside discrete state detection. The CC-TCNT01 controller node manages scan cycles across all I/O modules, and the CC-PAIH01 power supply module ensures stable 24 VDC rail voltage — a critical factor in preventing the input threshold errors that can cause false digital reads under load fluctuation. For installations requiring redundant power architectures, the CC-PWRR01 redundant power supply module pairs directly with the primary supply to eliminate single-point power failure risk across the entire I/O chassis.

Communication integrity is equally important in safety-critical DCS deployments. The 8C-TDIL51 interfaces with the Experion PKS C300 controller via the FTE (Fault Tolerant Ethernet) backplane, which provides dual-path communication redundancy. In installations where fieldbus connectivity is required at the device level, FOUNDATION Fieldbus H1 interface modules and PROFIBUS DP gateway modules can be integrated within the same control cabinet to extend the safety architecture to intelligent field instruments. Surge protection devices — such as dedicated DIN-rail mounted transient voltage suppressors — are recommended at all field wiring termination points to protect the 8C-TDIL51’s input channels from lightning-induced surges and switching transients common in outdoor or substation-adjacent installations.

For safety instrumented system (SIS) applications, the 8C-TDIL51 51306969-175 is typically deployed alongside Honeywell Safety Manager I/O modules in a layered architecture where the BPCS (Basic Process Control System) and SIS share physical proximity but maintain logical separation. In such configurations, the digital input channels monitor emergency shutdown (ESD) pushbutton states, valve position feedback, and high-level switch contacts — all of which feed into the safety logic solver. Proper module seating, verified termination torque, and periodic proof-test cycles are essential maintenance practices to sustain the module’s contribution to the overall Safety Integrity Level (SIL) of the loop.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust Experion PKS control cabinet deployment built around the 8C-TDIL51 51306969-175 requires a coordinated selection of protective and communicative components. At the power layer, the CC-PAIH01 I/O power supply and its redundant counterpart the CC-PWRR01 maintain stable backplane voltage, preventing the undervoltage conditions that cause digital input modules to latch in incorrect states. Upstream, a 24 VDC DIN-rail power supply with active PFC and built-in output capacitance buffers momentary grid dips — a common occurrence in heavy industrial facilities with large motor loads on shared distribution panels.

At the signal conditioning layer, DIN-rail terminal blocks with integrated surge arresters (such as Phoenix Contact or Weidmüller surge protection devices rated for 24 VDC signal lines) protect the 8C-TDIL51’s input channels from field-side transients. For installations near variable frequency drives (VFDs) or large contactors, ferrite core filters on field wiring bundles and proper cable segregation between power and signal cables are essential to maintain the module’s EMI immunity margin.

At the controller layer, the Honeywell C300 Process Controller manages I/O scan and executes the control strategy, while FTE network switches with redundant uplinks ensure that communication between the controller and the engineering workstation remains uninterrupted even during a single network path failure. For remote I/O cabinets, Honeywell IOLIM (I/O Link Interface Module) extends the Series C I/O bus over fiber, eliminating ground loop interference in geographically distributed installations such as pipeline pump stations or offshore platform junction boxes.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units and hydrocracker control rooms, the 8C-TDIL51 monitors high-temperature switch contacts, pressure switch states, and ESD valve position feedback. Its optical isolation prevents ground faults on field wiring from propagating into the DCS backplane — a failure mode that has historically caused unplanned shutdowns in high-hazard process units.

Power Generation: In coal-fired and gas turbine power plants, digital input modules acquire turbine trip signals, breaker status, and generator protection relay outputs. The 8C-TDIL51’s fast input scan rate ensures that trip events are captured within the controller’s execution cycle, supporting the sub-second response times required by turbine protection logic.

Mining & Mineral Processing: Conveyor belt interlock systems, crusher overload protection circuits, and flotation cell level switch monitoring all rely on reliable digital input acquisition. In dusty, high-vibration mining environments, the 8C-TDIL51’s ruggedized construction and conformal-coated PCB (where applicable) resist the accelerated degradation that affects standard commercial-grade I/O modules.

Water & Wastewater Treatment: Pump run/fail status, valve open/closed confirmation, and high-level alarm inputs from float switches are typical digital input signals in water treatment SCADA/DCS hybrid architectures. The module’s low power consumption and wide operating temperature range make it suitable for outdoor pump station control panels in variable climates.

Metallurgy & Steel: In electric arc furnace (EAF) and continuous casting control systems, the 8C-TDIL51 acquires cooling water flow switch states, electrode position limit switch signals, and mold level alarm contacts — all within an environment characterized by intense electromagnetic emissions from high-current bus bars and thyristor drives.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 8C-TDIL51 51306969-175?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing including channel-by-channel input verification, isolation resistance measurement, and backplane communication handshake confirmation. If a module fails within the warranty period under normal use, we provide replacement or repair at no additional cost.

Q2: How is the module tested before shipment?
Every 8C-TDIL51 51306969-175 unit is subject to outgoing quality control (OQC) inspection prior to dispatch. Testing includes power-on self-test (POST) verification, all 8 digital input channels stimulated and read-back confirmed, isolation integrity check between field-side and backplane, and visual inspection for physical damage, connector integrity, and label accuracy. A test record is retained for traceability.

Q3: Is this module compatible with all Experion PKS Series C I/O chassis?
Yes. The 8C-TDIL51 51306969-175 is designed for the Honeywell Experion PKS Series C I/O platform and is compatible with standard Series C backplane chassis. It is recommended to verify the firmware revision of the C300 controller against Honeywell’s compatibility matrix for your specific system release. We can provide guidance on compatibility for your installed base upon request.

Q4: Can long-term supply and spare parts support be guaranteed?
We maintain dedicated inventory of the 8C-TDIL51 51306969-175 to support both planned maintenance schedules and emergency replacement requirements. For critical infrastructure operators managing aging Experion PKS installations, we recommend establishing a consignment stock arrangement or blanket purchase order to ensure module availability without lead-time risk. Our team can advise on recommended spare parts ratios based on your installed module count and criticality classification.
