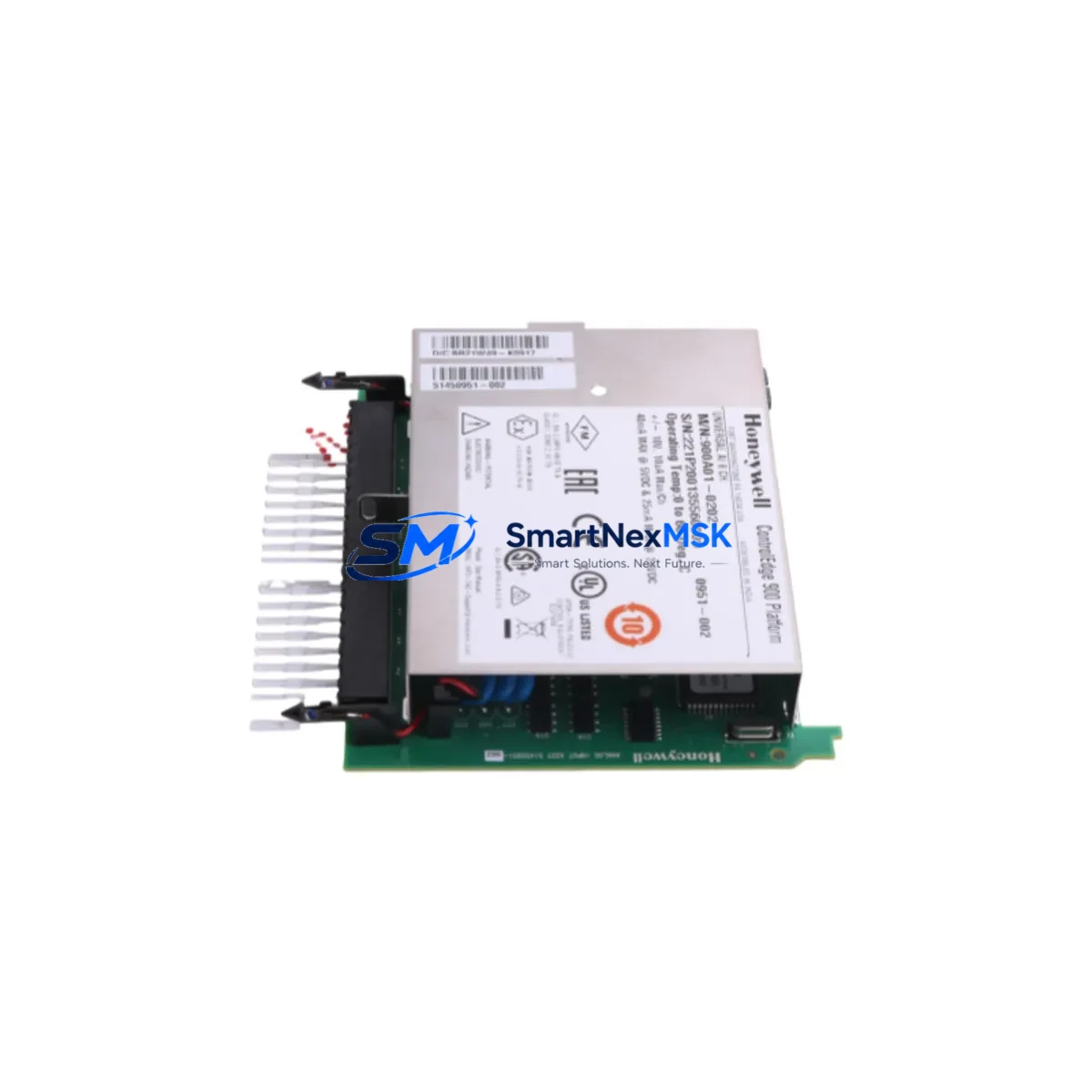

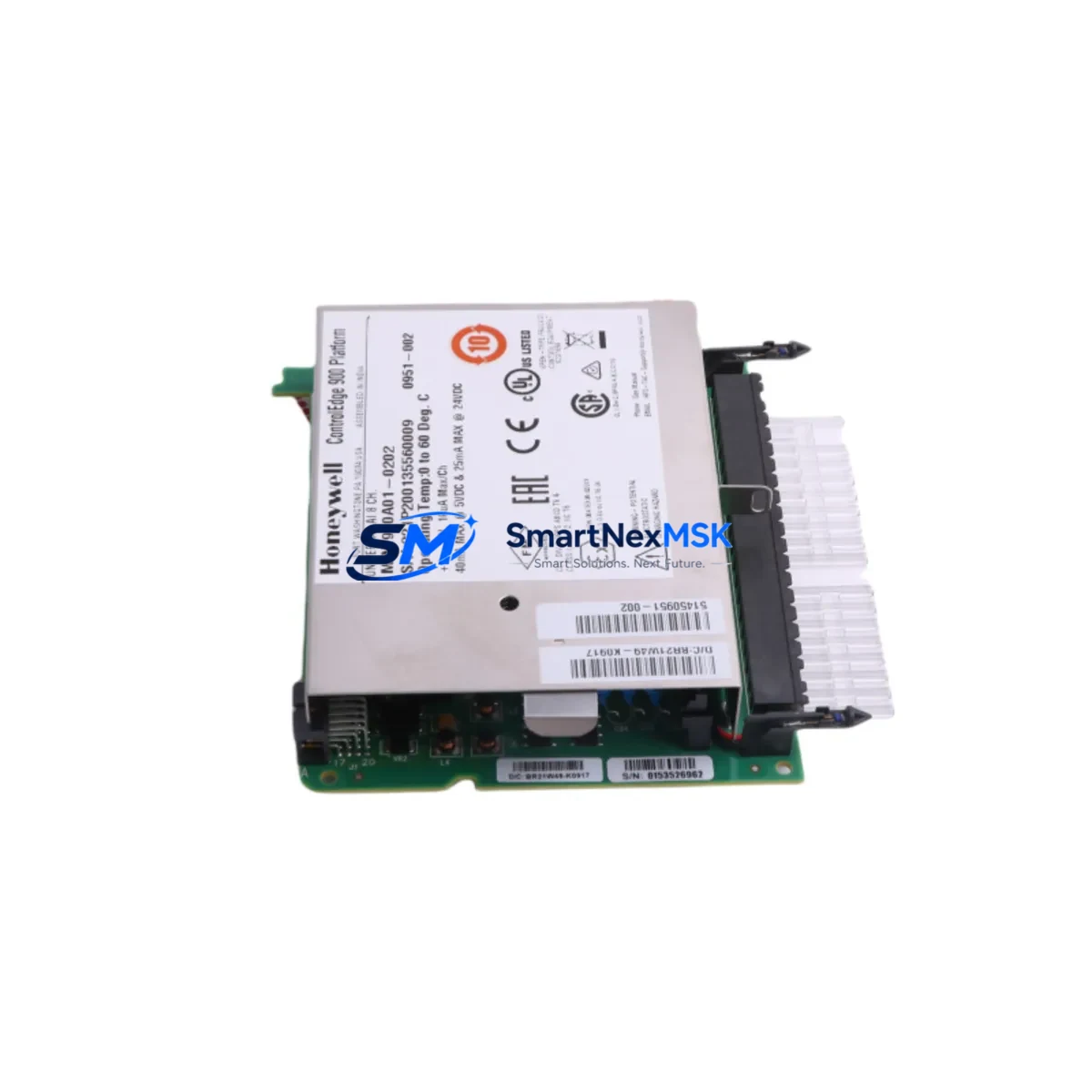

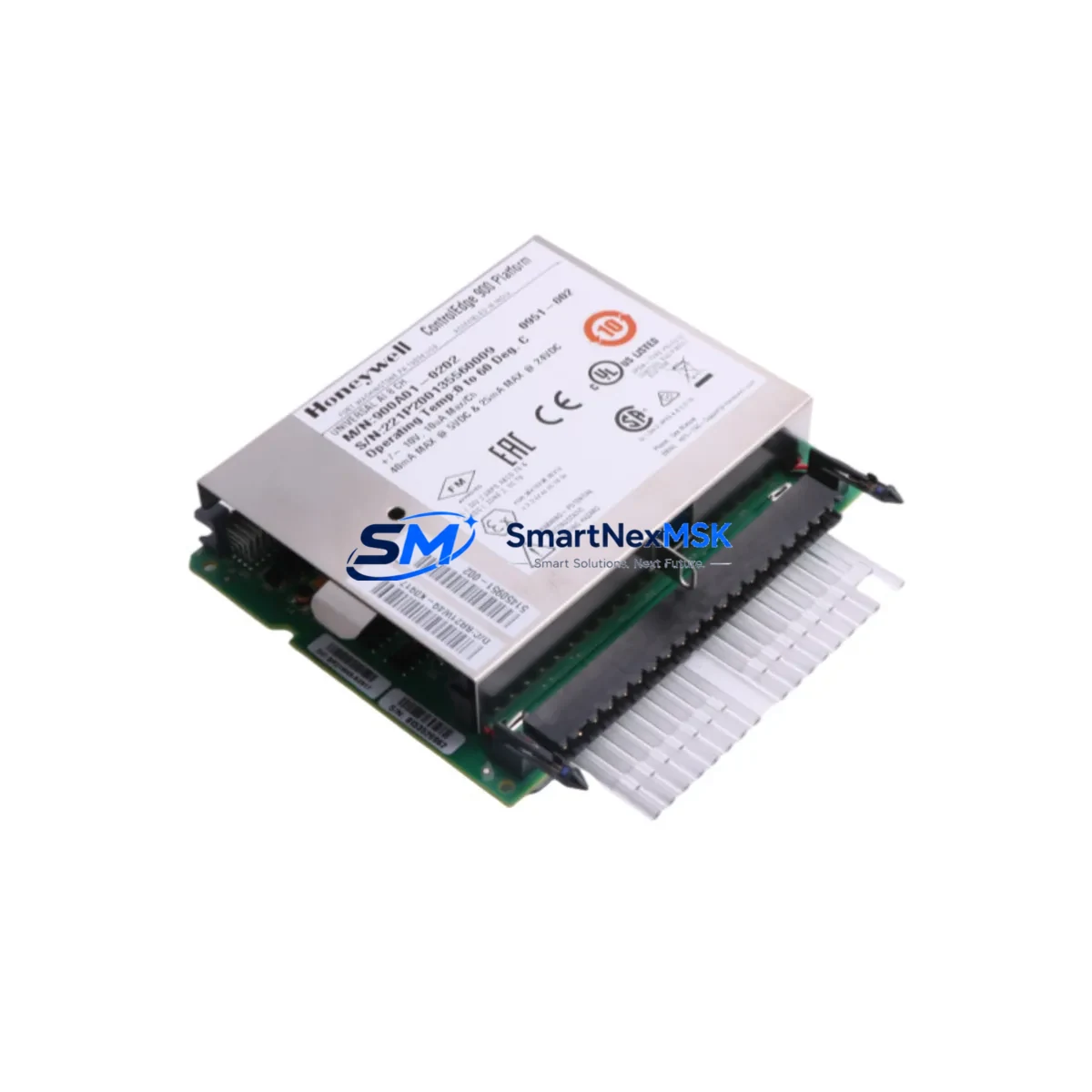

Honeywell 900A01-0202 Retrofit-Ready Analog Input for HC900 Control Systems
The Honeywell 900A01-0202 is an 8-channel analog input module engineered for the HC900 Hybrid Controller platform. As legacy distributed control systems age and OEM support windows close, the 900A01-0202 has become one of the most sought-after retrofit components for facilities running HC900-based process control architectures. Whether you are replacing a failed unit on a live production line, upgrading an aging control cabinet, or migrating from an earlier HC900 revision to a current-generation configuration, this module delivers the electrical compatibility, signal accuracy, and backplane interface integrity required for a smooth, low-risk transition.
The 900A01-0202 accepts standard 4–20 mA and 1–5 V analog signals across all eight channels, making it directly interchangeable with earlier HC900 analog input variants without requiring rewiring of field termination assemblies. Each channel supports individual signal type configuration through the HC900 Designer programming environment, and the module communicates over the HC900 C-Bus backplane at full scan rates, ensuring no latency penalty during cutover. Engineers replacing a 900A01-0101 or 900A01-0201 will find the 900A01-0202 a functionally equivalent drop-in, with the added benefit of improved noise immunity and extended operating temperature tolerance.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | Honeywell HC900 Hybrid Controller (all rack sizes) |
| Replaces | 900A01-0101, 900A01-0201 (direct drop-in) |
| Backplane Interface | HC900 C-Bus — no adapter required |
| Signal Types | 4–20 mA, 1–5 V DC (per-channel configurable) |
| Channel Count | 8 channels, individually isolated |
| Installation Requirement | Standard HC900 module slot; no bracket modification |
| Communication Compatibility | Modbus RTU / Modbus TCP via HC900 CPU (900C71-0243 or equivalent) |
| Programming Tool | HC900 Designer v4.x and above; existing function blocks retained |
| Commissioning Note | Module address auto-assigned by rack position; verify in HC900 Designer after insertion |
| Warranty | 12 months from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful HC900 retrofit begins well before the module arrives on site. Start by auditing the existing rack configuration — most HC900 installations use a 900R08-0001 8-slot rack or a 900R16-0001 16-slot rack, and slot assignments directly determine the module address recognized by the CPU. Confirm that the 900C71-0243 CPU module (or your installed CPU variant) has sufficient firmware to support the 900A01-0202 revision; firmware updates can be applied via the HC900 Designer utility without taking the entire system offline if a redundant CPU is present.
Field wiring connects to the 900T02-0001 or 900T02-0002 termination assembly. Before disconnecting the existing module, photograph or document all terminal assignments — particularly channels carrying thermocouple compensation signals or pressure transmitter loops — since mislabeled field cables are the leading cause of extended commissioning time during analog input replacements. The 900A01-0202 uses the same 40-pin termination connector as its predecessors, so the termination assembly itself does not need to be replaced.
If your retrofit scope extends beyond a single analog input module, consider simultaneously addressing the 900P01-0001 power supply module if it is approaching its rated service life, and verify that the 900H01-0001 or 900H02-0001 communication module is correctly configured for your SCADA or DCS upstream link. Sites running Modbus TCP to a Wonderware or iFIX HMI should confirm that the HC900 IP address and register map remain unchanged after the module swap — the 900A01-0202 does not alter the Modbus register allocation for analog input channels. For sites using a 900G01-0001 gateway module to bridge legacy serial devices, no reconfiguration is required as long as the CPU program is not modified during the swap.
If the retrofit is part of a broader control cabinet upgrade — for example, replacing an entire HC900 rack assembly alongside a new 900P02-0001 redundant power supply — plan the sequence so that the CPU program is backed up to a laptop running HC900 Designer before any hardware is removed. The program backup takes less than two minutes and eliminates the risk of losing function block logic, PID tuning parameters, and alarm setpoints accumulated over years of operation.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern for any analog input module replacement on a running process. The 900A01-0202 supports hot-swap insertion in HC900 racks equipped with a redundant CPU pair — the standby CPU continues executing the control program while the primary rack is serviced, and bumpless transfer ensures field outputs remain stable throughout the swap. For single-CPU installations, coordinate the replacement during a scheduled maintenance window and pre-stage the module with its configuration verified offline using HC900 Designer in simulation mode.
Before pulling the failed module, place all PID loops associated with the affected analog input channels into manual mode from the operator station or HMI. This prevents runaway output commands during the brief period when input signals are unavailable. After inserting the 900A01-0202, allow the module to complete its self-diagnostic cycle — indicated by the green RUN LED — before returning loops to automatic mode. The entire swap sequence, from manual mode engagement to automatic mode restoration, typically takes under 15 minutes for a trained technician familiar with the HC900 platform.
For sites where even a 15-minute interruption is unacceptable, a parallel wiring strategy can be employed: install the replacement module in an adjacent spare slot, wire a duplicate set of field signals to its termination assembly, verify signal readings in HC900 Designer, and then perform a program edit to redirect function block inputs from the old module address to the new one — all while the original module remains in service. This approach extends preparation time but reduces the actual process interruption to the duration of a single program download, typically under 60 seconds.
Retrofit Support FAQ
Q: Is the 900A01-0202 a direct replacement for the 900A01-0101?
A: Yes. The 900A01-0202 is backward compatible with the 900A01-0101 and 900A01-0201. It uses the same backplane connector, the same termination assembly, and the same HC900 Designer function block interface. No program modification is required when replacing on a like-for-like basis.
Q: What commissioning steps are required after installation?
A: After inserting the module, open HC900 Designer and verify that the module appears in the rack view at the correct slot address. Perform a channel-by-channel signal verification by applying a known 4–20 mA source to each input and confirming the engineering unit reading matches the configured range. Check alarm setpoints and confirm that all PID loops referencing the module inputs are reading correctly before returning to automatic control.
Q: Will my existing field wiring need to be modified?
A: No field wiring changes are required if you are using the standard 900T02-0001 or 900T02-0002 termination assembly. The 900A01-0202 uses the same 40-pin connector and the same channel-to-terminal mapping as earlier HC900 analog input modules. Simply reconnect the termination assembly to the new module after installation.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing including signal accuracy verification across all eight channels. If a warranty claim is required, contact our support team with the module serial number and a description of the fault — replacement or repair is coordinated within 5 business days.
