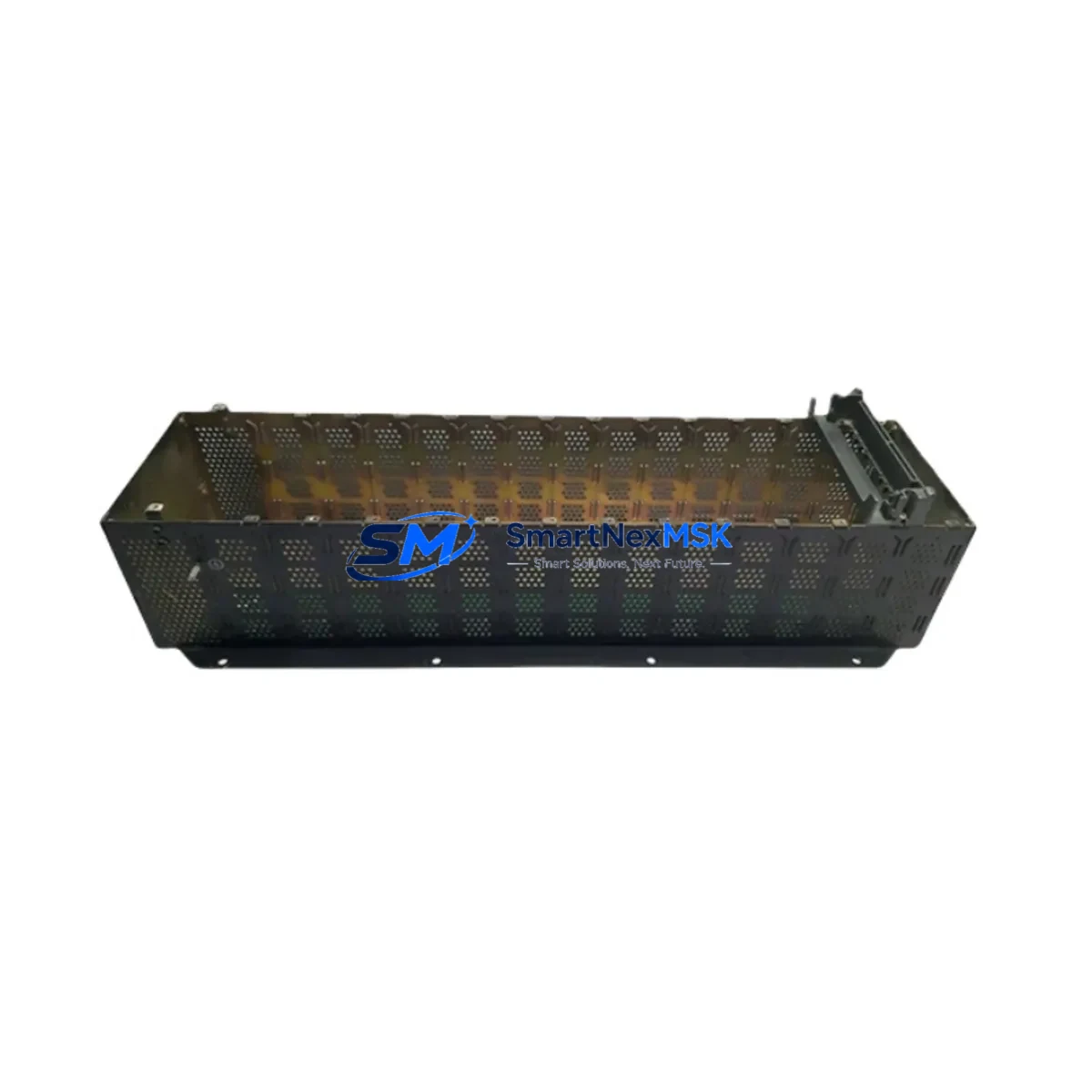

Honeywell 900G32-0301 Maintenance-Ready Spare for HC900 Automation
The Honeywell 900G32-0301 is a 32-channel 24VDC digital input module engineered for the HC900 Hybrid Controller platform — a proven DCS architecture deployed across chemical processing, oil & gas, power generation, water treatment, and pharmaceutical manufacturing. As one of the highest-density I/O components in any HC900 control cabinet, a failure in the 900G32-0301 can simultaneously disable up to 32 discrete field signals: limit switches, pressure switches, motor run feedbacks, valve position indicators, and emergency shutdown inputs. The operational impact is immediate and broad, making on-site spare availability a non-negotiable element of any HC900 maintenance program.
Every 900G32-0301 unit supplied by SMARTNEXMSK is sourced from original manufacturer channels, subjected to full channel-by-channel input verification and isolation testing, and shipped with a 12-month warranty from the date of delivery. For maintenance engineers managing aging HC900 systems, this module is a direct plug-compatible replacement requiring no I/O remapping, no firmware changes, and no controller reconfiguration — enabling the fastest possible return to full DCS operation after an unplanned outage.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 900G32-0301 |
| Brand | Honeywell |
| Series | HC900 Hybrid Controller |
| Module Type | 32-Channel Digital Input Module |
| Input Voltage | 24VDC nominal |
| Number of Channels | 32 |
| Input Logic | Sink/Source compatible (IEC Type 1/2) |
| Input ON Threshold | ≥ 15VDC |
| Input OFF Threshold | ≤ 5VDC |
| Isolation | Channel group-to-backplane optical isolation |
| Communication Interface | HC900 backplane bus (native) |
| Compatibility | HC900 Hybrid Controller backplanes and rack assemblies |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting | Direct backplane slot insertion, tool-free |
| Country of Origin | United States |
| Product Condition | Original new or tested-serviceable |
| Pre-shipment Testing | Full 32-channel input verification and isolation test |
| Warranty | 12 months from shipment date |
| Typical Lead Time | In-stock: ships within 2 business days |
Maintenance Planning for Continuous Operation
When replacing a 900G32-0301 digital input module, experienced maintenance engineers treat the event as a trigger for a broader control cabinet inspection rather than a single-component swap. The 32 discrete input channels on this module typically serve as the primary feedback layer for field devices across an entire process unit — and the root cause of module failure is often traceable to upstream electrical issues that, if left unaddressed, will damage the replacement module as well.
Begin by inspecting the HC900 rack power supply module (such as the 900P01-0001 24VDC supply) for output voltage stability and ripple. An undervoltage condition on the 24VDC bus is a common cause of digital input module degradation in high-cycle environments. Simultaneously, verify the HC900 controller module — for example, the 900C71-0243 or 900C72-0243 redundant controller pair — for firmware compatibility with the replacement 900G32-0301 and confirm no diagnostic fault codes are latched from the failed module.
Inspect the HC900 backplane connector for pin damage, oxidation, or contamination before seating the new module. If the rack also houses a 900G16-0101 16-channel analog input module or a 900B08-0202 analog output module in adjacent slots, check their terminal block connections for looseness — vibration-induced terminal drift is a frequent secondary finding during digital input module replacements in process plant environments.
Review the field wiring terminal blocks connected to the 900G32-0301. With 32 channels, the associated terminal strip carries a high density of field cables, and a single shorted or miswired conductor can cause group-level input faults that mimic module failure. Check the fuse protection on the 24VDC field supply feeding the input circuits — blown fuses on individual channel groups are a reliable indicator of field-side wiring faults that preceded the module failure.
For HC900 systems with PROFIBUS or Modbus communication modules — such as the 900RMD-0001 remote I/O device manager or the 900CSM-0001 communication module — installed in the same rack, verify that the communication bus remains healthy after the module swap. Backplane disturbances during hot-swap or power cycling can occasionally cause communication module resets. If the site uses a Honeywell HC Designer HMI or a third-party SCADA system connected to the HC900 controller, confirm that all 32 digital input tags associated with the 900G32-0301 are displaying correctly and updating in real time after the replacement module is initialized.
Finally, update the site’s spare parts inventory system to reflect the consumed spare and initiate a reorder of a replacement 900G32-0301 to restore minimum stock levels before the next planned maintenance window.
Site Replacement Workflow
Step 1 — Pre-Replacement Verification: Confirm the replacement 900G32-0301 part number matches the installed module exactly. Cross-reference the module label with the HC900 system documentation to verify slot assignment and I/O channel mapping. Do not substitute with a 16-channel variant (900G16-0101) — the channel count and terminal block pinout are not interchangeable.
Step 2 — Safe Isolation: Place all control logic dependent on the 32 digital input channels in a safe hold state at the HC900 operator interface or SCADA system. Notify field operators of the planned input signal interruption. Follow the site’s lockout/tagout (LOTO) procedure for the control cabinet. If the HC900 rack supports hot-swap for I/O modules, confirm this capability in the site’s system documentation before proceeding without a full cabinet power-down.
Step 3 — Module Removal: Disconnect the field wiring terminal block from the failed 900G32-0301. Release the module retention mechanism and extract the module from the backplane slot. Inspect the backplane connector and the slot interior for damage or contamination before installing the replacement.
Step 4 — Module Installation: Seat the replacement 900G32-0301 firmly into the backplane slot until the retention mechanism engages. Reconnect the field wiring terminal block, verifying that all conductors are correctly seated and that no terminals are loose or cross-connected.
Step 5 — System Verification: From the HC900 engineering workstation or HC Designer configuration tool, confirm that the replacement module is recognized, all 32 channels are initialized without fault codes, and input states match expected field device conditions. Perform a channel-by-channel verification using a 24VDC test source or by cycling field devices if process conditions permit.
Step 6 — Documentation and Reorder: Record the replacement in the site CMMS, including the date, removed module serial number, installed module serial number, and post-replacement test results. Update the spare parts inventory and initiate a reorder to maintain minimum holding stock for the next maintenance cycle.
Spare Parts Support FAQ
Q1: Is the 900G32-0301 still available as a new original part, or only as a refurbished unit?
SMARTNEXMSK supplies the 900G32-0301 as original new stock where available, and as tested-serviceable units for end-of-life or long-lead scenarios. All units undergo full 32-channel input verification and isolation testing prior to shipment, regardless of condition classification. The condition is clearly stated on the order confirmation and shipping documentation.
Q2: What is the recommended spare holding quantity for an HC900 system?
For HC900 systems with 3 or more 900G32-0301 modules installed, industry best practice recommends holding a minimum of one spare per 4 installed modules, with a floor of one spare per site. For critical continuous-process applications, a 1:2 ratio is advisable. SMARTNEXMSK supports blanket order arrangements for multi-site spare programs to ensure long-term supply continuity.
Q3: How is the 900G32-0301 tested before shipment, and what does the 12-month warranty cover?
Each unit is tested for input signal recognition across all 32 channels at 24VDC nominal, channel group isolation integrity, and backplane connector condition. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage from incorrect installation, overvoltage events, reverse polarity wiring, or environmental conditions outside the module’s rated specifications.
Q4: Can the 900G32-0301 replace digital input modules from other HC900 or legacy Honeywell controller series?
The 900G32-0301 is designed specifically for the HC900 Hybrid Controller backplane architecture. It is not directly interchangeable with modules from the ControlEdge 900, TDC 3000, or Experion series. For cross-series compatibility assessments, contact SMARTNEXMSK with your existing module part number and HC900 firmware version before placing an order.
