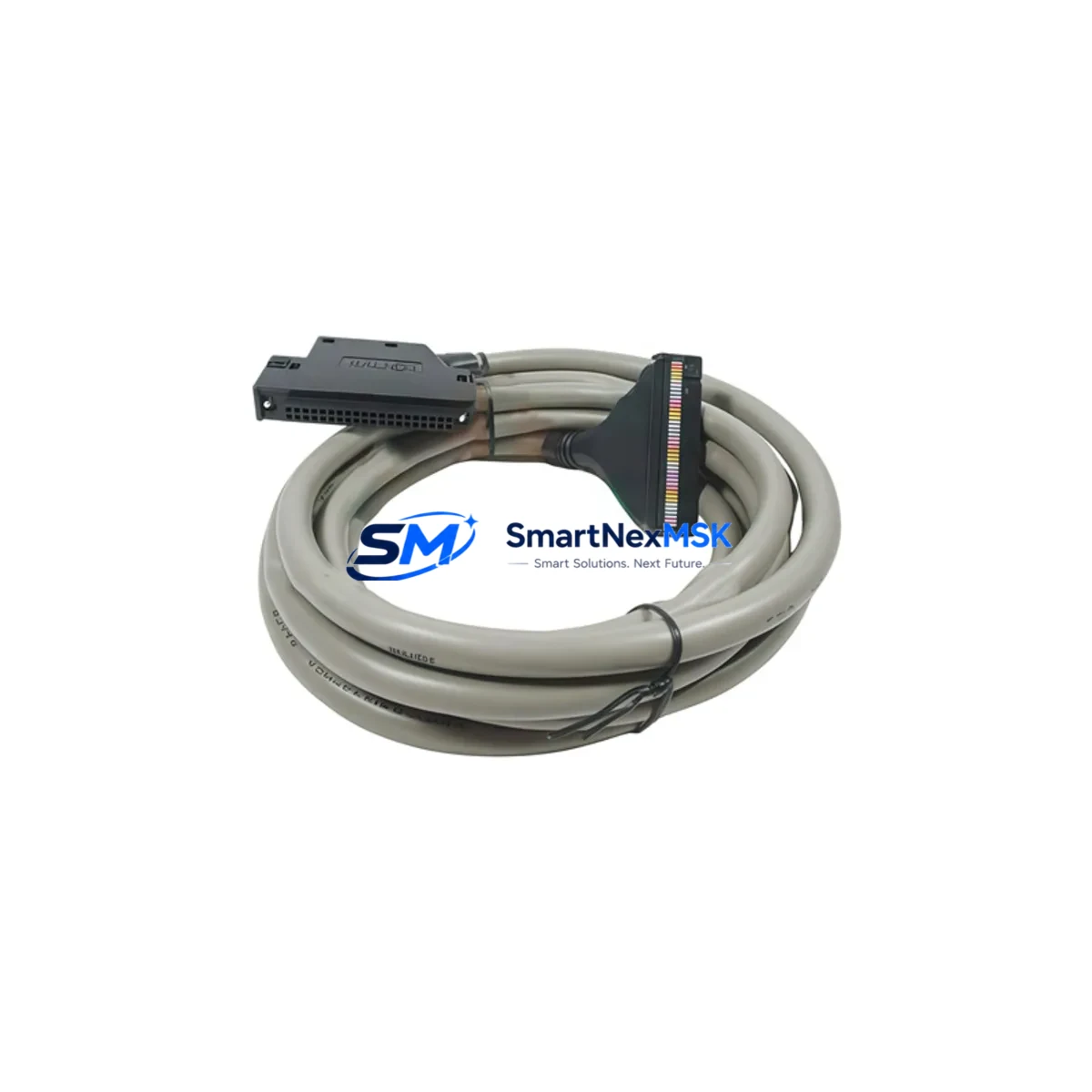

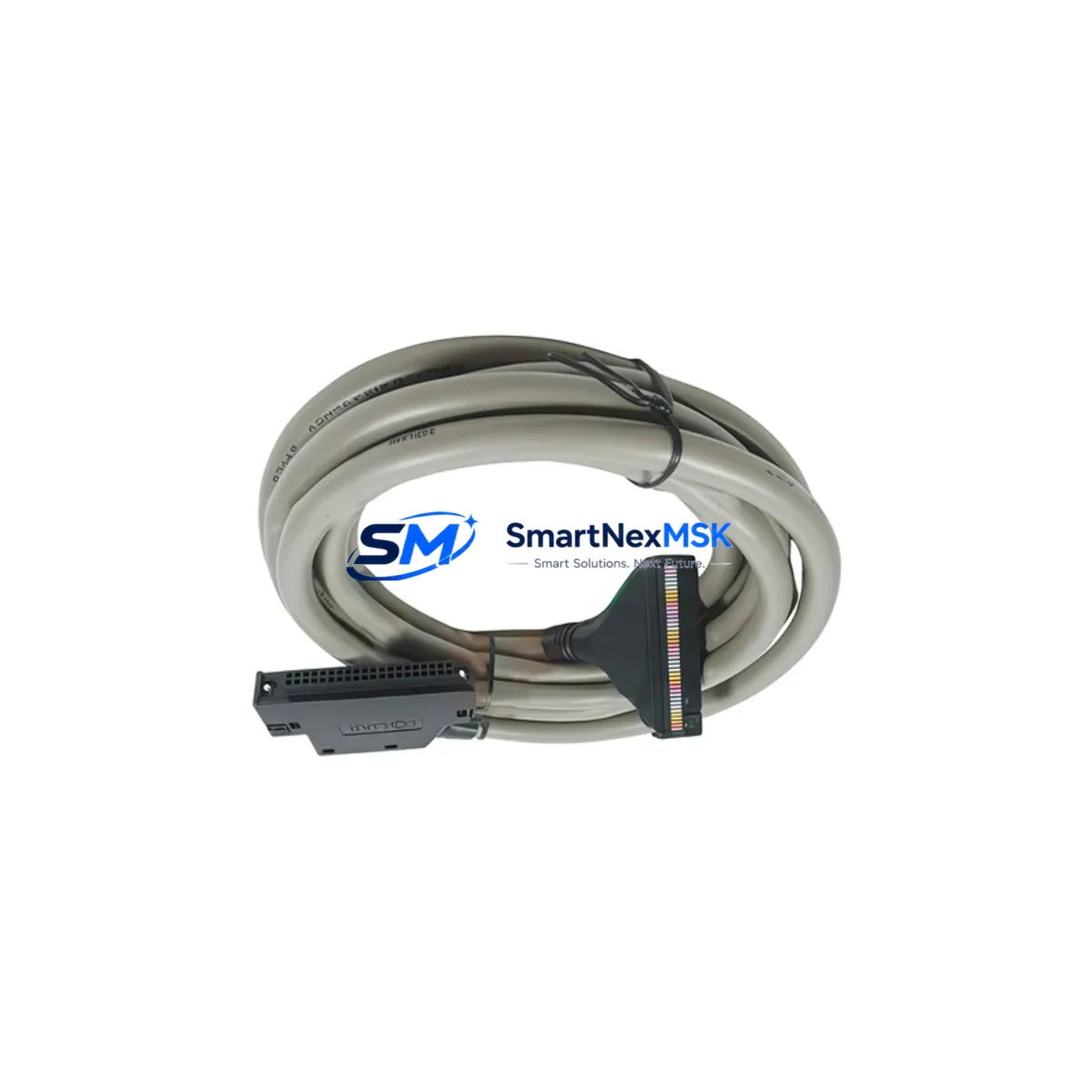

Honeywell C40HF-30PB-1 Maintenance-Ready Spare for HC900 Automation
The Honeywell C40HF-30PB-1 is an original 30-pin I/O field termination cable engineered for the HC900 Hybrid Controller platform — one of Honeywell’s most widely deployed process control architectures in refining, chemical, power generation, and discrete manufacturing environments. As a maintenance-ready spare, the C40HF-30PB-1 plays a critical role in sustaining continuous I/O signal integrity between HC900 I/O modules and field-mounted termination assemblies. When this cable degrades, becomes intermittent, or fails outright, the result is immediate loss of analog or digital I/O channels — triggering process alarms, forcing manual override, and in worst cases, initiating unplanned shutdowns.
For maintenance engineers managing aging HC900 systems, stocking the C40HF-30PB-1 as a pre-positioned spare is a low-cost insurance policy against high-consequence downtime. For procurement engineers, sourcing original Honeywell cables — rather than generic substitutes — ensures pin-out compatibility, shielding continuity, and connector locking integrity that third-party alternatives frequently fail to replicate under industrial vibration and thermal cycling conditions.
Every unit shipped from our inventory undergoes pre-dispatch inspection covering connector seating, cable jacket integrity, shield continuity, and pin alignment. All C40HF-30PB-1 cables are supplied with a 12-month warranty covering manufacturing defects and are dispatched with full traceability documentation upon request.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | C40HF-30PB-1 |
| Brand | Honeywell |
| Series | HC900 Hybrid Controller |
| Type | 30-Pin I/O Field Termination Cable |
| Pin Count | 30-pin |
| Compatible Modules | HC900 Analog & Digital I/O Modules |
| Connector Type | High-density D-sub / field termination plug |
| Cable Construction | Shielded, multi-conductor |
| Operating Temperature | 0°C to +60°C (typical industrial panel environment) |
| Application Environment | Process control panels, DCS cabinets, industrial field wiring |
| Origin | Original Honeywell — USA |
| Installation | Direct plug-in to HC900 I/O module termination port |
| Maintenance Recommendation | Inspect annually; replace immediately on intermittent I/O faults |
| Warranty | 12 Months — Manufacturing Defects Covered |
| Pre-Shipment Test | Connector seating, shield continuity, pin alignment verified |
Maintenance Planning for Continuous Operation
The C40HF-30PB-1 does not operate in isolation. In a functioning HC900 control cabinet, this cable interfaces directly with HC900 I/O modules — including analog input modules such as the HC900 AI module (900A01-0101) and digital input/output modules in the 900 series — and connects to field termination assemblies or marshalling panels. When planning a replacement or conducting a scheduled cabinet inspection, maintenance engineers should simultaneously evaluate the condition of adjacent components to avoid repeat interventions.
Start with the HC900 power supply modules (e.g., 900P01-0001 or 900P02-0001): a degraded power rail causes erratic I/O behavior that is frequently misdiagnosed as a cable fault. Verify DC bus voltage stability before condemning the C40HF-30PB-1. Next, inspect the HC900 controller module (900C71-0243 or equivalent) for firmware currency and communication health — a controller nearing its MTBF threshold may generate spurious I/O errors that mask underlying cable issues.
On the field side, check terminal blocks and DIN-rail mounted relay modules connected downstream of the termination cable. Loose terminal screws, corroded relay contacts, or failed signal isolators (such as Honeywell or third-party 4–20 mA loop isolators) can produce symptoms identical to a failed termination cable. If the HC900 system communicates over Modbus RTU or Ethernet/IP, also verify the HC900 communication module (900RMT-0001 or 900CS-0001) for link integrity — a communication fault can prevent I/O status from being correctly reported to the SCADA or DCS historian.
For systems with HMI integration, confirm that the operator station (whether a Honeywell Station or third-party HMI panel) is correctly reflecting the I/O channel status after cable replacement. Fuse holders and circuit protection devices on the 24 VDC field power rail should also be inspected — a blown fuse on the field power bus will disable entire I/O groups regardless of cable condition. Finally, review the HC900 backplane and rack assembly for signs of corrosion, connector oxidation, or mechanical damage that may have contributed to the original cable failure.
Site Replacement Workflow
Step 1 — Identify and isolate: Confirm the affected I/O channel in the HC900 engineering station or SCADA display. Note the module slot and channel number. Place the associated process loop in manual mode before proceeding.
Step 2 — De-energize and disconnect: Follow site LOTO (Lockout/Tagout) procedures. Disconnect the C40HF-30PB-1 from the HC900 I/O module termination port. Inspect the connector for bent pins, corrosion, or cracked housing — document findings for the maintenance record.
Step 3 — Install replacement cable: Seat the new C40HF-30PB-1 firmly into the module termination port until the locking mechanism engages. Verify that the cable routing does not create tension on the connector body and that the cable jacket is not pinched by cabinet doors or cable trays.
Step 4 — Re-energize and verify: Restore power and confirm I/O channel status in the HC900 engineering station. Verify that analog signal values are within expected range and that digital I/O states match field device status. Return the process loop to automatic mode only after successful verification.
Step 5 — Update maintenance records: Log the replacement date, part number, and technician ID. Update the spare parts inventory to trigger reorder of a replacement C40HF-30PB-1 for the next maintenance cycle. This workflow typically achieves full I/O restoration within 15–30 minutes, minimizing process disruption and avoiding extended unplanned downtime.
Spare Parts Support FAQ
Q1: Is the C40HF-30PB-1 compatible with all HC900 I/O module variants?
The C40HF-30PB-1 is designed for HC900 series I/O modules using the 30-pin field termination interface. Compatibility should be confirmed against the specific module part number and revision in your HC900 system documentation. Contact our technical team with your module part number for confirmation before ordering if you have any uncertainty.
Q2: What is the recommended spare parts stocking strategy for HC900 field termination cables?
For systems with 10 or more HC900 I/O modules, we recommend maintaining a minimum of 2–3 C40HF-30PB-1 cables in on-site inventory. For critical process lines where unplanned downtime carries high financial or safety consequences, a 1:5 spare ratio (one cable per five installed) is a common industry practice. Cables stored in a clean, dry environment with stable temperature maintain full serviceability for 5+ years.
Q3: How is each C40HF-30PB-1 tested before shipment?
Every unit undergoes pre-dispatch inspection covering connector seating integrity, shield continuity measurement, pin alignment verification, and cable jacket visual inspection. Units that do not pass all checks are quarantined and not dispatched. A 12-month warranty covering manufacturing defects is included with every shipment.
Q4: Can the C40HF-30PB-1 replace older or discontinued Honeywell termination cable variants?
In many HC900 installations, the C40HF-30PB-1 serves as the current production replacement for earlier termination cable variants used in legacy HC900 configurations. Cross-reference compatibility should be verified against your system’s wiring documentation or HC900 I/O module installation guide. Our team can assist with cross-reference validation for legacy system upgrades and life-extension projects.
