Honeywell CC-PAIH01 51405038-175 Retrofit-Ready Analog Input

Honeywell CC-PAIH01 51405038-175 Retrofit-Ready Analog Input for Experion PKS C300 Control Systems

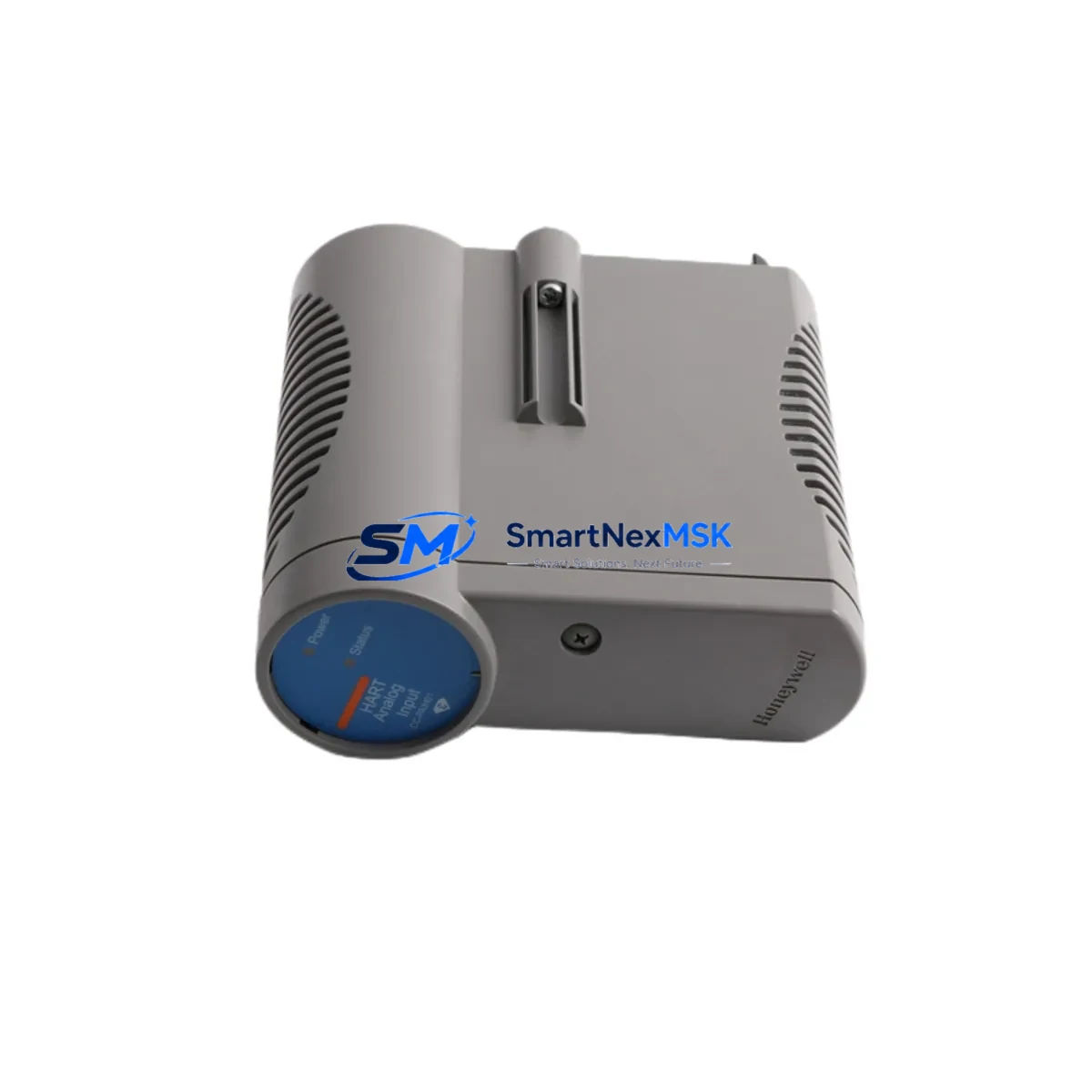

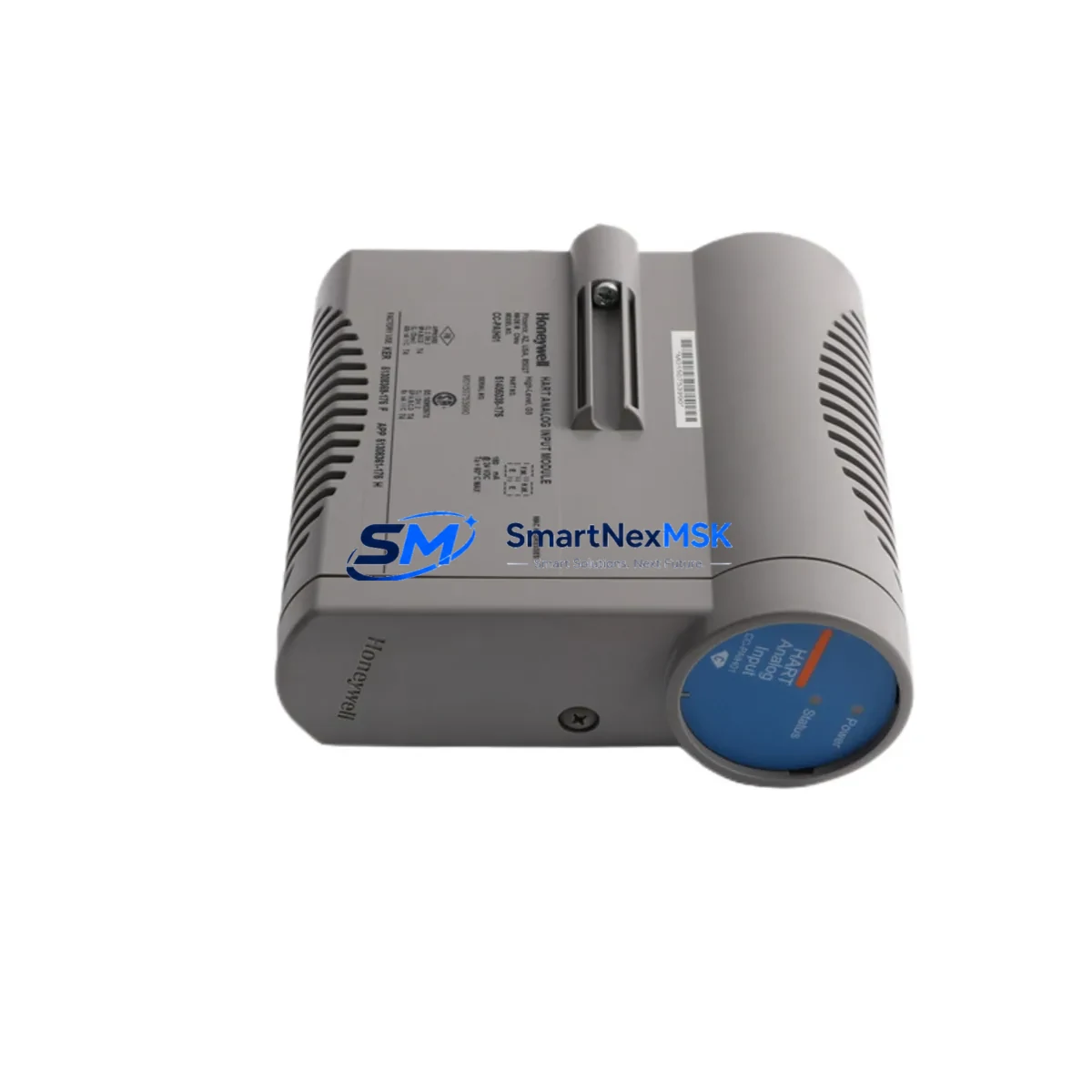

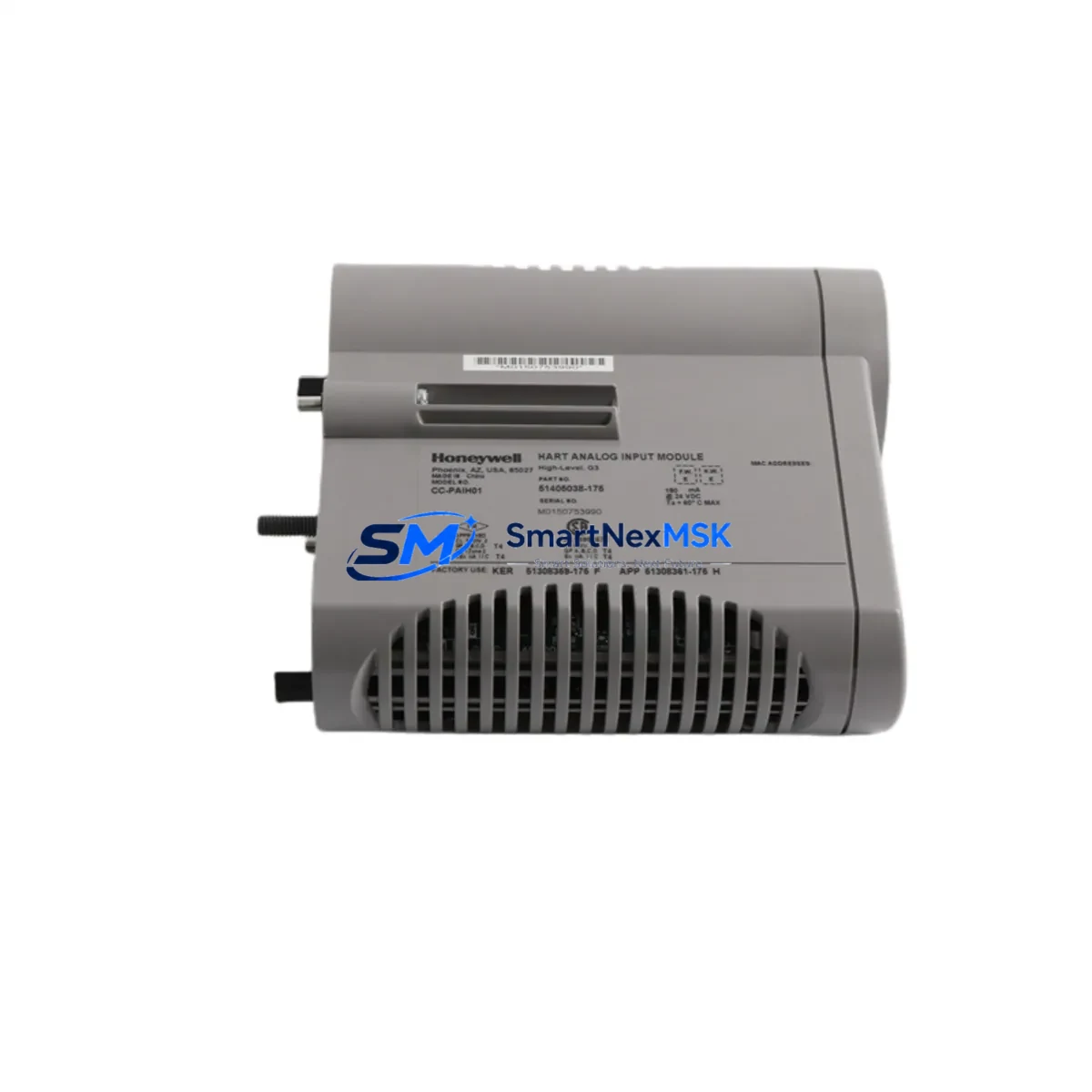

The Honeywell CC-PAIH01 (part number 51405038-175) is an 8-channel analog input module engineered for the Experion PKS C300 distributed control system platform. As legacy DCS installations age and OEM support windows close, the CC-PAIH01 has become one of the most sought-after retrofit components for plants operating Honeywell Series C and Experion PKS architectures. Whether you are replacing a failed module on a running line, upgrading a control cabinet from an older TDC 3000 or PlantScape system, or executing a phased migration to a modern Experion PKS R500 environment, this module provides a verified drop-in solution that preserves existing wiring, backplane addressing, and SCADA tag structures.

The CC-PAIH01 accepts 4–20 mA and 1–5 V analog signals across all eight channels, with each channel independently configurable via the Experion Control Builder. It mounts directly onto the Series C I/O Link backplane, sharing the same form factor and connector pinout as the CC-PAIH02 high-density variant and the CC-PDOB01 digital output module commonly found in the same control cabinet. Power draw is sourced from the backplane’s 24 VDC rail, supplied by the CC-PWR001 or CC-PWR002 power supply modules — a critical consideration when calculating total cabinet power budget during a retrofit expansion.

In retrofit projects, engineers frequently pair the CC-PAIH01 with the CC-TCNT01 termination assembly, which provides screw-terminal field wiring access without disturbing existing cable runs. For plants migrating from older Honeywell HPM or LCN nodes, the CC-PAIH01 integrates into the C300 controller via the FTE (Fault Tolerant Ethernet) backbone, eliminating the need for legacy data highway adapters. The C300 controller module itself — typically mounted in the same chassis — handles all module addressing and redundancy arbitration, so no manual DIP switch configuration is required on the CC-PAIH01 itself.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the CC-PAIH01 into an existing control system begins well before the module arrives on site. During the pre-retrofit audit, engineers should document the current backplane slot assignments, verify that the CC-PAIH01 firmware revision matches the C300 controller’s supported module list, and confirm that the CC-TCNT01 termination assembly is present and undamaged. In cabinets where the original termination assembly has been replaced with a third-party marshalling panel, field wiring must be re-mapped to the standard CC-PAIH01 terminal layout before the module is powered.

Power budget verification is non-negotiable. A fully populated Series C chassis running eight CC-PAIH01 modules, two CC-PDOB01 digital output modules, and a redundant C300 controller pair draws close to the rated capacity of a single CC-PWR001 supply. Adding a second CC-PWR002 module in the adjacent slot provides N+1 redundancy and eliminates nuisance shutdowns during peak load transients. This is especially relevant in retrofit scenarios where the original power supply has accumulated years of capacitor aging.

For plants migrating from TDC 3000 or PlantScape environments, the tag migration workflow in Experion Control Builder allows bulk import of existing point configurations, significantly reducing the risk of transcription errors. HMI faceplate templates built for the legacy system can be re-linked to the new C300 tag database without rebuilding graphics from scratch, provided the tag naming convention is preserved. The CC-PAIH01’s channel diagnostics — accessible via the Experion Station alarm summary — provide real-time open-wire and out-of-range detection, replacing the manual loop checks previously required on older HPM analog input cards.

Communication link integrity should be validated using the FTE network diagnostic tools built into the Experion PKS server. Any latency above 2 ms on the FTE backbone warrants investigation before the new module is placed in service. In multi-cabinet installations, the CC-LINK01 FTE switch module provides managed switching between chassis, and its port statistics are visible directly from the Experion Station network view.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer executing a DCS module replacement. The CC-PAIH01 supports hot-swap replacement when the C300 controller is operating in redundant mode — meaning the standby controller continues to execute the control strategy while the primary processes the module re-initialization sequence. This window typically lasts 15–45 seconds, during which analog input values are held at their last valid reading. For loops with tight process dynamics, operators should switch affected controllers to manual mode before initiating the swap.

Before removing the failed module, export the current Control Builder configuration to a backup file and document the module’s slot address, channel assignments, and any custom scaling parameters. After installing the CC-PAIH01, the Control Builder’s module download function pushes the configuration to the new hardware in under two minutes. Field loop checks — verifying 4 mA zero and 20 mA span signals at the termination assembly — should be completed before returning loops to automatic. The entire replacement sequence, from cabinet access to loop verification, can be completed in under 30 minutes by a prepared technician, keeping production impact to a single shift event rather than a planned outage.

For plants without C300 redundancy, a cold-swap procedure is required. In this case, coordinating the replacement during a scheduled maintenance window and pre-staging the CC-PAIH01 with a downloaded configuration file reduces the cold-start sequence to under 10 minutes. Pre-shipment functional testing — included with every unit supplied by SMARTNEXMSK — ensures the module powers up and passes self-diagnostics on the first attempt, eliminating the risk of receiving a defective unit during a time-critical outage.

Retrofit Support FAQ

Q: Is the CC-PAIH01 51405038-175 a direct replacement for earlier CC-PAIH01 revisions?
A: Yes. The 51405038-175 part number is backward compatible with all earlier CC-PAIH01 hardware revisions. No backplane or wiring modifications are required. Verify that the Experion PKS server is running R210 or later to ensure full firmware compatibility.

Q: What commissioning steps are required after installing a replacement CC-PAIH01?
A: After physical installation, open Honeywell Control Builder, navigate to the affected C300 controller, and perform a module download to push the existing channel configuration to the new hardware. Confirm that all eight channels report healthy status in the Experion Station alarm summary, then perform a 4–20 mA loop check on each active channel before returning to automatic control.

Q: Can the CC-PAIH01 be used in a mixed chassis alongside CC-PDOB01 digital output modules and CC-PAOH01 analog output modules?
A: Yes. The Series C I/O backplane supports mixed module types in any slot order. Slot addressing is managed automatically by the C300 controller during the configuration download. Ensure total chassis power draw remains within the CC-PWR001 or CC-PWR002 rated capacity.

Q: What does the 12-month warranty cover, and is a test report included?
A: Every CC-PAIH01 shipped by SMARTNEXMSK includes a pre-shipment functional test report confirming power-on self-test passage and channel integrity verification. The 12-month warranty covers manufacturing defects and premature component failure under normal operating conditions. Warranty claims are processed within 5 business days, with advance replacement available for critical production environments.
