Honeywell CC-PAIH02 51405038-376 Spare C300 Automation

Honeywell CC-PAIH02 51405038-376 Maintenance-Ready Spare for C300 Automation

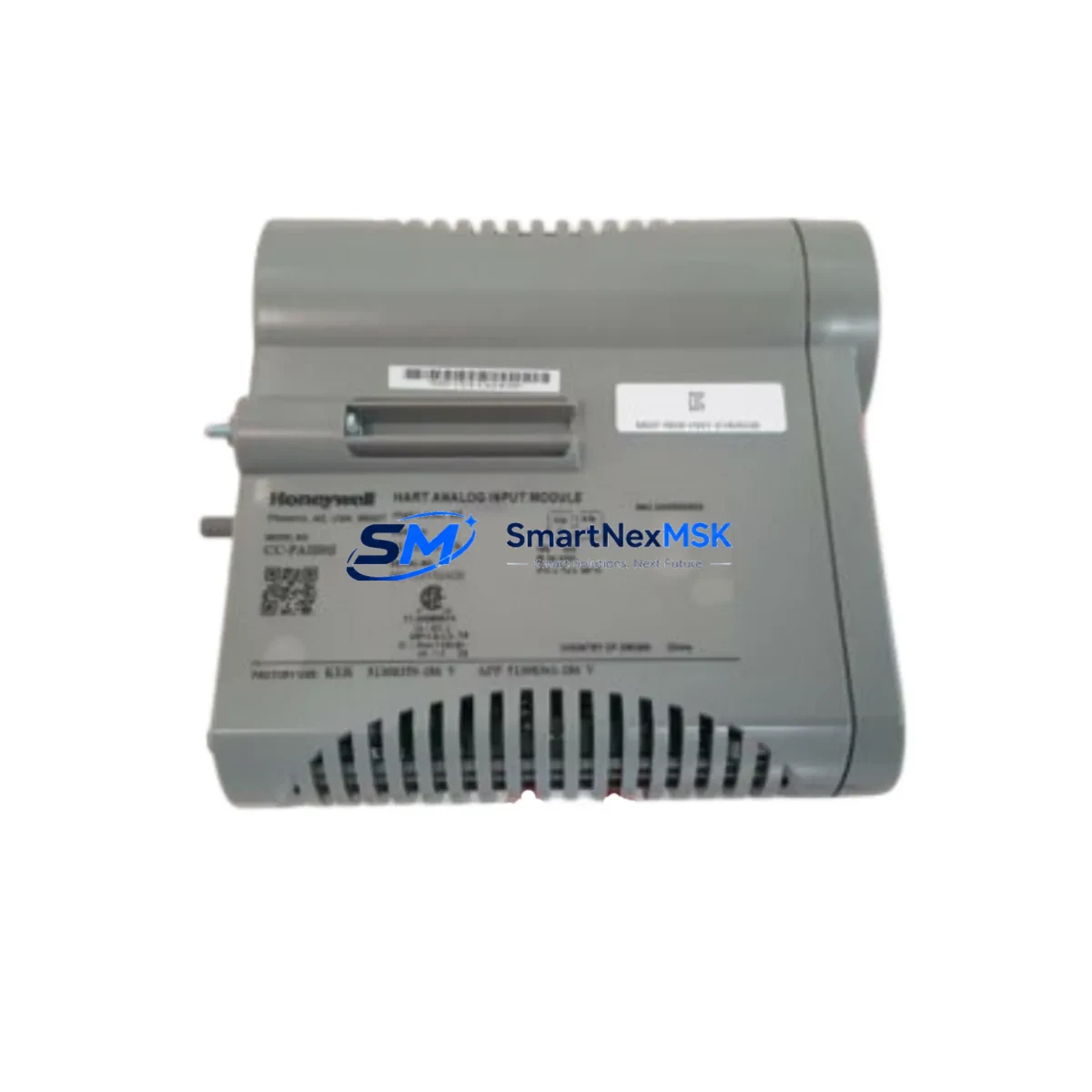

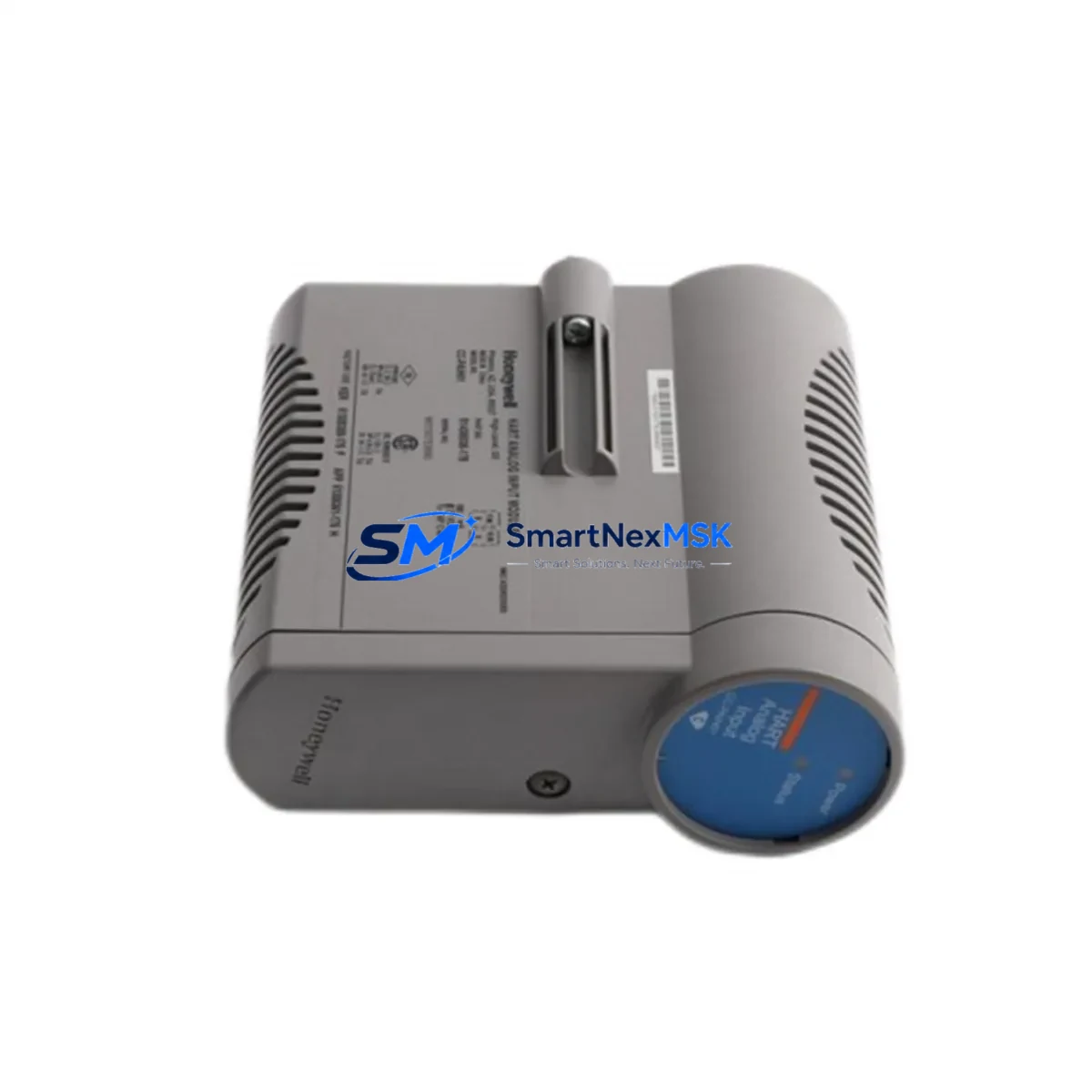

The Honeywell CC-PAIH02 (part number 51405038-376) is an original HART-enabled analog input module designed for the Experion PKS C300 distributed control system. For maintenance engineers managing continuous process operations — refinery units, chemical reactors, power generation auxiliaries, or water treatment facilities — this module represents a critical node in the field signal acquisition chain. Unplanned failure of a HART analog input module can immediately compromise loop monitoring, process variable trending, and alarm management, leading to unscheduled shutdowns that cost far more than a well-managed spare parts inventory.

Sourced as original Honeywell hardware, each CC-PAIH02 unit is tested prior to dispatch and ships with a 12-month warranty, giving procurement and reliability engineers confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CC-PAIH02 module is flagged during a control cabinet inspection or loop integrity audit, experienced maintenance engineers know that replacing the module alone is rarely sufficient for a complete corrective action. A thorough site assessment should include the following associated components and subsystems:

Begin with the C300 Controller module itself — verify firmware version compatibility and confirm that the controller’s I/O bus is operating within normal diagnostic parameters before re-inserting a replacement input module. Next, inspect the CC-TAIX11 or CC-TAIX01 IOTA termination assembly that the CC-PAIH02 seats into; corroded or loose field wiring terminals on the IOTA are a common root cause of intermittent channel faults that are incorrectly attributed to the module.

Check the 24 VDC power supply rail feeding the I/O chassis — a sagging or noisy supply voltage is a leading cause of premature analog input module degradation. If the cabinet houses a CC-PWR001 or equivalent Honeywell power supply module, verify output voltage under load and inspect capacitor health if the unit has been in service for more than five years.

For HART-enabled loops, confirm that the field transmitters — pressure, temperature, flow, or level devices — are communicating correctly over the HART digital channel. A failed HART modem within the transmitter can generate diagnostic alarms that mimic module faults. Simultaneously, review the signal cable shielding and grounding at the marshalling cabinet; ungrounded shields on 4–20 mA loops introduce noise that degrades HART communication integrity.

If the C300 system includes redundant I/O modules, verify that the standby CC-PAIH02 (if fitted) is synchronized and ready for automatic switchover. Inspect the CC-SCMB02 system cabinet module bus connectors for oxidation. Where the process requires intrinsic safety barriers or Zener barriers and galvanic isolators between the field and the control room, these should be tested for correct working voltage and leakage current — degraded isolators can corrupt analog readings even when the input module itself is healthy.

Finally, for aging Experion PKS installations, consider stocking complementary modules such as the CC-PAOH01 analog output module and CC-PDIL01 digital input module alongside the CC-PAIH02 to support a complete I/O chassis refresh during planned turnaround maintenance windows. Proactive spare parts inventory management — maintaining at least one cold spare per critical module type — is the most cost-effective strategy for minimizing mean time to repair (MTTR) in continuous process environments.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement CC-PAIH02 carries the correct part number (51405038-376) and matches the firmware baseline of the installed C300 system. Cross-reference the Honeywell Experion PKS compatibility matrix if the site has undergone a recent software upgrade.

Step 2 — Safe isolation: Place affected loops in manual mode at the DCS operator station. Notify the process team and follow site lock-out/tag-out (LOTO) procedures before opening the control cabinet.

Step 3 — Module extraction: The CC-PAIH02 is hot-swappable in most C300 configurations. Confirm hot-swap capability for your specific chassis revision before proceeding without a full shutdown. Extract the faulty module by releasing the locking lever and sliding it clear of the backplane connector.

Step 4 — Inspection and seating: Inspect the backplane connector pins on the IOTA for damage or contamination. Insert the replacement module firmly until the locking lever engages. The C300 controller will automatically detect the new module and begin configuration download.

Step 5 — Loop verification: After the module comes online, verify all eight channel readings against field transmitter local indicators. Perform a HART communication check using a handheld HART communicator or the Experion PKS Field Device Manager (FDM) to confirm digital communication on each active loop.

Step 6 — Return to automatic: Once all loops are verified, return control loops to automatic mode and document the replacement in the site maintenance management system (CMMS). Update the spare parts inventory record accordingly.

This workflow supports rapid downtime recovery — typically achievable within 30–60 minutes for a trained technician — and ensures system compatibility is maintained without requiring a full C300 controller restart.

Spare Parts Support FAQ

Q1: Is the CC-PAIH02 51405038-376 compatible with all Experion PKS C300 revisions?
The CC-PAIH02 is designed for the Honeywell Experion PKS C300 platform and is compatible across the primary C300 hardware revisions. However, sites running very early C300 firmware (pre-R400) should verify compatibility against the Honeywell release notes. We recommend providing your current Experion PKS software revision when placing an order so our technical team can confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on each unit?
Every CC-PAIH02 unit undergoes functional verification prior to dispatch, including power-on self-test confirmation and channel continuity checks. Units are shipped in anti-static packaging with individual test records available on request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this module replace older or discontinued Honeywell analog input modules in legacy Experion systems?
The CC-PAIH02 is the current-generation HART analog input module for the C300 platform and is the recommended replacement for earlier-revision analog input modules used in the same I/O chassis family. For legacy system life extension projects, our team can advise on direct replacement paths and any configuration changes required in Experion PKS Control Builder.

Q4: What is your lead time and long-term supply commitment for this part?
The CC-PAIH02 51405038-376 is maintained in stock for immediate dispatch, with a standard lead time of 1–2 business days. For customers managing multi-year maintenance contracts or turnaround schedules, we offer reserved stock arrangements and long-term supply agreements to ensure availability when planned maintenance windows occur. Contact our team to discuss volume pricing and dedicated inventory programs.
