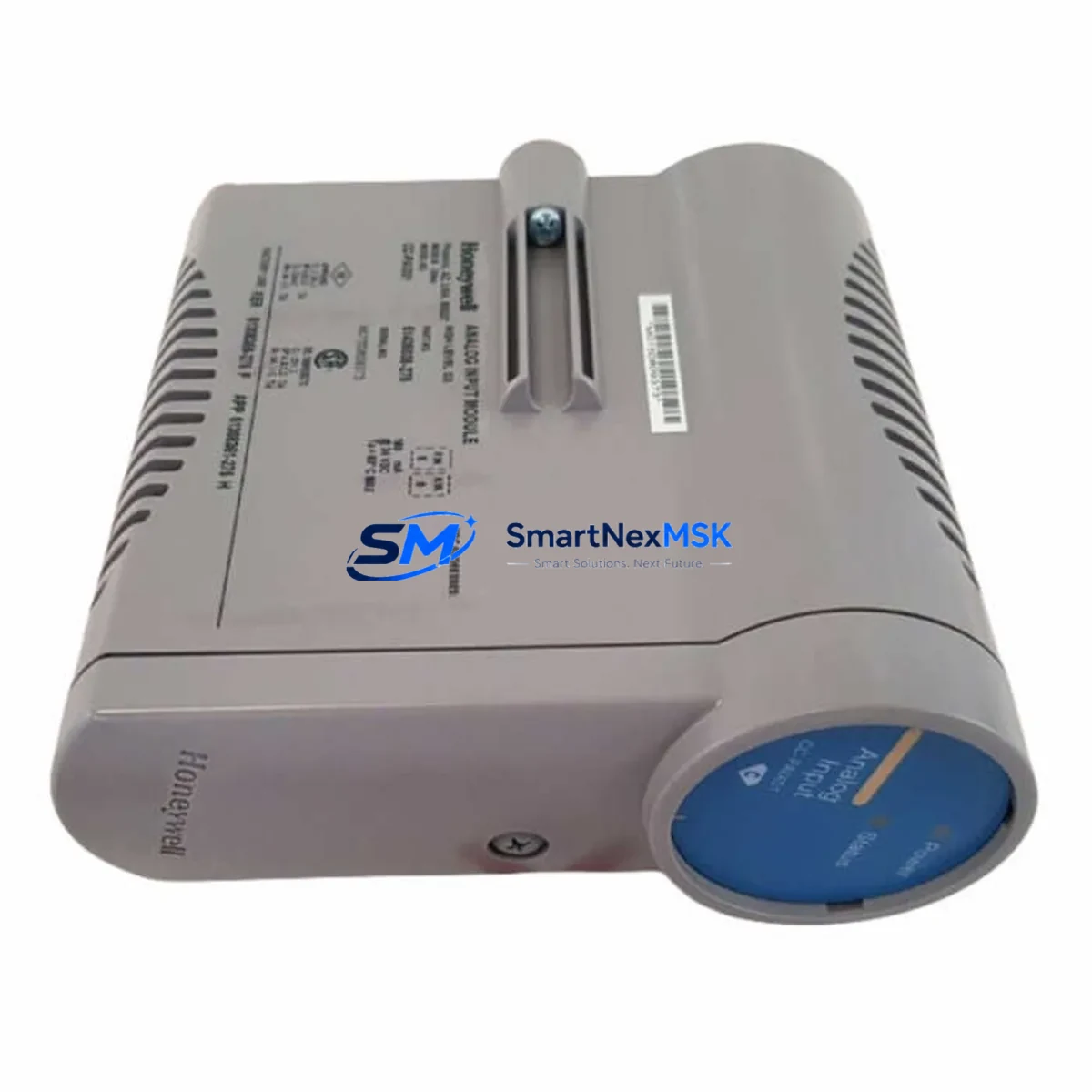

Honeywell CC-PAIX01 51405038-275 Safety-Enhanced Analog Input

Honeywell CC-PAIX01 51405038-275 Safety-Enhanced Analog Input for Harsh Industrial Sites

The Honeywell CC-PAIX01 (P/N 51405038-275) is a high-integrity analog input module engineered for the Experion PKS C300 Distributed Control System. Designed to operate reliably in high-load, high-interference, and continuous-production environments, this module delivers stable 4–20 mA signal acquisition across all channels with built-in protection against signal drift, electrical surges, and common-mode noise — making it a critical component in safety-sensitive control loops across petrochemical, power generation, mining, water treatment, metallurgical, and port automation facilities.

In demanding industrial control cabinets where uptime is non-negotiable, the CC-PAIX01 provides the signal fidelity and fault tolerance required to prevent unplanned shutdowns, protect personnel, and maintain regulatory compliance. Its ruggedized design ensures consistent performance even under extreme temperature cycling, high-humidity conditions, and electromagnetic interference from adjacent variable-frequency drives, high-voltage switchgear, and motor control centers.

Safety Reliability Table

Control Cabinet Protection Strategy

In a fully integrated Experion PKS C300 control cabinet, the CC-PAIX01 analog input module works in concert with a suite of complementary components to form a robust, fault-tolerant control architecture. The CC-PCNT01 pulse input module handles high-speed discrete counting signals from flow meters and encoders, while the CC-PAOX01 analog output module drives final control elements such as control valves and positioners — both relying on the same I/O Link carrier infrastructure as the CC-PAIX01 for seamless integration.

Power integrity is maintained through the CC-PWR01 power supply module, which provides regulated 24 VDC to the I/O subsystem and protects against voltage sags and transients that could otherwise cause module resets or false readings. For redundant power architectures in critical safety loops, the CC-PWR02 redundant power module ensures continuous operation even during a single power supply failure — a requirement in SIL 2 and SIL 3 interlock systems.

Communication integrity between the C300 controller and the I/O subsystem is maintained via the CC-LINK01 I/O Link Interface module, which provides deterministic, high-speed data exchange with built-in error detection. In installations where the control network spans long distances or crosses electrically noisy zones, the CC-FTE001 Fault Tolerant Ethernet module provides redundant network paths that eliminate single points of communication failure.

For field termination, the CC-PAIX01 is typically paired with a CC-TAIX11 or CC-TAIX51 Field Termination Assembly (FTA), which provides screw-terminal field wiring connections, channel-level fusing, and marshalling — simplifying maintenance and reducing the risk of wiring errors during commissioning or spare-part replacement. In hazardous area installations, Zener barrier assemblies or galvanic isolators are installed between the FTA and field instruments to limit energy in the hazardous zone and protect both personnel and equipment.

The overall cabinet protection strategy — combining the CC-PAIX01 with matched analog output, pulse input, power supply, communication, and field termination modules — ensures that signal integrity, power stability, and communication reliability are maintained continuously, even under the most demanding industrial operating conditions.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process units such as crude distillation, catalytic cracking, and hydrotreatment, the CC-PAIX01 acquires critical process variables — pressure, temperature, flow, and level — from field transmitters and feeds them into the C300 controller for real-time regulatory control and safety interlock evaluation. Its surge protection and optical isolation prevent ground loops and transient damage from lightning strikes or switching events common in large outdoor process areas.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the module monitors boiler drum levels, turbine inlet temperatures, and generator cooling parameters. Its 16-bit resolution ensures precise measurement of narrow-range process variables critical to combustion optimization and emissions compliance. Redundant I/O configurations using paired CC-PAIX01 modules support hot-standby control strategies that eliminate measurement downtime during module replacement.

Mining & Mineral Processing: In ore crushing, grinding, and flotation circuits, the CC-PAIX01 withstands the high-vibration, high-dust, and electrically noisy environments generated by large motors and conveyors. Its robust EMC immunity prevents false readings that could trigger unnecessary shutdowns or, worse, mask genuine process upsets in safety-critical applications such as mill bearing temperature monitoring.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the CC-PAIX01 for continuous monitoring of flow rates, chemical dosing levels, and tank levels across multiple treatment stages. Its channel-level diagnostics enable operators to detect sensor failures or wiring faults before they affect process quality or regulatory compliance.

Metallurgy & Steel Manufacturing: In electric arc furnaces, continuous casting lines, and rolling mills, the module operates reliably in environments with extreme thermal gradients and intense electromagnetic fields. Its ability to maintain signal accuracy under these conditions is essential for controlling cooling water flows, mold levels, and strip tension — parameters directly linked to product quality and personnel safety.

Port Automation & Material Handling: In automated crane control and conveyor management systems, the CC-PAIX01 provides reliable analog feedback from load cells, position sensors, and drive systems, enabling precise, safe movement of heavy loads in continuous 24/7 operations.

Safety and Quality FAQ

Q1: Does the CC-PAIX01 51405038-275 come with a warranty?
Yes. Every CC-PAIX01 unit supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty support includes technical diagnosis, repair, or replacement as appropriate.

Q2: How is the module tested before shipment?
All CC-PAIX01 modules undergo a comprehensive pre-shipment functional test that verifies channel accuracy, isolation integrity, communication handshake with the C300 I/O Link, and diagnostic self-test routines. Only modules that pass 100% of test criteria are released for shipment.

Q3: Is the CC-PAIX01 compatible with my existing Experion PKS C300 system?
Yes. The CC-PAIX01 (51405038-275) is a standard Honeywell Experion PKS C300 I/O module and is fully compatible with all C300 controller revisions and associated I/O Link carriers and FTAs. It is a direct replacement for any installed CC-PAIX01 unit regardless of firmware revision, and no controller reconfiguration is required for like-for-like spare-part replacement.

Q4: Can you guarantee long-term supply for ongoing maintenance and spare-part programs?
Yes. SMARTNEXMSK maintains dedicated inventory of the CC-PAIX01 and related Honeywell Experion PKS C300 I/O modules to support long-term spare-part programs for operating plants. We work with procurement and maintenance teams to establish scheduled supply agreements that ensure critical spare parts are available when needed, minimizing the risk of extended unplanned downtime.
