Honeywell CC-PAIX02 51405038-475 Retrofit-Ready Analog Input

Honeywell CC-PAIX02 51405038-475 Retrofit-Ready Analog Input Module for Experion PKS C300 Control Systems

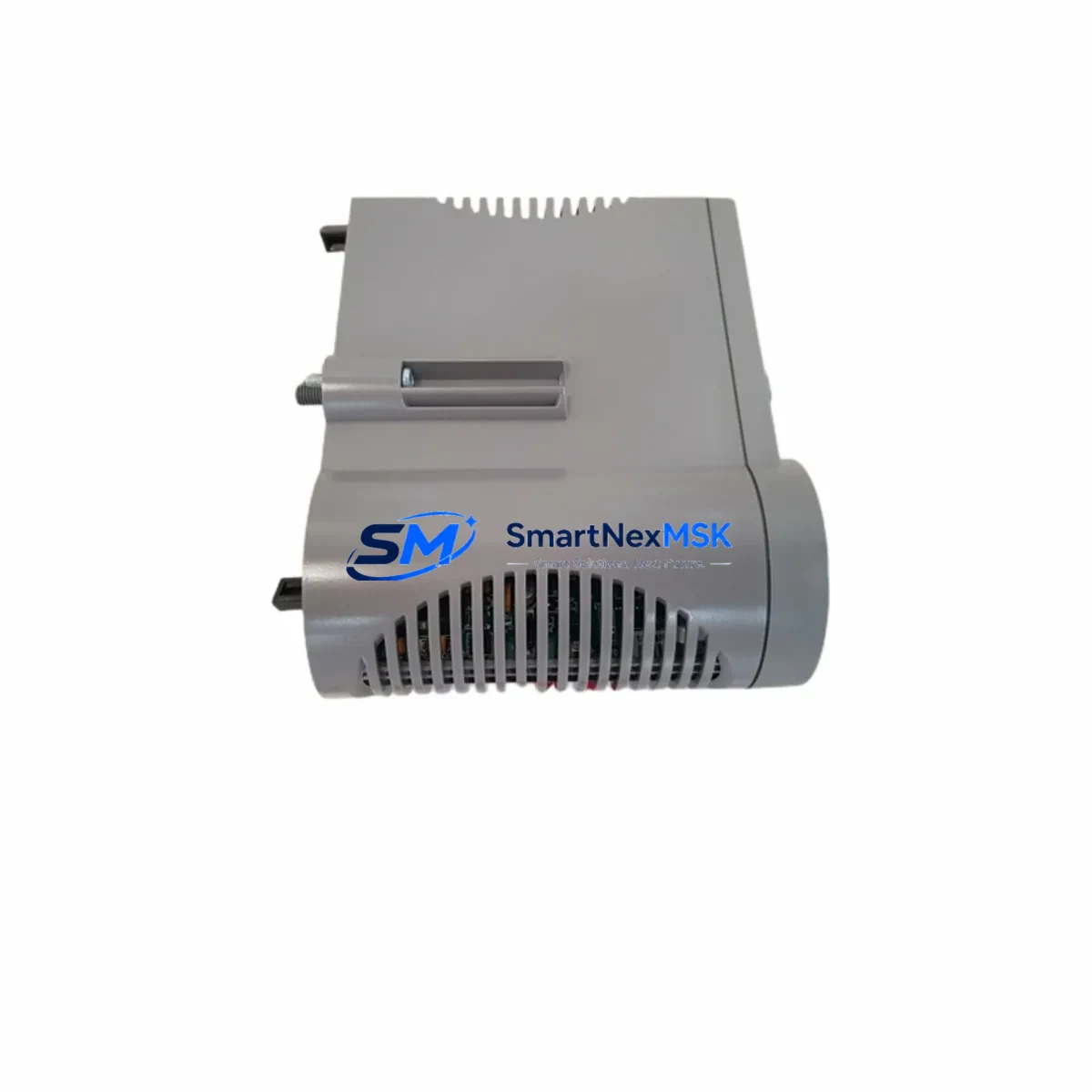

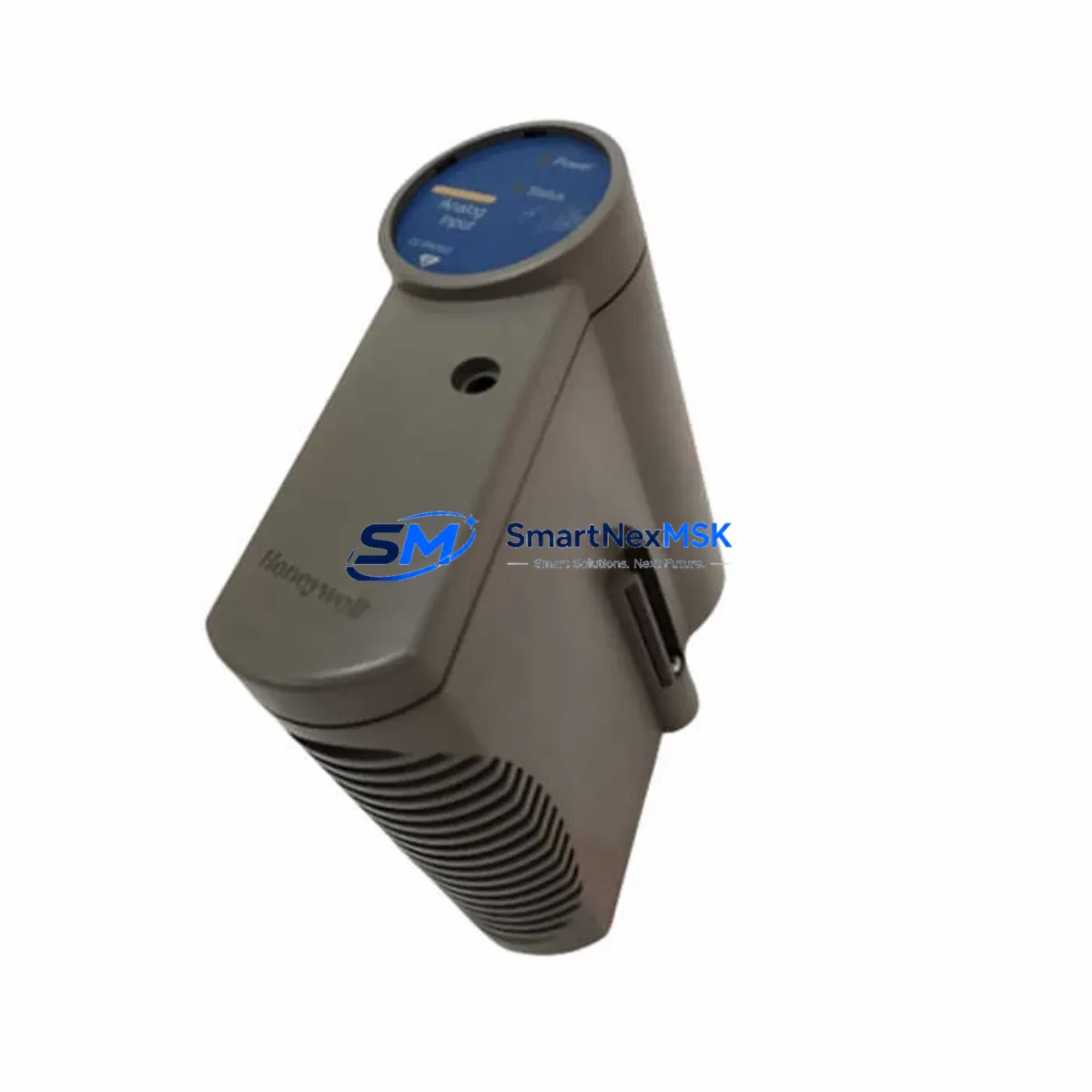

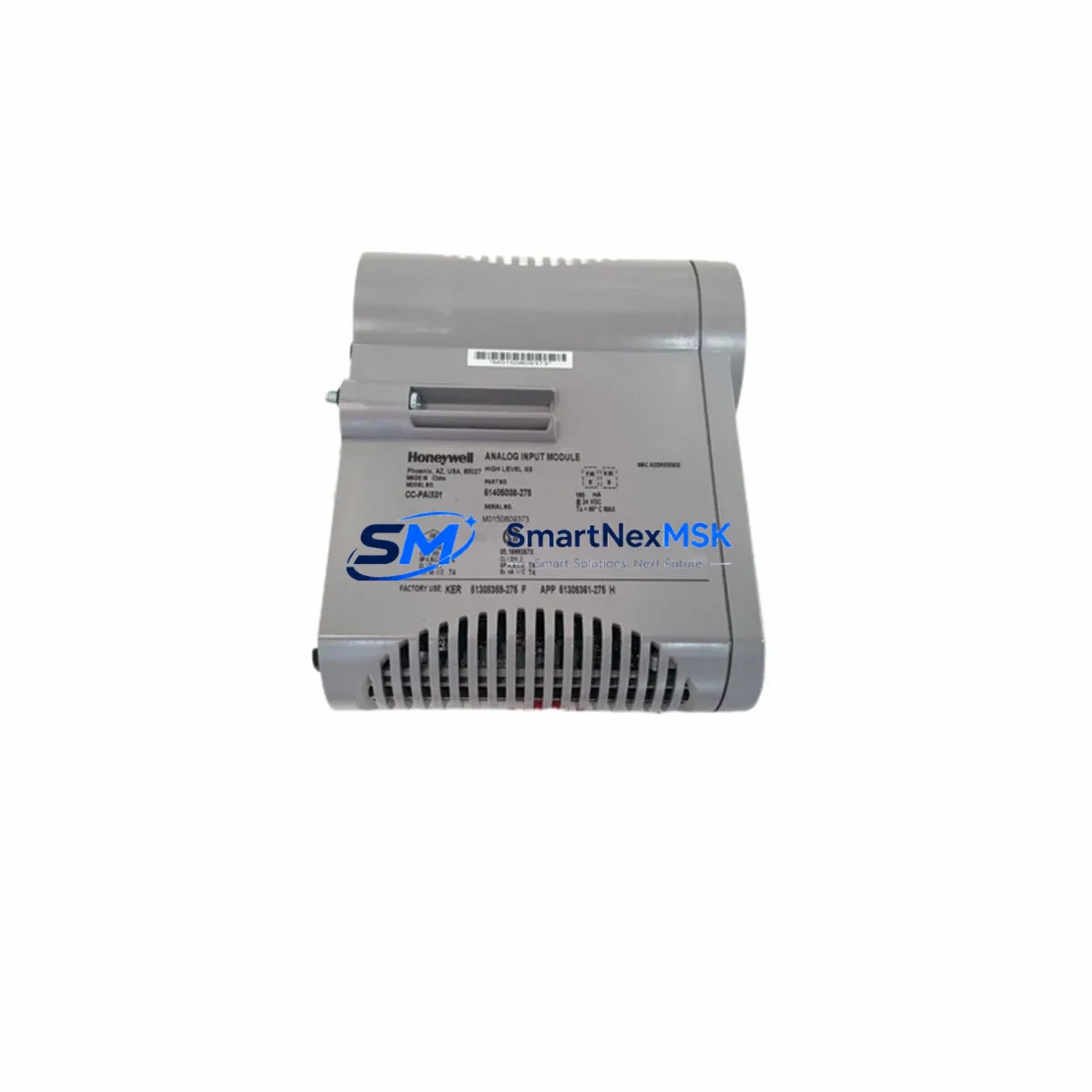

The Honeywell CC-PAIX02 (Part No. 51405038-475) is a high-density analog input module engineered for the Experion PKS distributed control system platform, specifically designed for integration within C300 Controller-based cabinets. As legacy DCS installations age and OEM support windows close, the CC-PAIX02 has become a critical retrofit component for facilities seeking to extend the operational life of their Experion PKS infrastructure without committing to a full platform migration. This module supports 16-channel analog input acquisition with HART pass-through capability, making it directly compatible with existing field wiring, transmitter loops, and process variable configurations already in service.

Whether you are replacing a failed unit on an emergency basis, building a spare-parts inventory for a multi-year maintenance contract, or executing a phased modernization of an aging control room, the CC-PAIX02 51405038-475 provides a verified drop-in solution that preserves your existing I/O addressing, channel scaling, and alarm setpoint configurations without requiring controller re-programming or HMI screen redesign.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the CC-PAIX02 into an operating Experion PKS environment requires a structured pre-installation assessment. Begin by auditing the existing CIOM-A carrier card for physical damage, corrosion on the backplane connector, and correct seating within the I/O cabinet. The C300 Process Controller should be running a firmware version that supports the CC-PAIX02 module descriptor; if the controller firmware is below R400, a coordinated firmware upgrade using the Experion PKS R400 or later release package should be scheduled before the module swap.

Field wiring termination is handled through the existing terminal block assembly on the CIOM-A carrier, meaning no re-termination of field cables is required for a like-for-like replacement. However, engineers should verify that the 24 VDC loop power supply — typically a dedicated rail within the marshalling cabinet — has sufficient current capacity to support all 16 channels simultaneously, particularly if HART-enabled transmitters such as Rosemount 3051 pressure transmitters or Yokogawa EJA series differential pressure transmitters are connected on the same loop power bus.

For sites running redundant C300 controller pairs, the CC-PAIX02 supports the standard Experion PKS redundancy switchover protocol. During a planned replacement, the redundant controller can be placed in primary control while the affected I/O cabinet is de-energized, minimizing process disruption. After module installation, the Experion Configuration Studio should be used to verify that the module’s I/O link address matches the original configuration and that all 16 channel descriptors, engineering unit ranges, and HART device tags are correctly inherited from the existing database.

In broader retrofit projects involving cabinet consolidation or control room modernization, the CC-PAIX02 is frequently deployed alongside the CC-PAOX01 analog output module, CC-TDIL01 digital input module, and CC-TDOL01 digital output module to complete a full I/O complement within a single CIOM-A chassis. Power distribution within the cabinet is typically managed through the CC-PWR01 or CC-PWR02 power supply modules, and system-level communication is maintained through the C300’s integrated FTE network interface — eliminating the need for separate communication modules or protocol converters that older Honeywell TDC 3000 or PlantScape installations required.

For facilities migrating from legacy TDC 3000 High-Performance Process Manager (HPM) hardware, the CC-PAIX02 represents a key component in the I/O migration path. The HPM’s analog input cards used a different backplane architecture and wiring convention, so a marshalling cabinet redesign is typically required. In these projects, the CC-PAIX02 is installed in new CIOM-A carriers mounted in upgraded cabinets, with field cables re-terminated to the new carrier terminal blocks. The Experion Migration Toolkit and associated FDM (Field Device Manager) software facilitate the transfer of existing tag databases, alarm configurations, and control strategies from the legacy platform to the Experion PKS environment, preserving years of process tuning and operator familiarity.

Sites operating Experion PKS alongside third-party systems — such as Allen-Bradley ControlLogix PLCs managing auxiliary equipment or Siemens S7-400 controllers in utility areas — should confirm that the FTE network segmentation is correctly configured to prevent cross-platform communication conflicts. The CC-PAIX02 itself operates entirely within the Experion PKS I/O subsystem and does not require any additional gateway or OPC server configuration for standard process control applications.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing analog input modules in a live DCS environment. The recommended approach for CC-PAIX02 replacement is a hot-standby swap procedure executed during a scheduled maintenance window, with the following sequence:

Step 1 — Pre-Swap Backup: Export the full Experion PKS control strategy and I/O configuration from Configuration Studio to a secure backup location. Capture a screenshot or printed record of all 16 channel configurations, including tag names, engineering unit ranges, alarm limits, and HART device assignments. This ensures that if the replacement module requires any manual re-configuration, the reference data is immediately available to the commissioning engineer.

Step 2 — Controller Redundancy Check: Confirm that the redundant C300 controller is synchronized and in a healthy standby state. Initiate a manual switchover to place the standby controller in primary control, then verify that all process variables are being correctly read and that no alarms are generated by the switchover event. This step isolates the I/O cabinet from active control responsibility during the physical module swap.

Step 3 — Module Extraction and Replacement: De-energize the affected I/O cabinet section following the site’s lockout/tagout (LOTO) procedure. Extract the failed CC-PAIX02 module from the CIOM-A carrier by releasing the module locking lever and sliding the module out along the carrier guide rails. Insert the replacement CC-PAIX02 51405038-475 into the same carrier slot, ensuring the backplane connector is fully engaged before securing the locking lever.

Step 4 — Power-Up and Auto-Recognition: Re-energize the cabinet section and observe the module status LEDs. The C300 controller should automatically recognize the replacement CC-PAIX02 within 30–60 seconds and restore all channel configurations from the existing database. Verify in the Experion Operator Station that all 16 process variables are returning valid readings and that no I/O fault alarms are active.

Step 5 — Switchback and Verification: Once all channels are confirmed healthy, initiate a controlled switchback to restore the original primary/standby controller assignment. Conduct a final review of all alarm states, HART device communication status, and process variable trends to confirm that the replacement module is performing identically to the original unit. Total planned downtime for this procedure, excluding pre-swap preparation, is typically under 15 minutes for an experienced DCS engineer.

All CC-PAIX02 51405038-475 units supplied by SMARTNEXMSK are subject to a pre-shipment functional test that verifies channel-by-channel analog accuracy, HART communication integrity, and backplane interface continuity. A test report is included with each shipment, and the 12-month warranty covers any manufacturing or component defects identified during installation or initial operation.

Retrofit Support FAQ

Q1: Is the CC-PAIX02 51405038-475 a direct drop-in replacement for all CC-PAIX02 variants?
The 51405038-475 part number designates a specific hardware revision of the CC-PAIX02. In most Experion PKS C300 installations, this revision is directly interchangeable with other CC-PAIX02 part number suffixes, as the module descriptor and I/O link protocol are consistent across revisions. However, we recommend cross-referencing the installed part label and confirming the C300 firmware version with your DCS engineer before ordering, particularly for installations running firmware below R400.

Q2: What wiring changes are required when replacing a failed CC-PAIX02?
For a like-for-like replacement within the same CIOM-A carrier, no field wiring changes are required. All 16 analog input channels terminate at the carrier’s fixed terminal block, which remains in place during the module swap. If the carrier itself is damaged and must also be replaced, field cables will need to be re-terminated to the new carrier terminal block — a process that should be documented with a wiring diagram extracted from the as-built cabinet drawings before any cables are disconnected.

Q3: How is compatibility verified before shipment, and what does the 12-month warranty cover?
Each CC-PAIX02 51405038-475 unit undergoes a pre-shipment functional test covering analog input accuracy across all 16 channels, HART protocol communication, and backplane connector integrity. A test report is included with the shipment. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s specified operating range. Warranty claims are processed through SMARTNEXMSK’s technical support team at sales@smartnexmsk.com.

Q4: Can this module be used in a migration from TDC 3000 HPM to Experion PKS?
Yes. The CC-PAIX02 is a standard component in Honeywell’s recommended migration path from TDC 3000 High-Performance Process Manager hardware to the Experion PKS platform. In this migration scenario, the module is installed in new CIOM-A carriers within upgraded or new I/O cabinets, and field cables are re-terminated from the legacy HPM wiring panels to the new carrier terminal blocks. The Experion Migration Toolkit supports the transfer of existing tag databases and control strategies, and SMARTNEXMSK can provide technical guidance on module selection and cabinet layout for migration projects of any scale.
