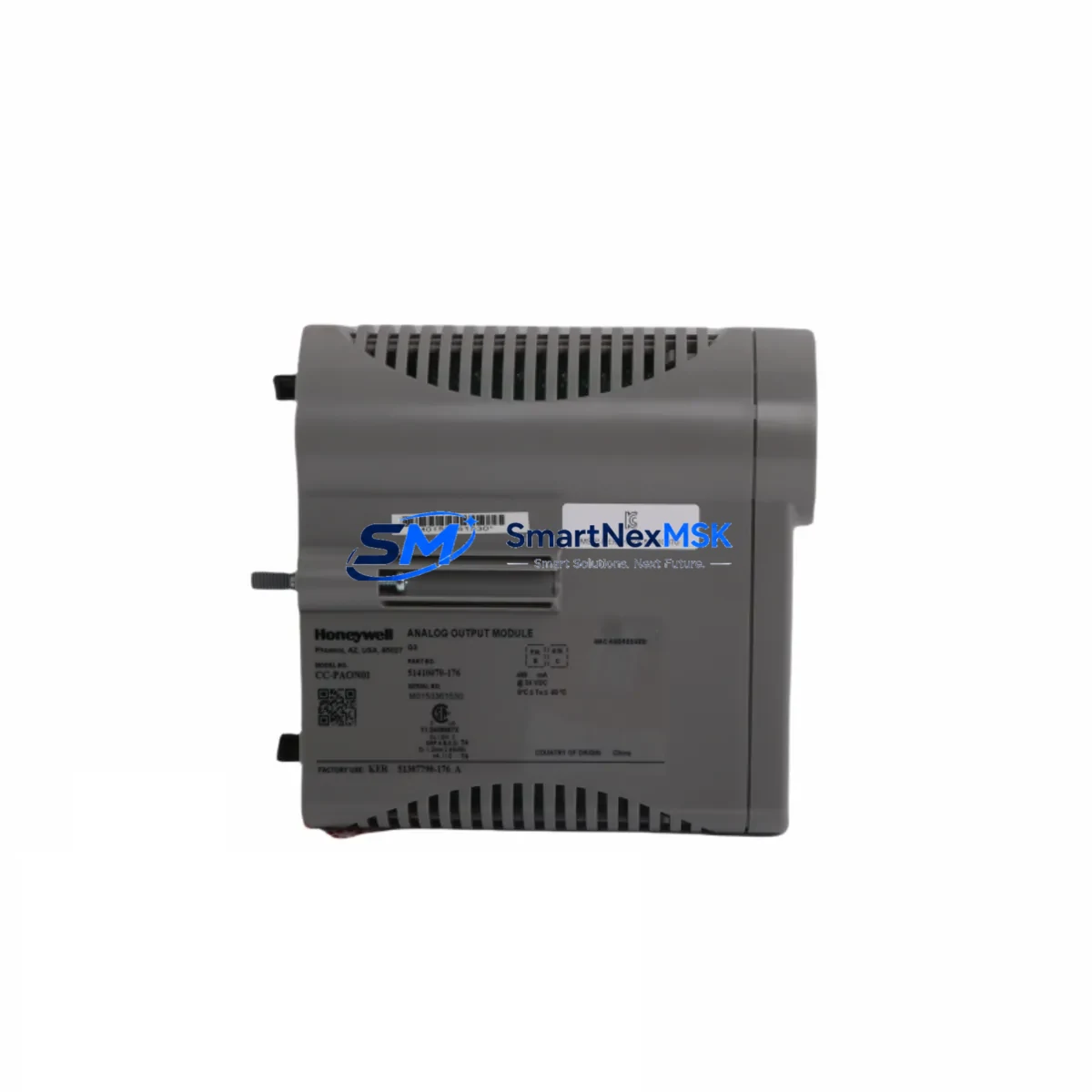

Honeywell CC-PAON01 51410070-176 Safety Analog Output Module

Honeywell CC-PAON01 51410070-176 Safety Analog Output Module: Reliable Control in Harsh Industrial Sites

The Honeywell CC-PAON01 (Part No. 51410070-176) is a ruggedized analog output module engineered for the Experion PKS C300 Distributed Control System. Designed to deliver stable, high-fidelity 4–20 mA analog signals in the most demanding industrial environments, this module is a critical component in control cabinets where signal integrity, loop continuity, and process safety cannot be compromised. Whether deployed in continuous chemical processing, power generation, heavy metallurgy, or offshore petrochemical facilities, the CC-PAON01 provides the output precision and environmental resilience that safety-critical automation demands.

In high-load production environments where control loops must remain uninterrupted 24/7, analog output modules are among the most failure-sensitive components in the field. Signal drift, ground loops, EMI-induced noise, and power rail fluctuations can cause actuator misoperation, valve position errors, or unplanned shutdowns. The CC-PAON01 addresses these risks through robust hardware isolation, tight output accuracy, and full compatibility with the Honeywell C300 Controller — ensuring that every control command reaches the field device with precision and without distortion.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered Experion PKS control cabinet, the CC-PAON01 analog output module does not operate in isolation — it functions as part of a tightly integrated safety and control architecture. To maintain loop integrity and protect against field-side faults, the CC-PAON01 is typically paired with the Honeywell CC-PAIN01 (51410070-175) analog input module, which handles process variable feedback and closes the control loop. Together, these modules enable the C300 Controller (CC-PCF901) to execute PID algorithms with full signal traceability from sensor to actuator.

Power stability is foundational to analog output accuracy. Voltage sags or rail noise on the 24 VDC bus can introduce output offset errors that propagate to control valves or variable-frequency drives. For this reason, the CC-PAON01 installation should always be supported by a high-quality Honeywell 24 VDC redundant power supply module and a dedicated power distribution terminal block assembly with individual fusing per output channel. This prevents a single field short-circuit from cascading into multi-channel output loss.

In safety instrumented systems (SIS) or critical interlock loops, the CC-PAON01 is often deployed alongside Honeywell digital output modules such as the CC-PDOB01 (51410070-150) for discrete valve control, and CC-PDIL01 digital input modules for interlock status monitoring. This combination allows the C300 to manage both modulating control and on/off safety actions within the same I/O chassis, reducing cabinet footprint and wiring complexity while maintaining functional separation between control and safety layers.

For installations in electrically noisy environments — such as motor control centers, arc furnace control rooms, or variable-speed drive enclosures — the CC-PAON01’s built-in EMI filtering is complemented by proper cable segregation practices and the use of shielded twisted-pair field wiring terminated at a Honeywell marshalling panel. Adding surge protection terminal blocks (e.g., Phoenix Contact TERMITRAB or equivalent) on the field side of each analog output channel further reduces the risk of transient damage to the module from inductive load switching or lightning-induced surges on long cable runs.

Communication health between the CC-PAON01 and the C300 Controller is monitored continuously via the Experion PKS I/O Link. In redundant controller configurations, the CC-PCF901 C300 Controller module and its redundant partner maintain synchronized output states, so a controller failover does not interrupt analog output signals to the field. This seamless redundancy is essential in continuous process plants where even a 100 ms output interruption can trigger a process upset or safety system activation.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In crude distillation units, catalytic crackers, and gas compression trains, the CC-PAON01 drives control valve positioners that regulate flow, pressure, and temperature in hazardous hydrocarbon streams. Its channel isolation prevents ground faults in one loop from affecting adjacent safety-critical loops, and its high output accuracy ensures that valve trim positions match the controller setpoint within tight process tolerances.

Power Generation and Utilities: In coal-fired, gas turbine, and combined-cycle power plants, analog output modules control burner management systems, steam turbine governors, and boiler feedwater control valves. The CC-PAON01’s stable 4–20 mA output under varying load conditions makes it suitable for these high-consequence applications where output instability could trigger turbine trips or boiler shutdowns.

Mining and Mineral Processing: Conveyor speed control, flotation cell level regulation, and crusher load management all rely on precise analog output signals. In dusty, vibration-prone mining environments, the CC-PAON01’s ruggedized construction and wide operating temperature range ensure reliable operation without frequent recalibration or module replacement.

Water and Wastewater Treatment: Dosing pump control, aeration blower speed regulation, and filter backwash sequencing require accurate, repeatable analog outputs. Municipal water authorities operating Experion PKS-based SCADA systems rely on the CC-PAON01 for its long-term output stability and compatibility with existing C300 I/O infrastructure.

Metallurgy and Steel Production: Electric arc furnace electrode regulation, continuous casting mold level control, and rolling mill speed synchronization demand analog output modules capable of operating in high-EMI, high-temperature environments. The CC-PAON01’s EMI hardening and thermal tolerance make it a preferred choice for steel plant DCS upgrades and spare parts programs.

Port and Terminal Automation: Automated crane control systems, conveyor belt speed regulation, and ship-loading rate control in bulk terminal operations use Experion PKS platforms where the CC-PAON01 provides the analog output backbone for variable-speed drive interfaces and hydraulic actuator control.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the CC-PAON01 51410070-176?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformance under normal operating conditions. If the module fails to meet its specified output accuracy, channel isolation, or communication performance within the warranty period, we will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of fault confirmation.

Q2: What pre-shipment testing is performed on each CC-PAON01 module?
Every CC-PAON01 unit undergoes a multi-point functional test before dispatch: output accuracy verification across all 8 channels at 0%, 25%, 50%, 75%, and 100% of full scale; channel isolation resistance measurement; I/O Link communication handshake test; and visual inspection for connector integrity and PCB condition. A test report is available upon request for critical spare parts orders.

Q3: Is the CC-PAON01 51410070-176 compatible with all C300 Controller revisions?
The CC-PAON01 (51410070-176) is compatible with Honeywell C300 Controller revisions R110 through R500 and later, operating within Experion PKS Release 310 and above. For installations running earlier firmware, we recommend confirming the I/O Link protocol version with your DCS engineer before installation. We can provide compatibility guidance based on your specific system revision upon inquiry.

Q4: Can you guarantee long-term supply of the CC-PAON01 for ongoing maintenance programs?
Yes. We maintain dedicated stock of the CC-PAON01 51410070-176 to support plant maintenance programs, scheduled turnarounds, and emergency spare parts requirements. For customers with multi-year maintenance contracts or large installed bases of Experion PKS C300 systems, we offer reserved stock arrangements and priority dispatch to ensure module availability when it matters most. Contact our team to discuss your long-term supply requirements.
