Honeywell CC-PAON01 Safety-Enhanced Analog Output for DCS

Honeywell CC-PAON01 Safety-Enhanced Analog Output for Harsh Industrial DCS Sites

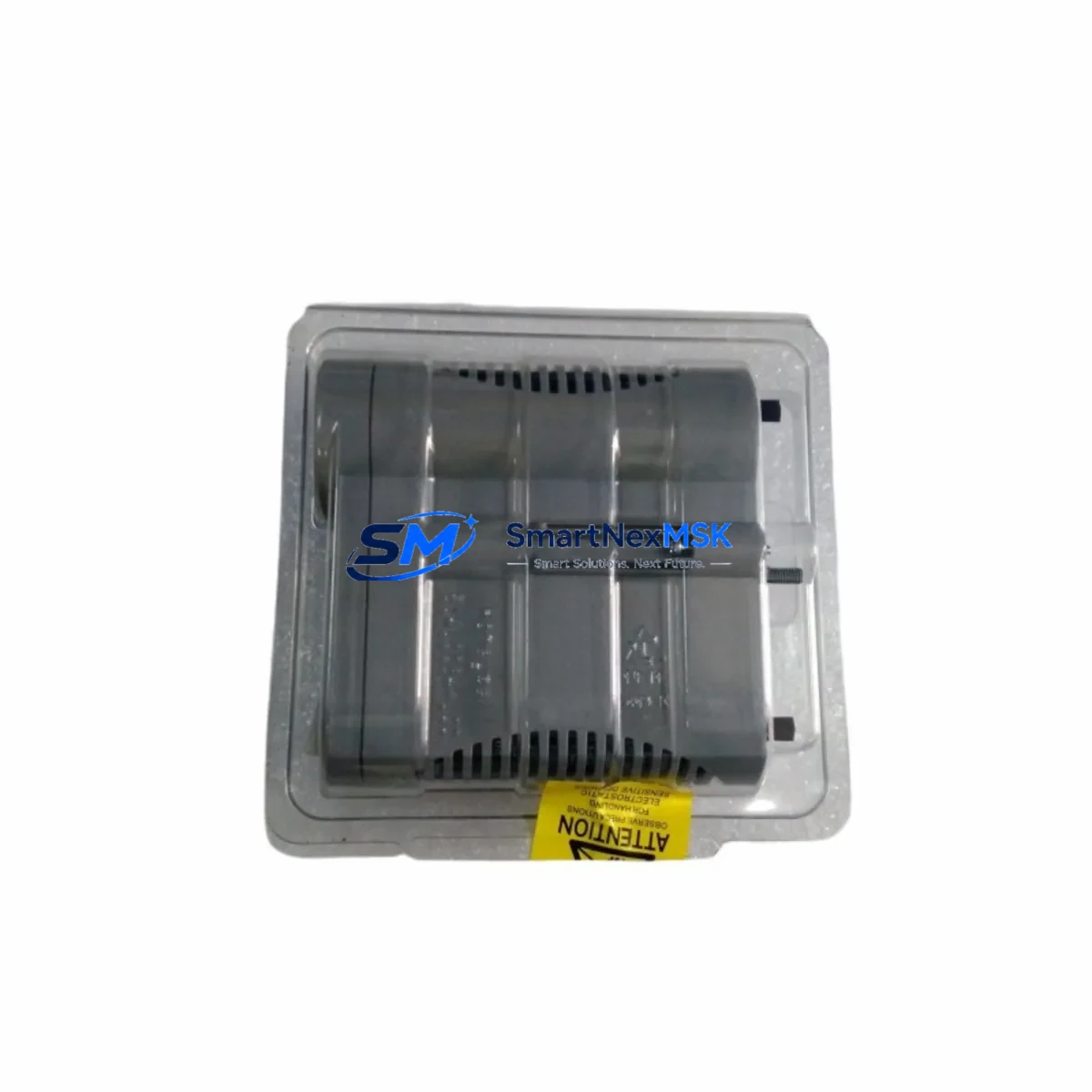

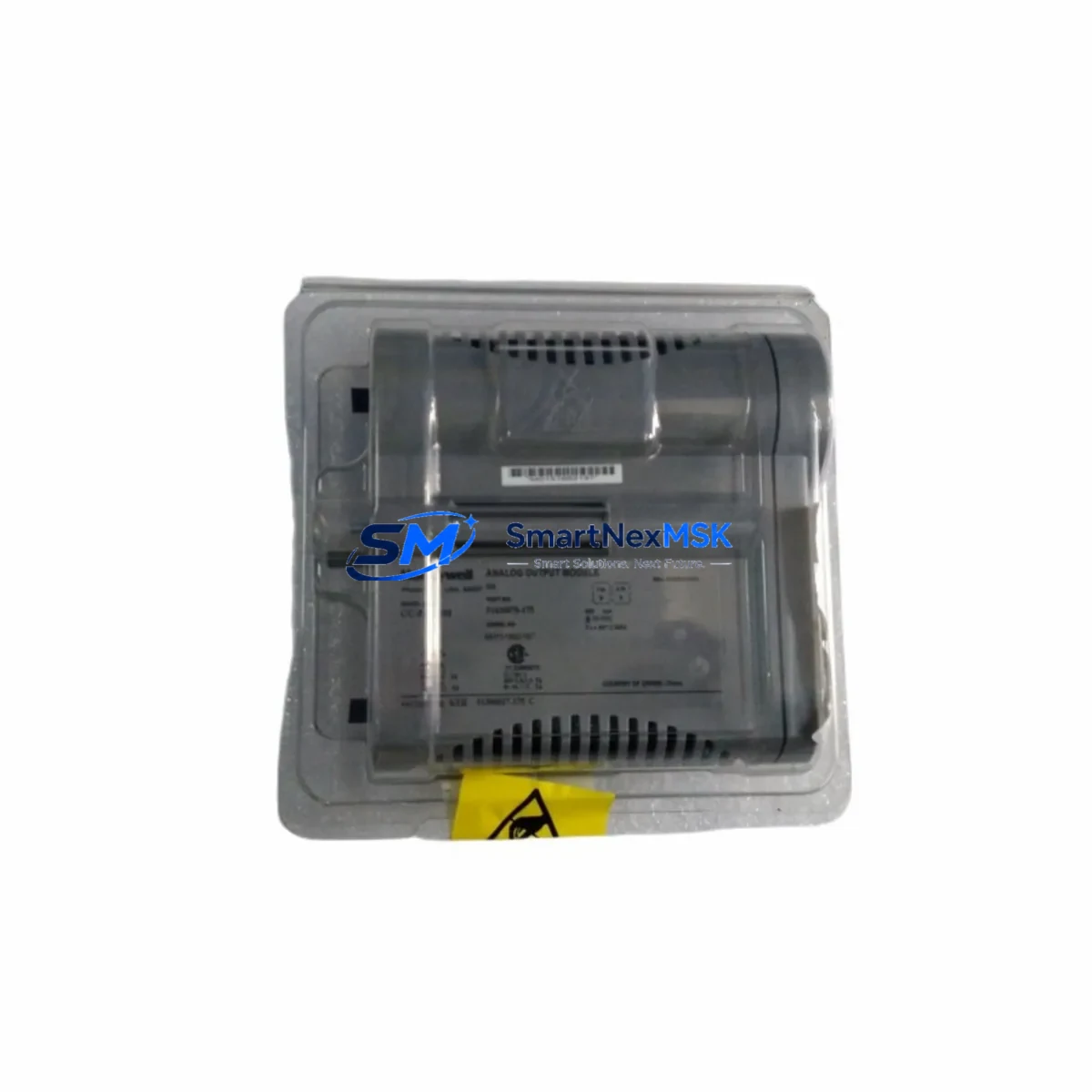

The Honeywell CC-PAON01 (part number 51410070-175) is an 8-channel analog output module engineered for continuous, safety-critical operation within the Experion PKS C300 distributed control system platform. Designed to perform reliably in high-load, high-interference industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and port logistics automation — this module delivers stable 4–20 mA output signals even under severe electromagnetic interference, voltage fluctuation, and thermal stress conditions.

In demanding control cabinet installations where signal integrity is non-negotiable, the CC-PAON01 provides the output fidelity required to drive final control elements such as control valves, variable frequency drives, and positioners without drift or interruption. Its ruggedized design addresses the core failure modes that plague analog output modules in harsh environments: signal leakage, ground loop interference, surge-induced miscalibration, and thermal derating. Each channel is individually isolated, ensuring that a fault on one output loop does not cascade into adjacent control circuits — a critical requirement in safety interlock and emergency shutdown (ESD) architectures.

When integrated into a C300 controller node alongside the CC-PAIN01 analog input module and the CC-PDOB01 digital output module, the CC-PAON01 forms a complete I/O subsystem capable of handling both regulatory control and safety-related output functions. The module mounts directly onto the Series C I/O Link chassis, sharing backplane communication with the C300 controller via the FIM4 field interface module. This tight integration eliminates the need for external signal conditioners in most applications, reducing cabinet footprint and potential failure points.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the CC-PAON01 within a well-engineered control cabinet requires a layered protection strategy that addresses power quality, signal integrity, and communication reliability simultaneously. The module draws its operating power from the Series C I/O chassis backplane, which is typically fed by a Honeywell PS-IOTA1 or equivalent redundant power supply module. Ensuring that the power supply is correctly sized for the full chassis load — accounting for all populated I/O slots including CC-PDIB01 digital input modules and CC-TDOB01 digital output modules — is the first line of defense against voltage sag-induced output errors.

Signal wiring from the CC-PAON01 to field devices should be routed through shielded twisted-pair cables, with shields grounded at a single point at the cabinet entry to prevent ground loops. In environments with heavy variable frequency drive (VFD) activity or high-voltage switching equipment nearby, additional ferrite cores on signal cables and surge protection devices at the IOTA terminal assembly are recommended. The IOTA assembly for the CC-PAON01 provides screw-terminal field wiring connections and should be inspected for proper torque and insulation integrity during commissioning and periodic maintenance.

For applications requiring redundant output capability, the CC-PAON01 can be paired with a redundant C300 controller node and FIM4 interface module, ensuring that a controller failover does not interrupt analog output signals to critical final control elements. In safety instrumented system (SIS) architectures, the CC-PAON01 output signals are often used to drive the setpoint inputs of safety-rated controllers or to provide demand signals to ESD valve actuators, making output accuracy and availability directly relevant to process safety integrity.

Communication health between the C300 controller and the CC-PAON01 is monitored continuously via the Series C I/O Link protocol. Any communication fault — whether caused by backplane connector degradation, EMI-induced bit errors, or controller overload — is immediately flagged in the Experion PKS operator station, allowing maintenance personnel to respond before a control interruption occurs. This diagnostic transparency is a key advantage of the Experion PKS architecture over legacy DCS platforms that lack online I/O diagnostics.

Critical Industrial Safety Applications

In petrochemical refining and gas processing facilities, the CC-PAON01 is commonly deployed to drive control valve positioners in distillation column overhead pressure control loops, where output signal stability directly affects product quality and flare system loading. A drifting or failed analog output in this context can trigger pressure relief valve actuation, resulting in unplanned flaring events and potential regulatory non-compliance.

In coal-fired and gas-fired power generation plants, the module controls burner management system (BMS) fuel valve demand signals and boiler feedwater control valve setpoints. These are high-consequence control loops where output signal failure can initiate a boiler trip, causing significant generation loss and equipment thermal stress. The CC-PAON01’s channel isolation and EMI hardening make it well-suited to the electrically noisy environment of a power plant control room, where large motor starters and transformer switching events generate significant conducted and radiated interference.

Mining and mineral processing operations present some of the most demanding environments for analog output modules, with high ambient dust levels, wide temperature swings, and frequent heavy equipment switching transients. The CC-PAON01’s operating temperature range and EMI compliance ratings make it a reliable choice for controlling conveyor speed references, flotation cell reagent dosing pumps, and crusher load control systems in these environments.

Water and wastewater treatment facilities rely on the CC-PAON01 to control chemical dosing pump speeds, aeration blower inlet guide vane positions, and filter backwash valve sequencing. In these applications, output signal continuity is essential to maintaining effluent quality within regulatory discharge limits. The module’s online diagnostics allow operators to detect developing faults before they result in a dosing excursion or permit violation.

Safety and Quality FAQ

Q: What warranty coverage is provided with the CC-PAON01 51410070-175?
A: Every CC-PAON01 unit shipped by SMARTNEXMSK carries a 12-month warranty from the date of shipment. The warranty covers functional defects under normal operating conditions and includes technical support for installation and commissioning issues. Replacement or repair is arranged promptly to minimize any impact on your production schedule.

Q: What pre-shipment testing is performed on each module?
A: Each CC-PAON01 unit undergoes functional output verification testing prior to shipment, confirming that all 8 analog output channels produce accurate 4–20 mA signals across the full output range. Modules are inspected for physical integrity, connector condition, and firmware version compatibility with current Experion PKS C300 releases.

Q: Is the CC-PAON01 compatible with my existing Series C I/O chassis and C300 controller?
A: Yes. The CC-PAON01 is designed for direct installation into any Series C I/O chassis slot and communicates natively with the C300 controller via the Series C I/O Link. No firmware modifications or special configuration are required beyond standard Experion Control Builder module configuration. Compatibility with specific Experion PKS software versions should be confirmed against Honeywell’s published compatibility matrix for your site’s software release.

Q: Can SMARTNEXMSK support long-term supply of the CC-PAON01 for ongoing maintenance needs?
A: Yes. SMARTNEXMSK maintains inventory of the CC-PAON01 and related Experion PKS C300 I/O modules to support both emergency replacement and planned maintenance programs. We can provide supply commitments for multi-year maintenance contracts and advise on recommended spare parts holdings based on your installed base and criticality classification.
