Honeywell CC-PDIH01 51405041-175 Maintenance-Ready Spare for C300 Automation

Honeywell CC-PDIH01 51405041-175 Maintenance-Ready Spare for C300 Automation

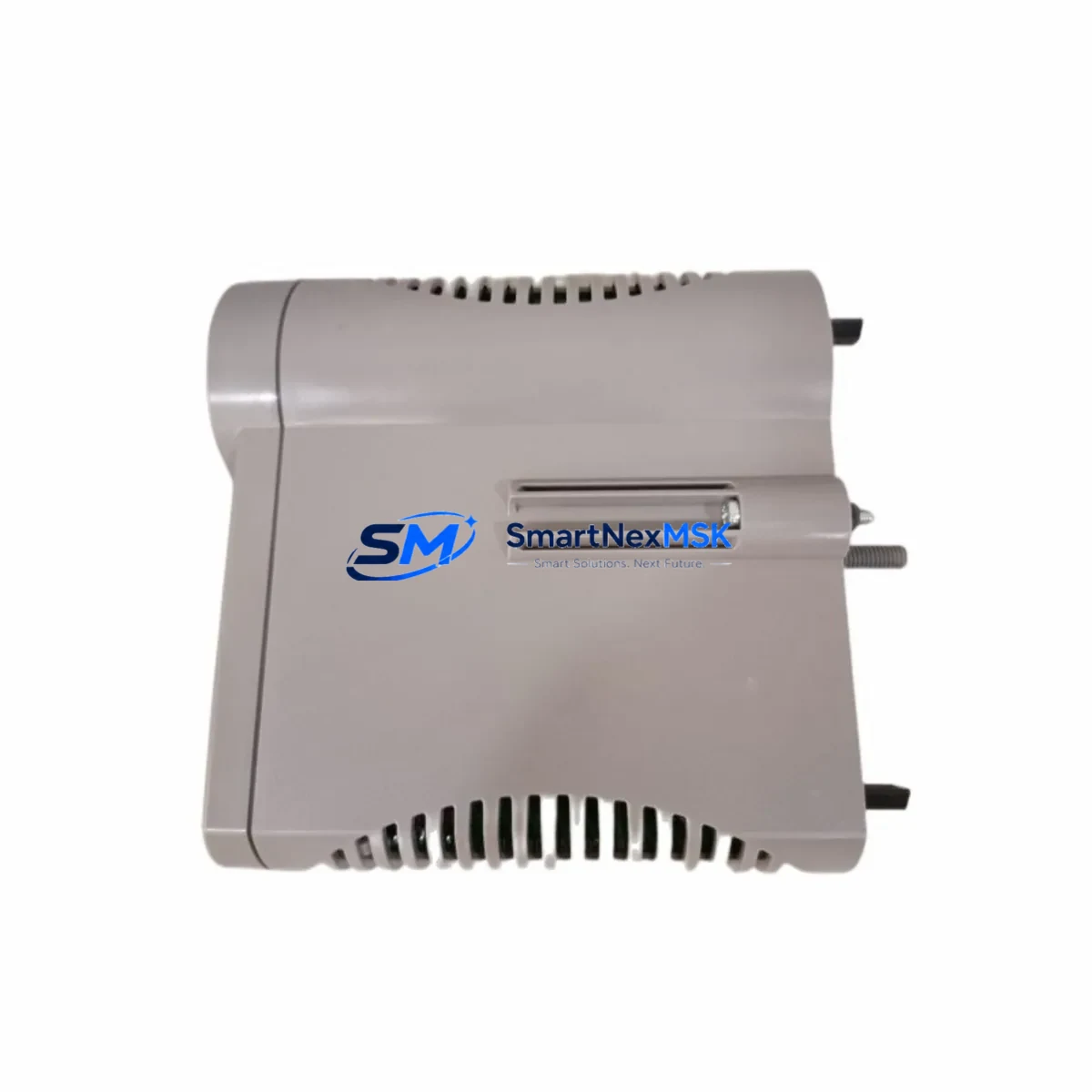

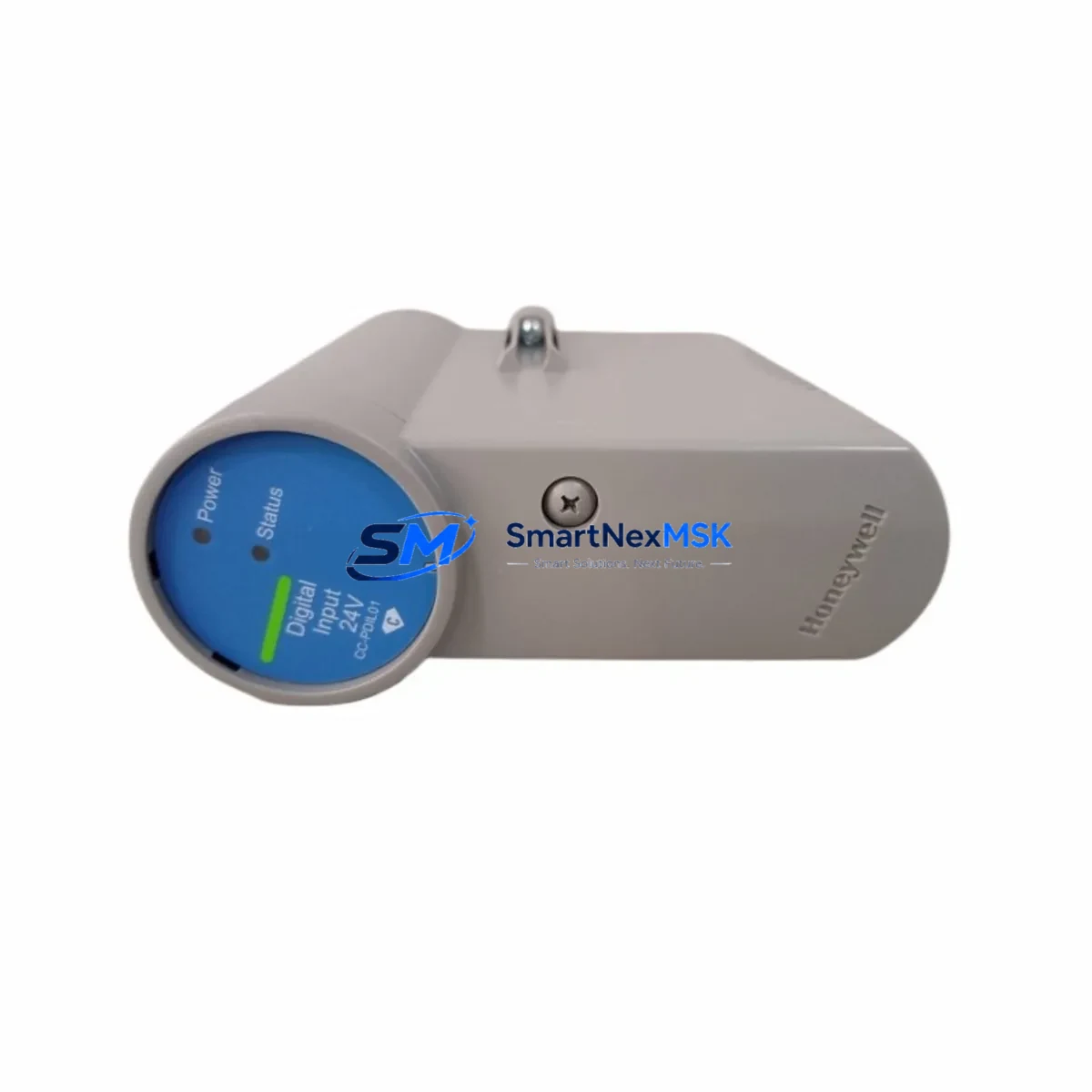

The Honeywell CC-PDIH01 (Part No. 51405041-175) is an original Digital Input Module designed for the Experion PKS C300 Controller platform — one of the most widely deployed DCS architectures in refining, petrochemical, power generation, and continuous process industries. Sourced as a genuine OEM spare, this module is fully tested prior to shipment and backed by a 12-month warranty, making it a reliable choice for both planned maintenance and emergency downtime recovery.

For maintenance engineers managing aging Experion PKS installations, the CC-PDIH01 represents a critical field-replaceable unit. Its 24 VDC digital input channels interface directly with field devices — limit switches, proximity sensors, valve position feedback, and process interlocks — feeding real-time discrete status data into the C300 controller for logic execution and alarm management. When this module degrades or fails, the consequences range from masked process alarms to complete loss of field visibility on an entire I/O cluster, making rapid spare availability essential to safe and continuous operation.

Procurement engineers sourcing this module should verify compatibility with the installed C300 FIM (Field Interface Module) revision and confirm the CHARM I/O architecture version in use. The CC-PDIH01 is designed for use within the standard C300 I/O carrier assembly and does not require additional configuration tools beyond the standard Experion PKS Control Builder environment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the CC-PDIH01 in a live C300 cabinet, a disciplined maintenance approach requires inspecting the entire I/O cluster and associated field wiring — not just the failed module. Maintenance engineers should treat this replacement as an opportunity for a broader cabinet health check.

Begin by verifying the C300 Controller Module (CC-PCF901 or CC-PCF902) firmware revision and confirming it is compatible with the replacement DI module. A firmware mismatch can cause the module to fail to enumerate on the FTE network even after physical installation. Next, inspect the Field Interface Module (CC-FIM) for any fault LEDs or communication errors — a degraded FIM can cause intermittent DI channel dropouts that are often misdiagnosed as module failure.

Check the I/O carrier assembly and backplane connectors for oxidation, bent pins, or mechanical damage. The carrier is a passive component but is frequently overlooked during module swaps. Inspect the 24 VDC field power supply feeding the DI module — voltage sag or ripple on the field supply bus can cause false input transitions and accelerate module wear. A dedicated DC power distribution module or fused terminal block assembly should be verified for correct output voltage under load.

For field wiring, inspect the terminal blocks and marshalling panels connected to the DI channels. Loose terminations, corroded lugs, or undersized conductors are common root causes of intermittent digital input faults. If the plant uses signal isolators or signal conditioners between field devices and the DI module, verify their output voltage levels are within the module’s input threshold range.

In systems where the CC-PDIH01 monitors safety-critical interlocks, also verify the status of associated relay output modules (e.g., CC-PDOB01) in the same control loop — a failed relay output can create a latched interlock condition that persists even after the DI module is replaced. For plants running redundant C300 controllers, confirm that the redundancy link module and FTE switch configuration are intact before returning the loop to automatic control.

Finally, if the plant uses Honeywell Safety Manager or a third-party SIS in the same cabinet, verify that the DI signals shared between the DCS and SIS are correctly isolated and that the replacement module does not alter the signal source impedance in a way that affects SIS input thresholds. Maintaining a minimum stock of one CC-PDIH01 per C300 cluster — alongside spares for the CC-PDOB01 digital output module, CC-PAIH01 analog input module, and the C300 controller itself — is recommended for plants with zero-tolerance downtime requirements.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement CC-PDIH01 part number and revision match the installed module. Log the current channel status in Experion PKS Station before initiating any physical work. Place all affected control loops in manual mode and notify the control room.

Step 2 — Safe isolation: De-energize the field power supply to the affected I/O carrier following site LOTO procedures. Do not rely solely on software inhibit — physically isolate the 24 VDC field supply at the fused terminal block or distribution panel.

Step 3 — Module extraction: Release the module locking tab and extract the CC-PDIH01 from the carrier. Inspect the backplane connector on both the module and carrier for damage or contamination before inserting the replacement unit.

Step 4 — Replacement and enumeration: Insert the new CC-PDIH01 and restore field power. Monitor the Experion PKS System Display for module enumeration — the module should appear online within 60 seconds. Verify all 24 DI channels report correct status against known field device states.

Step 5 — Loop restoration: Return control loops to automatic mode sequentially, verifying each interlock and alarm function before proceeding. Document the replacement in the plant CMMS with the new module serial number and test report reference.

This workflow minimizes downtime to under 30 minutes for a trained technician with a pre-tested spare on hand — reinforcing the value of maintaining a local spare parts inventory for critical C300 I/O modules.

Spare Parts Support FAQ

Q1: Is this CC-PDIH01 an original Honeywell module or a third-party compatible replacement?
This is an original OEM Honeywell CC-PDIH01 module (Part No. 51405041-175). It is not a third-party clone or compatible substitute. All units are sourced from authorized channels or decommissioned plant inventories and are fully tested before shipment. A test report is available upon request.

Q2: What is the warranty coverage and what does it include?
All CC-PDIH01 modules are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, functional failure under normal operating conditions, and channel integrity issues. It does not cover damage caused by incorrect installation, overvoltage, or physical mishandling. Warranty claims are processed within 5 business days with advance replacement available for critical applications.

Q3: How do I verify compatibility with my installed Experion PKS system before ordering?
Provide your C300 controller revision, FIM part number, and Experion PKS software version (R-series). Our technical team will confirm compatibility before shipment. The CC-PDIH01 is compatible with Experion PKS R310 and above. If your system runs an earlier release, we can advise on the correct DI module variant for your configuration.

Q4: Can you support long-term or blanket purchase orders for ongoing spare parts inventory?
Yes. We support blanket POs, annual supply agreements, and consignment stock arrangements for maintenance teams managing multiple C300 systems. Long-term supply contracts include priority allocation, fixed pricing, and dedicated account support. Contact our sales team to discuss your site’s spare parts strategy and annual consumption requirements.
