Honeywell CC-PDIL01 51405040-175 Spare for C300 Automation

Honeywell CC-PDIL01 51405040-175 Maintenance-Ready Spare for C300 Automation

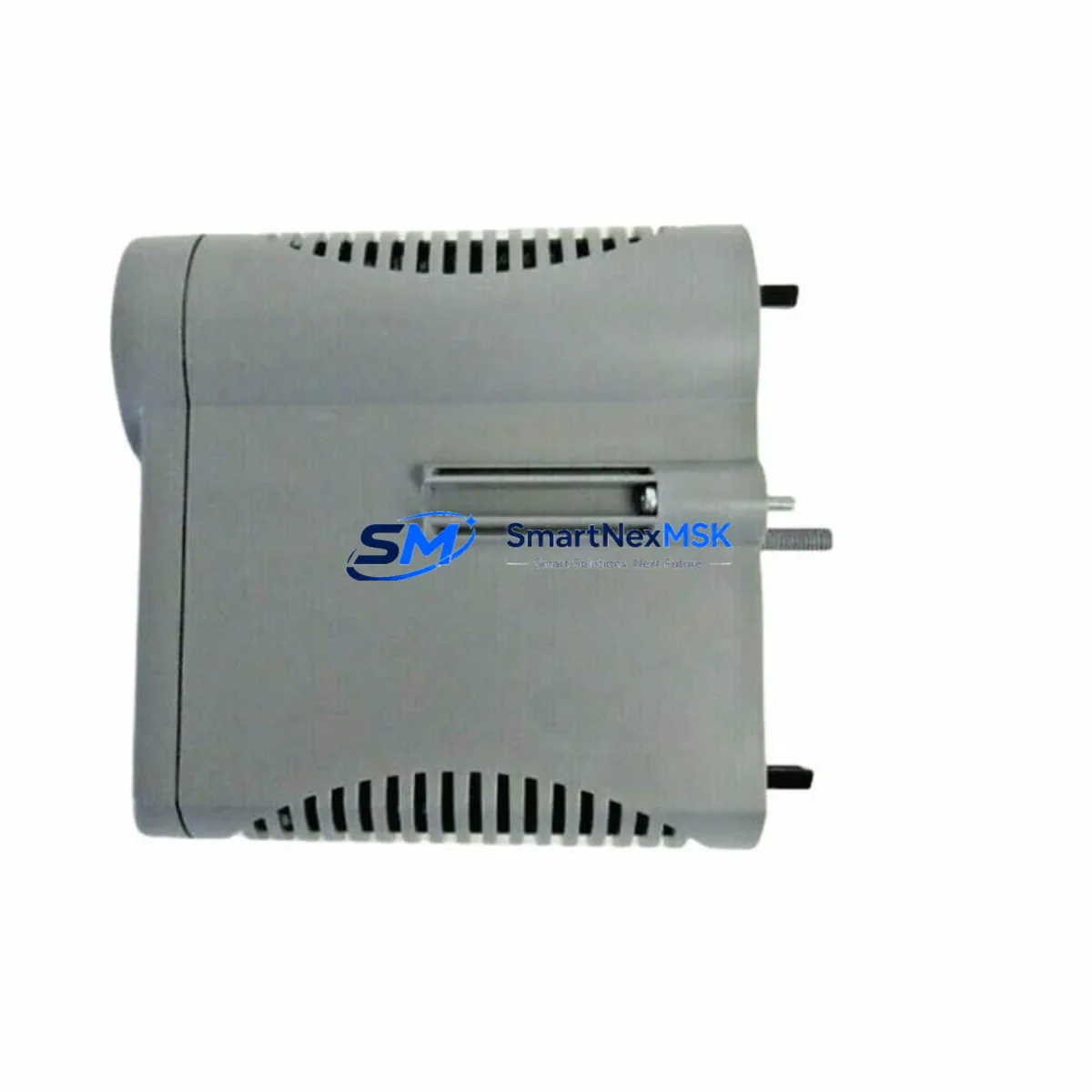

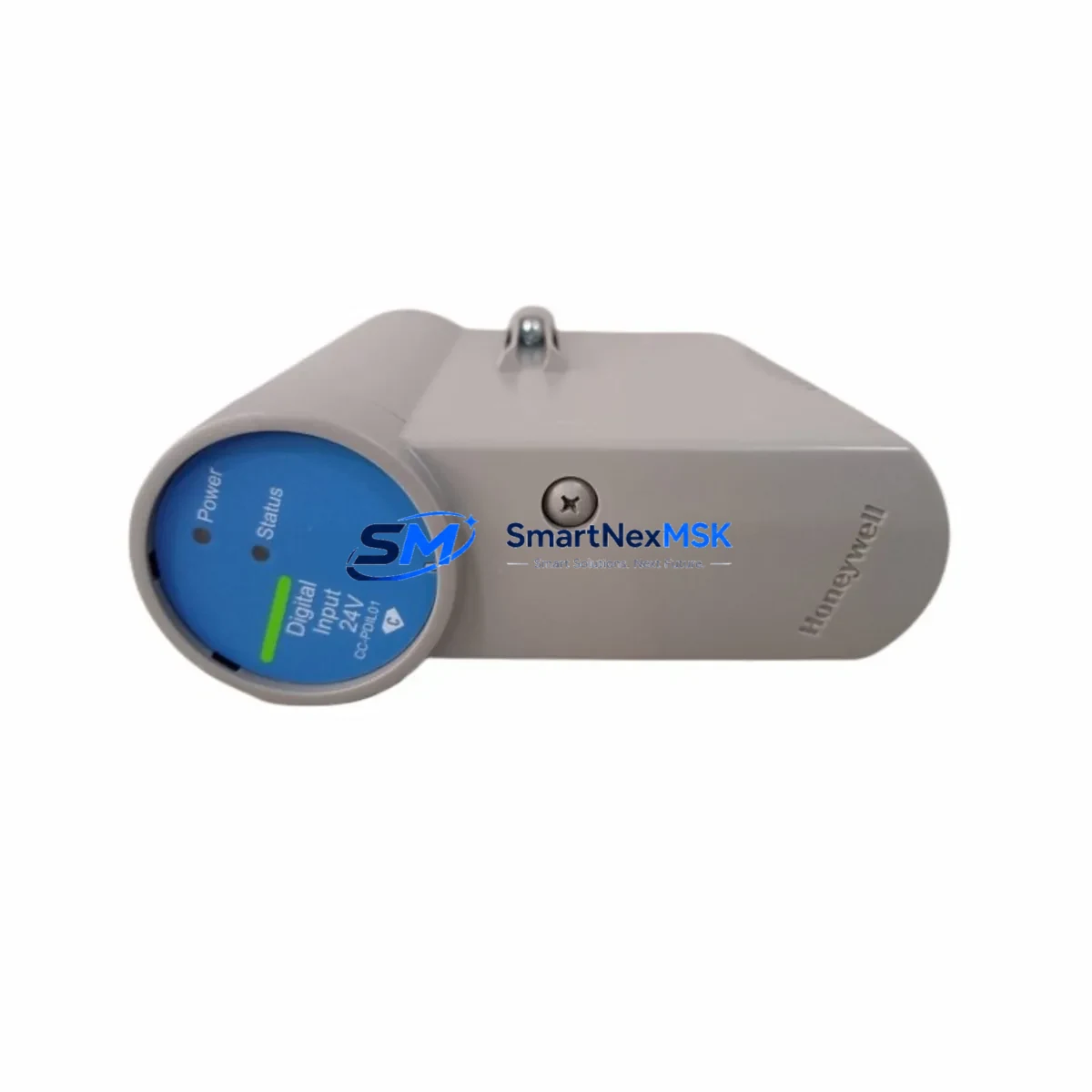

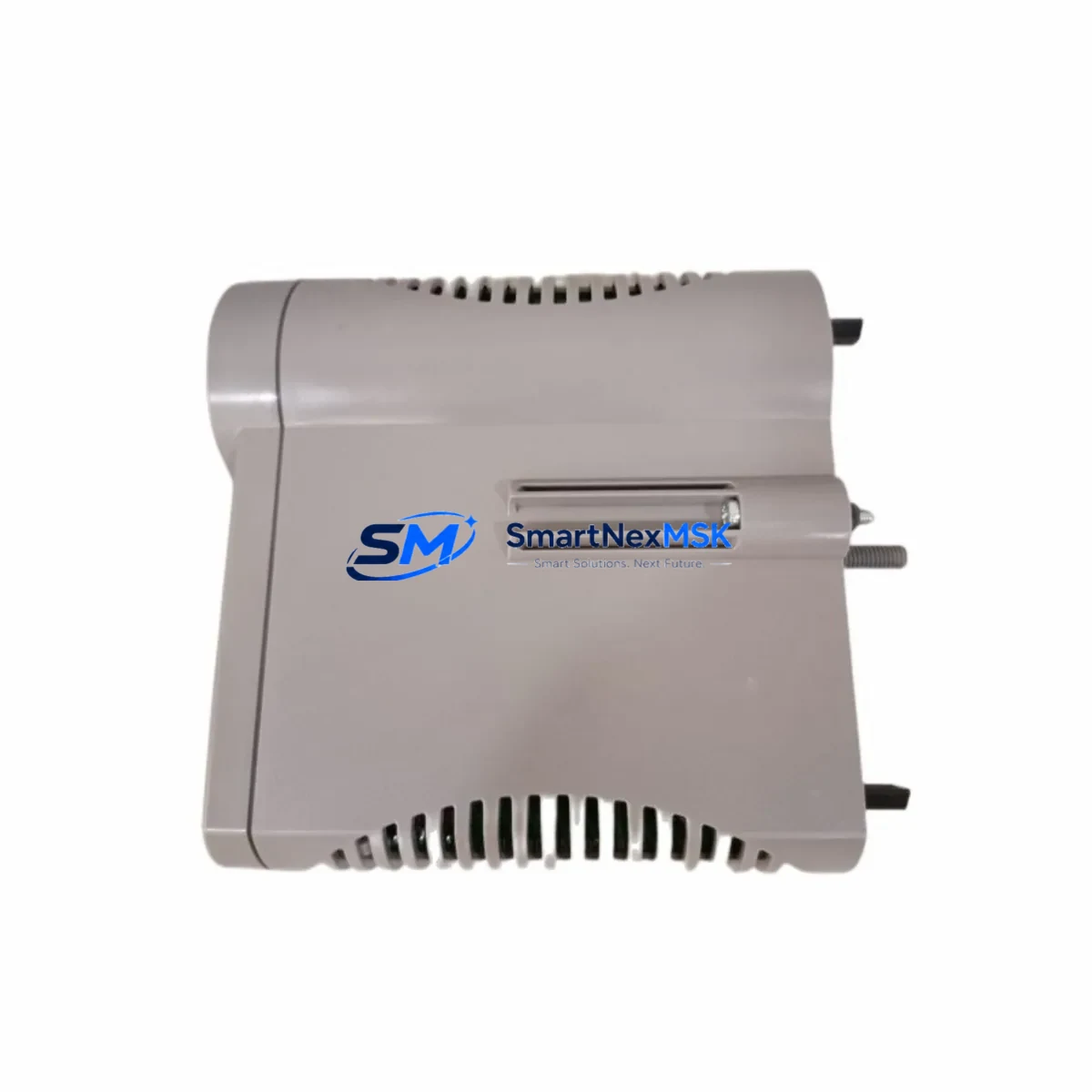

The Honeywell CC-PDIL01 51405040-175 is a 24VDC digital input module engineered for the Experion PKS C300 DCS platform — one of the most widely deployed distributed control systems in continuous process industries. For maintenance engineers managing aging DCS infrastructure, this module represents a critical spare that directly impacts system uptime, loop integrity, and safe process control. Whether you are executing a planned turnaround, responding to an unscheduled fault, or building a strategic spare parts inventory, the CC-PDIL01 51405040-175 is a high-priority line item in any C300 cabinet maintenance plan.

In industrial facilities where the Experion PKS C300 system governs critical process loops — including flow control, level monitoring, pressure interlocks, and emergency shutdown sequences — a failed digital input module can cascade into full controller isolation, loss of field signal visibility, and unplanned production stoppage. The CC-PDIL01 is the front-line interface between field instruments and the C300 controller, converting 24VDC discrete signals from limit switches, proximity sensors, valve position feedback, and safety relay contacts into reliable digital data for the control strategy. Its failure mode is rarely gradual; input modules tend to fail hard, making rapid replacement the only path to restoring loop function.

Procurement engineers sourcing this module should verify the full part number — CC-PDIL01 51405040-175 — as Honeywell’s Experion PKS catalog includes multiple digital input variants with different channel counts, voltage ratings, and firmware compatibility levels. The 51405040-175 suffix identifies the specific hardware revision and configuration, ensuring backward compatibility with existing C300 controller firmware and Series C I/O FTA (Field Termination Assembly) wiring infrastructure. Substituting an incorrect revision can result in configuration errors, I/O bus faults, or controller rejection of the module during initialization.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the CC-PDIL01 51405040-175 in a live C300 cabinet is rarely an isolated task. Experienced maintenance engineers know that a failed digital input module is often a symptom of broader cabinet stress — power fluctuations, connector fatigue, or accumulated thermal cycling. Before closing the work order, a thorough inspection of adjacent components is essential to prevent repeat failures and extend the service interval.

Start with the CC-PDIL01’s FTA (Field Termination Assembly) — typically a CC-TDIL01 or CC-TDIL02 — which handles all field wiring terminations. FTA connectors are subject to vibration-induced loosening and oxidation in humid or dusty environments; inspect and re-torque all terminal screws before re-energizing. The Series C I/O carrier and backplane should be checked for bent pins, corrosion on the module slot contacts, and secure seating of adjacent modules such as the CC-PDIL02 (digital input, isolated) or CC-PDOL01 (digital output module) sharing the same carrier.

The C300 Controller module (CC-PCF901) itself should be inspected for firmware version compatibility with the replacement CC-PDIL01 revision. If the controller has not been updated in several years, verify that the 51405040-175 hardware revision is supported by the installed firmware. The CC-SCMB01 Series C Main Backplane and its associated power distribution rail should be load-tested; a degraded backplane power supply can cause intermittent module faults that mimic input module failure.

For power integrity, inspect the 24VDC field power supply feeding the DI module’s input circuits. In many C300 installations, a dedicated Honeywell CC-PWR01 or equivalent 24VDC DIN-rail power supply feeds the field input circuits. Measure output voltage under load and check for ripple exceeding 200mV, which can cause false input transitions on sensitive digital channels. Surge protection devices on the 24VDC bus — such as DIN-rail mounted transient voltage suppressors — should also be inspected and replaced if discolored or physically damaged.

Communication health between the C300 controller and the FIM (Field Interface Module) — typically a CC-FIM001 — should be verified via Experion Station diagnostics. A degraded FIM can cause the replacement CC-PDIL01 to report communication faults even after successful physical installation. Additionally, inspect the IOLIM (I/O Link Interface Module) and associated fiber or copper I/O link cabling for signal integrity issues that may have contributed to the original module failure.

For facilities maintaining older C300 installations, it is advisable to stock complementary spares alongside the CC-PDIL01: a CC-PDOL01 digital output module, a CC-PAIH01 analog input module, and at minimum one spare CC-PCF901 C300 controller to cover controller-level failures during the same maintenance window. Procurement teams should also maintain a supply of CC-TDIL01 FTA assemblies and standard 24VDC terminal block fuse holders to support rapid field wiring restoration.

Site Replacement Workflow

Replacing the Honeywell CC-PDIL01 51405040-175 on a live Experion PKS C300 system requires a structured approach to minimize downtime and avoid introducing new faults during the swap procedure.

Step 1 — Pre-Replacement Verification: Before removing the faulty module, use Experion Station or the C300 Engineering Console to confirm the module’s I/O point assignments, channel configuration, and current fault status. Export the module configuration or take a screenshot for reference. Verify that the replacement unit’s part number and revision (51405040-175) match the installed module exactly.

Step 2 — Safe Isolation: If the system supports hot-swap (Series C I/O is designed for online replacement), confirm with the control room that the affected input channels are in a safe state — either bypassed in the safety logic or confirmed non-critical for the duration of the swap. For safety-critical inputs tied to ESD or fire-and-gas systems, coordinate with the safety engineer before proceeding.

Step 3 — Physical Replacement: Disengage the module locking lever, slide the CC-PDIL01 out of its carrier slot, and insert the replacement unit until the locking lever engages. The Series C I/O bus will automatically detect the new module and initiate a configuration download from the C300 controller. Monitor Experion Station for module status — a green I/O module icon confirms successful initialization.

Step 4 — Post-Replacement Functional Test: Cycle each field input connected to the replacement module — actuate limit switches, test relay contacts, and verify signal state changes are correctly reflected in the Experion display. Document the test results in the maintenance management system (CMMS) and update the spare parts inventory record.

Step 5 — Root Cause Documentation: Log the failure mode, operating hours, and any environmental conditions (temperature excursions, power events, vibration) that may have contributed to the failure. This data supports predictive maintenance scheduling and informs future spare parts stocking decisions.

Spare Parts Support FAQ

Q1: Does the CC-PDIL01 51405040-175 carry a warranty?
Yes. Every CC-PDIL01 51405040-175 unit shipped by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment, including I/O channel verification and bus communication checks.

Q2: How do I confirm compatibility with my existing C300 system?
Compatibility is determined by three factors: the C300 controller firmware version, the Series C I/O carrier type, and the FTA model installed in your cabinet. The CC-PDIL01 51405040-175 is compatible with standard Series C I/O carriers and CC-TDIL01/CC-TDIL02 FTAs. If your system runs an older firmware version, contact our technical team with your C300 controller part number and firmware revision for a compatibility confirmation before ordering.

Q3: Can this module replace older or discontinued CC-PDIL01 revisions?
In most cases, yes. The 51405040-175 revision is a current production or last-buy revision that maintains backward compatibility with earlier CC-PDIL01 hardware. However, some very early C300 installations may require a firmware update on the C300 controller before accepting the newer hardware revision. We recommend verifying with your Honeywell system documentation or contacting our support team for guidance.

Q4: What is your lead time and long-term supply availability?
SMARTNEXMSK maintains stock of the CC-PDIL01 51405040-175 for immediate shipment. For facilities requiring long-term supply agreements or bulk spare parts procurement, we offer scheduled delivery programs to support multi-year maintenance contracts. Contact our sales team to discuss volume pricing and supply continuity arrangements.
