Honeywell CC-PDOB01 51405043-175 Retrofit-Ready Digital Output Module for Experion PKS C300

Honeywell CC-PDOB01 51405043-175 Retrofit-Ready Digital Output Module for Experion PKS C300 Control Systems

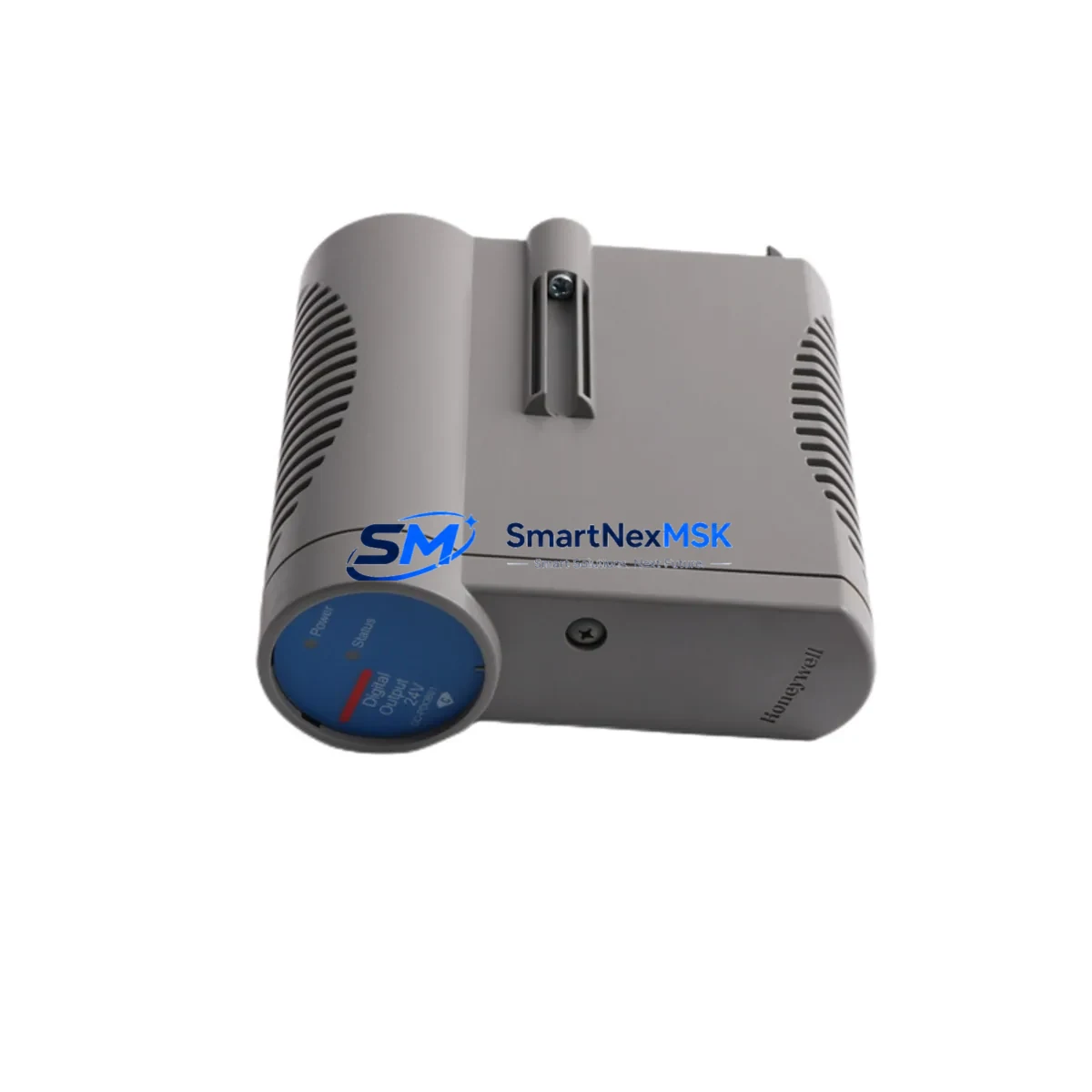

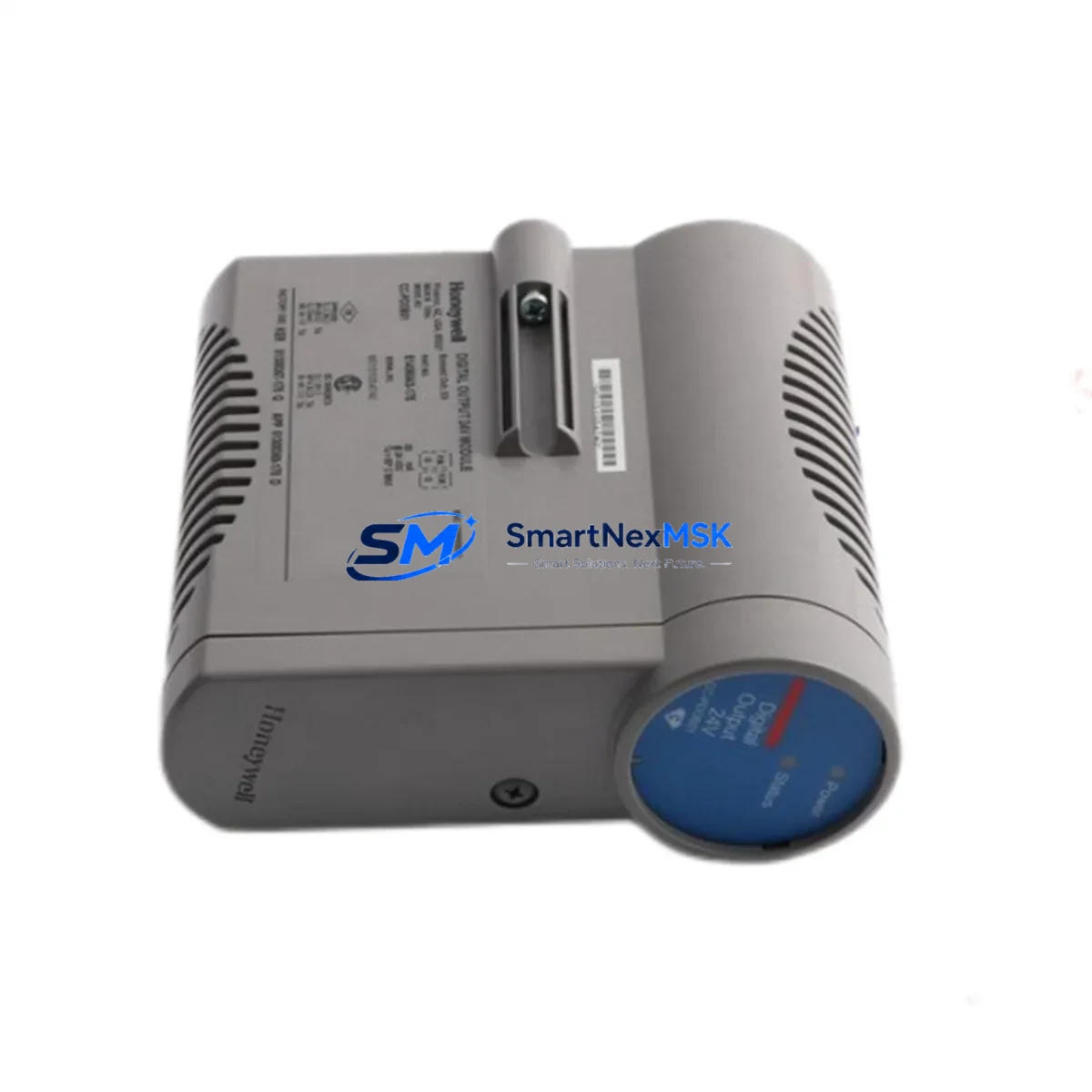

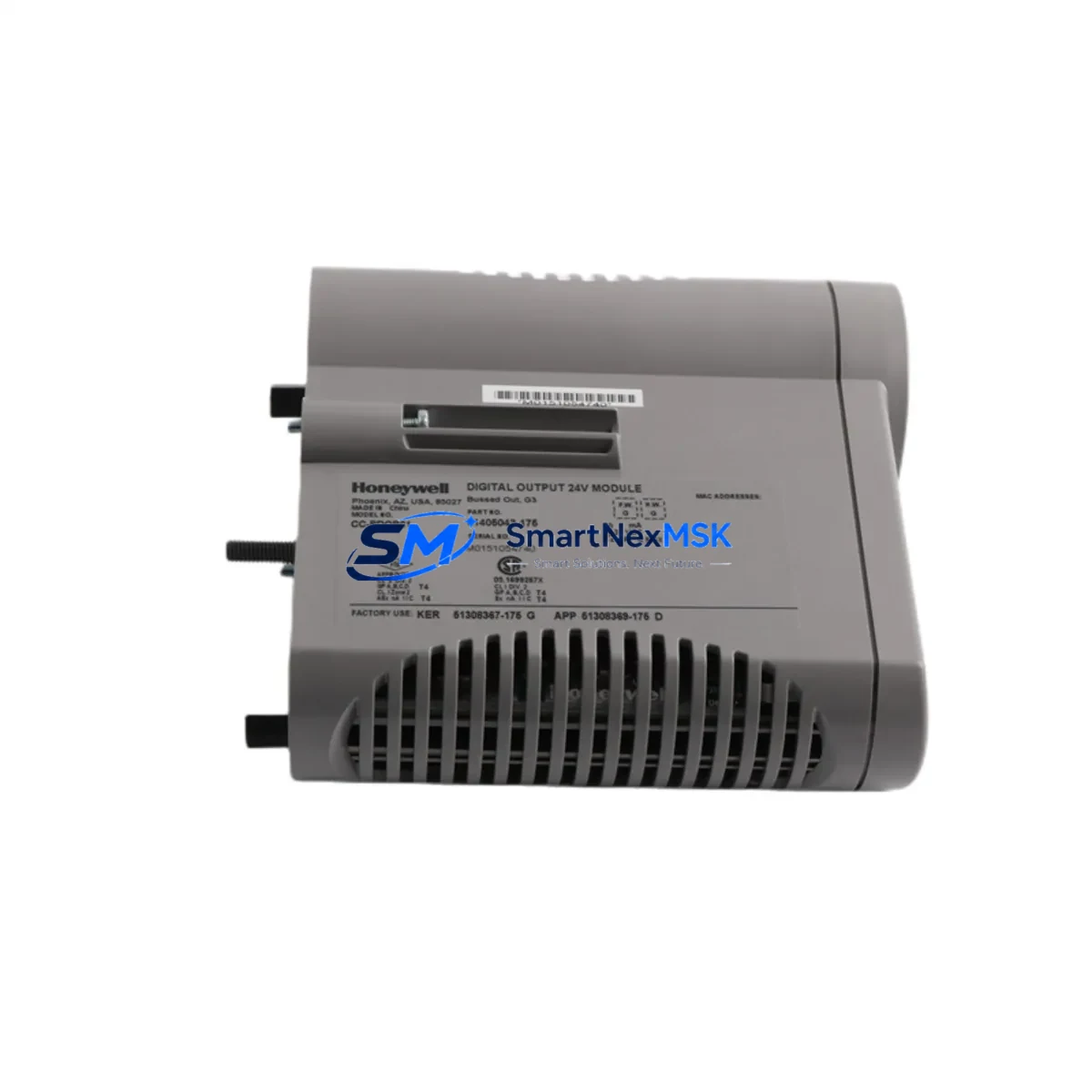

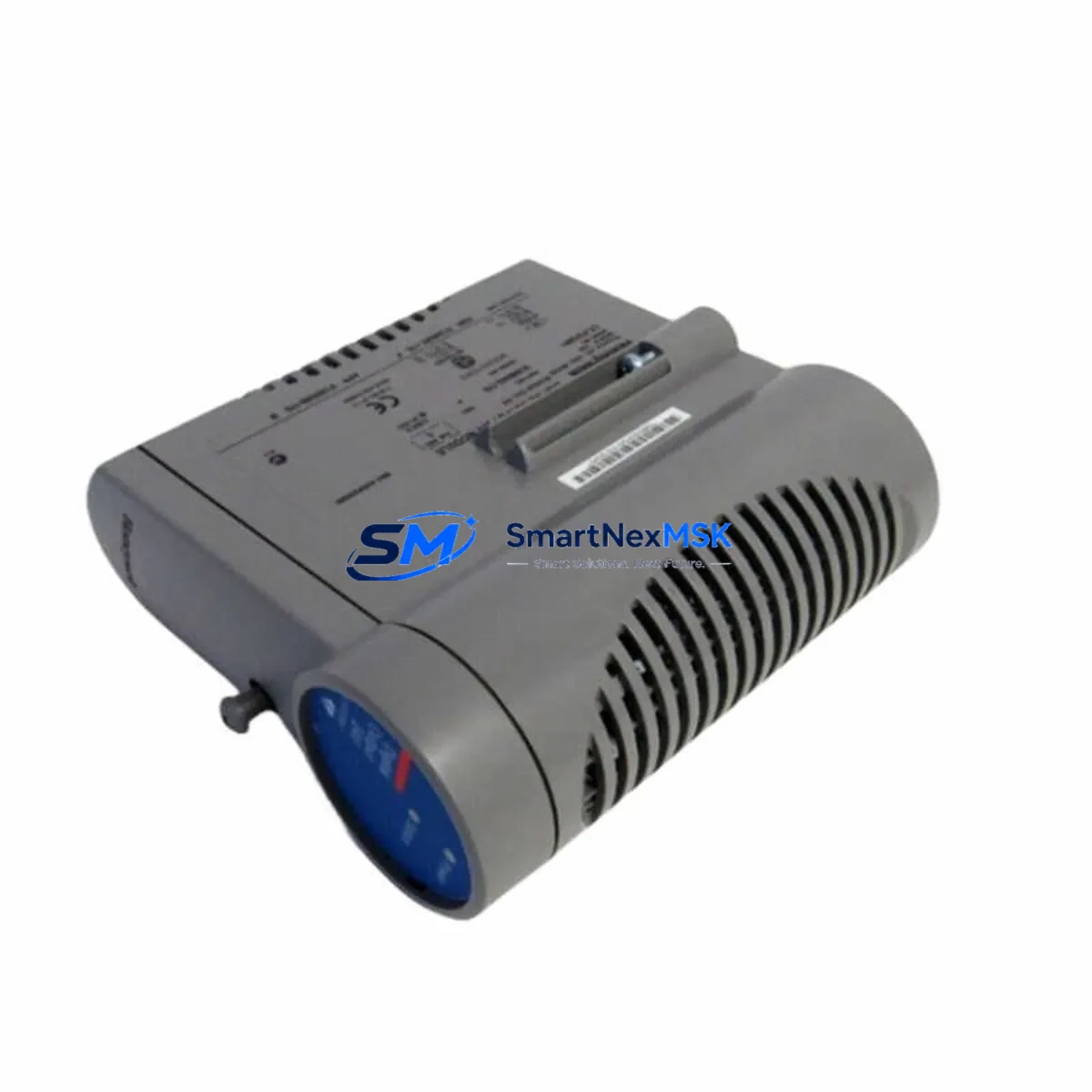

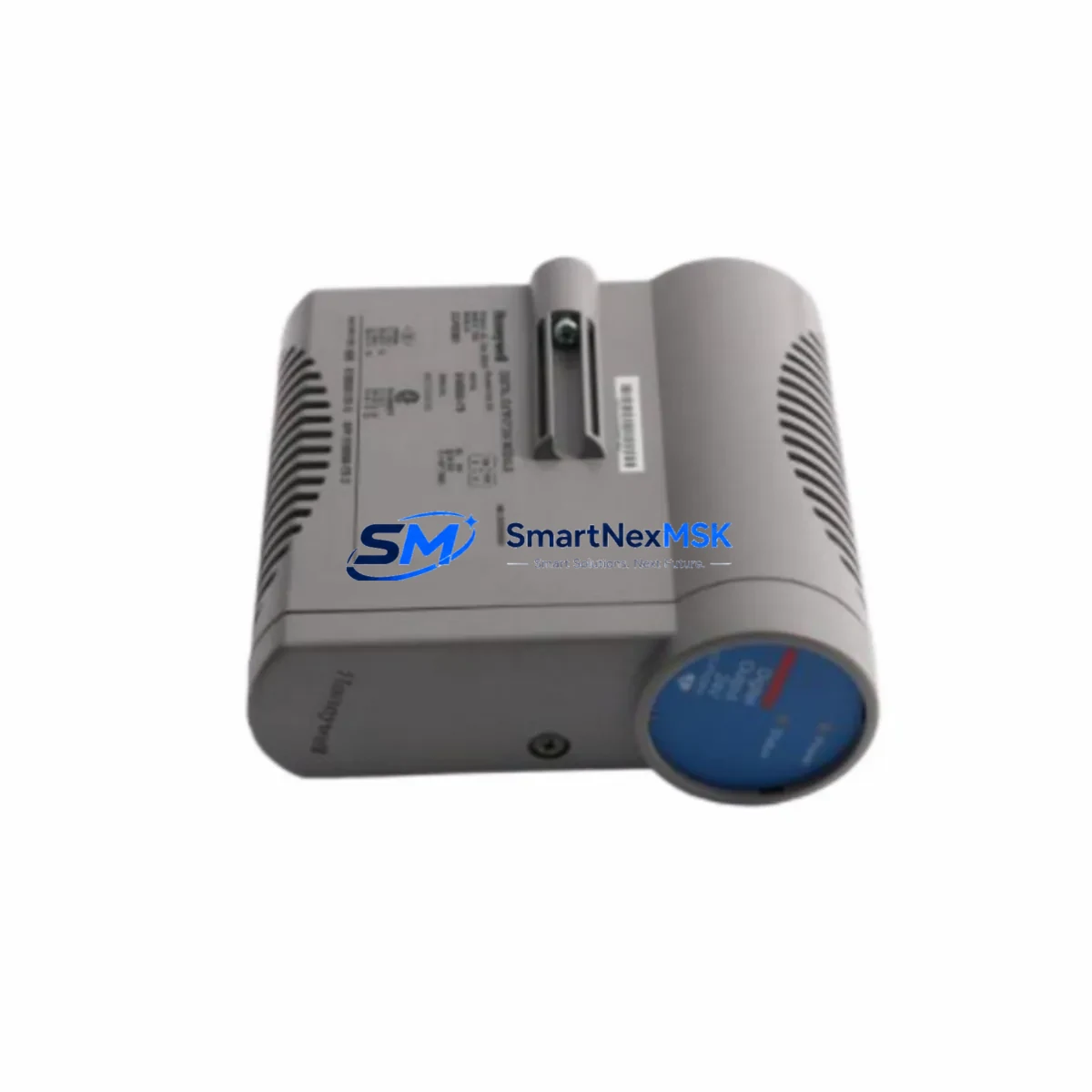

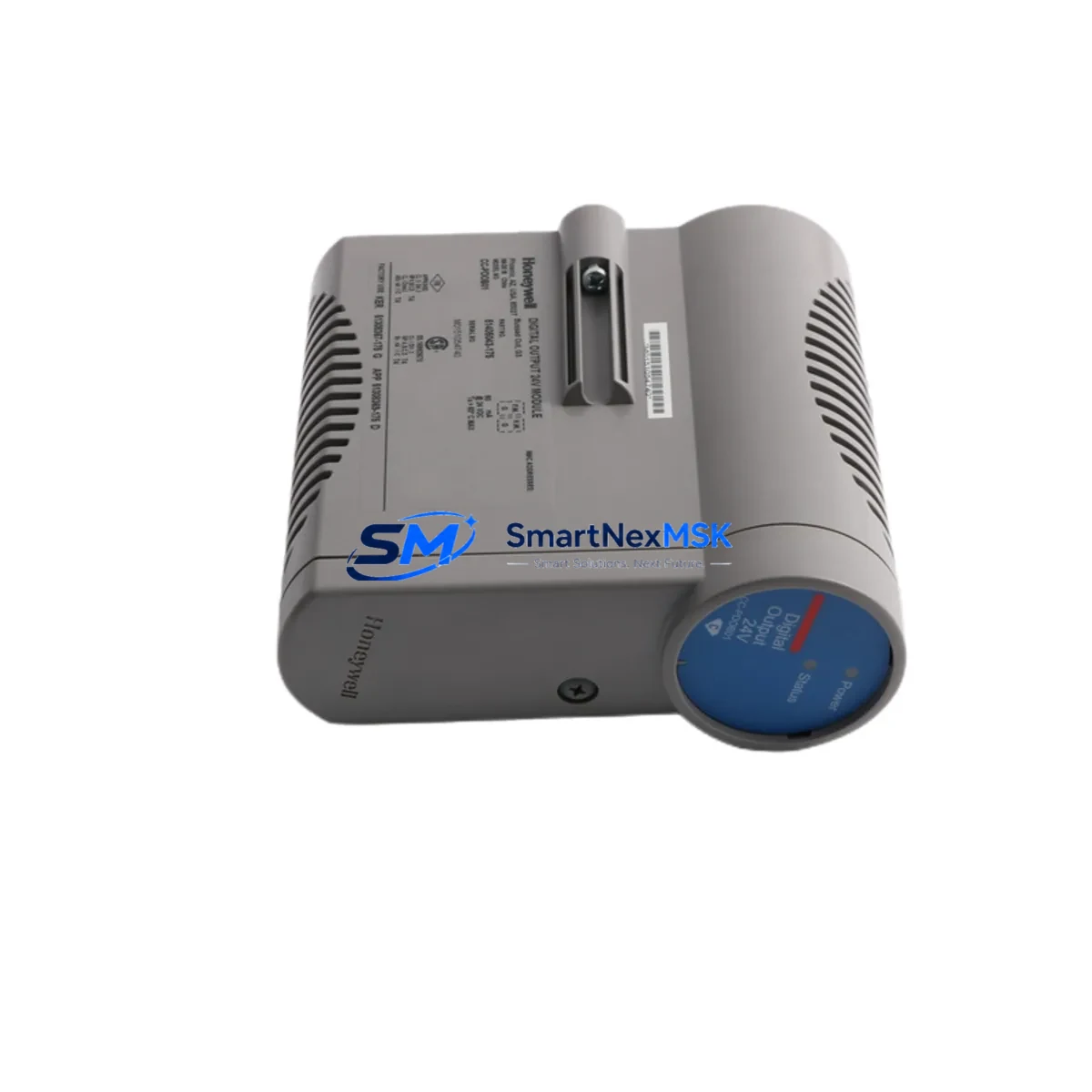

The Honeywell CC-PDOB01 (part number 51405043-175) is a 24 VDC digital output module engineered for the Experion PKS C300 controller platform. Designed as a direct retrofit replacement for aging HPM (High-Performance Process Manager) I/O assemblies and legacy Series C field termination modules, this unit enables plant engineers to modernize distributed control system (DCS) infrastructure without full panel redesign. Whether you are upgrading a refinery control cabinet, replacing a discontinued output card in a chemical plant, or restoring a failed node in a power generation facility, the CC-PDOB01 delivers the signal integrity, backplane compatibility, and firmware alignment required for a smooth, low-risk migration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the CC-PDOB01 into an existing Experion PKS architecture requires a structured pre-migration assessment. Begin by auditing the current I/O chassis configuration: identify the rack slot assignment, confirm the IOTA model in use (typically CC-TDOB01 for standard wiring or CC-TDOB11 for extended termination), and document all field wiring terminal assignments before removal of the legacy card. Power budget verification is critical — the C300 chassis power supply (such as the CC-PWR001 or CC-PWR002) must have sufficient headroom to support the replacement module without tripping the rail.

On the software side, open Honeywell Control Builder and locate the existing DO block associated with the failed or obsolete module. Export the current control strategy and tag database before making any hardware changes. When the CC-PDOB01 is seated and the IOTA is secured, re-assign the module address in Control Builder to match the original slot configuration. This preserves all downstream logic references, including interlock sequences, permissive chains, and alarm setpoints, without requiring a full program recompile.

For sites migrating from HPM-era hardware, additional steps are required. The HPM I/O Link must be decommissioned and the corresponding FTE node address reallocated to the new C300 I/O module. Engineers should also verify that the Experion Station (operator workstation) HMI faceplate graphics are correctly bound to the new tag path — a common oversight that causes display discrepancies after cutover. If the site uses a Honeywell FSC (Fail-Safe Controller) in parallel for safety-rated outputs, confirm that the CC-PDOB01 is not assigned to any SIL-rated loop without appropriate safety validation.

Communication link integrity should be validated using the Experion PKS System Status Display before returning the loop to automatic control. Check FTE redundancy status, confirm that the C300 controller (and its redundant partner, if applicable) recognizes the new module, and verify that the CC-PDOB01 channel status LEDs indicate healthy output states. For sites using third-party SCADA systems over OPC-DA or OPC-UA, re-subscribe the affected tags after module replacement to ensure data continuity.

Additional components commonly involved in this retrofit path include the CC-PDIB01 digital input module (for paired I/O replacement), the CC-PAIH01 analog input module (where mixed I/O chassis are in use), the CC-TAIX01 IOTA for analog termination, and the CC-PCF901 C300 controller module itself when a full node upgrade is underway. Sites performing a broader control cabinet modernization may also need to address the EPLCG001 Ethernet switch for FTE network segmentation, or replace aging CC-PWR001 power supply units to ensure stable rail voltage across the upgraded chassis.

Downtime Control During System Migration

Minimizing production downtime during a DCS I/O module replacement requires careful sequencing. Where process conditions allow, schedule the cutover during a planned maintenance window and pre-stage the CC-PDOB01 with a bench-level power-on test before bringing it to the field. Export and archive the current Control Builder project, including all module configurations and loop tuning parameters, so that recovery is possible within minutes if an unexpected issue arises during hot-swap.

For non-redundant output loops, coordinate with the operations team to place affected control loops in manual mode before removing the legacy module. This prevents uncontrolled actuator movement during the brief period when the output channel is offline. Once the CC-PDOB01 is installed and recognized by the C300 controller, perform a forced output test on each channel before returning loops to automatic — confirm valve positions, motor states, or relay closures match the commanded output values.

In redundant C300 configurations, the switchover to the standby controller can be used to maintain process continuity while the primary I/O chassis is serviced. Document the pre-cutover and post-cutover states of all affected tags in the site’s management of change (MOC) record. A 12-month warranty on the CC-PDOB01 provides additional assurance that any latent defects identified during the commissioning period will be addressed without additional cost.

Retrofit Support FAQ

Q1: Is the CC-PDOB01 (51405043-175) a direct drop-in replacement for the legacy HPM digital output card?
A: The CC-PDOB01 is designed for the Experion PKS C300 platform and is not a pin-compatible swap for HPM I/O cards. Migration from HPM to C300 I/O requires an IOTA change and a Control Builder reconfiguration, but field wiring can typically be reused when the correct IOTA (CC-TDOB01 or CC-TDOB11) is installed. This is a platform upgrade, not a simple card swap — and it is the recommended modernization path for HPM-era systems approaching end-of-support.

Q2: What firmware version is required on the C300 controller to support this module?
A: Honeywell recommends Experion PKS R310 or later for full CC-PDOB01 feature support, including advanced diagnostics and FTE redundancy. Confirm your controller firmware revision in Control Builder before installation. If your site is running an earlier release, a firmware upgrade should be planned as part of the retrofit scope.

Q3: How is the module address configured after installation?
A: Module addressing is managed in Honeywell Control Builder. After physical installation, navigate to the I/O chassis configuration, assign the slot address to match the original module position, and download the updated configuration to the C300 controller. No DIP switch or hardware addressing is required — all configuration is software-defined via the Experion PKS engineering station.

Q4: What does the 12-month warranty cover, and how is a claim initiated?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing before dispatch. To initiate a warranty claim, contact our sales team with the order reference and a description of the fault. Replacement or repair will be arranged promptly to minimize your system downtime.
