Honeywell CC-PUIO01 Maintenance-Ready Spare for Experion PKS C300 Automation

Honeywell CC-PUIO01 Maintenance-Ready Spare for Experion PKS C300 Automation

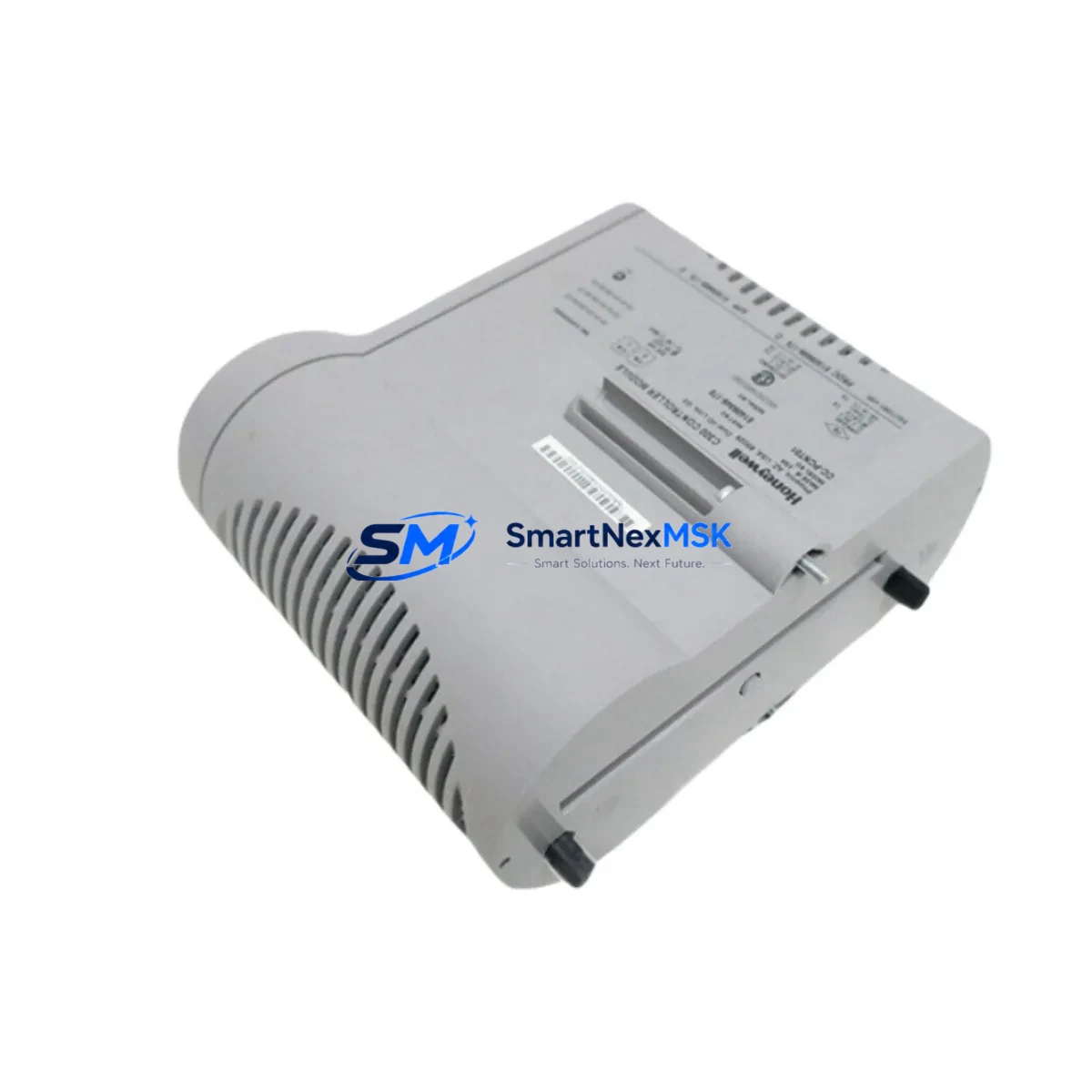

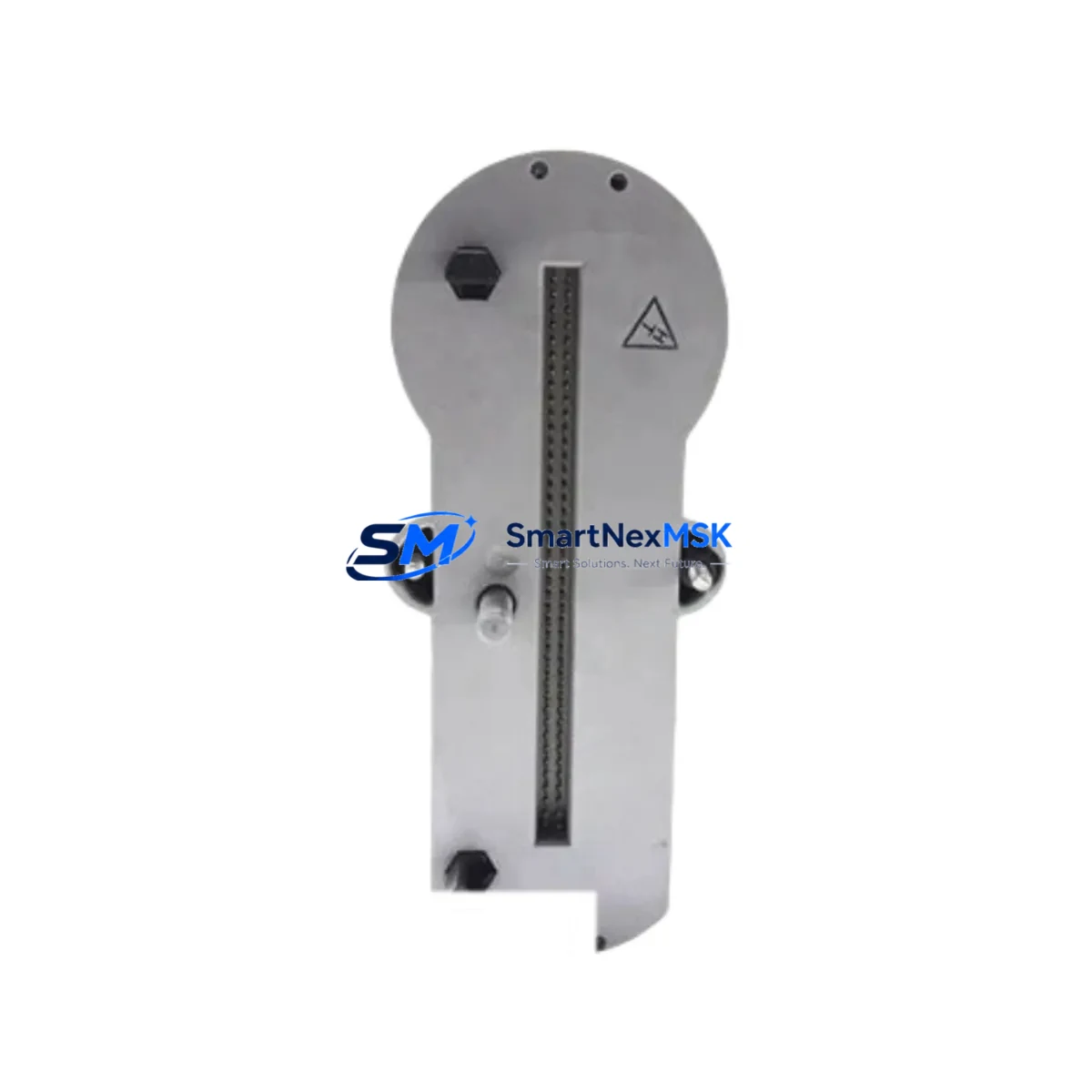

The Honeywell CC-PUIO01 is an original universal process I/O module designed for the Experion PKS C300 controller platform — one of the most widely deployed distributed control systems in refining, petrochemical, power generation, and continuous process industries. As a maintenance-ready spare, the CC-PUIO01 enables maintenance engineers to execute rapid module-level replacements during planned shutdowns or unplanned fault events, restoring loop integrity without requiring controller reconfiguration or I/O reassignment.

Sourced as an original Honeywell component, the CC-PUIO01 is fully compatible with the C300 Series controller chassis and supports both analog and digital signal types through its universal channel architecture. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification, is packaged in anti-static ESD-safe materials, and is covered by a 12-month warranty from the date of delivery. Long-term supply continuity is maintained through our established sourcing network, making the CC-PUIO01 available even for aging or legacy Experion PKS installations where OEM lead times are no longer viable.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CC-PUIO01 module is flagged for replacement — whether through a diagnostic alarm in Experion Station, a channel fault indication, or a scheduled preventive maintenance cycle — the replacement event should be treated as an opportunity to audit the surrounding control cabinet infrastructure. Maintenance engineers working on C300-based systems should simultaneously inspect the CC-PWRR01 redundant power supply module and the CC-PWRS01 power supply that feed the chassis, as degraded power rail voltage is a common root cause of I/O module faults that are misdiagnosed as module failures.

The CC-TCNT01 controller node and associated CC-SCMB01 system connection module should be checked for firmware currency and communication integrity before the replacement CC-PUIO01 is inserted. If the system uses redundant I/O, verify that the partner CC-PUIO01R redundant module is also within its service life. Wiring terminations at the CC-TBIO01 or CC-TBAI01 terminal blocks should be inspected for corrosion, loose ferrules, and correct torque — field wiring faults account for a significant proportion of recurring I/O alarms after module replacement.

For systems with HART-enabled field instruments, confirm that the replacement module’s HART pass-through configuration is correctly restored from the Experion PKS Control Builder database. Where signal isolation is required between field devices and the C300 chassis, signal isolator barriers (such as Honeywell or third-party DIN-rail mounted isolators) in the marshalling cabinet should be tested for correct output range. Additionally, inspect any surge protection devices (SPDs) on analog input channels — these are frequently overlooked during module swaps and can cause intermittent signal errors post-replacement.

Procurement engineers building spare parts inventory for C300-based plants should consider stocking the CC-PUIO01 alongside the CC-PDOB01 digital output module, CC-PAIH01 analog input module, and CC-PAOH01 analog output module to cover the full range of I/O types in a typical process unit. A minimum of one cold-standby CC-PUIO01 per controller node is recommended for facilities with MTTR targets under four hours.

Site Replacement Workflow

The CC-PUIO01 supports hot-swap replacement within the C300 chassis when the system is configured for redundant I/O operation. For simplex I/O configurations, a controlled loop-hold or manual override should be applied to all affected process loops before module extraction. The replacement procedure is as follows:

Step 1 — Pre-Replacement Verification: Confirm the replacement CC-PUIO01 part number and firmware revision match the installed module. Download the current I/O configuration from Experion PKS Control Builder and retain a backup. Verify chassis slot assignment and cable labeling at the terminal block.

Step 2 — Loop Isolation: Place all affected control loops in manual mode at the Experion Operator Station. Apply loop-hold tags per site MOC (Management of Change) procedure. Notify the control room of the planned I/O interruption window.

Step 3 — Module Extraction: Release the module locking lever, extract the CC-PUIO01 from the chassis slot, and immediately insert the replacement unit. The module will perform a self-test and establish communication with the C300 controller within 30–60 seconds of insertion.

Step 4 — Configuration Restore: Confirm that the I/O channel configuration is automatically restored from the controller database. Verify all channel statuses in Experion Station show GOOD quality. Perform a loop check on critical channels before returning loops to automatic control.

Step 5 — Documentation: Record the replacement in the plant CMMS (Computerized Maintenance Management System), update the spare parts inventory, and return the removed module for evaluation or disposal per site procedures.

This workflow minimizes process disruption, maintains system compatibility, and ensures that the replacement CC-PUIO01 is fully commissioned before the maintenance window closes.

Spare Parts Support FAQ

Q1: Is the CC-PUIO01 supplied by SMARTNEXMSK an original Honeywell component?
Yes. All CC-PUIO01 units are sourced as original Honeywell components. Each unit is inspected and functionally verified prior to shipment. A certificate of conformance is available upon request.

Q2: What warranty coverage applies to the CC-PUIO01?
A 12-month warranty is provided from the date of delivery. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair options.

Q3: Can the CC-PUIO01 replace older Honeywell I/O modules in legacy Experion PKS installations?
The CC-PUIO01 is designed for the C300 controller platform. Compatibility with earlier Experion PKS hardware generations (such as C200 or ACE nodes) should be verified against the Honeywell system compatibility matrix before installation. Our technical team can assist with compatibility confirmation prior to order.

Q4: How quickly can the CC-PUIO01 be shipped for emergency maintenance situations?
In-stock units are dispatched within 2–5 business days. For urgent plant shutdown recovery scenarios, please contact our sales team directly to confirm current stock availability and expedited shipping options.
