Honeywell CC-PUIO01 Safety-Enhanced Universal I/O for DCS

Honeywell CC-PUIO01 Safety-Enhanced Universal I/O for DCS: Reliable Control in Harsh Industrial Sites

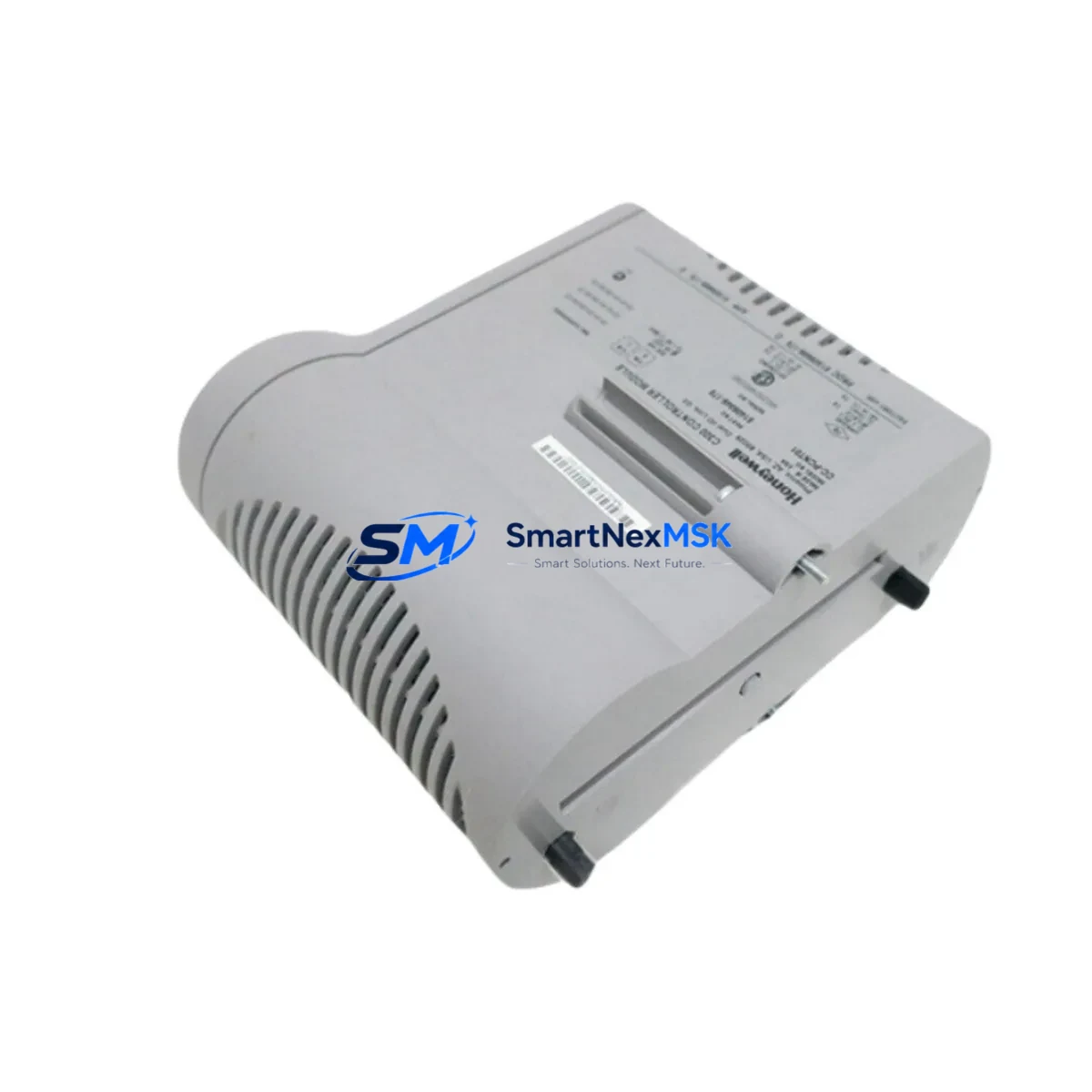

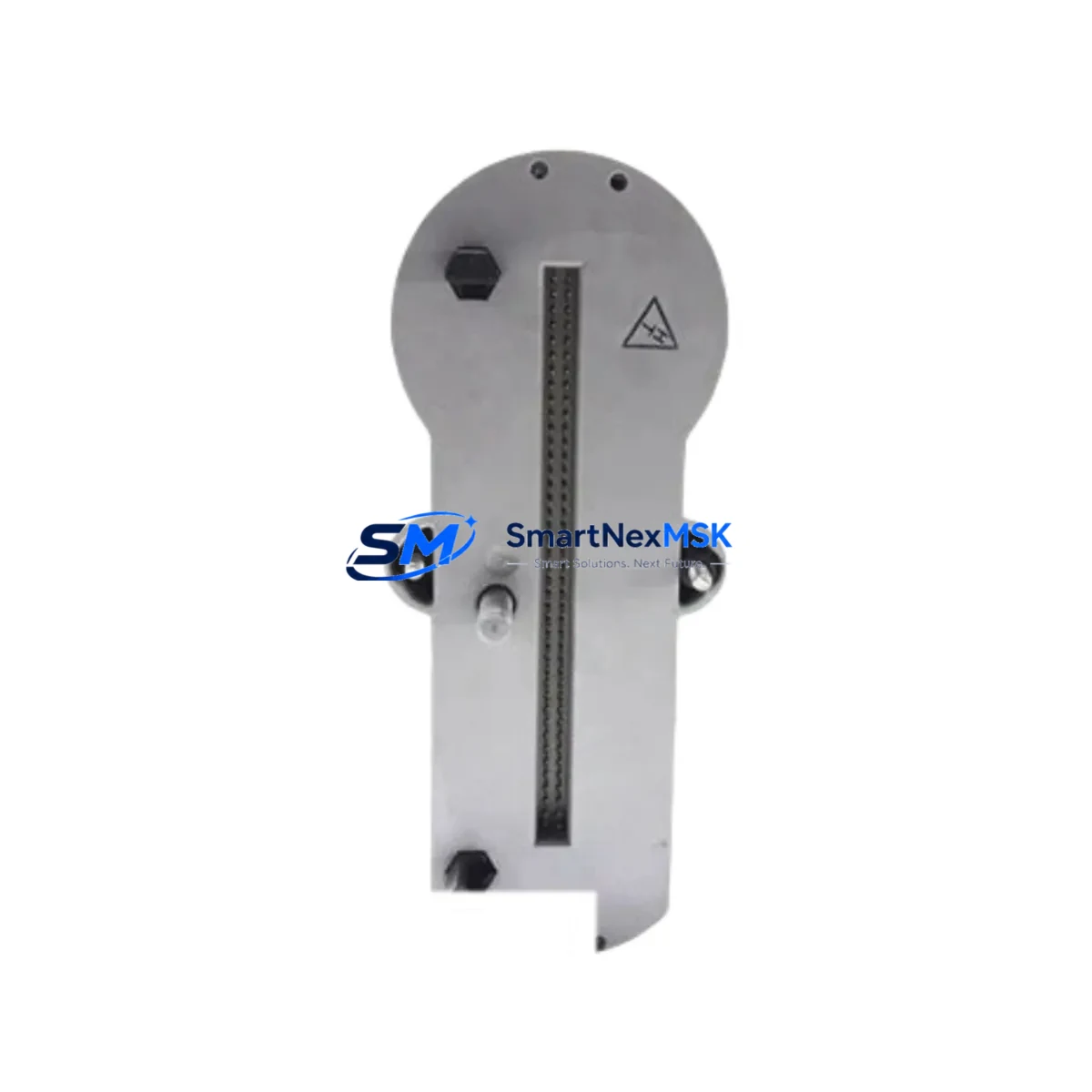

The Honeywell CC-PUIO01 (51454205-175) is a ruggedized Universal I/O Module engineered for mission-critical deployment within the Experion PKS C300 Distributed Control System. Designed to operate continuously in high-load, high-interference industrial environments — including petrochemical plants, power generation facilities, metallurgical operations, and water treatment infrastructure — this module delivers the signal integrity, electrical isolation, and fault-tolerant performance that safety-critical control loops demand.

In continuous production environments, even a momentary I/O failure can cascade into process shutdowns, equipment damage, or personnel hazards. The CC-PUIO01 addresses this risk through its hardened architecture, which maintains stable analog and digital signal processing under conditions of electromagnetic interference (EMI), ground potential variation, and power supply fluctuation. Its universal channel configuration eliminates the need for dedicated input-type modules, reducing cabinet complexity and the number of potential failure points in the control loop.

When integrated into a C300 controller cabinet alongside the Honeywell CC-TCNT01 Control Net Interface Module and CC-PDOB01 Digital Output Module, the CC-PUIO01 forms a cohesive, redundancy-capable I/O backbone. The module communicates over the FTE (Fault Tolerant Ethernet) network architecture, ensuring that communication anomalies — packet loss, latency spikes, or network segment failures — do not interrupt process variable acquisition. Paired with the CC-PWRR01 Redundant Power Supply Module, the system maintains uninterrupted operation even during primary power source transitions, a critical requirement in interlock and emergency shutdown (ESD) circuits.

Signal drift and module mis-operation are among the leading causes of spurious trips in industrial safety instrumented systems. The CC-PUIO01’s on-board diagnostics continuously monitor channel health, detecting open-circuit, short-circuit, and out-of-range conditions before they propagate to the controller. This self-diagnostic capability complements the broader safety architecture when used alongside Honeywell Safety Manager SC modules or third-party SIL-rated logic solvers in hybrid safety loop configurations.

For installations in hazardous areas or high-surge environments — such as mining headframes, offshore platforms, or arc furnace control rooms — the CC-PUIO01 is typically deployed with MTL or P+F Zener barriers and galvanic isolators on field-side wiring, and Phoenix Contact or WAGO surge protection terminal blocks on the cabinet rail. These upstream protective components absorb transient energy from lightning strikes, motor switching, and variable frequency drive (VFD) interference, preserving the module’s input circuitry and extending its service life in demanding field conditions.

In port logistics and heavy manufacturing environments where control cabinets are subject to vibration, thermal cycling, and humidity ingress, the CC-PUIO01’s conformal-coated PCB and DIN-rail mounting system provide mechanical stability and corrosion resistance. The module’s wide operating temperature range supports deployment in both climate-controlled control rooms and field junction boxes without derating.

Spare parts availability and rapid replacement capability are essential to minimizing mean time to repair (MTTR) in critical process industries. SMARTNEXMSK maintains verified stock of the CC-PUIO01 (51454205-175) with pre-shipment functional testing on dedicated Honeywell Experion PKS test benches. Each unit undergoes power-on verification, channel-by-channel signal injection testing, and communication handshake validation before dispatch. This ensures that replacement modules arrive site-ready, eliminating the commissioning delays that can extend unplanned outages.

The CC-PUIO01 is fully compatible with Honeywell Experion PKS R400 through R520 firmware revisions and integrates seamlessly with the Control Builder engineering environment for tag assignment, channel scaling, and alarm configuration. When upgrading aging C200 or C200E controller cabinets, the CC-PUIO01 serves as a direct replacement path, preserving existing field wiring and I/O termination assemblies while delivering the enhanced diagnostics of the C300 platform.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust Experion PKS C300 control cabinet is built on layered protection across power, communication, and I/O subsystems. The CC-PUIO01 sits at the center of this architecture, but its reliability depends on the integrity of surrounding components. The CC-PWRR01 Redundant Power Supply ensures that voltage sags or primary supply failures do not interrupt module operation — a non-negotiable requirement in continuous process plants where a 200ms power interruption can trigger a full unit shutdown.

On the communication side, the CC-TCNT01 ControlNet Interface Module and CC-LINK01 FTE Network Switch provide the redundant network paths that prevent a single cable fault or switch failure from isolating the I/O subsystem from the C300 controller. For cabinets serving safety instrumented functions, the addition of a Honeywell FSC (Fail Safe Controller) Safety I/O Module in a parallel rack provides the voted logic layer required by IEC 61511 SIL 2 applications.

Field-side protection is equally critical. MTL 7700 series Zener barriers or P+F KFD2 galvanic isolators on 4–20 mA loops prevent ground loop currents and transient energy from reaching the CC-PUIO01’s input circuitry. On discrete I/O circuits connected to high-voltage field devices, Phoenix Contact PTFIX surge protection terminal blocks clamp transient voltages before they enter the cabinet. For installations near large rotating machinery or VFDs, WAGO 787 series power conditioners on the 24 VDC rail suppress conducted interference that would otherwise cause signal jitter on sensitive analog channels.

Completing the cabinet architecture, the CC-PDOB01 Digital Output Module handles discrete actuator commands, while the CC-PAIH01 Analog Input Module serves dedicated high-density analog measurement loops — allowing the CC-PUIO01’s universal channels to be reserved for mixed-signal or reconfigurable I/O points that require operational flexibility during process modifications or plant expansions.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the CC-PUIO01 is deployed in fired heater control loops, compressor anti-surge systems, and flare header pressure monitoring circuits — applications where signal loss or module mis-operation can result in uncontrolled hydrocarbon release. Its channel diagnostics provide early warning of field instrument degradation, enabling predictive maintenance before a process deviation occurs.

In power generation facilities — including coal, gas, and biomass plants — the module manages boiler drum level, turbine speed governor feedback, and generator excitation control signals. The FTE communication architecture ensures that control room operators maintain real-time visibility of critical process variables even during network maintenance windows.

In mining and mineral processing environments, where control cabinets are exposed to dust ingress, vibration from blasting operations, and wide ambient temperature swings, the CC-PUIO01’s conformal coating and robust mechanical design maintain signal integrity across the full production cycle. It is commonly used in SAG mill load control, flotation cell level management, and tailings pump station automation.

In water and wastewater treatment plants, the module handles flow, pressure, pH, and turbidity measurement loops in chlorination, filtration, and pumping stations — environments where continuous, unattended operation is required and where a control system failure can have direct public health consequences.

In metallurgical and steel production facilities, the CC-PUIO01 manages temperature, flow, and position signals in electric arc furnace (EAF) electrode control, continuous casting mold level systems, and rolling mill tension control loops — applications demanding sub-second response times and zero tolerance for spurious outputs.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the CC-PUIO01?
The 12-month warranty from SMARTNEXMSK covers functional failure under normal operating conditions. If the module fails to perform its specified I/O functions within the warranty period, we provide a replacement unit or full refund. The warranty applies from the date of confirmed delivery and is supported by our pre-shipment test records for each unit.

Q2: What pre-shipment testing is performed on each CC-PUIO01 unit?
Every CC-PUIO01 (51454205-175) unit undergoes a structured test protocol on a live Honeywell Experion PKS C300 test bench: power-on self-test verification, channel-by-channel signal injection (4–20 mA analog and 24 VDC discrete), FTE communication handshake with a C300 controller, and visual inspection for physical damage. Test results are documented and available upon request.

Q3: Is the CC-PUIO01 compatible with all Experion PKS C300 firmware versions?
The CC-PUIO01 (51454205-175) is compatible with Experion PKS firmware revisions R400 through R520. For installations running earlier R300-series firmware, a firmware upgrade is recommended prior to module replacement. Please contact our technical team with your current system firmware version for compatibility confirmation before ordering.

Q4: Can SMARTNEXMSK support long-term or repeat supply of the CC-PUIO01?
Yes. SMARTNEXMSK maintains ongoing inventory of the CC-PUIO01 and related Honeywell Experion PKS C300 components to support both emergency replacement and planned maintenance programs. We can accommodate blanket purchase orders, scheduled delivery agreements, and multi-unit project requirements. Contact our sales team to discuss volume pricing and supply continuity arrangements.
