Honeywell CC-PUIO31 51454220-176 Retrofit-Ready I/O for Experion PKS Control Systems

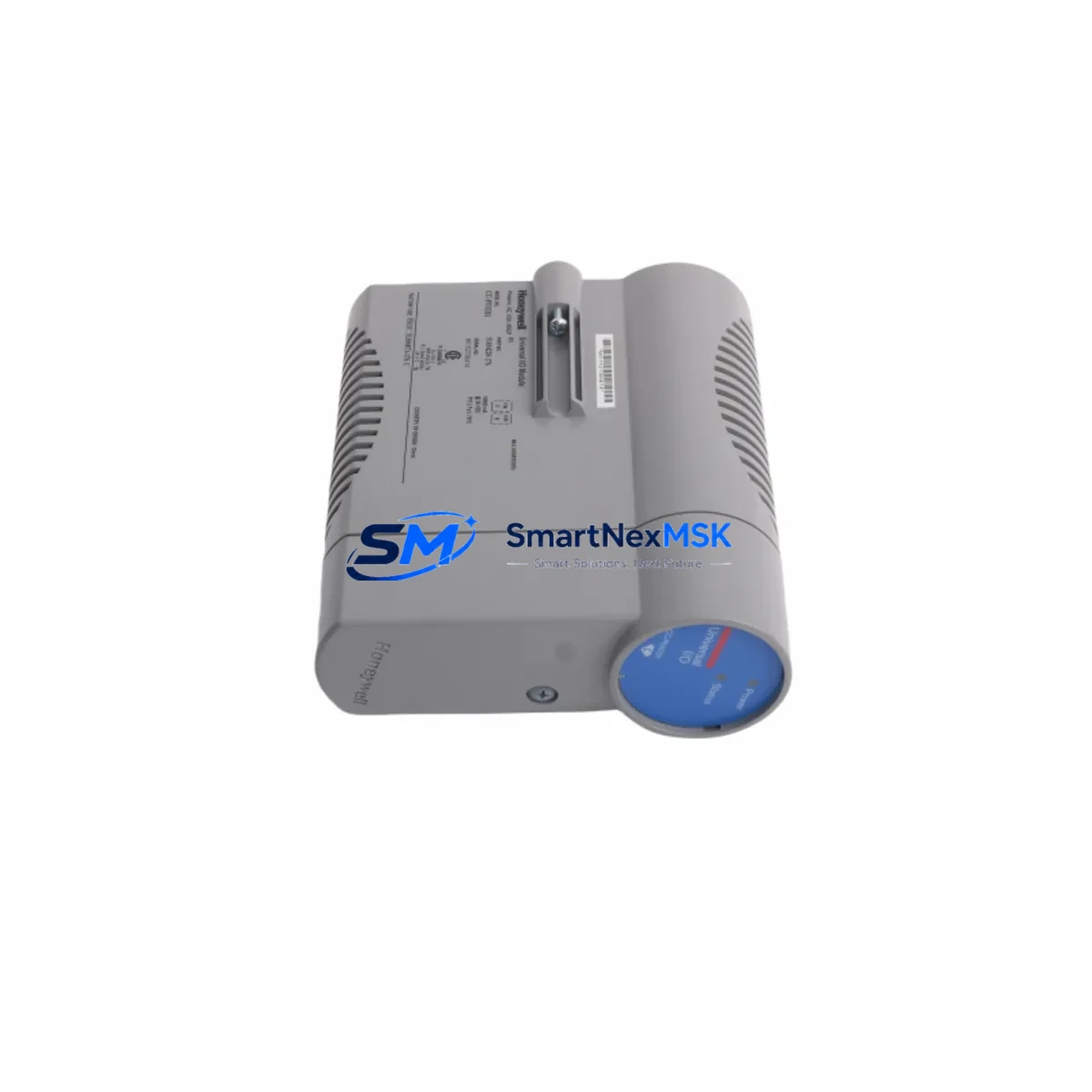

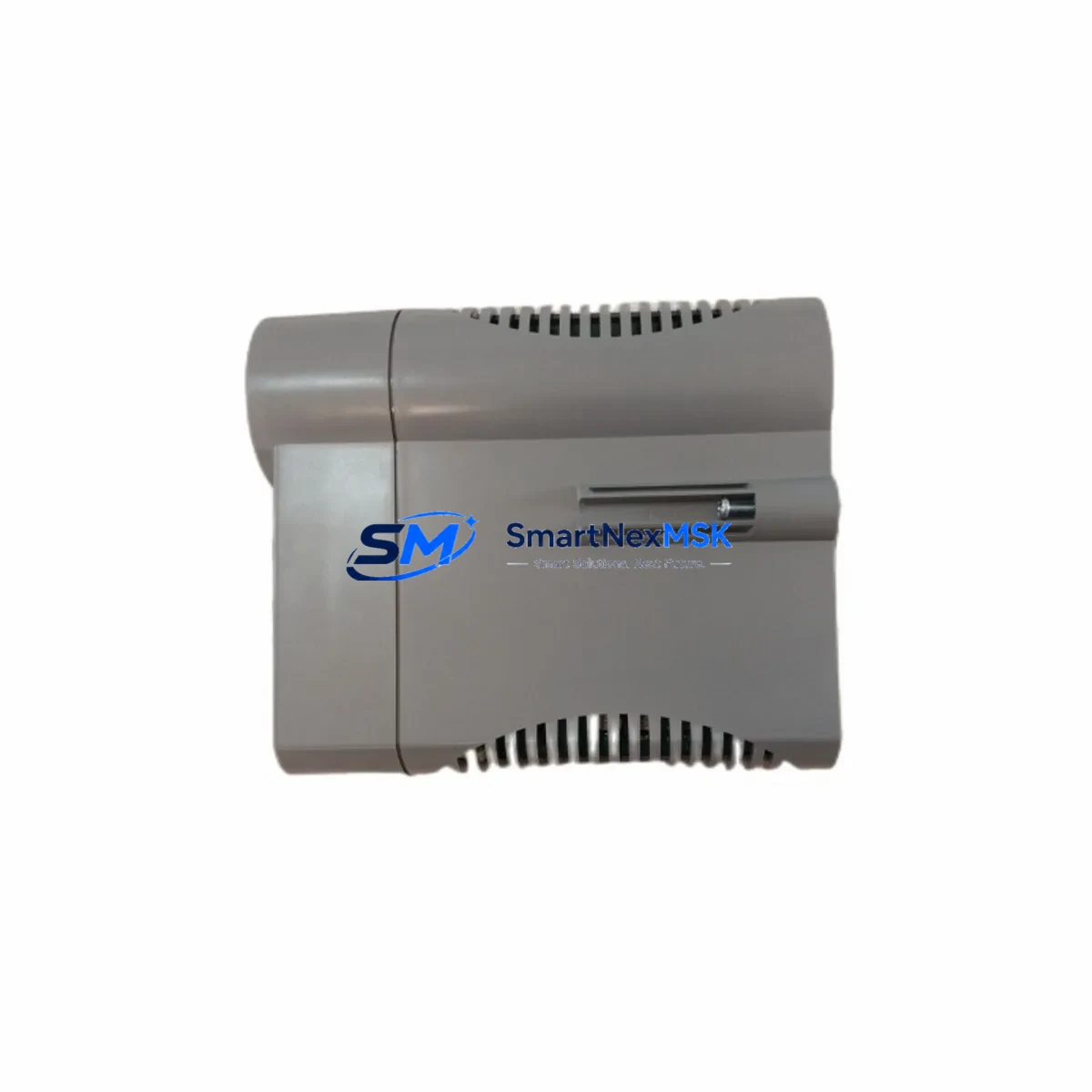

The Honeywell CC-PUIO31 (part number 51454220-176) is a Universal I/O Module designed for the Experion PKS distributed control system platform. As legacy DCS installations age and original hardware reaches end-of-life, the CC-PUIO31 has become one of the most sought-after retrofit components for engineers tasked with modernizing or sustaining Honeywell C300-based control architectures. Whether you are replacing a failed module in a running plant, upgrading an aging control cabinet, or building a retrofit bill of materials for a scheduled turnaround, this module delivers verified compatibility with the Experion PKS Series C infrastructure without requiring changes to your existing control strategy or FTE network topology.
Sourced from authorized channels and subjected to pre-shipment functional testing, each CC-PUIO31 unit we supply is backed by a 12-month warranty and ships with full documentation support. Our inventory is maintained specifically to serve maintenance engineers and procurement teams who cannot afford extended lead times on critical DCS components.
Upgrade Compatibility Table
| Parameter | Specification / Notes |
|---|---|
| Part Number | CC-PUIO31 / 51454220-176 |
| Module Type | Universal I/O Module (PUIO) |
| Compatible Platform | Honeywell Experion PKS — Series C (C300 Controller) |
| Backplane Interface | EUCN / FTE (Fault Tolerant Ethernet) compatible |
| I/O Channel Count | 32 universal channels (AI/AO/DI/DO configurable per channel) |
| Signal Range | 4–20 mA, 0–10 V, discrete 24 VDC, thermocouple, RTD |
| Power Supply Requirement | 24 VDC via IOLIM or CIOM-A carrier |
| Carrier Compatibility | CC-TAIX11, CC-TAOX11, CC-TDIL01, CC-TDOB01 terminal assemblies |
| Retrofit Recommendation | Direct replacement for failed or EOL CC-PUIO31 units; no firmware re-flash required in most C300 revisions |
| Commissioning Note | Verify IOLINK address assignment and FTE node configuration in Experion Builder before hot-swap |
| Environmental Rating | 0–60°C operating; 5–95% RH non-condensing |
| Warranty | 12 Months — covers functional defects under normal operating conditions |
Retrofit Planning for Existing Automation Systems
A successful CC-PUIO31 retrofit begins well before the module arrives on site. Maintenance and instrumentation engineers should start by auditing the existing IOLIM (I/O Link Interface Module) that hosts the target slot. Confirm that the IOLIM firmware revision is compatible with the CC-PUIO31 hardware revision you are installing — mismatches between IOLIM generations and PUIO module revisions are a common source of post-swap faults that delay restart.
Next, review the CIOM-A carrier assembly and associated terminal blocks. The CC-PUIO31 mounts onto a carrier that also interfaces with field wiring termination assemblies such as the CC-TAIX11 for analog input or CC-TDOB01 for discrete output. If the carrier shows signs of corrosion, bent pins, or mechanical stress from previous module swaps, replace it as part of the retrofit rather than reusing it. A carrier failure after a module swap is a preventable cause of extended downtime.
On the control network side, verify that the FTE (Fault Tolerant Ethernet) switch ports connected to the IOLIM are operating correctly. Switches such as the Honeywell FSC Ethernet switch or third-party managed switches configured for the Experion FTE VLAN should be checked for port errors and link speed mismatches before the new module is inserted. If the plant is running a redundant C300 controller pair, confirm that both controllers are in sync and that the redundancy status is healthy prior to any I/O module replacement.
For plants that are also migrating from older Honeywell TDC 3000 or PlantScape systems to Experion PKS, the CC-PUIO31 is frequently part of a broader I/O migration that also involves replacing HPM I/O Link modules, updating the Universal Control Network (UCN) cabling, and reconfiguring Honeywell AM (Application Module) logic into C300 control modules. In these scenarios, the CC-PUIO31 serves as the field-side anchor for the new I/O architecture, and its channel configuration must be validated against the migrated control database before the cutover window opens.
Power budget verification is equally important. Each CC-PUIO31 draws current from the 24 VDC bus supplied through the IOLIM. When adding modules to an existing cabinet during an expansion retrofit, calculate the total current draw across all populated IOLIM slots and confirm that the cabinet power supply — typically a Honeywell CC-PWR001 or equivalent redundant 24 VDC supply — has sufficient headroom. Overloaded power supplies are a silent risk in retrofit projects where modules are added incrementally over multiple maintenance windows.
Downtime Control During System Migration
Minimizing downtime during a CC-PUIO31 replacement requires a structured approach that protects the existing control program and maintains field signal continuity wherever possible. Begin by exporting a full snapshot of the affected IOLIM’s I/O configuration from Experion Builder, including channel assignments, signal types, engineering unit ranges, and alarm limits. This snapshot serves as your restoration baseline if the new module requires re-parameterization after insertion.
If the process allows, place the affected control loops in manual mode at the C300 controller level before removing the failed module. This prevents the controller from generating spurious output commands during the hardware swap interval. For discrete output channels driving critical actuators — motor starters, solenoid valves, or safety interlocks — confirm with the operations team that the process is in a safe hold state before proceeding.
The physical swap itself is straightforward: the CC-PUIO31 is a hot-swappable module in most Experion PKS configurations, meaning the IOLIM remains powered and the FTE network stays active during the exchange. However, hot-swap capability depends on the IOLIM firmware version and the C300 controller revision. Verify this in the Experion PKS Hardware Planning Guide for your specific system revision before assuming hot-swap is available.
After insertion, monitor the Experion Station alarm summary for IOLINK communication faults and channel diagnostic alarms. Allow 60–90 seconds for the C300 to re-establish communication with the new module and download the channel configuration. Once all channels report healthy status in the Experion Control Builder hardware view, return the affected loops to automatic mode and verify field signal readings against independent instrumentation before releasing the process to normal operation.
For larger migration projects involving multiple IOLIM replacements or a full cabinet retrofit, consider staging the work across multiple planned outage windows rather than attempting a single extended shutdown. This approach limits the blast radius of any individual swap issue and allows the operations team to validate each completed section before the next phase begins.
Retrofit Support FAQ
Q1: Is the CC-PUIO31 51454220-176 a direct drop-in replacement for an existing CC-PUIO31 in my Experion PKS system?
In the vast majority of C300-based Experion PKS installations, yes. The 51454220-176 part number designates a specific hardware revision of the CC-PUIO31. As long as your IOLIM and C300 controller firmware are within the supported revision range documented in the Experion PKS Hardware Compatibility Matrix, no configuration changes are required beyond confirming the IOLINK address. We recommend verifying the hardware revision compatibility before installation if your system is running an older Experion PKS release.
Q2: What pre-shipment testing is performed on each CC-PUIO31 unit?
Each unit undergoes functional power-on testing and I/O channel verification prior to shipment. We confirm that all 32 universal channels respond correctly to simulated analog and discrete signals, that the FTE communication interface initializes without fault, and that the module’s self-diagnostic LEDs report healthy status. A test report is available upon request. All units ship with a 12-month warranty covering functional defects under normal operating conditions.
Q3: Can the CC-PUIO31 be used in a retrofit from a TDC 3000 or PlantScape system to Experion PKS?
Yes. The CC-PUIO31 is a native Experion PKS component and is the standard I/O module used in C300-based systems that replace legacy TDC 3000 HPM or PlantScape ACE controller architectures. The retrofit typically requires new IOLIM assemblies, updated FTE network infrastructure, and a control database migration — but the CC-PUIO31 itself is the correct field I/O hardware for the target platform. Our team can advise on associated components required for a complete retrofit bill of materials.
Q4: What is your lead time and do you maintain stock for ongoing supply?
We maintain ready stock of the CC-PUIO31 51454220-176 to support both emergency replacement and planned maintenance programs. Standard lead time for in-stock units is 3–7 business days for international shipments. For customers with ongoing retrofit programs or multi-site maintenance contracts, we offer reserved inventory arrangements to guarantee supply continuity. Contact us to discuss long-term supply agreements.
