Honeywell CC-TDIL01 51308386-175 Spare Experion PKS Automation: Spare Replacement & Industrial Downtime Risk Control

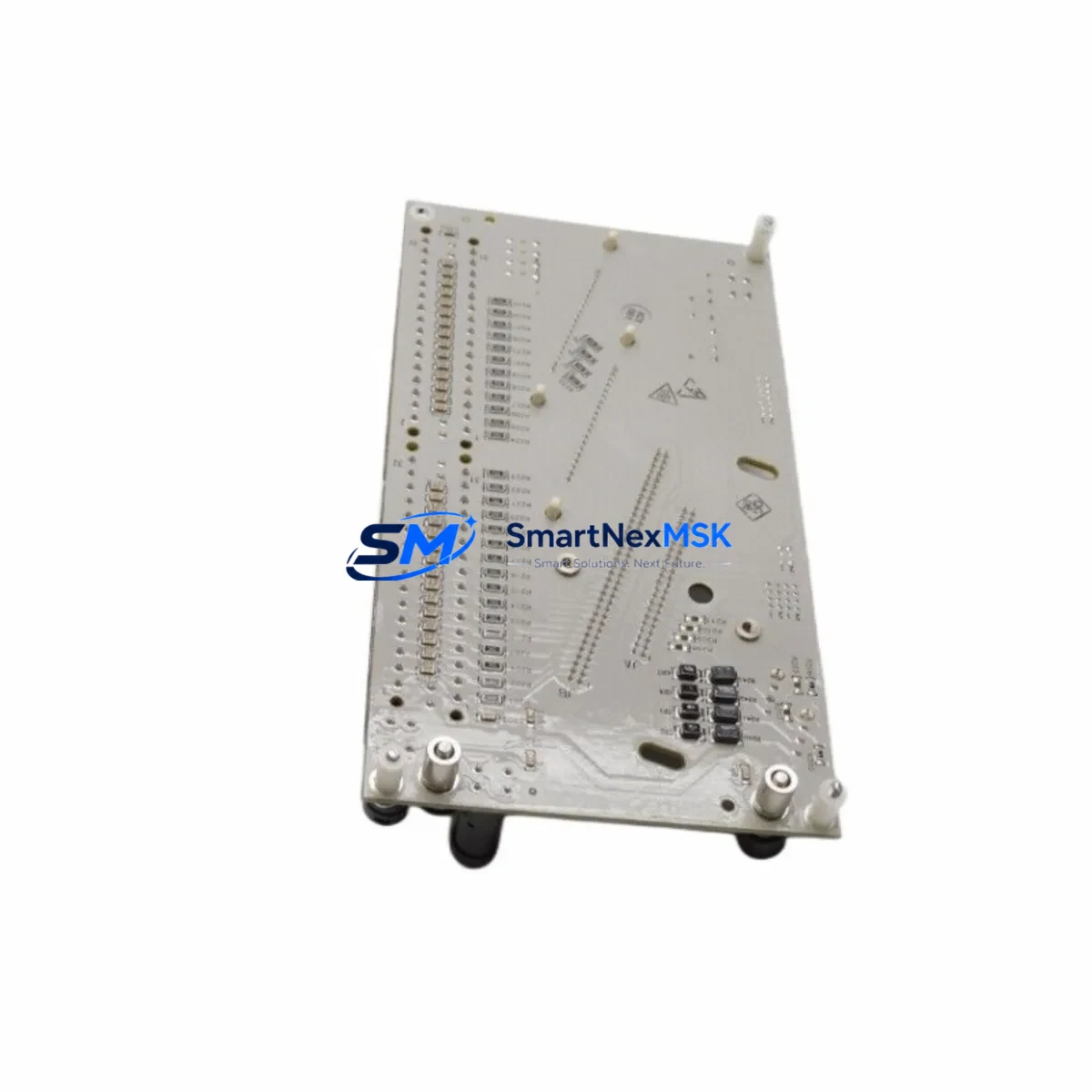

The Honeywell CC-TDIL01 (P/N 51308386-175) is a 32-channel isolated digital input module engineered for the Experion PKS C300 controller platform. In process industries — refining, petrochemical, power generation, and continuous manufacturing — this module serves as a critical field interface between field-level discrete sensors and the DCS control layer. When this module degrades or fails, the consequences extend beyond a single I/O point: entire process loops lose visibility, safety interlocks may become unreliable, and unplanned shutdowns can cascade across interconnected control segments. Maintaining a verified, tested spare on the shelf is not optional — it is a core element of any responsible maintenance strategy.

This listing provides an original Honeywell CC-TDIL01 51308386-175 spare module, fully tested prior to shipment, backed by a 12-month warranty, and available for fast dispatch to minimize your downtime exposure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CC-TDIL01 module is flagged for replacement during a planned turnaround or emergency fault response, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough inspection of the surrounding I/O infrastructure is essential to prevent repeat failures and ensure a clean return to service.

Begin with the Field Termination Assembly (FTA) paired to this module — the CC-TDIA01 or equivalent Series C FTA. Inspect all 32 field wiring terminations for corrosion, loose screws, and insulation degradation. Corroded terminals are a leading cause of intermittent DI faults that are misdiagnosed as module failures. Next, verify the 24 VDC field power supply feeding the input circuits; a sagging or noisy supply rail will cause false input transitions even with a healthy module installed.

Check the Series C I/O Link cable connecting the I/O carrier to the C300 controller chassis. Cable damage, improper seating, or excessive bend radius at the connector can introduce communication errors that mimic module faults. If the cabinet has experienced vibration or thermal cycling, inspect the backplane connector on the carrier for pin damage or oxidation.

For cabinets running mixed I/O, also inspect adjacent modules sharing the same carrier — particularly any CC-TDOB01 digital output modules or CC-TAIX01 analog input modules — as a failing neighbor module can corrupt backplane communication and generate misleading diagnostics across the rack. Review the C300 controller module itself for firmware currency; Honeywell periodically releases firmware updates that address I/O handling edge cases.

In safety-instrumented environments, coordinate with your SIS team to verify that any safety relay modules or voting logic units connected to the same field loops are functioning within specification. Signal conditioning devices — such as Zener barriers or galvanic isolators — installed between field instruments and the FTA should be tested for proper attenuation and isolation resistance, as degraded isolators can introduce ground loops that corrupt digital input states.

Finally, review the cabinet thermal management: blocked air filters, failed cooling fans, or inadequate clearance around the I/O carrier can elevate operating temperatures and accelerate module aging. A complete spare parts kit for this control cabinet should include the CC-TDIL01, its paired FTA, at least one spare I/O Link cable assembly, and a set of replacement terminal blocks — ensuring that any fault scenario can be resolved within a single maintenance window.

Site Replacement Workflow

Replacing a CC-TDIL01 in a live Experion PKS system follows a structured sequence to minimize process impact and ensure a verified return to service:

1. Pre-replacement verification. Confirm the replacement module’s part number (51308386-175) and firmware revision match or are compatible with the installed base. Cross-reference the Experion PKS compatibility matrix for your C300 firmware version. If the existing module is still partially functional, use Experion Station to export the current channel configuration and diagnostic snapshot before removal.

2. Process isolation. Coordinate with the control room to place affected loops in manual mode or bypass safety interlocks per your site MOC (Management of Change) procedure. Do not remove the module under live field voltage without confirming field power isolation at the FTA.

3. Physical replacement. De-energize the field supply to the FTA. Disconnect the I/O Link cable. Remove the faulty CC-TDIL01 from the carrier. Seat the replacement module firmly until the locking tab engages. Reconnect the I/O Link cable and restore field power.

4. System commissioning. From Experion Station, verify that the C300 controller recognizes the new module and that all 32 channels report correct input states. Compare live readings against field instrument status to confirm wiring integrity. Clear any latched alarms generated during the replacement window.

5. Documentation and return to service. Update your CMMS with the replacement date, new module serial number, and any observations from the inspection. Return affected loops to automatic control and confirm stable operation over a 15-minute monitoring period before closing the work order.

This workflow applies equally to planned maintenance replacements and emergency fault responses. Having a pre-tested CC-TDIL01 spare on site reduces the critical-path duration of step 3 from days to minutes — the single most impactful factor in minimizing unplanned downtime costs.

Spare Parts Support FAQ

Q1: What is the expected service life of the CC-TDIL01, and when should I proactively replace it?
Honeywell Series C I/O modules are designed for extended service in industrial environments, but modules in high-cycle or high-temperature applications typically show increased fault rates after 10–15 years. Proactive replacement is recommended when Experion diagnostics report recurring channel errors, when the module has been exposed to moisture ingress or physical shock, or when your site’s aging-system lifecycle policy triggers a scheduled refresh. Maintaining one spare per installed carrier is a widely adopted industry practice for Experion PKS sites.

Q2: How do I verify compatibility between this spare and my installed C300 firmware version?
The CC-TDIL01 (51308386-175) is compatible with Experion PKS R310 through current releases when used with a C300 controller. Before installation, confirm the module revision level against the Honeywell Experion PKS I/O Compatibility Guide for your specific release. If your site runs a legacy firmware version below R310, contact our technical team — we can advise on revision-specific compatibility and source the appropriate variant if required.

Q3: What pre-shipment testing is performed on this module?
Every CC-TDIL01 unit is functionally tested prior to dispatch. Testing includes power-on self-test verification, channel-level input state validation across all 32 channels, isolation resistance measurement between field-side and backplane, and visual inspection for connector pin integrity and PCB condition. A test record is retained for each unit. The 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q4: Can this module be used as a direct drop-in replacement for older CC-TDIL01 revisions already installed in my system?
In the vast majority of Experion PKS C300 installations, the CC-TDIL01 51308386-175 is a direct drop-in replacement regardless of the previous module’s revision suffix, as Honeywell maintains backward hardware compatibility within the Series C I/O family. Configuration data is stored in the C300 controller, not the module, so no re-engineering of the control strategy is required. Channel wiring connects to the FTA, which remains in place during module swap, further simplifying the replacement process.
