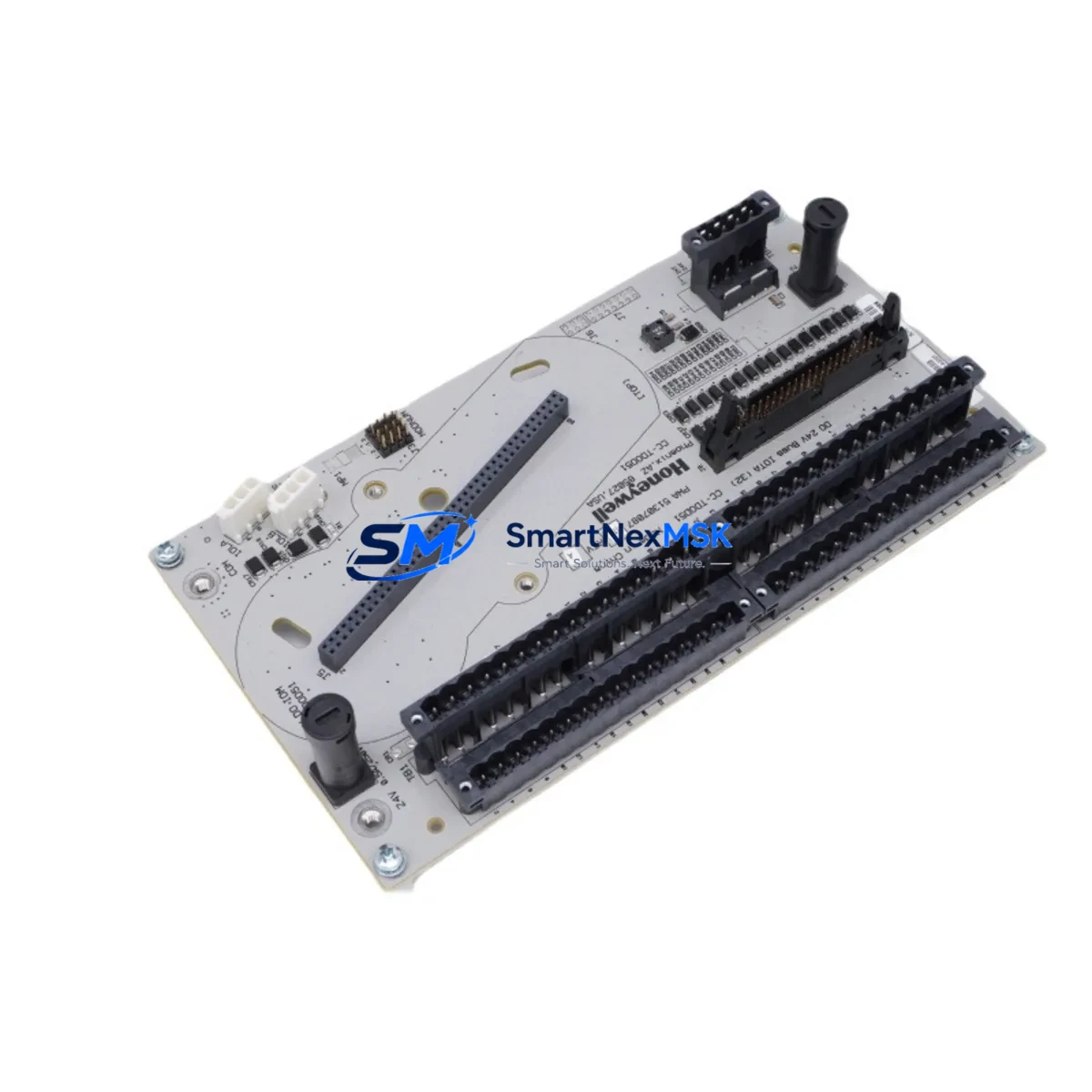

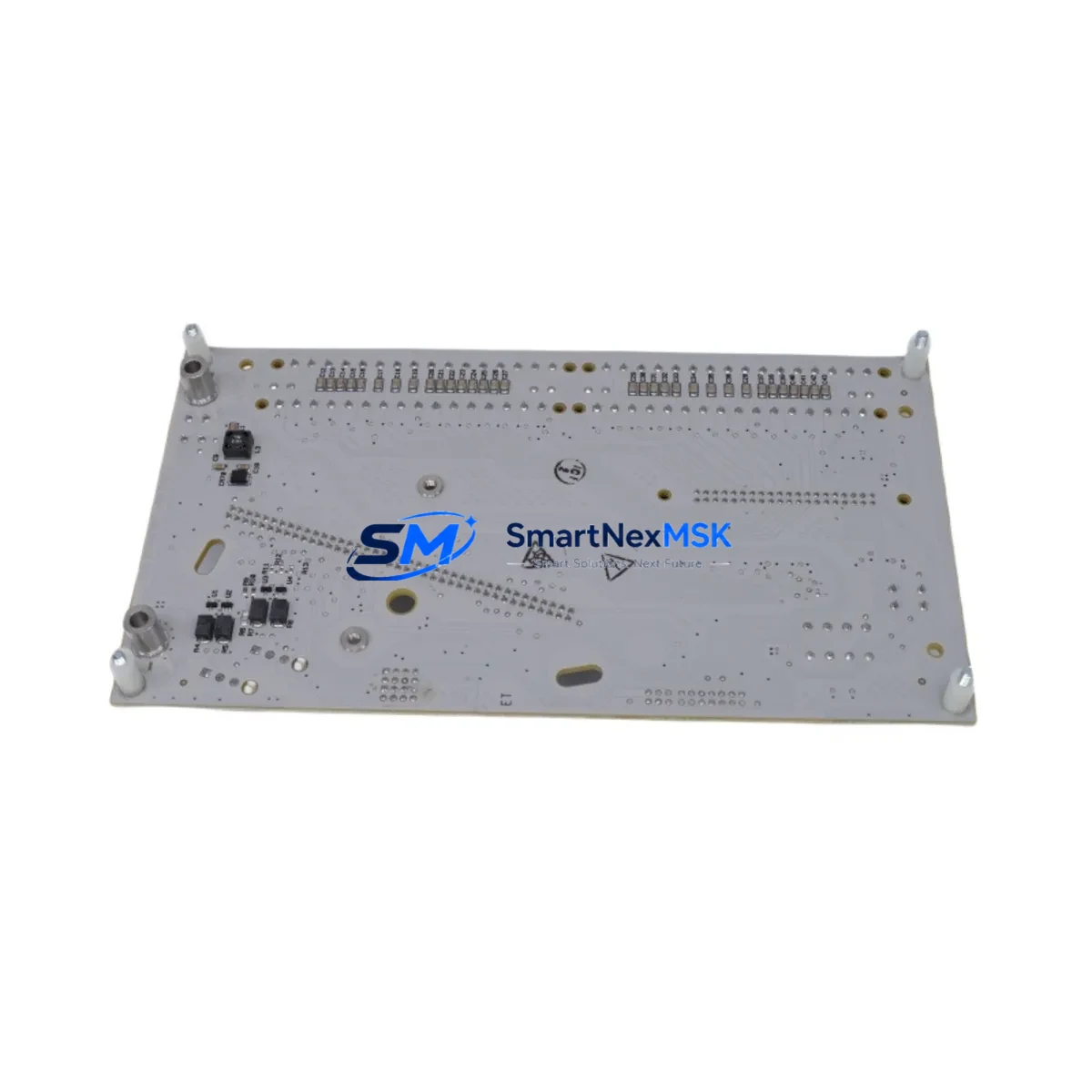

The Honeywell CC-TDOD51 is a 32-channel digital output IOTA module designed for the Experion PKS distributed control system. As a maintenance-ready original spare, it enables rapid field replacement to minimize unplanned downtime in process automation environments. Whether you are managing a scheduled turnaround, responding to an emergency fault, or building a strategic spare parts inventory, the CC-TDOD51 delivers the compatibility, reliability, and traceability that industrial maintenance and procurement engineers demand.

Each unit supplied by SMARTNEXMSK is sourced from verified channels, individually inspected, and function-tested prior to shipment. A 12-month warranty is included as standard, covering manufacturing defects and operational failures under normal service conditions. We maintain long-term stock availability to support aging Experion PKS installations and extended system lifecycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CC-TDOD51 digital output IOTA is flagged during a control cabinet inspection or fault diagnostic, experienced maintenance engineers know that the replacement workflow extends beyond the module itself. A thorough site assessment should include verification of the associated CC-TCNT01 C300 Controller firmware version and backplane communication health, as controller-IOTA mismatches can cause persistent output faults even after a module swap.

The CC-TAIX01 analog input IOTA and CC-TAOX01 analog output IOTA modules installed in the same chassis should be inspected for connector wear and backplane seating integrity. Loose IOTA seating is a common root cause of intermittent channel failures that are misdiagnosed as module faults. Similarly, the CC-PCF901 power conditioner supplying the I/O chassis should be load-tested; an aging power conditioner operating near its rated capacity can cause marginal voltage drops that trigger false digital output alarms.

Field wiring terminations at the IOTA terminal block deserve close attention. Corroded or loose terminals on 24 VDC output circuits are a frequent source of nuisance trips. If the installation uses CC-SCMB02 marshalling cabinets or intermediate terminal strips, inspect all junction points for oxidation, especially in humid or coastal environments. Inline fuse holders and 2A fast-blow fuses protecting individual output channels should be tested for continuity and replaced as a preventive measure during any planned outage.

For systems using Honeywell Safety Manager or integrated SIL-rated loops, confirm that the digital output signals from the CC-TDOD51 are correctly mapped in the safety logic and that any associated signal isolators or relay output modules in the safety loop are within their calibration interval. Where the Experion PKS system interfaces with third-party drives or actuators via PROFIBUS DP or Modbus RTU, verify that the FIM4 or FIM8 Field Interface Module firmware is current and that communication diagnostics show no CRC errors following the module replacement.

Proactive spare parts planning for Experion PKS installations should include at minimum one CC-TDOD51 per active chassis, alongside critical companions such as the CC-TDID11 digital input IOTA and the CC-PWRR01 redundant power supply module. Maintaining these spares on-site reduces mean time to repair (MTTR) from days to hours and is particularly important for facilities operating continuous processes where even brief control interruptions carry significant production or safety consequences.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement CC-TDOD51 part number and firmware compatibility with the installed Experion PKS release. Cross-reference the C300 Controller’s I/O assignment table to identify all 32 output channels and their associated field devices before de-energizing.

Step 2 — Safe Isolation: Place the affected output channels in manual hold or safe state via the Experion Station operator console. Notify field operators of the planned output interruption. De-energize the IOTA carrier following site lockout/tagout (LOTO) procedures.

Step 3 — Module Removal and Inspection: Disconnect field wiring at the IOTA terminal block, labeling each wire group. Remove the faulty CC-TDOD51 and inspect the backplane connector for bent pins or contamination. Clean the connector with approved contact cleaner if required.

Step 4 — Replacement Installation: Seat the new CC-TDOD51 firmly into the IOTA carrier until the locking tab engages. Reconnect field wiring per the as-built drawings. Re-energize the carrier and confirm the module status LED indicates normal operation on the Experion Station.

Step 5 — Functional Verification: Force-test each output channel from the Experion control builder or operator station to confirm field device response. Document the replacement in the site maintenance management system (CMMS) and update the spare parts inventory record.

This workflow is applicable to direct replacement of legacy Experion PKS digital output IOTAs and supports system compatibility without requiring controller reconfiguration in most standard installations.

Spare Parts Support FAQ

Q1: Is the CC-TDOD51 compatible with all Experion PKS releases?
The CC-TDOD51 is compatible with Experion PKS R310 and later releases when used with the C300 Controller. For installations running earlier releases, firmware verification is recommended before installation. SMARTNEXMSK can provide compatibility guidance based on your system’s release level upon request.

Q2: What pre-shipment testing is performed on each unit?
Every CC-TDOD51 unit undergoes functional testing of all 32 output channels, backplane communication verification, and visual inspection of connectors and terminal blocks before dispatch. A test report is available upon request for quality-critical procurement processes.

Q3: How should the CC-TDOD51 be stored as a long-term spare?
Store in original anti-static packaging in a climate-controlled environment at 15°C–25°C with relative humidity below 60%. Avoid proximity to strong magnetic fields or vibration sources. Inspect and re-test annually if held in storage for more than 12 months to confirm operational readiness.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and operational failures under normal operating conditions as specified by Honeywell. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround to minimize site downtime.
