Honeywell FC-PUIO01 51454294-176 Retrofit-Ready Universal I/O for Experion PKS Control Systems

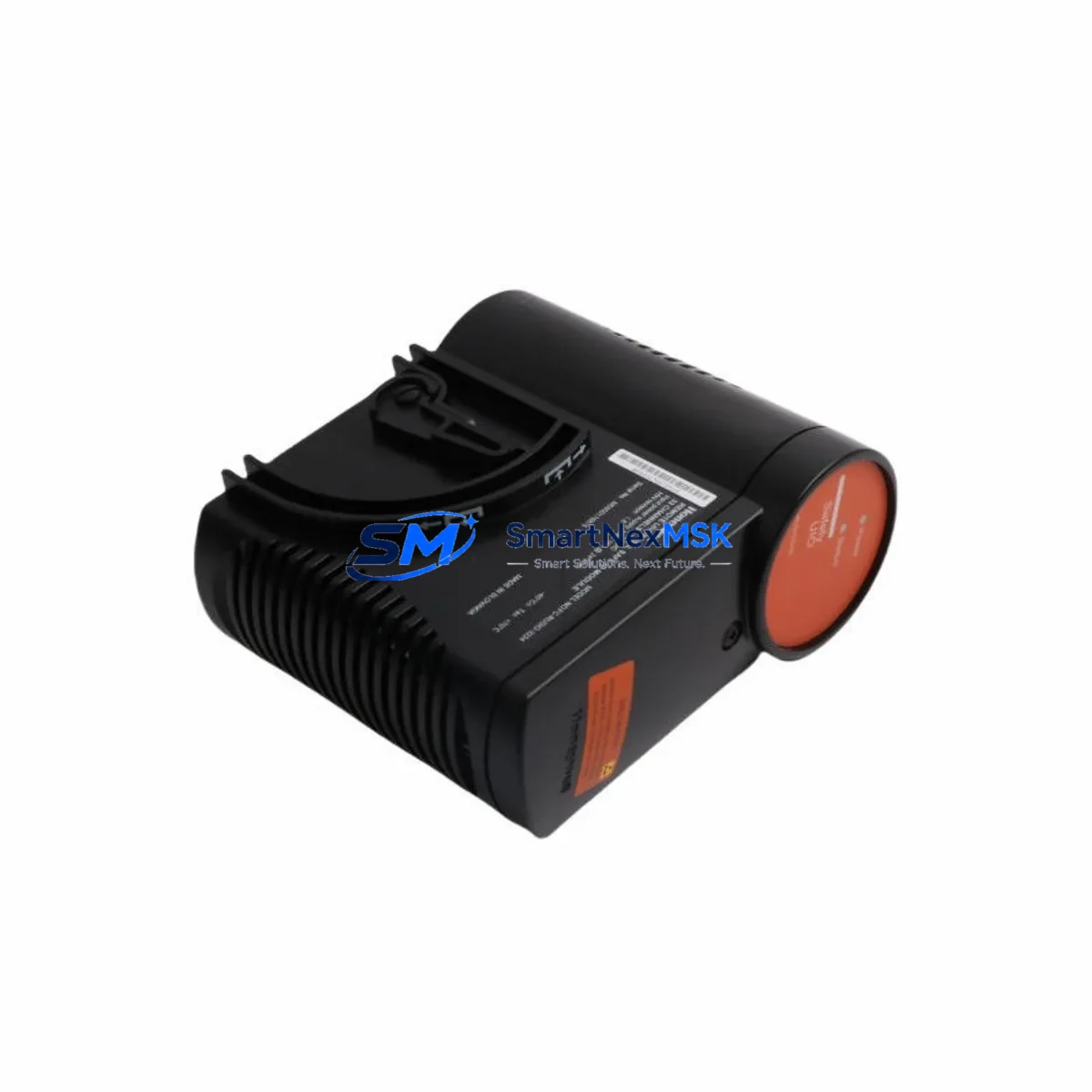

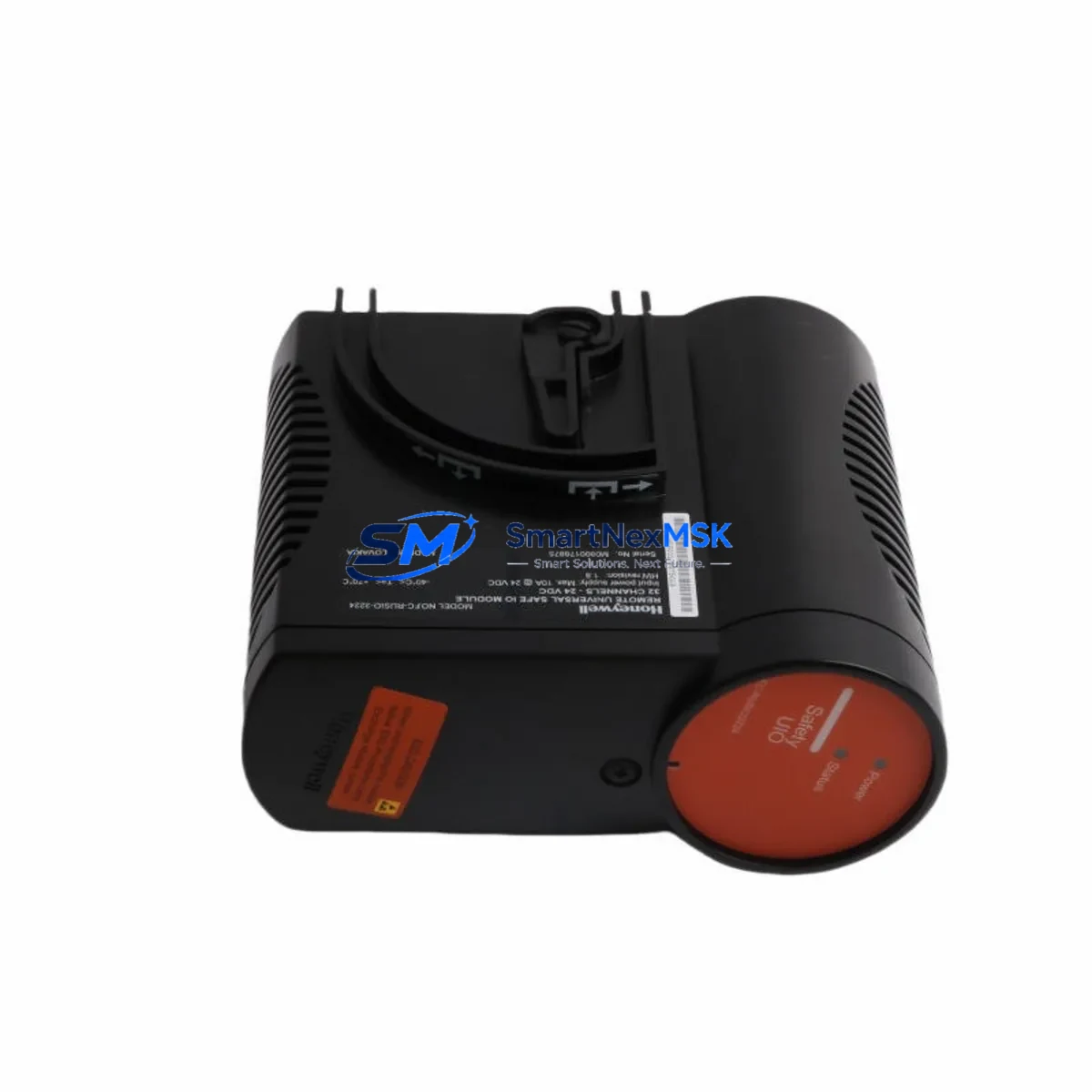

The Honeywell FC-PUIO01 (Part No. 51454294-176) is a Universal Signal I/O (USIO) module engineered for the Experion PKS distributed control system platform. As legacy DCS installations age and OEM support windows close, the FC-PUIO01 has become one of the most sought-after retrofit components for engineers tasked with modernizing or sustaining Honeywell-based control architectures without a full platform migration. This module supports mixed analog and digital signal types on a single card, reducing rack density requirements and simplifying cabinet layouts during upgrade projects.
Whether you are replacing a failed unit in an operating refinery, upgrading a power generation control room, or restoring a mothballed chemical plant, the FC-PUIO01 51454294-176 is a direct drop-in replacement for the original Honeywell USIO module. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is covered by a 12-month warranty from the date of delivery.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | FC-PUIO01 / 51454294-176 |
| Compatible Platform | Honeywell Experion PKS (C200, C300 series) |
| Module Type | Universal Signal I/O (USIO) |
| Signal Support | Analog Input/Output, Digital Input/Output (mixed) |
| Backplane Interface | Experion PKS Series C I/O Link |
| Installation | Hot-swap capable; standard Honeywell I/O carrier required |
| Communication Compatibility | FTE (Fault Tolerant Ethernet), C-Bus |
| Replaces / Supersedes | Legacy USIO variants in C200/C300 I/O subsystems |
| Commissioning Note | Module address assignment via Experion Builder; no hardware DIP switch required |
| Warranty | 12 Months from shipment date |
Retrofit Planning for Existing Automation Systems
Successful integration of the FC-PUIO01 into an existing Experion PKS installation requires a structured pre-replacement audit. Engineers should begin by documenting the current I/O carrier assignment, verifying that the target slot uses a compatible Honeywell I/O carrier such as the FC-TSAI01 or FC-TSDO01 terminal assembly. The FC-PUIO01 mounts directly onto these carriers without mechanical modification, preserving existing field wiring terminations and reducing the risk of wiring errors during the swap.
Power budget verification is a critical step often overlooked in retrofit planning. The Experion PKS C300 controller chassis, typically powered by a redundant Honeywell CC-PWR01 or CC-PWR02 power supply module, must have sufficient headroom to support the FC-PUIO01’s operating current draw alongside other populated slots. Before insertion, confirm total chassis load against the power supply’s rated output, particularly in high-density cabinets where FC-SDO01 digital output modules and FC-SAI01 analog input modules may already be consuming significant capacity.
For installations migrating from older Honeywell TDC 3000 or PlantScape systems, the FC-PUIO01 represents a key component in the I/O subsystem modernization path. The transition typically involves remapping legacy UCN (Universal Control Network) point addresses to Experion PKS FTE node addresses using Honeywell’s Control Builder engineering tool. During this process, engineers must also verify HMI display associations — Experion Station graphics referencing legacy point tags will require tag remapping to reflect the new Experion PKS database structure.
Communication link integrity should be validated after module insertion. The FC-PUIO01 communicates over the C-Bus backplane to the C300 controller, which in turn connects to the Experion PKS server via FTE. If the installation includes a Honeywell CC-LINK01 or CC-LINK02 redundant controller link module, verify that the link status LEDs confirm active redundancy before returning the loop to automatic control. For sites using HART-enabled field instruments, confirm that the FC-PUIO01’s HART pass-through capability is enabled in Control Builder to maintain asset management connectivity through the Honeywell FDM (Field Device Manager) application.
I/O expansion projects that add the FC-PUIO01 to previously unused chassis slots should also account for module address configuration. Unlike older systems requiring physical address switches, the FC-PUIO01 receives its slot address automatically from the Experion PKS I/O Link scan during system startup. Engineers should pre-configure the module definition in Control Builder before physical installation to minimize the commissioning window and avoid unplanned scan interruptions.
Downtime Control During System Migration
Minimizing production downtime during a DCS I/O module replacement is a primary concern for plant operations teams. For the FC-PUIO01, the recommended approach is a pre-staged swap: configure the replacement module’s parameters in Experion Builder offline, export the configuration checkpoint, and have the module physically ready at the cabinet before initiating the removal sequence.
Where process conditions permit, place affected control loops in manual mode at the Experion Station operator console before removing the existing module. This preserves the last output value at the field device level and prevents uncontrolled process excursions during the swap interval. For critical loops — such as those controlling fired heaters, compressor surge valves, or reactor feed — coordinate with the operations team to establish a safe manual operating window before proceeding.
The FC-PUIO01 supports hot-swap insertion on a live Experion PKS chassis without requiring a controller restart. After physical installation, the module will self-identify to the C300 controller within the normal I/O scan cycle. Monitor the Experion Station system status display and the module’s LED indicators to confirm successful recognition and fault-free operation before returning loops to automatic. Full loop checkout, including analog signal verification against the field instrument and digital I/O state confirmation, should be completed before closing the maintenance work order. All replaced units are tested prior to shipment, and SMARTNEXMSK provides a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.
Retrofit Support FAQ
Q: Is the FC-PUIO01 51454294-176 a direct replacement for my existing Experion PKS USIO module?
A: Yes. The FC-PUIO01 with part number 51454294-176 is a direct form-fit-function replacement for the original Honeywell USIO module used in Experion PKS C200 and C300 I/O subsystems. No hardware modification to the carrier or backplane is required.
Q: Do I need to reconfigure my Control Builder database after installing the FC-PUIO01?
A: In most cases, if the replacement module is installed in the same chassis slot as the original, the existing Control Builder configuration will be recognized automatically. If the module is being installed in a new slot or as part of an I/O expansion, a new module definition must be added in Control Builder and downloaded to the controller before the module will scan correctly.
Q: What pre-shipment testing does SMARTNEXMSK perform on the FC-PUIO01?
A: Each FC-PUIO01 unit undergoes functional power-on verification and I/O channel continuity testing before shipment. Units are inspected for physical damage, connector integrity, and firmware version compatibility. A 12-month warranty is included with every shipment, covering defects in materials and workmanship.
Q: Can the FC-PUIO01 be used in a redundant I/O configuration?
A: The FC-PUIO01 supports Experion PKS redundant I/O configurations when paired with a compatible redundant I/O carrier assembly. Confirm your existing carrier part number against Honeywell’s redundant I/O compatibility matrix in the Experion PKS I/O Installation and Wiring Guide before ordering.
