Honeywell FC-SDI-1624 V1.1 Spare for FSC Safety Automation

Honeywell FC-SDI-1624 V1.1 Spare for FSC Safety Automation: Spare Replacement & Industrial Downtime Risk Control

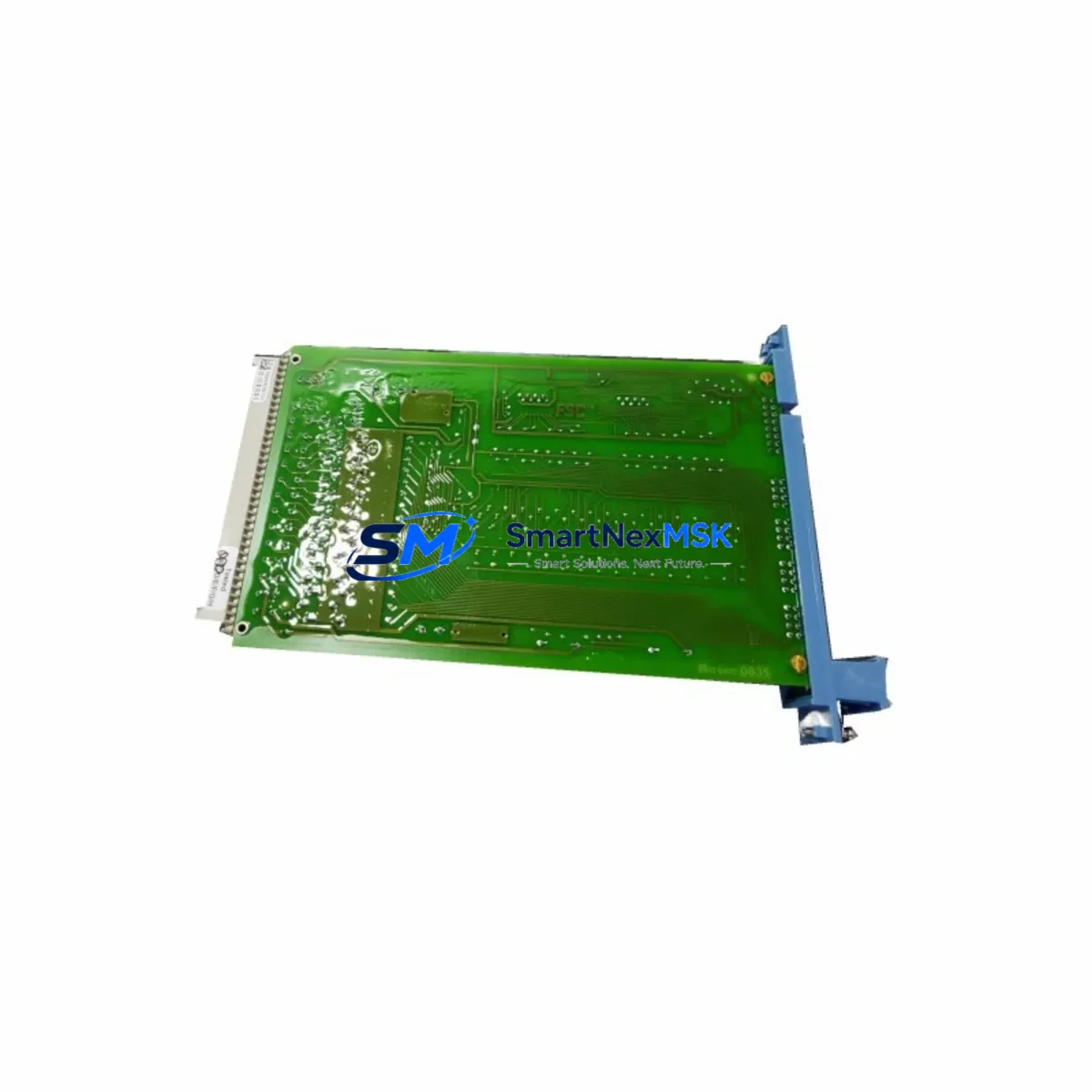

The Honeywell FC-SDI-1624 V1.1 is a 24-channel safety digital input module engineered for the Honeywell FSC (Fail-Safe Controller) and Safety Manager platforms — two of the most widely deployed safety PLC architectures in process industries including oil & gas, petrochemical, power generation, and offshore installations. As a certified SIL2/SIL3-capable I/O module, the FC-SDI-1624 V1.1 plays a critical role in acquiring field-level discrete signals from emergency shutdown (ESD) devices, fire and gas detectors, pressure switches, and valve position feedback sensors. When this module fails or degrades, the entire safety instrumented function (SIF) it supports may be compromised — making rapid, verified spare replacement a non-negotiable maintenance priority.

At SMARTNEXMSK, we supply original Honeywell FC-SDI-1624 V1.1 modules sourced from authorized channels, fully tested prior to shipment, and backed by a 12-month warranty. Our inventory is maintained to support both planned turnaround maintenance and emergency breakdown recovery, with same-week dispatch available for in-stock units.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the FC-SDI-1624 V1.1 in an FSC or Safety Manager cabinet is rarely an isolated task. Experienced maintenance engineers know that a digital input module fault often signals broader stress on the I/O subsystem. During any planned or corrective replacement of this module, the following associated components should be inspected or staged as co-spares:

Power Supply & Backplane: The FC-SDI-1624 V1.1 draws power from the FSC rack’s internal bus. Verify the FC-PSU-2401 (24 VDC power supply module) output voltage and ripple before re-commissioning. A degraded power supply is a common root cause of intermittent I/O faults. Inspect the rack backplane connector pins for oxidation or mechanical damage — the FSC rack chassis itself should be logged in your asset register with its installation date.

Field Wiring & Terminal Assemblies: The 24 input channels terminate via marshalling cabinets or directly through FSC field termination assemblies (FTAs). Inspect the FC-FTA-0824 or equivalent FTA for loose terminals, moisture ingress, and insulation degradation. Terminal blocks and cable shields should be re-torqued to specification during any I/O module swap.

Companion I/O Modules: In a typical FSC safety loop, the digital input module works alongside FC-SDO-0824 safety digital output modules (for ESD valve actuation) and FC-AI-1622 analog input modules (for pressure and temperature transmitters). If your maintenance window allows, perform a visual and diagnostic check on all I/O modules in the same rack to identify any with accumulated fault hours.

Communication & Processor Modules: The FC-CPU-0714 or equivalent FSC central processing unit communicates with all I/O modules over the internal bus. Confirm that the CPU firmware version is compatible with the V1.1 revision of the FC-SDI-1624. Mismatched firmware revisions can cause configuration mismatches after hot-swap replacement. Also verify the FC-COM-0101 communication module if your system uses Modbus or HART pass-through for field device diagnostics.

Signal Isolation & Protection: For field loops connected to hazardous area instruments, Zener barriers or galvanic isolators (such as the MTL7787+ or equivalent) protect the FC-SDI-1624 V1.1 inputs from voltage spikes and ground faults. These isolators should be tested for correct voltage clamping and replaced on a 5–7 year cycle regardless of apparent condition.

Fusing & Protection Devices: Each input group may be protected by individual fuses or miniature circuit breakers in the marshalling cabinet. Verify fuse ratings match the field device current draw and replace any fuses showing signs of thermal stress or discoloration.

Maintaining a co-spare kit that includes the FC-SDI-1624 V1.1 alongside the power supply module, at least one FTA, and a set of replacement fuses reduces mean time to repair (MTTR) from hours to under 30 minutes for most FSC installations.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the FC-SDI-1624 V1.1, download the current FSC configuration using Honeywell’s Safety Builder or FSC Engineering Tool. Record all channel assignments, input filter times, and diagnostic settings. Confirm the replacement module’s hardware revision (V1.1) matches the installed unit — substituting a V1.0 or V1.2 module without engineering review may require a Management of Change (MOC) process under IEC 61511.

Step 2 — Safe Isolation: Coordinate with the control room to place the affected safety function in bypass or manual mode per your site’s Safety Instrumented System (SIS) bypass procedure. Document the bypass start time in the safety logbook. Isolate field power to the affected input channels at the marshalling cabinet before extracting the module.

Step 3 — Module Swap: The FC-SDI-1624 V1.1 is designed for rack-mount installation in the FSC chassis. Slide the module out along the card guides and insert the replacement unit until the backplane connector is fully seated. Secure the front panel latch. The FSC CPU will detect the new module within seconds and begin its internal self-test sequence.

Step 4 — Configuration Restore & Functional Test: If the replacement module requires configuration download, use Safety Builder to push the saved configuration. Perform a channel-by-channel functional test by simulating input signals from the field or using a loop calibrator. Verify that all 24 channels report correct ON/OFF states in the FSC diagnostic display before removing the bypass.

Step 5 — Return to Service: Remove the safety bypass, confirm all SIF loops are active and healthy in the FSC system status display, and update the maintenance record with the replacement date, module serial number, and test results. Schedule the next inspection interval per your site’s SIS maintenance plan (typically 12–24 months for digital input modules in SIL2 applications).

This workflow applies equally to legacy FSC installations and newer Safety Manager SC systems, making the FC-SDI-1624 V1.1 a long-term compatible spare that extends the operational life of aging safety systems without requiring full platform migration.

Spare Parts Support FAQ

Q1: Is the FC-SDI-1624 V1.1 compatible with both the Honeywell FSC and Safety Manager platforms?
Yes. The FC-SDI-1624 V1.1 is designed for the FSC rack architecture, which is also the hardware foundation of the Honeywell Safety Manager and Safety Manager SC. Compatibility depends on the rack chassis generation and CPU firmware version. We recommend confirming your system’s hardware revision before ordering. Our technical team can assist with compatibility verification based on your system’s configuration file or nameplate data.

Q2: What pre-shipment testing does SMARTNEXMSK perform on the FC-SDI-1624 V1.1?
Every FC-SDI-1624 V1.1 unit we ship undergoes functional power-on testing, channel continuity verification, and visual inspection for physical damage, connector integrity, and component condition. Units are shipped in anti-static packaging with a test report. The 12-month warranty covers functional failure under normal operating conditions from the date of delivery.

Q3: How should I manage FC-SDI-1624 V1.1 inventory for a multi-unit FSC installation?
For sites with 3 or more FSC racks, we recommend maintaining a minimum of one FC-SDI-1624 V1.1 spare per 6–8 installed modules, with a maximum replenishment lead time of 2 weeks. For critical SIL3 applications or remote sites with limited logistics access, a 1:4 spare ratio is advisable. SMARTNEXMSK offers reserved stock agreements for high-volume customers to guarantee availability during turnaround seasons.

Q4: What is the end-of-life status of the FC-SDI-1624 V1.1, and can SMARTNEXMSK support long-term supply?
The Honeywell FSC platform has been in service for over two decades, and while Honeywell has transitioned newer installations to the Safety Manager SC, a large installed base of FSC systems remains in active operation globally. SMARTNEXMSK maintains ongoing sourcing relationships to support FSC spare parts supply for the foreseeable future. We can provide multi-year supply agreements for customers managing long-term FSC system life extension programs.
