Honeywell FC-TSDI-1624 V1.0 Retrofit-Ready Digital Input Module for TPS Control Systems

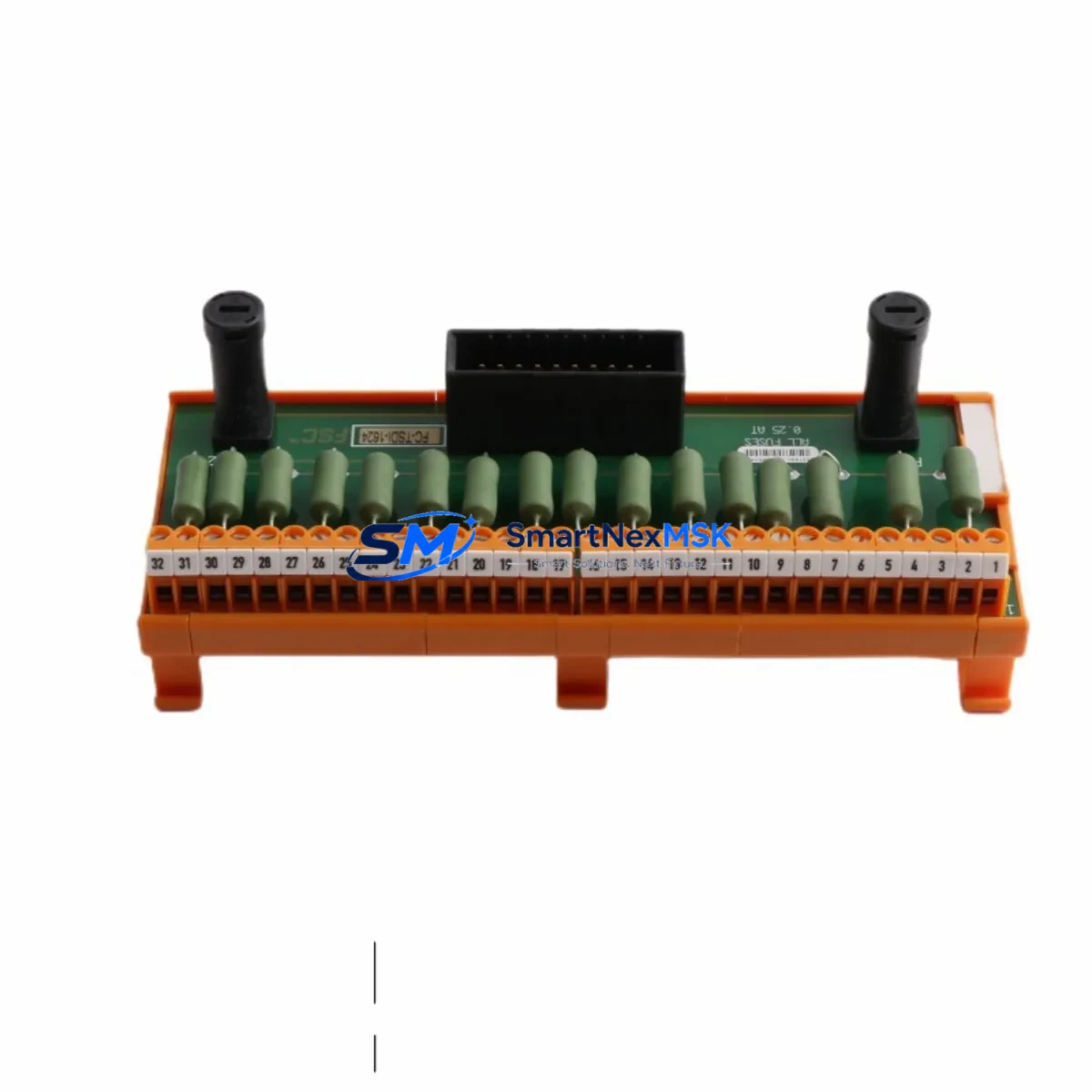

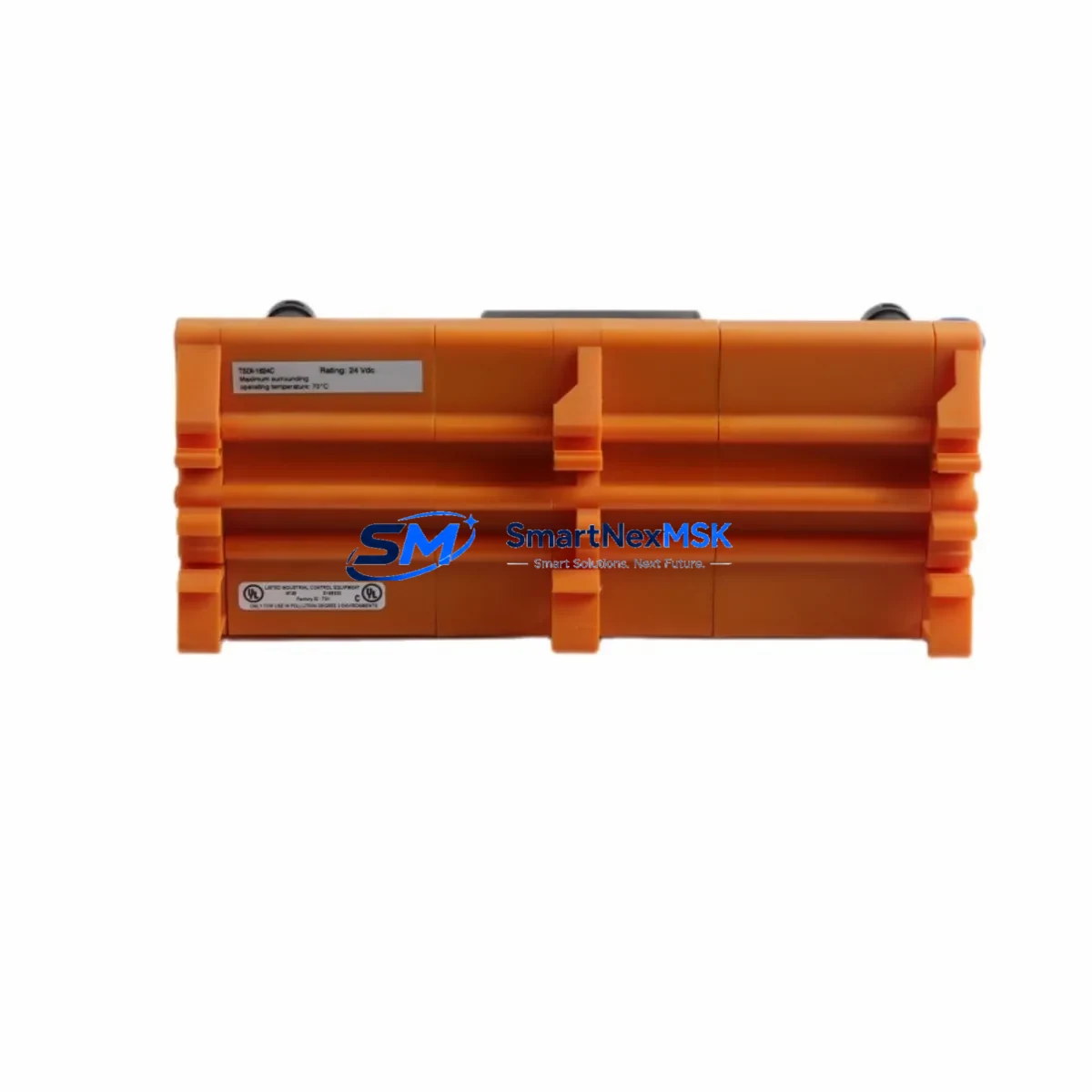

The Honeywell FC-TSDI-1624 V1.0 is a 16-channel digital input module engineered for the Honeywell TotalPlant Solution (TPS) Distributed Control System platform. As legacy TPS installations continue to operate across petrochemical, refining, power generation, and continuous process industries, the FC-TSDI-1624 V1.0 remains a critical component for both active maintenance and planned system modernization. SMARTNEXMSK maintains verified stock of this module to support engineers and procurement teams managing aging control infrastructure where downtime carries significant operational and financial risk.
This module provides 16 discrete digital input channels compatible with the TPS I/O subsystem architecture. It mounts directly onto the TPS I/O Link backplane and communicates via the proprietary Honeywell I/O Link protocol, making it a direct drop-in replacement for failed or end-of-life units without requiring firmware changes, address reassignment, or HMI reconfiguration in most standard retrofit scenarios. Each unit undergoes functional verification and burn-in testing prior to shipment, and is covered by a 12-month warranty against manufacturing defects and functional failure.
For facilities planning a phased migration from TPS to Experion PKS or a hybrid architecture, the FC-TSDI-1624 V1.0 serves as a bridge component — maintaining field signal integrity while the control strategy, historian connections, and operator displays are progressively transitioned. Engineers should verify the module’s firmware revision against the target TPS cabinet’s I/O Link controller, typically the Honeywell PM I/O Link Controller or its successor, to confirm handshake compatibility before installation.
Upgrade Compatibility Table
| Parameter | FC-TSDI-1624 V1.0 Specification | Retrofit / Replacement Notes |
|---|---|---|
| Channel Count | 16 Digital Input Channels | Direct replacement for same-channel-count TPS DI modules |
| Backplane Interface | TPS I/O Link Backplane Connector | Compatible with standard TPS I/O carrier assemblies; no backplane modification required |
| Communication Protocol | Honeywell I/O Link (proprietary) | Not compatible with Experion PKS FOUNDATION Fieldbus or PROFIBUS without gateway; verify with PM controller revision |
| Input Signal Type | 24 VDC Discrete (dry/wet contact) | Confirm field wiring terminal block assignments match existing marshalling cabinet layout |
| Module Addressing | Hardware DIP switch / slot-based | Preserve original address settings from removed module; document before extraction |
| Power Consumption | Supplied via TPS I/O backplane bus | Verify backplane power supply (e.g., Honeywell MC-PDOX02 or equivalent) has sufficient headroom |
| HMI / Display Impact | None (transparent replacement) | No HMI faceplate or tag database changes required for like-for-like swap |
| Installation Requirement | Hot-swap capable (verify with site SOP) | Confirm site safety procedures; some TPS configurations require controlled shutdown |
| Warranty | 12-Month Warranty — functional defects covered from date of shipment; includes pre-shipment burn-in test report on request | |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the FC-TSDI-1624 V1.0 into an operating TPS environment requires systematic pre-work across several engineering disciplines. Begin with a full audit of the target cabinet’s I/O inventory: identify all occupied slots on the TPS I/O carrier, document the existing module types (digital input, digital output, analog input, analog output), and cross-reference against the current control strategy database to map each channel to its associated process tag.
Power budget verification is non-negotiable. The TPS backplane distributes 5 VDC and 24 VDC rails to all installed modules. Before inserting a replacement FC-TSDI-1624 V1.0, confirm that the cabinet’s Honeywell MC-PDOX02 power supply module (or the site-specific equivalent) has sufficient current margin. Overloaded backplane power supplies are a common root cause of intermittent module faults in aging TPS cabinets, and a replacement module will not resolve an underlying power deficiency.
Terminal wiring compatibility must be confirmed at the marshalling level. The FC-TSDI-1624 V1.0 connects to field devices through the TPS termination assembly. If the existing termination panel uses Honeywell MC-TAIH12 or MC-TAIH22 terminal assemblies, verify that the wiring pinout matches the replacement module’s channel mapping. In cases where the original module was a different revision or a third-party equivalent, a full point-to-point continuity check is recommended before energizing.
For sites running a hybrid architecture — where some cabinets have already been migrated to Experion PKS C300 controllers with EHPM (Experion Hybrid Process Manager) — the FC-TSDI-1624 V1.0 can continue to serve the unconverted TPS nodes. The EHPM provides a communication bridge that allows TPS I/O modules to report into the Experion environment without physical replacement, extending the useful life of existing DI modules while the migration proceeds cabinet by cabinet.
Communication link integrity should be validated after module insertion. The TPS I/O Link uses a dedicated coaxial or twisted-pair segment between the PM I/O Link Controller and the I/O carrier. A module that fails to appear in the TPS Engineering Console after installation typically indicates an I/O Link addressing conflict, a faulty backplane slot, or a communication cable issue — not a module defect. Use the TPS diagnostic utilities to poll the I/O Link segment and confirm the module’s slot address is recognized before declaring the replacement successful.
Where the retrofit scope extends beyond a single module swap to a full I/O cabinet upgrade, consider staging the work around the Honeywell FC-SDOA-0824 digital output module, FC-SAIM-1620 analog input module, and associated FC-SMAI-1620 multi-input modules to maintain a consistent I/O generation across the cabinet. Mixing module generations within a single I/O carrier can introduce diagnostic complexity during future maintenance cycles. Similarly, if the site’s Honeywell HPM (High-Performance Process Manager) is being retained, confirm that its firmware is compatible with the I/O module revisions being installed.
Downtime Control During System Migration
Minimizing unplanned downtime during a TPS module replacement requires a structured change management approach. The most effective strategy is to treat the FC-TSDI-1624 V1.0 swap as a controlled maintenance event rather than an emergency repair — even when the trigger is an unexpected module failure. Pre-positioning a verified spare in the control room, with its address switches pre-configured to match the failed unit, reduces mean time to repair (MTTR) from hours to minutes.
Before any physical intervention, export the current TPS control strategy checkpoint and save a copy of the I/O configuration database. This ensures that if the replacement module triggers an unexpected system response — such as a tag going to bad quality or a control loop switching to manual — the original configuration can be restored without relying on memory or incomplete documentation. The TPS Engineering Console provides checkpoint and restore utilities that should be part of every site’s standard pre-maintenance checklist.
For processes that cannot tolerate even brief signal interruption, consider using the TPS I/O Link’s module-level diagnostic bypass to place the affected channels in a forced or last-value-hold state before extraction. This prevents downstream control loops from responding to the momentary loss of input signal during the physical swap. Coordinate with the control room operator to confirm that all affected loops are in manual mode and that field devices are in a safe state before proceeding.
After insertion of the replacement FC-TSDI-1624 V1.0, allow the module to complete its self-diagnostic cycle — typically 15 to 30 seconds — before restoring channels to automatic control. Verify each of the 16 input channels against known field device states (valve positions, motor run signals, limit switch contacts) to confirm correct wiring and signal polarity. Document the as-found and as-left states for the site’s maintenance management system. Only after all 16 channels are verified should the control loops be returned to automatic and the maintenance event closed.
Retrofit Support FAQ
Q1: Is the FC-TSDI-1624 V1.0 a direct replacement for earlier TPS digital input module revisions?
In most cases, yes. The FC-TSDI-1624 V1.0 is mechanically and electrically compatible with the TPS I/O carrier slot and uses the same I/O Link protocol as earlier DI module revisions. However, if the original module was a V0.x revision, confirm that the backplane firmware and PM controller revision support the V1.0 module before installation. SMARTNEXMSK can provide the module’s firmware revision details upon request to support pre-installation compatibility verification.
Q2: What pre-shipment testing does SMARTNEXMSK perform on the FC-TSDI-1624 V1.0?
Each unit undergoes a functional burn-in test that exercises all 16 digital input channels under simulated field signal conditions. Power consumption, backplane interface signaling, and channel response times are verified against Honeywell’s published specifications. A test report is available upon request. All units are shipped with ESD-protective packaging and include a 12-month warranty from the date of shipment.
Q3: Can this module be used in an Experion PKS environment without a TPS node?
No. The FC-TSDI-1624 V1.0 is designed exclusively for the TPS I/O Link architecture. It cannot be directly connected to an Experion PKS C300 or C200 controller without an EHPM bridge or a TPS node acting as an intermediary. For pure Experion PKS environments, the appropriate replacement is an Experion-native I/O module such as the Honeywell CC-TDIL01 or equivalent Series C digital input module.
Q4: What is the lead time and warranty coverage for orders placed through SMARTNEXMSK?
In-stock units typically ship within 1–3 business days from our Xiamen warehouse. All FC-TSDI-1624 V1.0 modules are covered by a 12-month warranty against functional defects from the date of shipment. Expedited shipping options are available for urgent maintenance situations. Contact our technical sales team to confirm current stock levels and arrange priority dispatch.
