Honeywell FC-TSDI-16UNI Retrofit-Ready FTA for Safety Manager

Honeywell FC-TSDI-16UNI Retrofit-Ready FTA for Safety Manager Control Systems

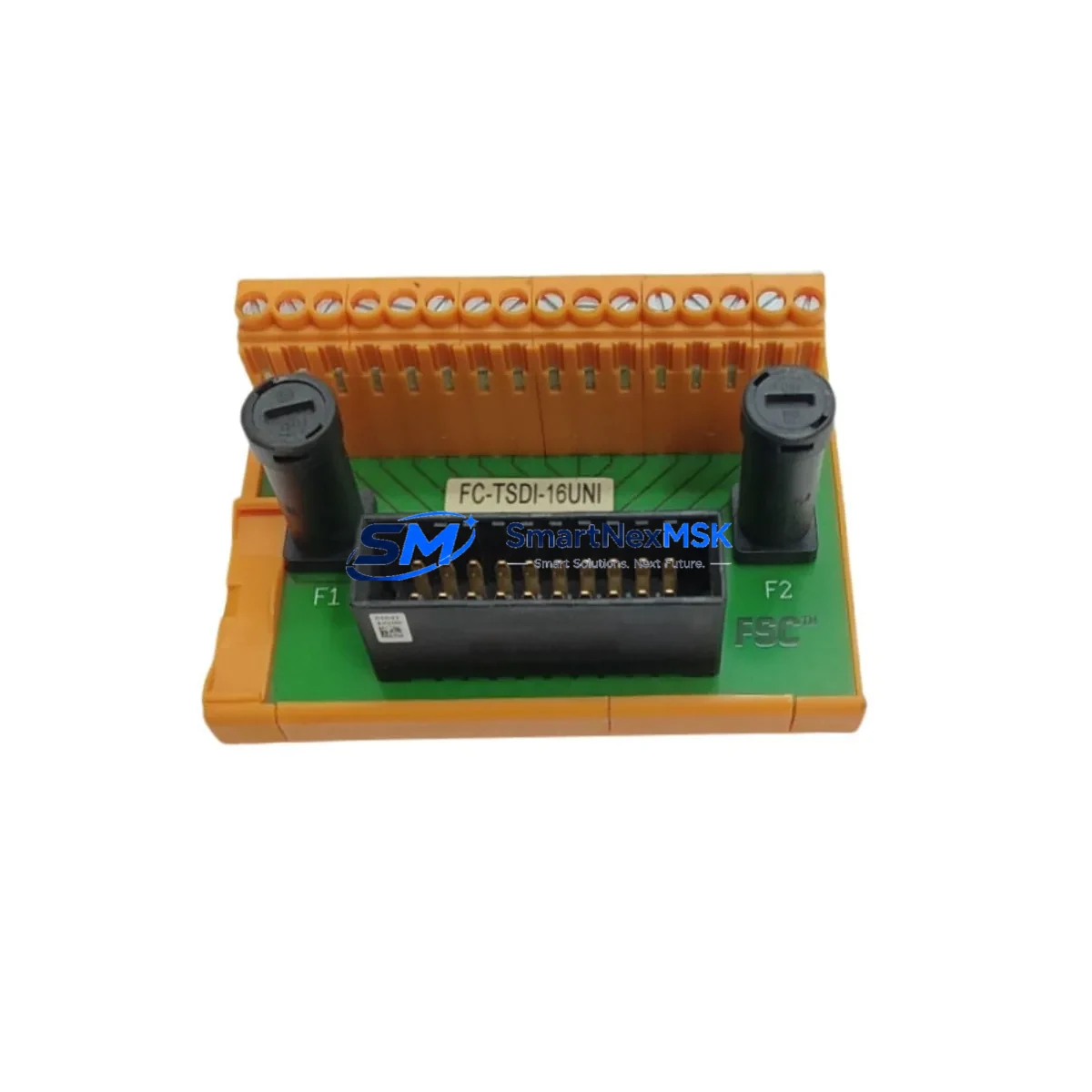

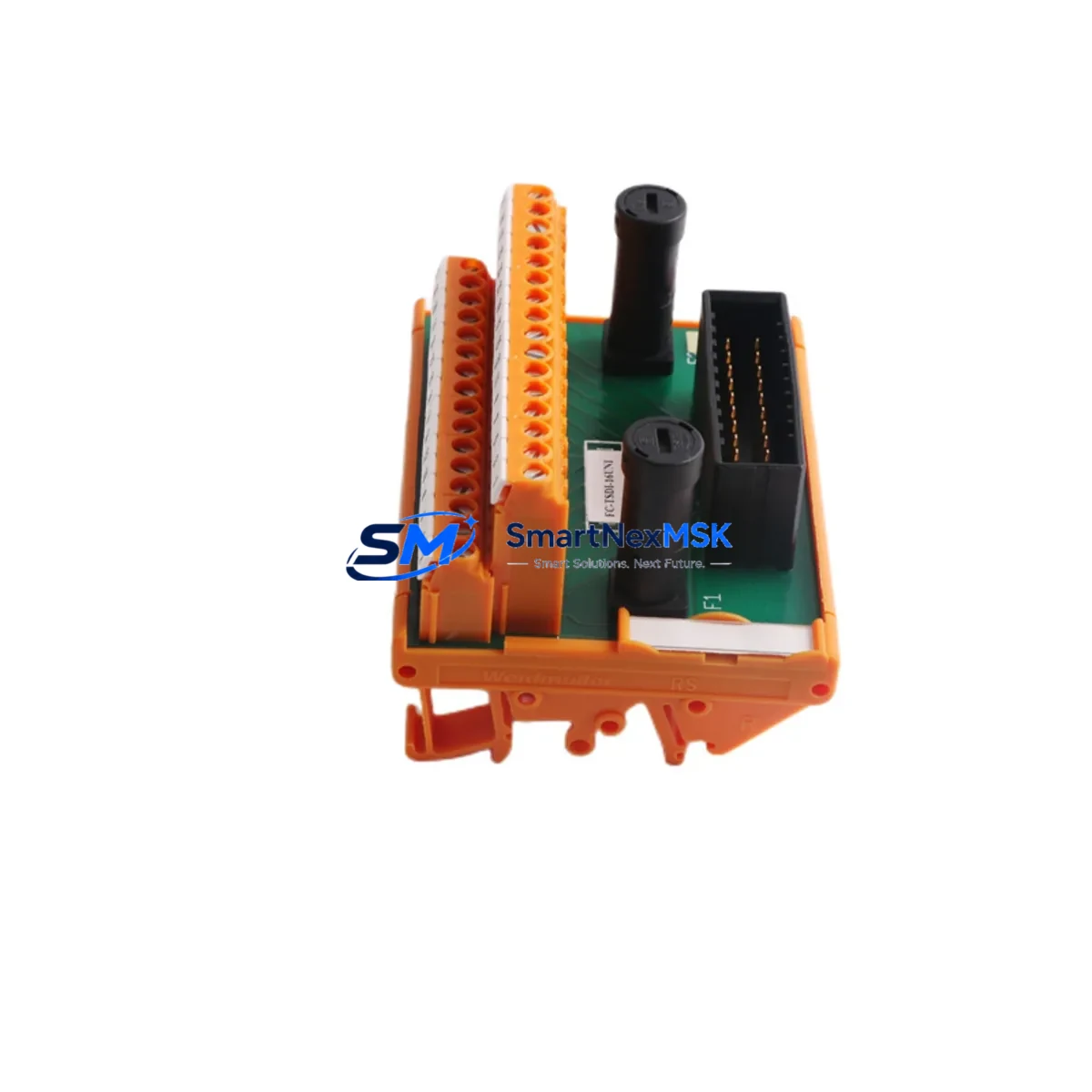

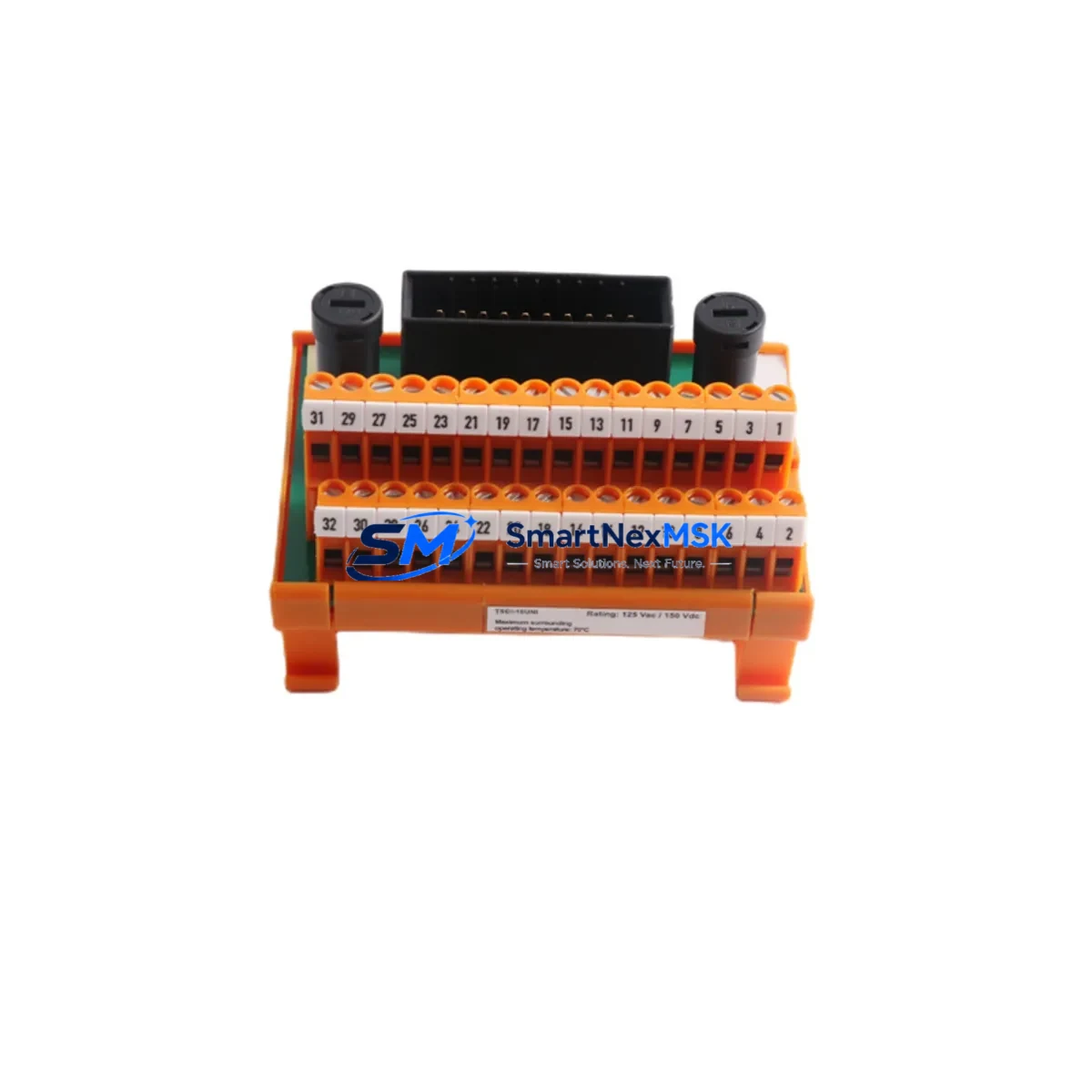

The Honeywell FC-TSDI-16UNI is a 16-Channel Universal Safe Digital Input Field Termination Assembly (FTA) engineered for the Honeywell Safety Manager Safety Instrumented System (SIS) platform. As legacy SIS installations age and OEM support windows close, the FC-TSDI-16UNI has become one of the most sought-after retrofit components for plants seeking a direct, validated replacement that preserves existing wiring infrastructure, maintains SIL certification compliance, and eliminates the need for full cabinet redesign.

Whether you are replacing a failed unit on an operating safety loop, upgrading a brownfield DCS/SIS hybrid architecture, or executing a planned turnaround modernization, the FC-TSDI-16UNI delivers a proven drop-in solution with full compatibility across the Safety Manager cabinet backplane. Its universal input configuration supports both NAMUR and dry-contact field devices, reducing the need for additional signal conditioning modules during migration. Units ship from verified inventory stock with full functional testing completed, backed by a 12-month warranty from date of shipment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FC-TSDI-16UNI into an existing Safety Manager installation requires a structured pre-replacement audit. Begin by documenting the current rack layout, noting the slot position of the failed or end-of-life FTA alongside adjacent modules such as the FC-TSDO-0824 Safe Digital Output FTA and any installed FC-TAI-16UNI Analog Input FTA. Confirm that the Safety Manager SM Controller module firmware version supports the FC-TSDI-16UNI hardware revision you are installing — mismatched firmware can cause the module to report a configuration fault on first scan.

Power budget verification is a critical pre-installation step. The SM cabinet’s FC-PSU power supply module must have sufficient headroom to support the 24 VDC draw of the replacement FTA. In cabinets running near capacity — particularly those expanded with additional FC-SDIL-0800 Safe Digital Input Logic modules or supplementary I/O racks — a power audit using the SM System Configurator tool is mandatory before proceeding. Overloaded power rails are a leading cause of intermittent SIS faults during post-retrofit commissioning.

Terminal wiring on the FC-TSDI-16UNI follows the standard Honeywell Safety Manager field wiring convention. Each of the 16 input channels maps to a dedicated terminal pair on the FTA’s screw-terminal block. When replacing an in-service unit, photograph the existing wiring layout and cross-reference against the original loop drawings before disconnecting any field cables. For NAMUR-type sensors — common in gas detection and valve position feedback loops — verify that the NAMUR threshold settings in the Safety Manager Engineering Station configuration database match the new module’s default parameters. If your installation uses a Honeywell HC900 Hybrid Controller in a parallel supervisory role, ensure that the HC900’s Modbus polling list is updated to reflect any tag address changes introduced during the FTA swap.

If the retrofit is part of a broader migration from an older Honeywell FSC (Fail-Safe Controller) or TDC 3000 platform to the Safety Manager architecture, additional steps are required. The FSC used a different I/O addressing scheme, and channel-to-tag mappings must be rebuilt in the SM configuration. The FC-SDIL-0800 logic solver and associated FTAs will need to be re-addressed, and any Modbus RTU or HART communication links previously handled by FSC I/O modules must be re-mapped through the SM’s communication infrastructure — typically via a dedicated FC-ELNK-0001 Ethernet Link Module or equivalent gateway device. Programming cables and the SM Engineering Station laptop should be on-site before the migration window opens to avoid delays caused by tool availability.

HMI screen updates are frequently overlooked during FTA replacements. If your control room uses Honeywell Experion PKS or a third-party SCADA system, verify that the point database references for the 16 digital input channels remain consistent after the module swap. Tag name mismatches between the SM configuration and the HMI historian can cause alarm suppression or false trip indications during the post-replacement functional test. Update the Experion PKS server’s channel assignment table and perform a full point download before returning the safety loops to service.

Downtime Control During System Migration

Minimizing unplanned downtime during an FC-TSDI-16UNI replacement requires a disciplined change management approach. Where process conditions permit, schedule the swap during a planned maintenance window and use the Safety Manager’s bypass management function to place the affected safety loops in a controlled bypass state. Document each bypassed loop in the site’s Management of Change (MOC) system and ensure the field operator is aware of the temporary reduction in SIS protection coverage.

Before removing the existing FTA, export a full backup of the SM configuration database from the Safety Manager Engineering Station. This backup preserves the module address assignments, channel configurations, NAMUR thresholds, and SIL validation records — all of which are needed to restore the system to its certified state after the new FC-TSDI-16UNI is installed. If the replacement is being performed on a live system with redundant SM controllers, confirm that the standby controller is in a healthy state before initiating the swap on the primary rack. A failed standby controller combined with a primary rack FTA swap creates a single-point-of-failure condition that must be avoided in SIL 3 applications.

After physical installation, perform a channel-by-channel functional test using a calibrated loop simulator. Verify that each of the 16 input channels correctly reports open-circuit, short-circuit, and valid NAMUR signal states in the SM diagnostic display. Re-enable bypasses only after all 16 channels have passed the functional test and the SM controller has confirmed a clean module health status. Record the as-found and as-left test results in the site’s SIS maintenance log to maintain the SIL validation audit trail. All units supplied by SMARTNEXMSK undergo pre-shipment functional testing, reducing the risk of DOA failures and shortening on-site commissioning time.

Retrofit Support FAQ

Q1: Is the FC-TSDI-16UNI a direct drop-in replacement for older Honeywell Safety Manager SDI FTA variants?
A: Yes. The FC-TSDI-16UNI is designed as a form-fit-function replacement for earlier 16-channel safe digital input FTAs used in the Safety Manager platform. The backplane connector, terminal block layout, and SM bus interface are compatible with the standard SM cabinet rack. Always verify the hardware revision and firmware version of your SM Controller module to confirm full compatibility before installation.

Q2: What wiring changes are required when replacing a failed FTA with the FC-TSDI-16UNI?
A: In most cases, no wiring changes are required. The FC-TSDI-16UNI uses the same screw-terminal field wiring convention as its predecessors. Re-torque all terminal connections after reinstallation and verify continuity on each channel before re-enabling the safety loops. If the original FTA used a different terminal numbering scheme, consult the Honeywell Safety Manager FTA Wiring Guide for cross-reference. For installations migrating from the FSC platform, full terminal re-mapping is required.

Q3: How do I verify compatibility with my existing Safety Manager configuration after installation?
A: Use the Safety Manager Engineering Station to perform a hardware scan after installing the FC-TSDI-16UNI. The SM Controller should automatically detect the new module and confirm its address assignment. Compare the detected configuration against the exported backup to verify that all 16 channel assignments, NAMUR thresholds, and SIL parameters are correctly restored. Any discrepancies must be resolved and documented before removing the bypass and returning the loops to service.

Q4: What does the 12-month warranty cover for the FC-TSDI-16UNI?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, commencing from the date of shipment. It includes a dead-on-arrival (DOA) exchange program for units that fail within the first 30 days. Warranty claims require the original order reference and a brief fault description. Units damaged by incorrect installation, overvoltage, or unauthorized modification are excluded from warranty coverage. Contact our sales team to initiate a warranty claim or request a pre-shipment test report.
