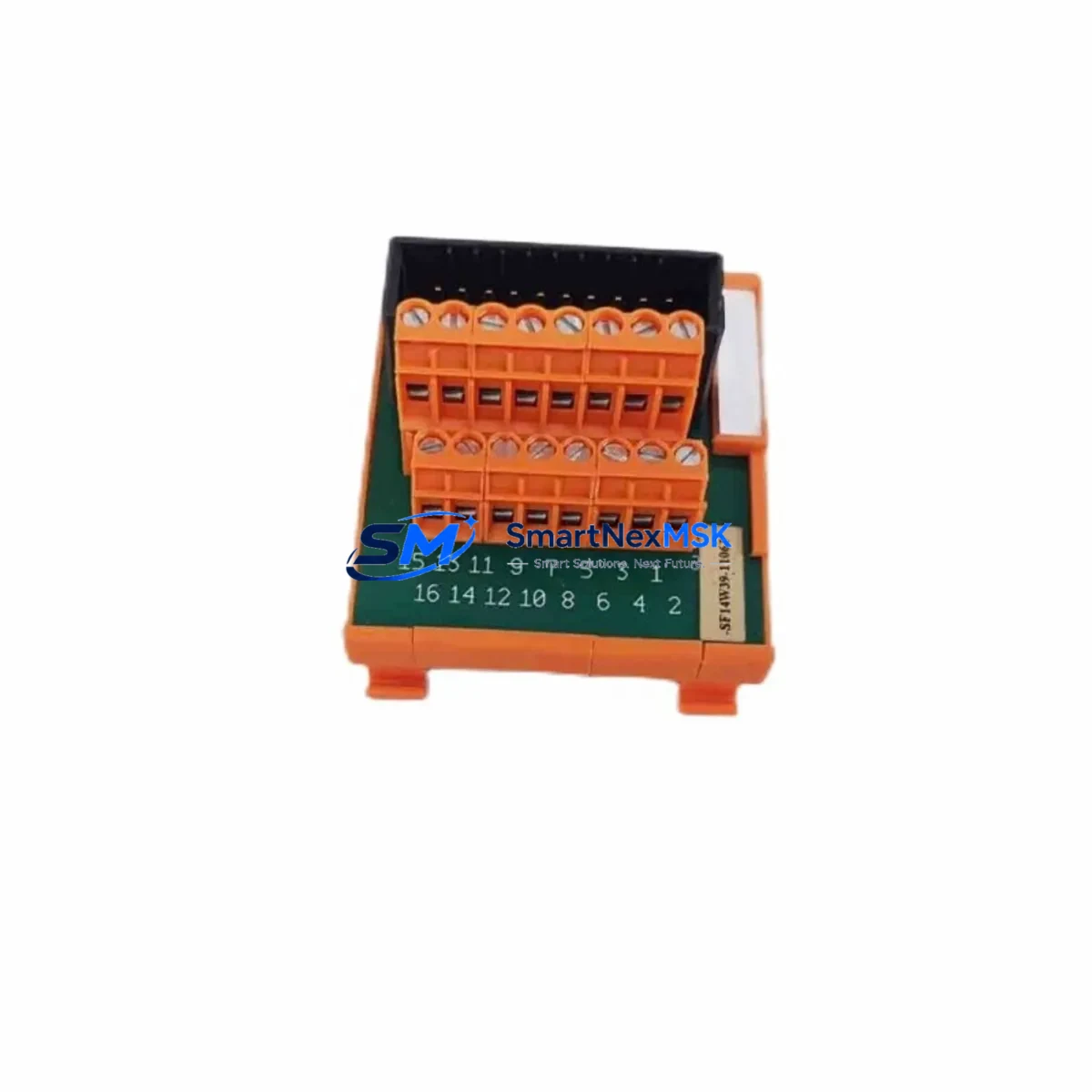

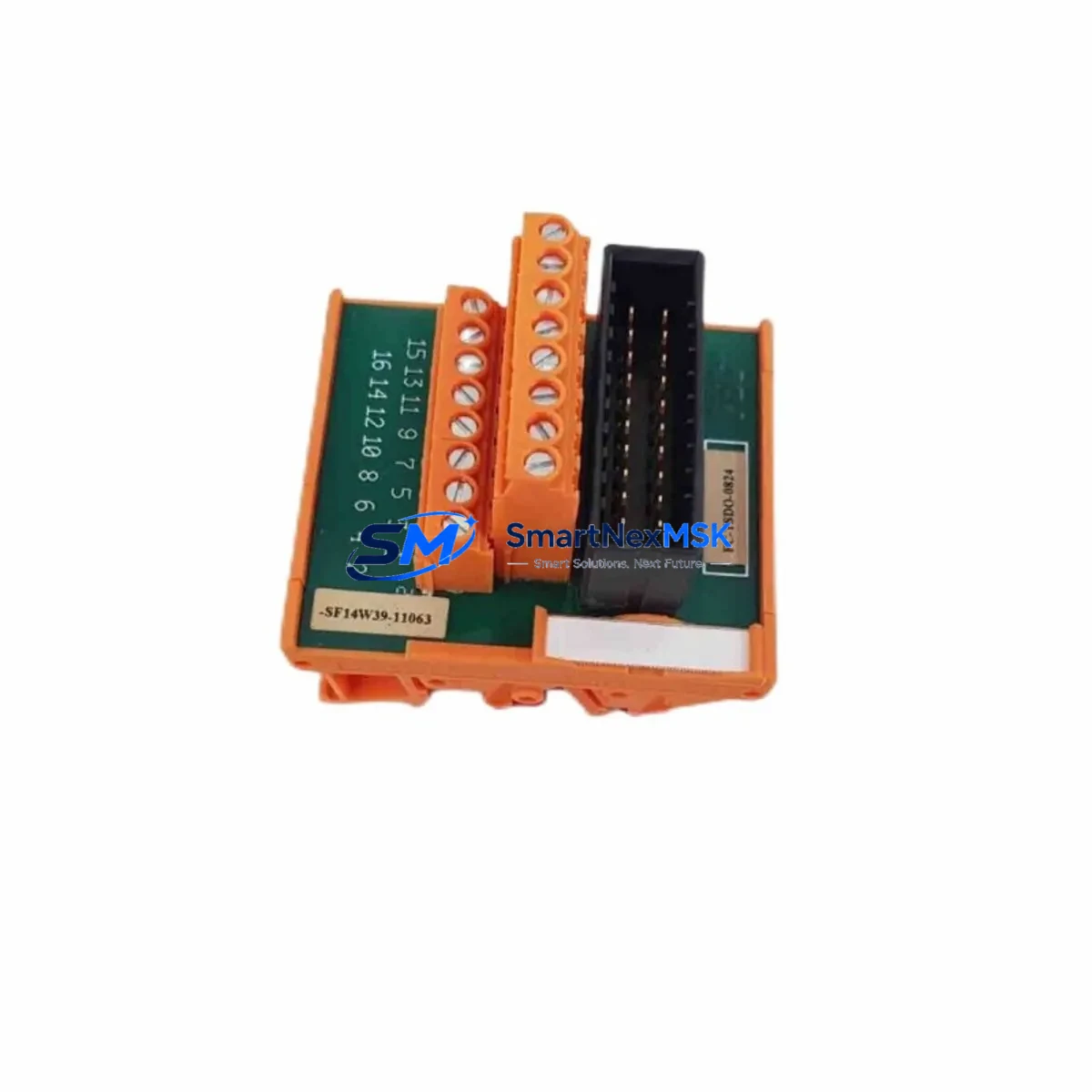

Honeywell FC-TSDO-0824 Safety Digital Output Module

Honeywell FC-TSDO-0824 Safety Digital Output Module: Safety Control & Harsh-Site Reliability

The Honeywell FC-TSDO-0824 is an 8-channel, 24 VDC Safety Digital Output Module engineered for the Honeywell Safety Manager platform — one of the most widely deployed safety instrumented systems (SIS) in high-hazard process industries. Designed to IEC 61508 SIL 2 requirements, this module delivers deterministic, fail-safe digital output switching in environments where control interruption, signal drift, or module mis-operation can trigger catastrophic consequences. Whether installed in a petrochemical emergency shutdown panel, a power plant turbine protection cabinet, or a mining ventilation safety loop, the FC-TSDO-0824 provides the output integrity that critical interlock circuits demand.

Built for continuous operation in harsh industrial sites, the FC-TSDO-0824 tolerates wide temperature swings, high-humidity atmospheres, and the electromagnetic interference common in heavy industrial control rooms. Its ruggedized PCB design and conformal coating protect against airborne contaminants, corrosive gases, and vibration — conditions routinely encountered in metallurgical plants, offshore platforms, and port automation facilities. The module’s internal diagnostics continuously monitor output channel health, detecting open-load faults, short circuits, and supply anomalies before they propagate into a safety loop failure.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered safety instrumented system, the FC-TSDO-0824 never operates in isolation. It functions as the final output stage of a layered protection architecture that begins at the sensor level and terminates at the field actuator. Within the same Safety Manager chassis, the Honeywell FC-TSDI-1624 safe digital input module collects field device status signals — emergency stop buttons, valve position switches, and pressure switch contacts — and passes validated logic states to the safety CPU. The Honeywell FC-CPU0 or FC-CPU2 safety processor executes the IEC 61131-3 safety logic and commands the FC-TSDO-0824 to energize or de-energize output channels with deterministic timing.

Power integrity is equally critical. The FC-TSDO-0824 relies on a stable, filtered 24 VDC bus. Pairing it with a Honeywell SM-PS24VDC redundant power supply module — or an equivalent DIN-rail mounted 24 VDC SITOP PSU100S from the same cabinet — ensures that voltage sags, micro-interruptions, and upstream grid disturbances do not reach the safety output stage. For installations in areas with significant surge exposure, a dedicated Phoenix Contact TRABTECH surge protection device on the 24 VDC rail upstream of the chassis provides an additional layer of transient suppression.

Communication between the Safety Manager and the plant DCS — typically a Honeywell Experion PKS or a third-party SCADA — passes through a dedicated safety network interface. The Honeywell FC-ELNK Ethernet link module handles this boundary, isolating the safety bus from the process control network and preventing communication anomalies on the DCS side from affecting safety logic execution. In facilities where the Safety Manager coexists with a Honeywell HC900 hybrid controller for non-safety regulatory loops, proper network segmentation ensures that HC900 Modbus or Ethernet traffic does not interfere with Safety Manager scan cycles.

For field wiring protection, marshalling cabinets adjacent to the Safety Manager chassis typically incorporate MTL or Pepperl+Fuchs zener barrier or galvanic isolator assemblies on intrinsically safe circuits, preventing fault currents from hazardous-area field devices from reaching the FC-TSDO-0824 output channels. Terminal blocks from the Phoenix Contact PTFIX or Weidmüller Klippon series provide reliable, vibration-resistant field terminations that maintain contact integrity over years of thermal cycling.

Critical Industrial Safety Applications

Petrochemical & Refinery Emergency Shutdown (ESD): In crude distillation units and hydrocracker complexes, the FC-TSDO-0824 drives solenoid valve actuators on high-integrity pressure protection systems (HIPPS). When the safety CPU detects an overpressure condition via redundant pressure transmitters, the module de-energizes the solenoid output within the required SIL 2 response time, closing the isolation valve before a rupture event. Its open-load diagnostic immediately flags a broken solenoid coil wire during proof testing, reducing the probability of dangerous undetected failure (PFDavg).

Power Generation — Turbine & Boiler Protection: Gas turbine and steam turbine protection systems require output modules that respond to trip commands without hesitation. The FC-TSDO-0824’s solid-state outputs eliminate the contact bounce and mechanical wear associated with relay-based output modules, making it the preferred choice for turbine trip solenoids, fuel shutoff valves, and flame safeguard circuits in combined-cycle power plants.

Mining — Ventilation & Winder Safety: Underground mining operations depend on fail-safe ventilation control and hoist winder interlocks. The FC-TSDO-0824 controls fan starter contactors and winder brake release solenoids within safety loops that must respond correctly even after extended standby periods. Its wide operating temperature range accommodates the thermal extremes of surface control rooms in arctic or desert mining environments.

Water & Wastewater Treatment: In large municipal water treatment facilities, the module controls chlorination dosing pump shutoffs and high-level overflow prevention valves. The continuous self-diagnostics reduce the need for frequent manual proof tests, lowering maintenance burden while maintaining the required SIL 2 average probability of failure on demand.

Metallurgy & Steel Production: Electric arc furnace (EAF) and continuous casting lines generate extreme electromagnetic interference from high-current bus bars and thyristor drives. The FC-TSDO-0824’s EMC-hardened design maintains output signal integrity in these environments, reliably controlling electrode lift mechanisms, ladle transfer interlocks, and cooling water emergency shutoffs.

Port & Terminal Automation: Ship-to-shore crane safety systems and automated stacking crane (ASC) emergency stop circuits require output modules that can withstand coastal humidity, salt-laden air, and the vibration of heavy crane structures. The FC-TSDO-0824’s conformal coating and robust connector design make it suitable for these demanding port automation safety applications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformances under normal operating conditions. If the FC-TSDO-0824 fails to perform its specified safe digital output function within the warranty period, we will repair or replace the unit at no charge. Warranty claims are processed within 5 business days of receipt of the returned module.

Q2: What pre-shipment testing is performed on each unit?
Every FC-TSDO-0824 unit undergoes a full functional test prior to shipment: all 8 output channels are individually energized and verified, supply voltage range compliance is confirmed, and diagnostic response to simulated open-load and short-circuit faults is validated. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request.

Q3: Is this module compatible with all Safety Manager chassis versions?
The FC-TSDO-0824 is designed for the Honeywell Safety Manager I/O chassis and is compatible with SM R100, R110, R120, and R130 system revisions. It supports hot-swap replacement without requiring a full system shutdown, enabling spare module exchange during scheduled maintenance windows. Always verify firmware compatibility with your Safety Manager CPU revision before installation.

Q4: Can long-term supply continuity be guaranteed for this part?
We maintain dedicated safety-system spare parts inventory for the FC-TSDO-0824 to support long-term plant maintenance programs. For facilities with multi-year maintenance contracts or critical spare requirements, we offer reserved stock arrangements and priority fulfillment agreements. Contact our sales team to discuss your site’s specific spare parts strategy and lead-time requirements.
