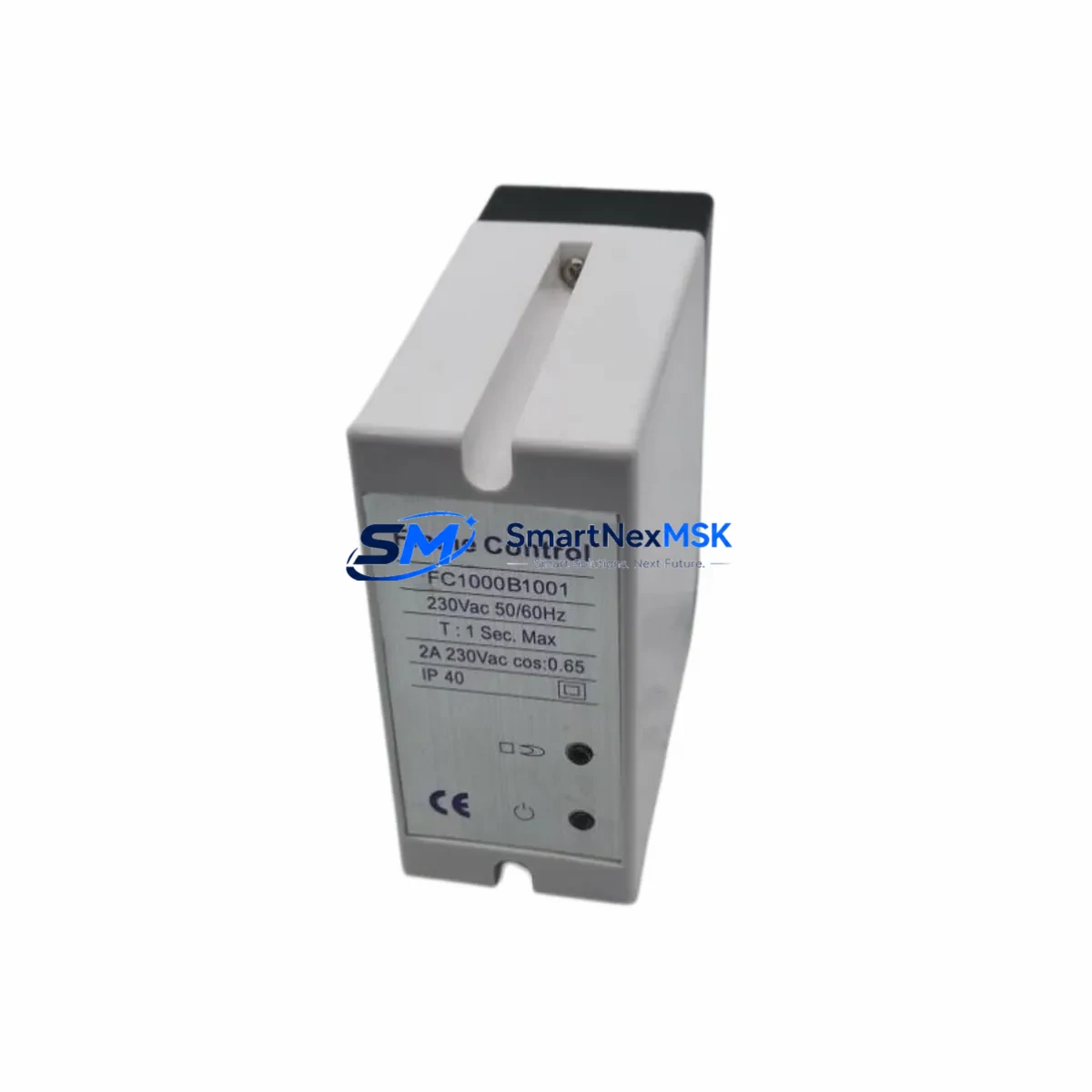

Honeywell FC1000B1001 Safety-Enhanced Combustion Controller

Honeywell FC1000B1001 Safety-Enhanced Combustion Controller: Reliable Control for Harsh Industrial Sites

The Honeywell FC1000B1001 is a safety-grade combustion controller engineered for continuous, high-reliability operation in the most demanding industrial environments. As part of Honeywell’s proven FC1000 Burner Management System (BMS) series, the FC1000B1001 delivers robust flame supervision, fuel valve interlock control, and burner sequencing logic that meets the stringent safety requirements of petrochemical plants, power generation facilities, metallurgical furnaces, and continuous process industries.

Designed to operate reliably under conditions of high electromagnetic interference, wide temperature fluctuations, vibration, and power supply instability, the FC1000B1001 provides the control loop integrity that safety engineers and plant operators depend on. Its hardened architecture minimizes the risk of control interruption, signal drift, spurious trips, and unplanned shutdowns — protecting both personnel and critical production assets.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the Honeywell FC1000B1001 serves as the central safety authority for combustion management. Its reliable operation depends on — and in turn protects — a coordinated ecosystem of control and power components. A properly configured burner management panel typically pairs the FC1000B1001 with a Honeywell RM7800L1018 Relay Module for expanded burner sequencing logic, and a Honeywell C7027A1023 UV Flame Detector or C7035A1023 IR Flame Detector for continuous flame presence verification.

Power quality is critical to BMS reliability. Voltage sags, surges, and transient spikes are among the leading causes of nuisance trips and module damage in combustion control systems. Integrating a Phoenix Contact QUINT-PS/1AC/24DC/10 power supply or equivalent industrial DIN-rail PSU with active buffer capability ensures the FC1000B1001 receives stable 24 VDC auxiliary power even during grid disturbances. Upstream surge protection devices — such as a Dehn DEHNguard DG M TNS 275 SPD — further shield the control cabinet from lightning-induced transients and switching surges that could compromise the BMS lockout relay or flame detector signal integrity.

For facilities operating under IEC 61511 functional safety requirements, the FC1000B1001 is typically integrated into a safety instrumented system (SIS) alongside a Honeywell Safety Manager SC or a Triconex Tricon CX controller acting as the SIL-rated logic solver. Field wiring from the FC1000B1001’s relay outputs to fuel shutoff valves — such as the Honeywell V4055A1023 Gas Valve — must be routed through appropriately rated cable trays with shielding to prevent induced interference from high-current motor drives or variable frequency drives (VFDs) operating in the same facility.

Communication health monitoring is equally important. In plants using Honeywell Experion PKS or similar DCS platforms, the FC1000B1001’s status signals are typically hardwired into a Honeywell HC900 Process Controller or marshalled through a remote I/O rack, enabling operators to monitor burner state, lockout conditions, and alarm history from the central control room. This architecture eliminates blind spots in combustion safety monitoring and supports rapid response to abnormal process conditions.

Critical Industrial Safety Applications

The Honeywell FC1000B1001 is deployed across a wide range of heavy industrial sectors where combustion safety is non-negotiable:

Petrochemical & Refining: In fired heaters, process furnaces, and flare pilots, the FC1000B1001 provides the flame supervision and fuel valve interlock logic required to prevent uncontrolled fuel release and explosion risk. Its fast flame-failure response (≤1 second) is essential in high-consequence areas where delayed shutdown could trigger catastrophic events.

Power Generation: Boiler burner management in coal, gas, and biomass power plants demands continuous, fault-tolerant combustion control. The FC1000B1001’s robust relay outputs and lockout logic ensure that ignition sequences and flame supervision operate correctly across thousands of start-stop cycles without degradation.

Metallurgy & Steel: Reheat furnaces, annealing lines, and ladle preheaters in steel mills operate in environments with extreme heat, vibration, and electromagnetic noise. The FC1000B1001’s hardened design maintains reliable burner control even under these punishing conditions, reducing the risk of unplanned furnace shutdowns that disrupt continuous casting or rolling operations.

Mining & Mineral Processing: Rotary kilns, dryers, and calcination furnaces in mining operations require dependable combustion controllers that can withstand dust, humidity, and temperature extremes. The FC1000B1001 provides the safety interlock reliability needed to protect both equipment and personnel in these remote, high-risk sites.

Water & Wastewater Treatment: Sludge incinerators and thermal oxidizers in water treatment facilities rely on precise combustion control to meet environmental emission standards. The FC1000B1001 ensures safe burner operation and automatic lockout in the event of flame failure, preventing incomplete combustion and associated regulatory violations.

Port & Terminal Operations: LNG and LPG terminal facilities require certified burner management for vaporizer systems and thermal oxidizers. The FC1000B1001’s proven safety architecture supports compliance with international terminal safety standards.

Safety and Quality FAQ

Q1: What warranty does the FC1000B1001 carry, and what does it cover?
The Honeywell FC1000B1001 supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If the unit fails within the warranty period due to a verified product defect, we provide replacement or repair at no additional cost. Warranty claims are supported by our technical team with documented failure analysis.

Q2: How is the FC1000B1001 tested before shipment?
Every FC1000B1001 unit undergoes 100% functional testing prior to dispatch. Our pre-shipment inspection protocol verifies power-up behavior, relay output continuity, flame detector input response, lockout relay operation, and reset function. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request.

Q3: Is the FC1000B1001 compatible with existing Honeywell BMS installations?
Yes. The FC1000B1001 is a direct replacement for compatible units within the Honeywell FC1000 series. It is designed to interface with standard Honeywell flame detectors (UV/IR/rectification types), Honeywell gas valves, and existing control cabinet wiring without requiring panel redesign. For cross-compatibility with specific detector models or valve types, our technical team can provide application guidance prior to purchase.

Q4: Can SMARTNEXMSK guarantee long-term supply and replacement support for the FC1000B1001?
Yes. SMARTNEXMSK maintains dedicated inventory of the FC1000B1001 and related Honeywell BMS components to support ongoing maintenance, planned replacement, and emergency spare requirements. We serve industrial clients with scheduled procurement programs and can provide lead-time commitments for volume orders. Our supply chain is structured to support continuous production environments where unplanned downtime is not acceptable.
