Honeywell FS-BLIND-COM Spare for FS Series Automation

Honeywell FS-BLIND-COM Spare for FS Series Automation: Spare Replacement & Industrial Downtime Risk Control

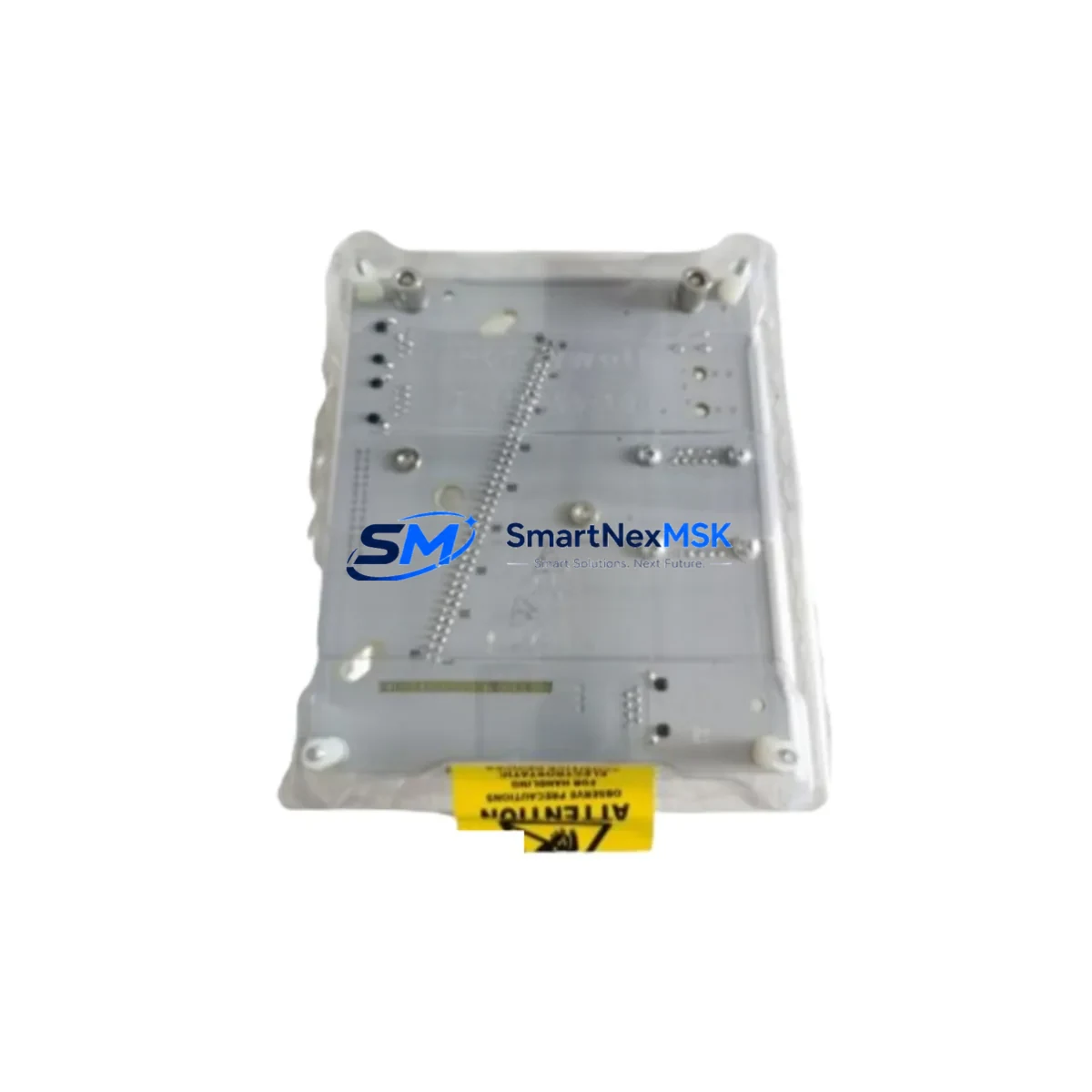

The Honeywell FS-BLIND-COM is an original Communication Slot Coverplate designed for the Honeywell FS Series fire and gas safety controller platform. In industrial facilities where continuous process monitoring is non-negotiable, this coverplate plays a critical role in maintaining the mechanical and electrical integrity of the FS Series controller chassis. When a communication slot is left exposed — due to a removed module, a failed card, or a planned system reconfiguration — the FS-BLIND-COM provides the necessary slot protection, preventing dust ingress, EMI interference, and accidental contact with live backplane connectors.

For maintenance engineers managing fire and gas detection systems in petrochemical plants, offshore platforms, LNG terminals, or large-scale manufacturing facilities, having the FS-BLIND-COM in your on-site spare parts inventory is a low-cost, high-value decision. A missing or damaged coverplate can compromise the IP rating of the controller enclosure, trigger nuisance alarms, or — in worst-case scenarios — contribute to a communication fault that takes a safety loop offline. Replacing it during a planned shutdown or routine cabinet inspection takes minutes; sourcing it during an emergency can take days.

This listing supplies the original Honeywell FS-BLIND-COM, not an aftermarket substitute. Each unit is inspected and tested prior to shipment, and is backed by a 12-month warranty. Fast global dispatch is available from our warehouse stock.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules a cabinet inspection or planned shutdown on an FS Series fire and gas system, the FS-BLIND-COM is rarely the only item on the checklist — but it is often overlooked until a slot is found exposed. A thorough inspection of the FS Series controller chassis should also include the following components to ensure system integrity and avoid cascading faults:

• FS-POWER (FS Series Power Supply Module) — Verify output voltage stability and check for capacitor aging or thermal discoloration. A degraded power supply is a leading cause of intermittent communication faults.
• FS-AI (Analog Input Module) — Inspect terminal connections for corrosion or loose wiring, particularly on 4–20 mA gas detector loops. Confirm signal scaling and zero/span calibration records are current.
• FS-DI / FS-DO (Digital Input / Output Modules) — Test relay contact resistance and verify that all field wiring terminations are torqued to specification. Relay contacts in high-cycle applications should be checked for wear.
• FS-COM (Communication Module) — If a communication module has been removed and the slot covered with FS-BLIND-COM, confirm that the system configuration reflects the module removal and that no active Modbus, HART, or Profibus polling is still directed to that slot address.
• FS-CPU (Central Processing Unit / Controller Card) — Review firmware version and confirm compatibility with any recently replaced I/O modules. Back up the current configuration before any module swap.
• Terminal Blocks and DIN Rail Assemblies — Inspect all field-side terminal blocks for loose conductors, especially on vibration-prone installations. Replace any discolored or cracked terminal housings.
• Signal Isolators and Zener Barriers — For intrinsically safe loops feeding the FS Series AI modules, verify that associated apparatus (Zener barriers or galvanic isolators) are within calibration and that entity parameters remain within approved limits.
• 24 VDC Distribution Fuses and MCBs — Check fuse continuity and MCB trip ratings against the current load schedule. Undersized or aging fuses are a common source of unexplained module resets.
• Backplane Connector Condition — Before reinstalling any module into a previously exposed slot, inspect the backplane connector pins for bent contacts or contamination. A damaged backplane connector can cause intermittent faults that are difficult to diagnose remotely.
• HMI / Operator Interface Panel — Confirm that the HMI communication link to the FS Series controller is active and that all alarm and status points are correctly mapped. An HMI that has lost its tag database after a controller firmware update is a common post-maintenance issue.

Stocking the FS-BLIND-COM alongside these components in your site spare parts kit ensures that a cabinet inspection can be completed without waiting for parts procurement — reducing planned maintenance windows and eliminating the risk of leaving a slot exposed between inspection and the next available delivery.

Site Replacement Workflow

Replacing a missing or damaged communication slot coverplate on an FS Series controller is a straightforward procedure, but it should be performed as part of a documented maintenance activity rather than an ad hoc fix. The recommended workflow is as follows:

1. Isolate and document: Before opening the controller cabinet, confirm the system is in a safe state (inhibit mode or maintenance bypass as appropriate per site procedures). Photograph the existing slot configuration for reference.
2. Remove the damaged or missing coverplate: If a broken coverplate is in place, remove it carefully to avoid dropping debris onto the backplane. If the slot is open, inspect the backplane connector for contamination before proceeding.
3. Install the FS-BLIND-COM: Align the coverplate with the slot guides and secure it per the FS Series hardware installation guide. Confirm it is flush with adjacent modules and that the chassis IP rating is restored.
4. Inspect adjacent modules: Use this opportunity to check the locking mechanisms and front-panel indicators of all modules in the same chassis row.
5. Restore and verify: Return the system to normal operation, confirm all communication links are active, and update the maintenance log with the part number, date, and technician details.
6. Update spare parts inventory: Record the FS-BLIND-COM consumption and trigger a reorder if stock falls below your minimum holding level.

This workflow applies equally to legacy FS Series installations that are being life-extended beyond their original design life. For older systems where original Honeywell spare parts are becoming harder to source through standard distribution channels, maintaining a direct supply relationship with a specialist industrial spare parts supplier — with confirmed OEM stock and a 12-month warranty — is a key element of a long-term asset management strategy.

Spare Parts Support FAQ

Q1: Is the FS-BLIND-COM compatible with all FS Series controller chassis variants?
The FS-BLIND-COM is designed for the Honeywell FS Series communication slot positions and is compatible across the standard FS Series chassis form factors. If you are unsure whether your specific chassis revision is covered, please provide your chassis part number and we will confirm compatibility before shipment.

Q2: How is the FS-BLIND-COM tested before shipment?
Each unit undergoes a visual inspection and dimensional check to confirm it meets OEM specifications. We do not ship parts that show signs of physical damage, deformation, or contamination. A certificate of conformance is available on request.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and material failures under normal operating conditions. It does not cover damage resulting from incorrect installation, electrical overstress, or use outside the specified environmental parameters. Warranty claims are processed with a replacement unit dispatched upon confirmation of the defect.

Q4: Can I order multiple units for long-term spare parts inventory?
Yes. We support bulk orders for MRO and spare parts stocking programs. Volume pricing is available for orders of 5 units or more. We can also support scheduled delivery agreements for facilities that prefer to maintain a rolling spare parts inventory without holding large quantities on-site. Contact us to discuss your site’s requirements.
