Honeywell FS-TSDI-16UNI Safety-Enhanced Digital Input FTA

Honeywell FS-TSDI-16UNI Safety-Enhanced Digital Input FTA: Reliable Safety Control for Harsh Industrial Sites

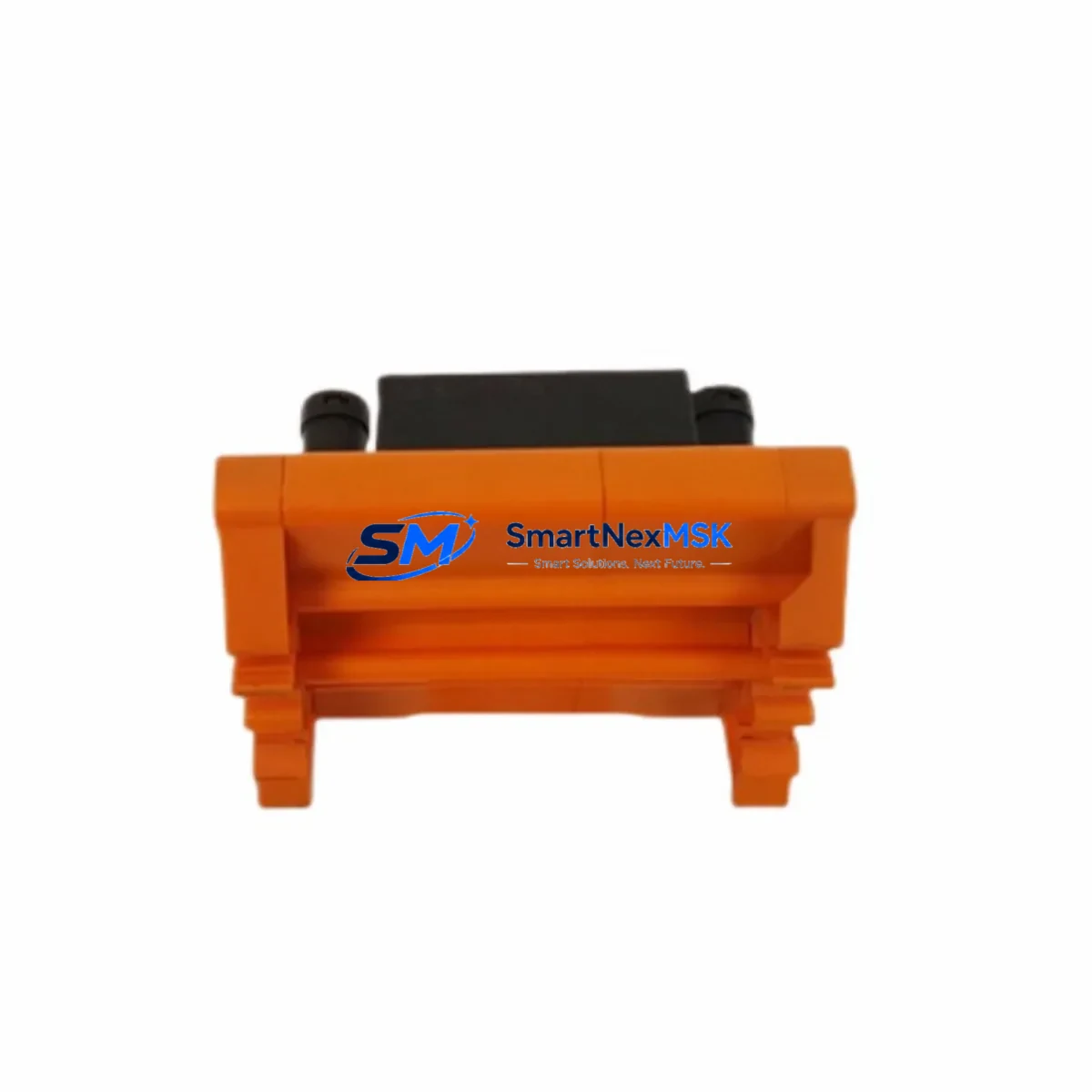

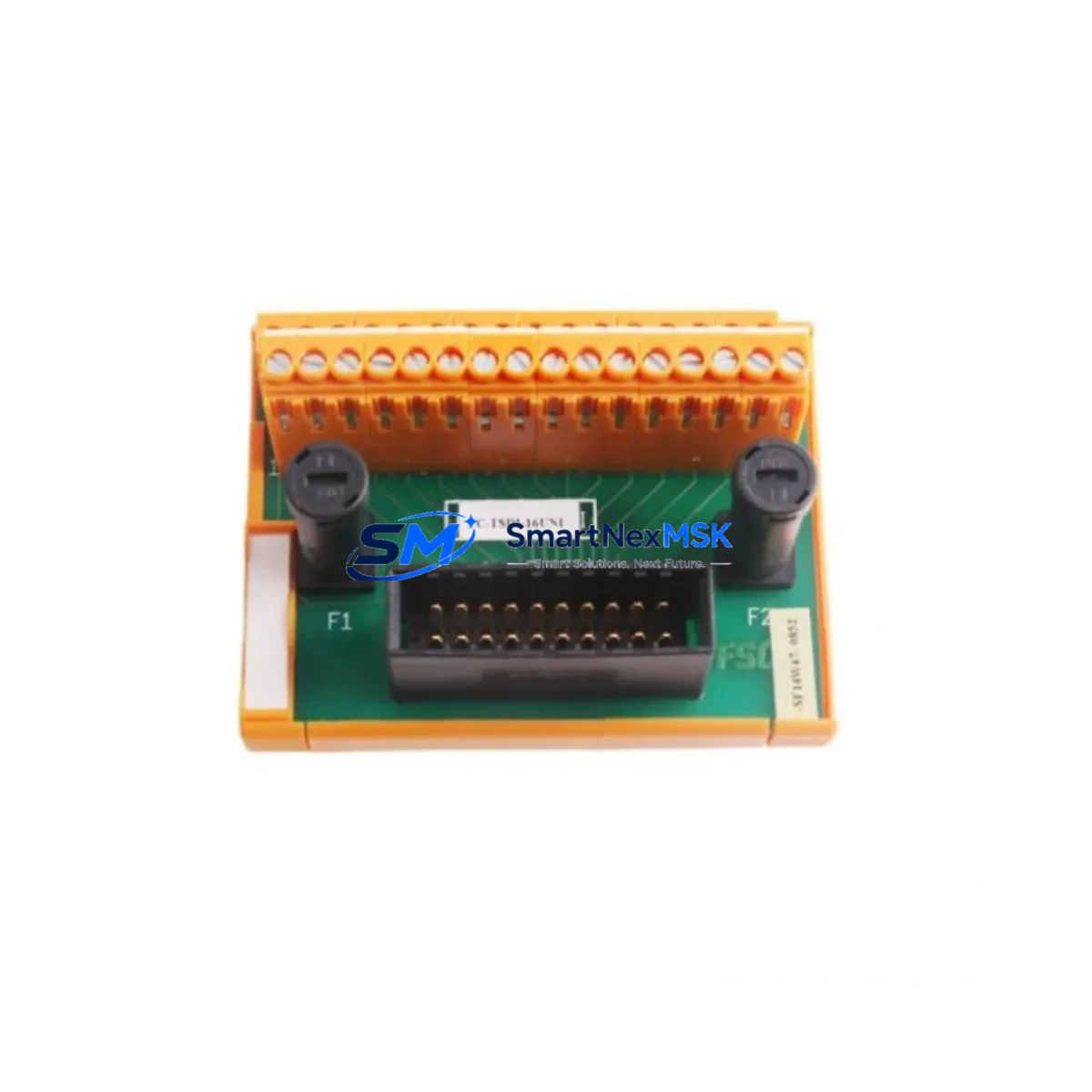

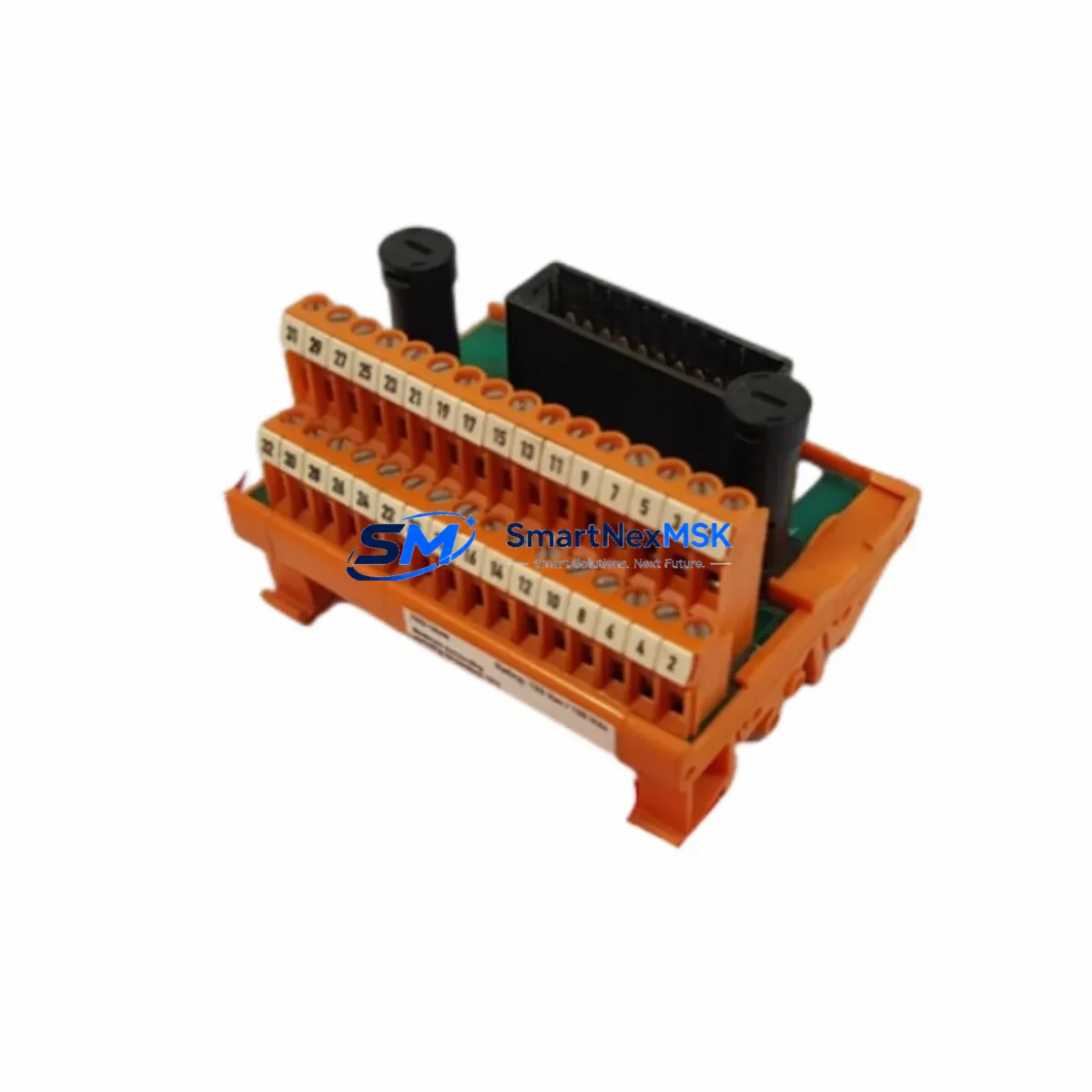

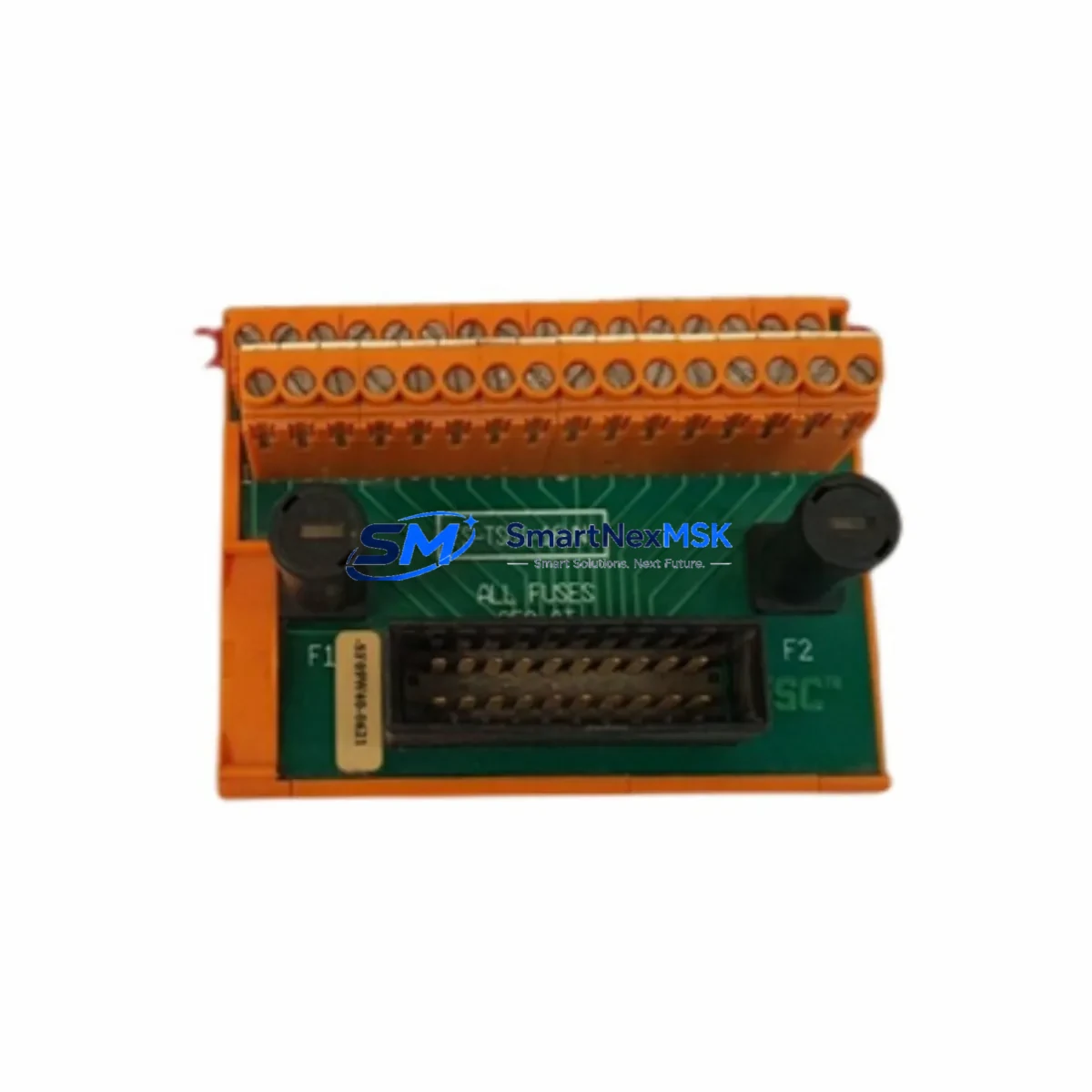

The Honeywell FS-TSDI-16UNI is a 16-channel universal digital input Field Termination Assembly (FTA) engineered specifically for the Honeywell Safety Manager SC safety instrumented system. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous manufacturing lines — this FTA serves as a critical interface between field-level sensors and the safety logic solver, ensuring that every digital input signal is accurately captured, conditioned, and delivered to the safety controller without interruption.

In high-stakes safety instrumented functions (SIF), the integrity of the digital input channel is non-negotiable. The FS-TSDI-16UNI is built to IEC 61508 and IEC 61511 standards, supporting SIL 2 and SIL 3 loop architectures. Its universal input capability accommodates both dry contact and wet contact field devices — including emergency shutdown (ESD) pushbuttons, pressure switches, level switches, valve position feedback contacts, and fire and gas detector outputs — without requiring separate FTA variants for different signal types. This versatility dramatically reduces spare parts complexity and simplifies control cabinet wiring in safety-critical applications.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered safety instrumented system cabinet, the FS-TSDI-16UNI does not operate in isolation — it functions as part of a tightly integrated protection architecture. The FTA connects directly to the Honeywell FS-SDI-16UNI digital input module housed in the Safety Manager SC chassis, with the logic solver executing the safety function based on the conditioned field signals received through this FTA. To maintain signal integrity across the full input chain, the cabinet design typically incorporates the Honeywell FS-SCPU Safety Controller Processing Unit as the central logic engine, supported by redundant FS-PSD Power Supply Distribution modules that prevent power-related input dropouts from triggering spurious trips or masking genuine process faults.

Surge and transient events — common in heavy industrial environments near large motors, variable frequency drives, and high-voltage switchgear — are a leading cause of FTA channel degradation. The FS-TSDI-16UNI’s built-in surge suppression works in conjunction with external Phoenix Contact TRABTECH surge protection devices installed at the field cable entry points, forming a two-stage transient defense that protects both the FTA and the upstream safety module from voltage spikes that could cause input misreads or permanent hardware damage.

For applications requiring high-density field wiring, the FTA is typically paired with Honeywell FS-CABLE-FTA pre-wired cable assemblies, which eliminate field wiring errors and reduce commissioning time in safety-critical installations. In redundant safety architectures (1oo2 or 2oo3 voting), multiple FS-TSDI-16UNI assemblies are deployed in parallel, with the Honeywell FS-SCMB Safety Communication Module managing inter-module diagnostics and fault reporting to the DCS or plant safety network.

Power quality at the FTA level is maintained through the Honeywell FS-PSD-024 24VDC Power Supply Distribution unit, which provides regulated, filtered DC power to the FTA bus. In plants where power quality is a known issue — such as facilities with large inductive loads or frequent grid switching events — an additional Phoenix Contact QUINT UPS or equivalent uninterruptible power supply module is recommended upstream of the FTA power rail to bridge momentary supply interruptions without causing safety function dropout. Communication between the Safety Manager SC and the plant DCS (such as Honeywell Experion PKS or a third-party system) is handled via the FS-SCMB Modbus/PROFIBUS gateway module, ensuring that all digital input states captured by the FS-TSDI-16UNI are visible in real time on the operator workstation for continuous process monitoring and alarm management.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing facilities, the FS-TSDI-16UNI is deployed in emergency shutdown (ESD) systems to monitor high-pressure switches, flame detector contacts, and manual ESD station inputs. Its SIL 3 capability makes it suitable for the most critical safety loops, including reactor high-pressure trips and fired heater fuel gas shutoff interlocks, where a missed or delayed input signal could result in catastrophic consequences.

Power Generation: In thermal and combined-cycle power plants, the FTA interfaces with turbine protection systems, capturing vibration switch contacts, bearing temperature switch outputs, and lube oil pressure switch signals. The module’s high EMI immunity is essential in generator halls where strong electromagnetic fields from large alternators and bus bars can induce false signals in poorly shielded input circuits.

Mining & Mineral Processing: Underground and surface mining operations rely on the FS-TSDI-16UNI for conveyor belt safety interlock monitoring, including belt slip switches, pull-cord emergency stops, and chute blockage detectors. The module’s wide operating temperature range and robust surge protection ensure reliable operation in environments subject to dust, vibration, and frequent electrical transients from large crusher and mill drives.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the FTA in pump protection and chemical dosing safety systems, monitoring dry-run protection switches, high-level float switches, and valve open/close position feedback contacts. The module’s galvanic isolation prevents ground loop interference — a common problem in large water treatment plants with extensive buried cable networks.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting operations, the FS-TSDI-16UNI monitors cooling water flow switches, hydraulic pressure switches, and electrode position limit switches within the furnace safety interlock system. Its ability to handle both wet and dry contact inputs in a single universal FTA simplifies the mixed-signal environments typical of metallurgical control cabinets.

Safety and Quality FAQ

Q1: What warranty does SMARTNEXMSK provide for the FS-TSDI-16UNI?
All FS-TSDI-16UNI units supplied by SMARTNEXMSK carry a 12-month full functional warranty from the date of shipment. If the unit fails under normal operating conditions within the warranty period, we will repair or replace it at no charge. This warranty applies to both new and surplus-new units.

Q2: Is the FS-TSDI-16UNI tested before shipment?
Yes. Every unit undergoes a 100% functional pre-shipment test at our facility before dispatch. Testing verifies channel continuity, input signal conditioning, isolation integrity, and compatibility with the Safety Manager SC backplane interface. A test report is available upon request for critical safety applications.

Q3: Is the FS-TSDI-16UNI compatible with my existing Safety Manager SC system?
The FS-TSDI-16UNI is designed exclusively for the Honeywell Safety Manager SC (SMS) platform and is compatible with all current SMS chassis and FTA carrier configurations. It interfaces directly with the FS-SDI-16UNI digital input module. If you are unsure about compatibility with your specific system revision, please contact our technical team with your system part numbers before ordering.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
Yes. SMARTNEXMSK maintains dedicated stock of Safety Manager SC components, including the FS-TSDI-16UNI and related FTA assemblies, to support both planned maintenance and emergency replacement scenarios. We understand that safety system downtime is not an option in continuous process industries, and we offer expedited shipping for urgent requirements. Contact our sales team to discuss long-term supply agreements and consignment stock arrangements.
