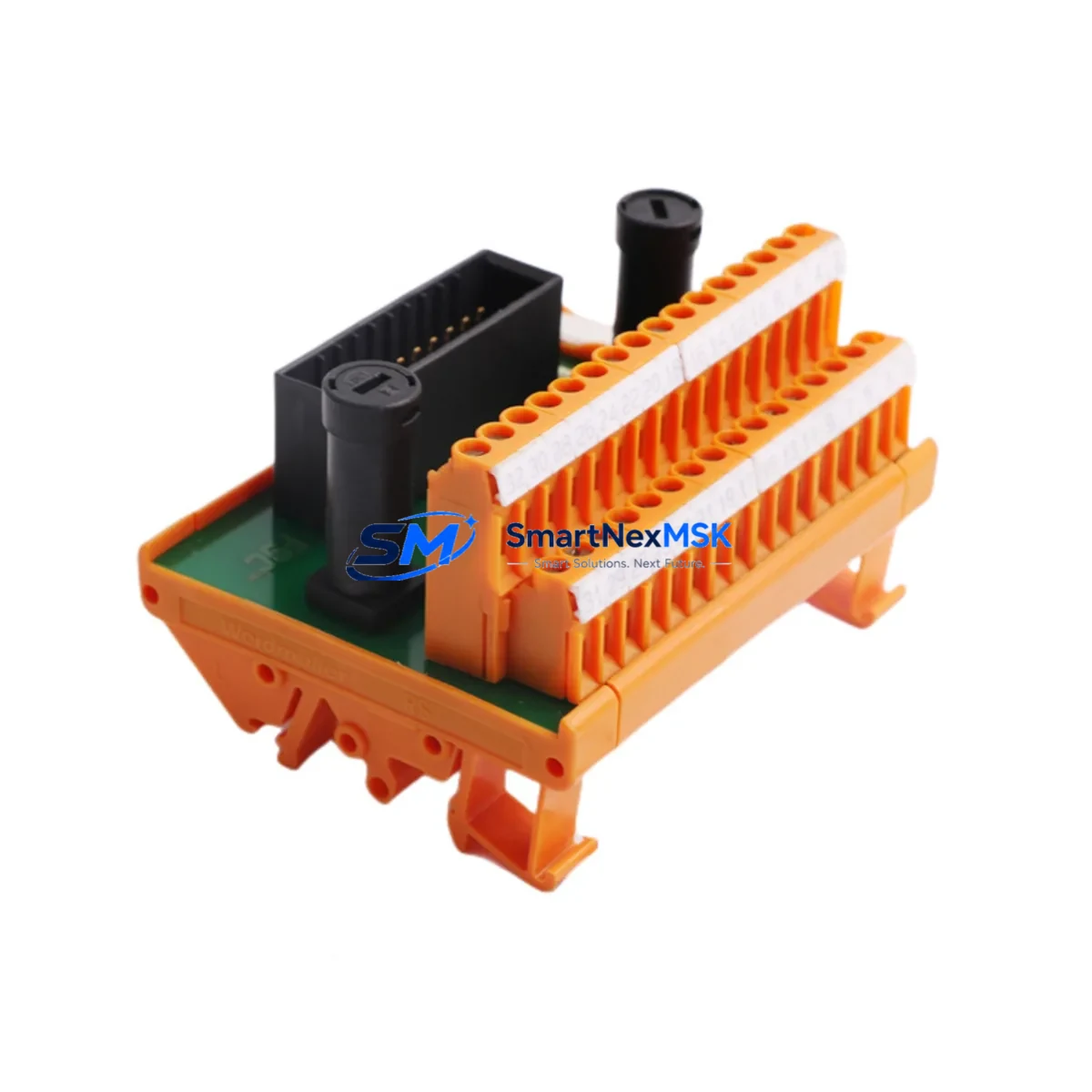

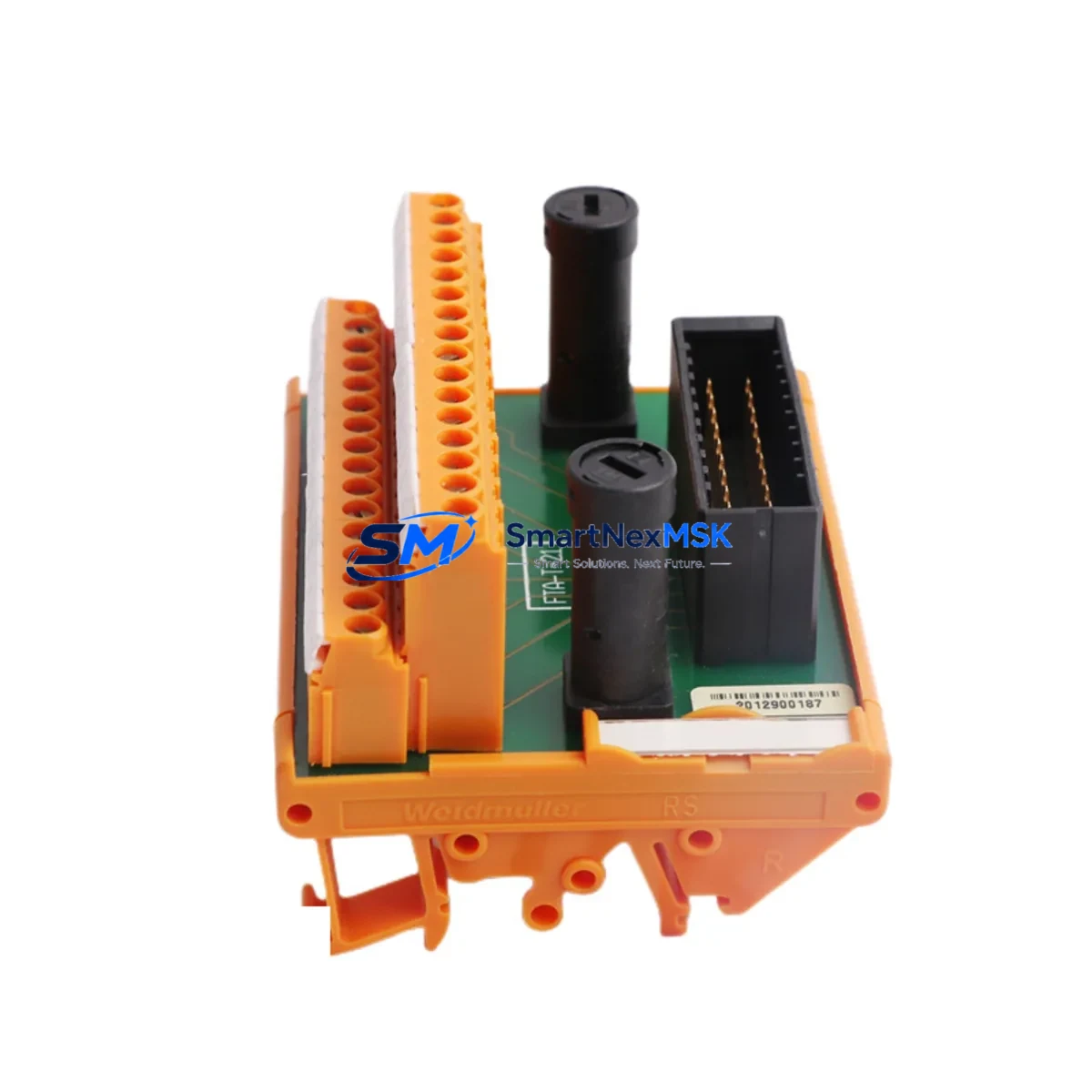

The Honeywell FTA-T-21 is an original field termination assembly designed for use within the Honeywell TotalPlant Solution (TPS) and PlantScape DCS control architecture. As a critical interface component between field instrumentation and the process control network, the FTA-T-21 provides reliable analog input signal conditioning and termination for continuous industrial processes. For maintenance engineers managing aging DCS infrastructure, holding a verified spare of the FTA-T-21 is a fundamental risk-reduction strategy — one that directly shortens mean time to repair (MTTR) and protects against unplanned production shutdowns.

Industrial facilities operating Honeywell TPS systems — including refineries, chemical plants, power generation units, and pulp and paper mills — depend on field termination assemblies to maintain signal integrity between transmitters, sensors, and the High-Performance Process Manager (HPM) or Advanced Process Manager (APM) controller cards. When an FTA-T-21 fails or degrades, the affected analog input channels go offline, triggering process alarms and potentially forcing a controlled shutdown of the associated loop. Having a tested, ready-to-install replacement on the shelf eliminates the lead time risk entirely.

Each FTA-T-21 unit shipped by SMARTNEXMSK is sourced from verified supply channels, individually inspected, and function-tested prior to dispatch. All units carry a 12-month warranty covering manufacturing defects and functional performance. Fast international shipping is available, with most orders processed within 1–2 business days.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the FTA-T-21 in a live TPS system is rarely an isolated task. Experienced maintenance engineers treat every FTA replacement as an opportunity to audit the surrounding electrical and signal infrastructure. During the same maintenance window, the following components should be inspected or proactively replaced to prevent repeat failures and maximize the value of the planned outage:

• HPM / APM Analog Input Cards — Verify that the corresponding I/O card (e.g., Honeywell MC-TAIH02 or MC-TAIX02) shows no channel faults or calibration drift. A degraded FTA can mask underlying card issues.
• Marshalling Cabinet Terminal Blocks — Inspect all field-side terminal blocks (Phoenix Contact or equivalent) for corrosion, loose screws, and insulation breakdown. Retorque to manufacturer specification.
• Field Cable Shielding and Grounding — Confirm that cable shields are grounded at one end only (typically the cabinet side) to prevent ground loops that introduce noise on 4–20 mA loops.
• Power Supply Modules — Check the 24 VDC loop power supply feeding the FTA rail. Units such as the Honeywell CC-PWR01 or equivalent DIN-rail PSU should be load-tested; a sagging supply voltage is a common root cause of intermittent FTA faults.
• Fuse Blocks and Circuit Protection — Replace any blown or aged fuses on the FTA power rail. Use the correct rating (typically 1 A fast-blow per channel group) and document replacements in the maintenance log.
• Signal Isolators / Barriers — If the process area is classified as hazardous (Zone 1 or Zone 2), inspect Zener barriers or galvanic isolators (e.g., MTL or P+F series) installed between the field device and the FTA. These components age and should be part of the same inspection cycle.
• Communication Modules (LCN / UCN) — While the FTA is offline, verify that the Local Control Network (LCN) or Universal Control Network (UCN) node serving the HPM chassis shows no communication errors. A node card fault can be misdiagnosed as an FTA issue.
• Relay Output Modules — For loops that drive relay outputs based on the analog input processed through the FTA-T-21, inspect the associated relay modules for contact wear and coil resistance.
• HMI Alarm Configuration — After reinstallation, verify that the Honeywell Station or equivalent HMI correctly reflects the restored channel status and that no spurious alarms remain latched in the historian.
• Backplane Connectors — Clean and inspect the FTA backplane connector pins for oxidation. Apply contact cleaner if necessary before seating the replacement FTA-T-21.

Procurement engineers should note that the FTA-T-21 is a long-lifecycle component but is subject to Honeywell’s product lifecycle management policy. Facilities still operating TPS systems should maintain a minimum stock of 2–3 units per critical process area to cover both emergency replacement and scheduled maintenance cycles without relying on spot-market availability.

Site Replacement Workflow

Replacing the FTA-T-21 on-site follows a structured procedure to minimize loop downtime and ensure system compatibility:

1. Pre-work verification: Confirm the replacement FTA-T-21 part number suffix matches the installed unit. Cross-reference the TPS system database or the cabinet wiring schedule to identify all channels served by this FTA.
2. Loop isolation: Place all affected control loops in manual mode at the DCS operator station. Notify the process operator and obtain a permit to work (PTW) if required by site safety procedures.
3. De-energize and label: Isolate the 24 VDC loop power to the FTA rail using the dedicated isolator or fuse block. Label all field cables before disconnection using the existing cable markers or apply new heat-shrink labels.
4. Remove and inspect: Disconnect field wiring from the terminal blocks. Remove the FTA-T-21 from the backplane. Inspect the backplane connector and cabinet interior for moisture, contamination, or heat damage.
5. Install replacement: Seat the new FTA-T-21 firmly onto the backplane. Reconnect field wiring in the correct terminal sequence per the wiring schedule. Restore loop power.
6. Functional test: Apply a known 4–20 mA signal (or simulate via HART communicator) to each channel. Verify correct engineering unit readback at the DCS operator station. Check for channel fault alarms.
7. Return to auto: Once all channels are verified, return control loops to automatic mode. Monitor for 15–30 minutes to confirm stable operation before closing the work order.
8. Documentation: Record the replacement in the CMMS (e.g., SAP PM or Maximo), including the old unit’s serial number, failure mode, and the new unit’s part number and installation date.

This workflow is compatible with both hot-standby and simplex HPM configurations. For redundant HPM systems, the replacement can often be performed without a full process shutdown by switching control to the standby controller — consult the site-specific TPS configuration documentation before proceeding.

Spare Parts Support FAQ

Q1: Is the FTA-T-21 still available as a new original part, or only as refurbished stock?
All FTA-T-21 units supplied by SMARTNEXMSK are original components sourced from verified supply channels. Each unit is individually tested for functional performance before shipment. We do not supply refurbished or repaired units unless explicitly requested and agreed upon in writing.

Q2: How do I confirm compatibility between the FTA-T-21 and my existing HPM I/O cards?
Compatibility is determined by the FTA model suffix and the corresponding I/O card type installed in the HPM or APM chassis. The FTA-T-21 is designed for thermocouple input applications within the TPS architecture. Cross-reference your TPS system database, the cabinet wiring schedule, or the Honeywell TPS I/O subsystem documentation. If you are unsure, provide your HPM card part number to our technical team and we will confirm compatibility before shipment.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, physical impact, or unauthorized modification. To initiate a warranty claim, contact [email protected] with the order number, a description of the fault, and photographic evidence. Replacement units are dispatched after fault verification, typically within 3–5 business days.

Q4: Can I order multiple units for long-term spare parts inventory, and is volume pricing available?
Yes. SMARTNEXMSK supports bulk spare parts procurement for facilities managing long-term TPS system lifecycle plans. Volume pricing is available for orders of 3 or more units. Contact our sales team at [email protected] or +86 18259474341 to request a quotation. We recommend facilities operating multiple HPM cabinets maintain a minimum of 2–3 FTA-T-21 units in their on-site spare parts store to eliminate lead-time risk during unplanned outages.
