Honeywell MC-PDOY23 Spare for Experion PKS Automation

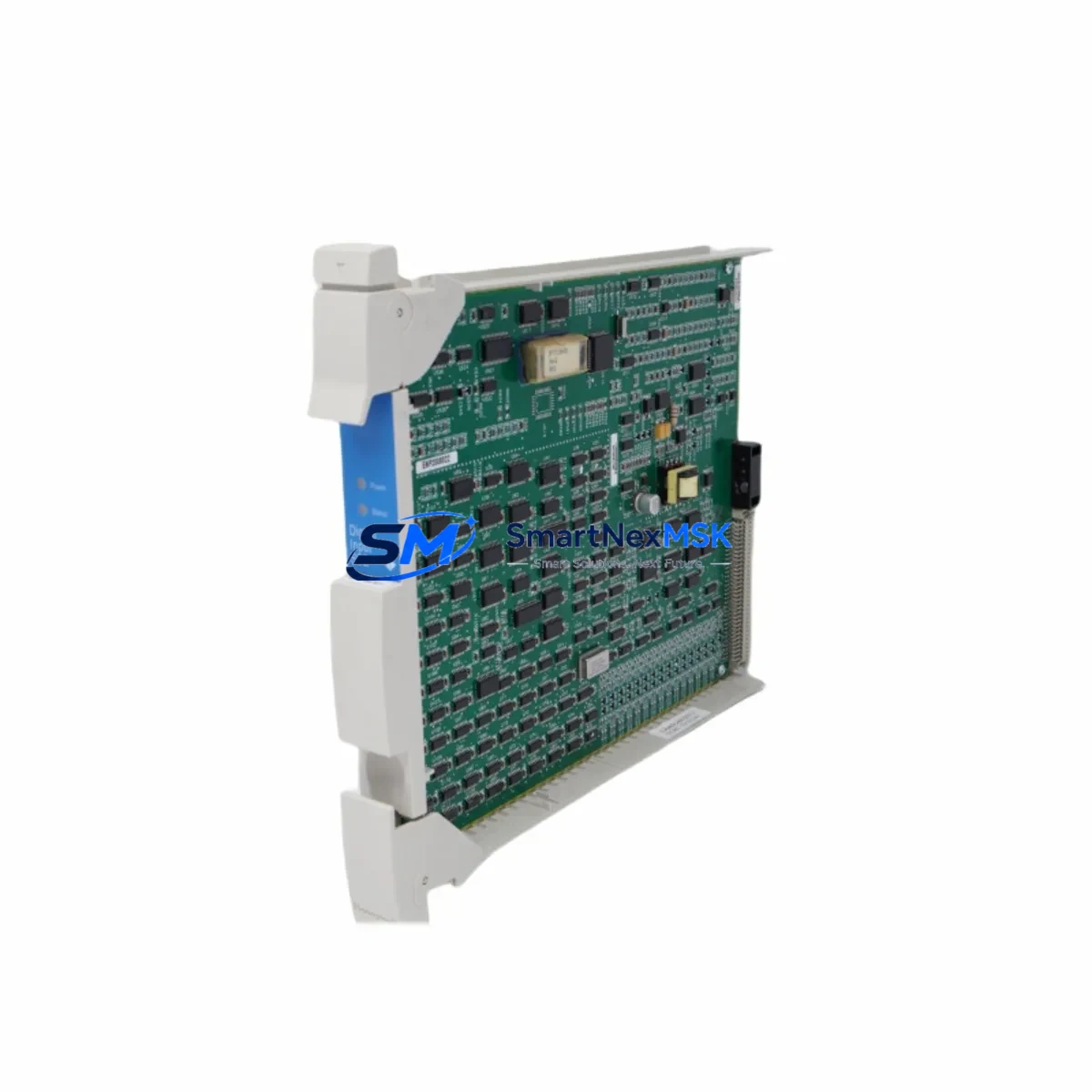

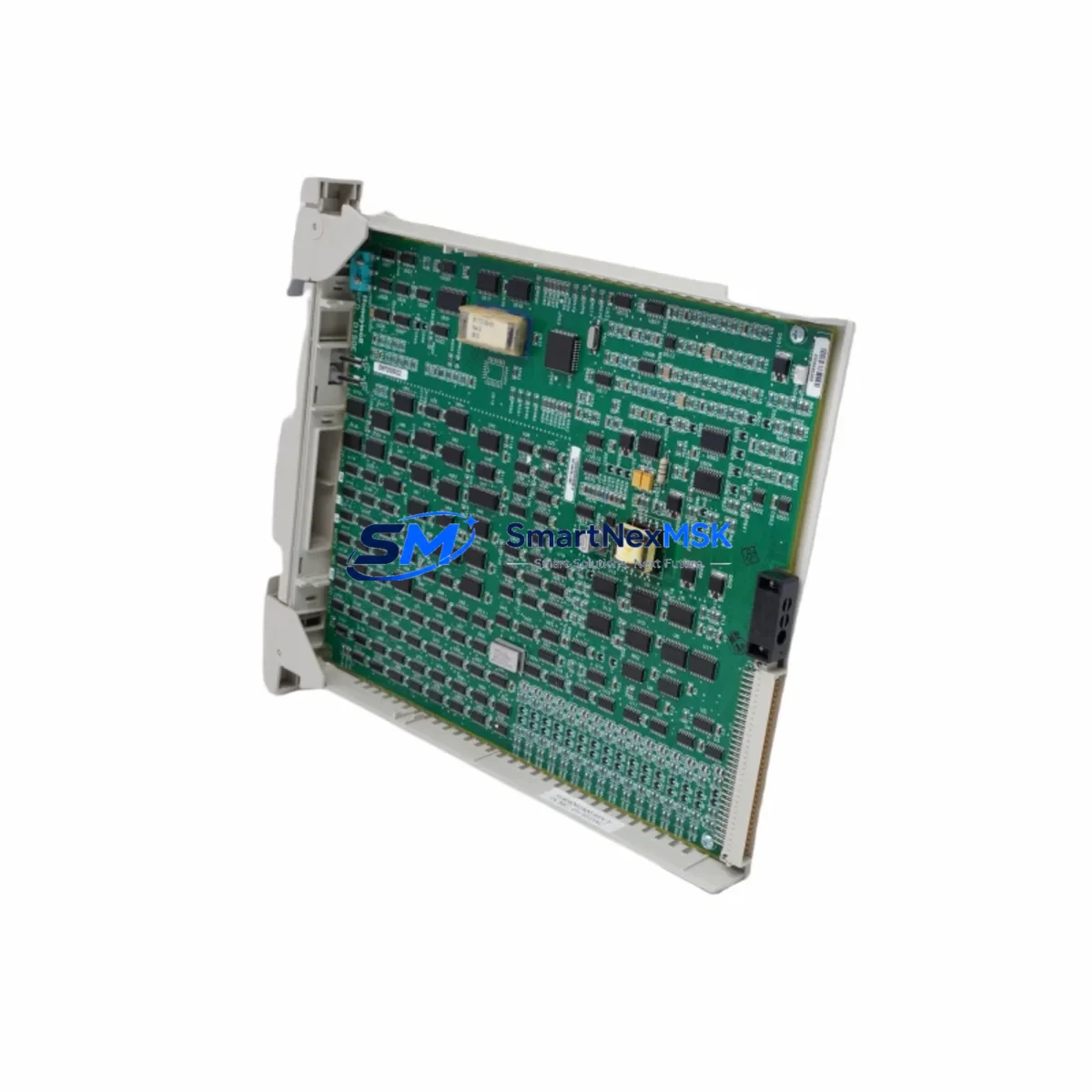

The Honeywell MC-PDOY23 is a 24-channel digital output relay module designed for the Experion PKS distributed control system. As a maintenance-ready spare, it enables rapid field replacement to minimize unplanned downtime in continuous process environments including oil & gas, petrochemical, power generation, and advanced manufacturing. Sourced as an original Honeywell component, each MC-PDOY23 unit is inspected and function-tested prior to shipment, backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.
For maintenance engineers managing aging Experion PKS installations, having a verified MC-PDOY23 spare on the shelf is a critical element of any proactive downtime-reduction strategy. The module interfaces directly with the C300 Controller and IOTA carrier assembly, providing relay-isolated digital outputs for field device actuation — including solenoid valves, motor starters, and alarm annunciators. Its relay isolation architecture makes it particularly valuable in environments where electrical noise, ground loops, or high-inrush loads are present.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Model | MC-PDOY23 |
| Brand | Honeywell |
| Series | Experion PKS |
| Module Type | Digital Output — Relay Isolated |
| Output Channels | 24 channels |
| Output Voltage Range | 5–250 V AC/DC |
| Output Current (per channel) | 2 A max |
| Isolation | Relay contact isolation per channel |
| Compatible Controller | C300 Process Controller |
| Carrier / IOTA | MC-TAOY22 or equivalent IOTA |
| Communication Bus | FTE (Fault Tolerant Ethernet) via C300 |
| Operating Temperature | 0°C to 60°C |
| Mounting | DIN rail via IOTA carrier |
| Certifications | CE, UL, FM (Class I Div 2) |
| Condition | Original, tested before shipment |
| Warranty | 12 months from date of shipment |
| Delivery | Worldwide express shipping available |
Maintenance Planning for Continuous Operation
When replacing an MC-PDOY23 in the field, a thorough inspection of the surrounding control cabinet is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should begin by verifying the MC-TAOY22 IOTA carrier for signs of contact corrosion, bent pins, or heat damage — a faulty carrier is a common root cause of output module failures that goes undetected until the replacement module also fails.
The C300 Controller module should be checked for firmware version compatibility and active fault logs before the new MC-PDOY23 is inserted. If the C300 is running an older firmware revision, a coordinated update may be required to ensure full I/O map recognition. Alongside the controller, inspect the MC-PDOX02 power distribution module and associated 24 VDC field power supply for voltage stability — relay output modules are sensitive to supply ripple and undervoltage conditions that can cause intermittent contact chatter.
Field wiring terminations at the IOTA should be re-torqued and inspected for insulation breakdown, particularly in high-temperature or high-vibration environments. If the cabinet includes MC-TDIY22 digital input modules on the same I/O bus, verify that their status reads are consistent before and after the output module swap to confirm FTE bus integrity. For cabinets with MC-PAOY22 analog output modules in adjacent slots, check for cross-channel interference or shared power rail issues.
In systems where the MC-PDOY23 drives solenoid valves or motor starters, it is good practice to inspect the associated field terminal blocks and fuse holders — particularly 2A or 4A cartridge fuses protecting individual relay channels. Blown fuses are often the first indicator of a field-side short that caused the original module failure. Additionally, if the control system includes Honeywell Safety Manager or a separate SIS layer, confirm that the output module replacement does not affect any safety-instrumented function (SIF) loop status.
For older Experion PKS installations approaching end-of-support, consider stocking a minimum of two MC-PDOY23 units alongside one spare C300 Controller and one MC-TAOY22 IOTA as a baseline cabinet-level spare kit. This approach supports rapid mean-time-to-repair (MTTR) targets and reduces dependency on spot-market procurement during emergency shutdowns.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the failed module’s slot address in Experion Configuration Studio. Document all active output channel assignments and their current commanded states before initiating any hardware change.
Step 2 — Safe isolation: Place the affected output channels in manual override or safe state via the Experion operator station. Notify field operators of the planned output interruption. De-energize the IOTA carrier power feed if required by site safety procedures.
Step 3 — Module extraction: Release the MC-PDOY23 locking tab and slide the module out of the IOTA carrier. Inspect the carrier connector for damage. Do not force the module if resistance is felt — inspect for bent pins first.
Step 4 — Replacement insertion: Insert the new MC-PDOY23 into the same slot. The module is keyed and will only seat correctly in the correct orientation. Apply firm, even pressure until the locking tab engages.
Step 5 — System recognition and test: Restore power to the IOTA carrier. Monitor Experion for module recognition — the C300 should automatically download the I/O configuration to the new module within 60 seconds. Verify all 24 output channels report correct status in the operator display.
Step 6 — Functional verification: Perform a channel-by-channel output test in coordination with field personnel. Confirm relay contact closure and field device response for each active channel before returning the loop to automatic control.
This workflow is compatible with hot-swap replacement on most Experion PKS R400 and later releases, allowing module exchange without full controller restart. For R300 and earlier, a controller reload may be required — consult the Experion PKS I/O Installation Guide for version-specific procedures.
Spare Parts Support FAQ
Q: Is the MC-PDOY23 compatible with all Experion PKS releases?
A: The MC-PDOY23 is compatible with Experion PKS R210 through R511 and later. For R400 and above, hot-swap replacement is supported without controller restart. For earlier releases, verify firmware compatibility with your C300 controller version before installation. We recommend confirming your system release with your DCS engineer prior to ordering.
Q: How is each unit tested before shipment?
A: Every MC-PDOY23 is powered up and subjected to a functional output test covering all 24 relay channels. Contact continuity, isolation resistance, and module communication handshake with a C300 simulator are verified. A test report is available upon request. Units that fail any test parameter are quarantined and not shipped.
Q: What is the recommended spare inventory strategy for this module?
A: For plants with 10 or more MC-PDOY23 modules installed, we recommend maintaining a minimum of 2 units as on-site cold spares. For critical process units with no redundancy on the output side, consider 1 hot-standby spare per control cabinet. Long-term supply agreements are available for customers requiring guaranteed annual replenishment.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, component failures, and operational faults under normal operating conditions as specified in the Honeywell MC-PDOY23 product datasheet. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days, with advance replacement available for critical applications.
