HONEYWELL MC-PHAI01 51403479-150 Maintenance-Ready Spare

HONEYWELL MC-PHAI01 51403479-150 Maintenance-Ready Spare for Experion PKS Automation

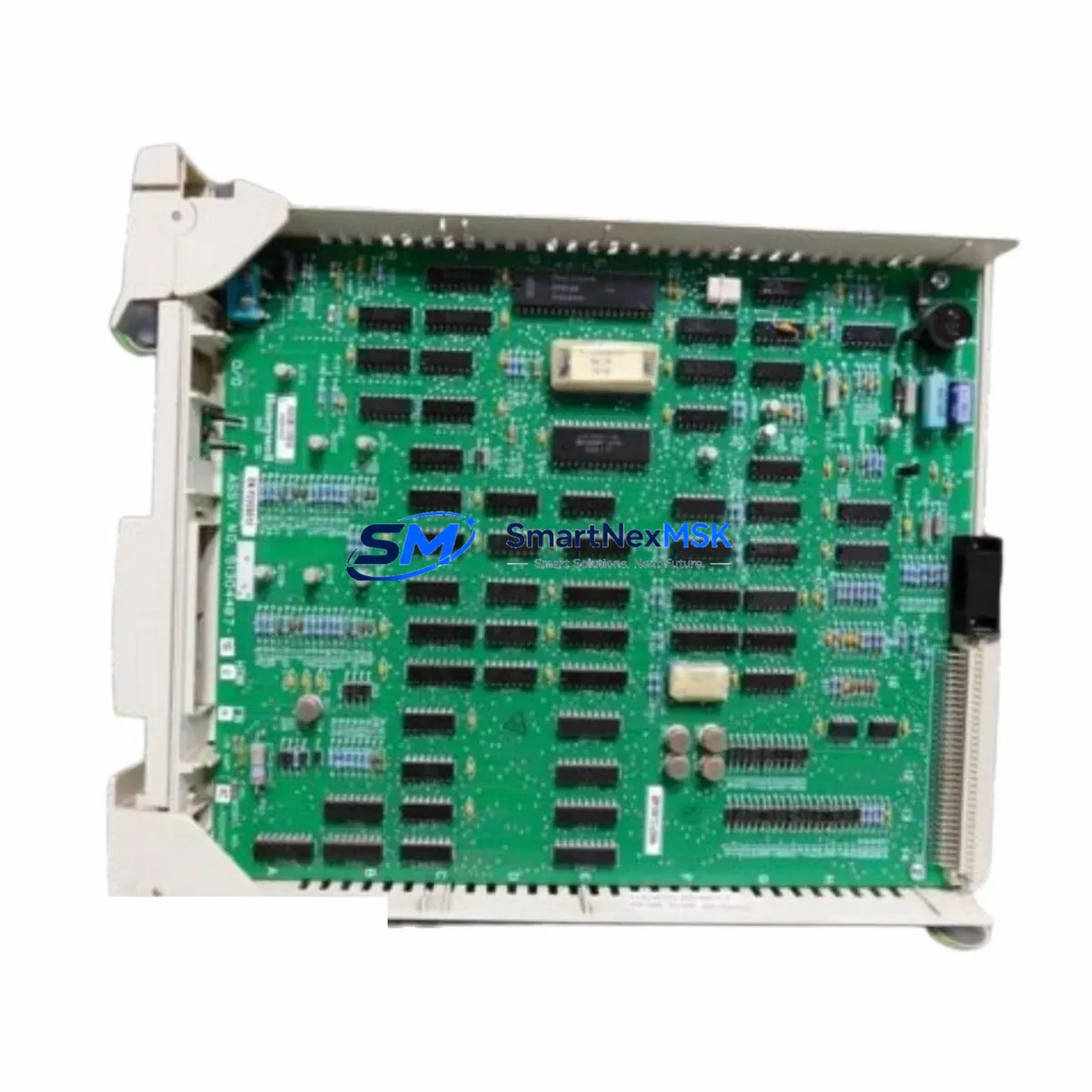

The HONEYWELL MC-PHAI01 (part number 51403479-150) is an original analog input module designed for the Honeywell Experion PKS distributed control system. In industrial facilities running continuous processes — refining, petrochemical, power generation, or advanced manufacturing — the MC-PHAI01 serves as a critical signal acquisition point between field instrumentation and the C200 or C300 controller. When this module fails or degrades, the result is immediate: loss of process visibility, spurious alarms, and unplanned downtime that can cost thousands of dollars per hour.

Stocking a verified original MC-PHAI01 51403479-150 as a maintenance spare is the single most effective step a reliability engineer can take to protect uptime in an Experion PKS environment. This listing provides a tested, original-specification replacement unit with a 12-month warranty, ready for same-day dispatch to minimize your mean time to repair (MTTR).

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the MC-PHAI01 51403479-150 in the field is rarely an isolated task. Experienced maintenance engineers know that a failed analog input module is often a symptom of broader issues in the same I/O cabinet or control loop. A disciplined replacement workflow should include inspection of the following components before returning the loop to service:

Begin with the IOTA carrier (MC-TAIX02) — the backplane interface that seats the MC-PHAI01. Corroded or damaged carrier contacts are a common root cause of intermittent channel faults. Next, verify the FTE network switch and cabling connecting the C200/C300 controller node to the I/O chassis; a degraded FTE link can cause the replacement module to report communication faults immediately after installation. Check the 24 VDC power supply module feeding the I/O chassis — Honeywell’s redundant power architecture means a single supply failure may go undetected until the backup is also stressed.

For field wiring, inspect the terminal blocks and marshalling panels associated with the affected analog channels. Loose terminations or moisture ingress at the junction box are frequent contributors to signal drift that is incorrectly attributed to the module itself. If the process loop uses HART-enabled transmitters, confirm that the HART multiplexer or pass-through configuration is intact after module swap.

In older Experion PKS installations, it is also advisable to audit the MC-PAIH01 analog output modules in the same cabinet — output modules in the same control loop age at similar rates and may be approaching end-of-life. Similarly, MC-TDID12 digital input modules and MC-TDOD08 digital output modules sharing the same chassis should be visually inspected for LED fault indicators during the maintenance window.

For facilities running redundant controller pairs, confirm that the C300 controller module firmware version is compatible with the replacement MC-PHAI01 hardware revision. Mismatched firmware can cause the module to initialize in a degraded state. Finally, review the Experion PKS Station (EPS) HMI alarm history for the 48 hours preceding the failure — recurring channel-level alarms often precede module failure by days and can inform a proactive spare parts strategy.

Procurement engineers should note that the MC-PHAI01 51403479-150 is a long-lead item through standard OEM channels. Maintaining at least one unit in your on-site spare parts inventory — alongside a spare IOTA carrier and a set of FTE patch cables — is the most cost-effective insurance against extended downtime in a continuous-process environment.

Site Replacement Workflow

Step 1 — Isolation: Place the affected control loop in manual mode at the Experion PKS operator station. Confirm with the process operator that the loop output is stable before proceeding.

Step 2 — Documentation: Record the existing module’s slot address, chassis number, and channel assignments from the Experion Configuration Studio. Photograph the field wiring terminations before disconnection.

Step 3 — Module Removal: Power down the IOTA carrier if a hot-swap is not supported by your site safety procedure. Extract the MC-PHAI01 by releasing the locking tab and sliding the module from the carrier. Inspect the carrier contacts for oxidation.

Step 4 — Replacement Installation: Insert the new MC-PHAI01 51403479-150 into the same carrier slot. The module is keyed — do not force insertion. Restore power and observe the module status LED: solid green indicates successful initialization.

Step 5 — Verification: In Experion Configuration Studio, confirm the module is online and all 16 channels are reporting. Perform a channel-by-channel signal check against known process values before returning the loop to automatic control.

Step 6 — Documentation Close-Out: Update the maintenance management system (CMMS) with the replaced part number, serial number, and date. Log the failed module for failure analysis if root cause investigation is required.

This workflow is compatible with Experion PKS R310 through R500 and supports a direct drop-in replacement without controller reconfiguration, provided the hardware revision of the replacement unit matches the original.

Spare Parts Support FAQ

Q1: Is this MC-PHAI01 51403479-150 an original Honeywell part or a third-party equivalent?
This is an original Honeywell MC-PHAI01 manufactured to OEM specification. It is not a clone, refurbished third-party unit, or functional equivalent. Each unit is tested against Honeywell’s published electrical and communication specifications before shipment.

Q2: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, communication initialization failures, and channel-level signal faults under normal operating conditions. Units damaged by incorrect installation voltage, reversed polarity, or physical impact are excluded. Warranty claims are processed with a replacement unit dispatched within 5 business days of fault confirmation.

Q3: How do I confirm compatibility with my specific Experion PKS revision before ordering?
Provide your controller model (C200 or C300), Experion PKS software revision (R310–R500), and IOTA carrier part number when placing your order. Our technical team will confirm hardware revision compatibility and advise on any firmware considerations before shipment. Compatibility verification is provided at no additional cost.

Q4: Can you support long-term or blanket purchase orders for ongoing spare parts inventory?
Yes. For facilities requiring multiple units or scheduled replenishment, we support blanket purchase orders with agreed lead times and pricing. Long-term supply agreements are available for the MC-PHAI01 and associated Experion PKS I/O modules, ensuring your spare parts inventory remains current without repeated spot-market procurement.
