Honeywell MC-TAMT03 51309223-175 Spare Experion PKS Automation

Honeywell MC-TAMT03 51309223-175 Spare Experion PKS Automation

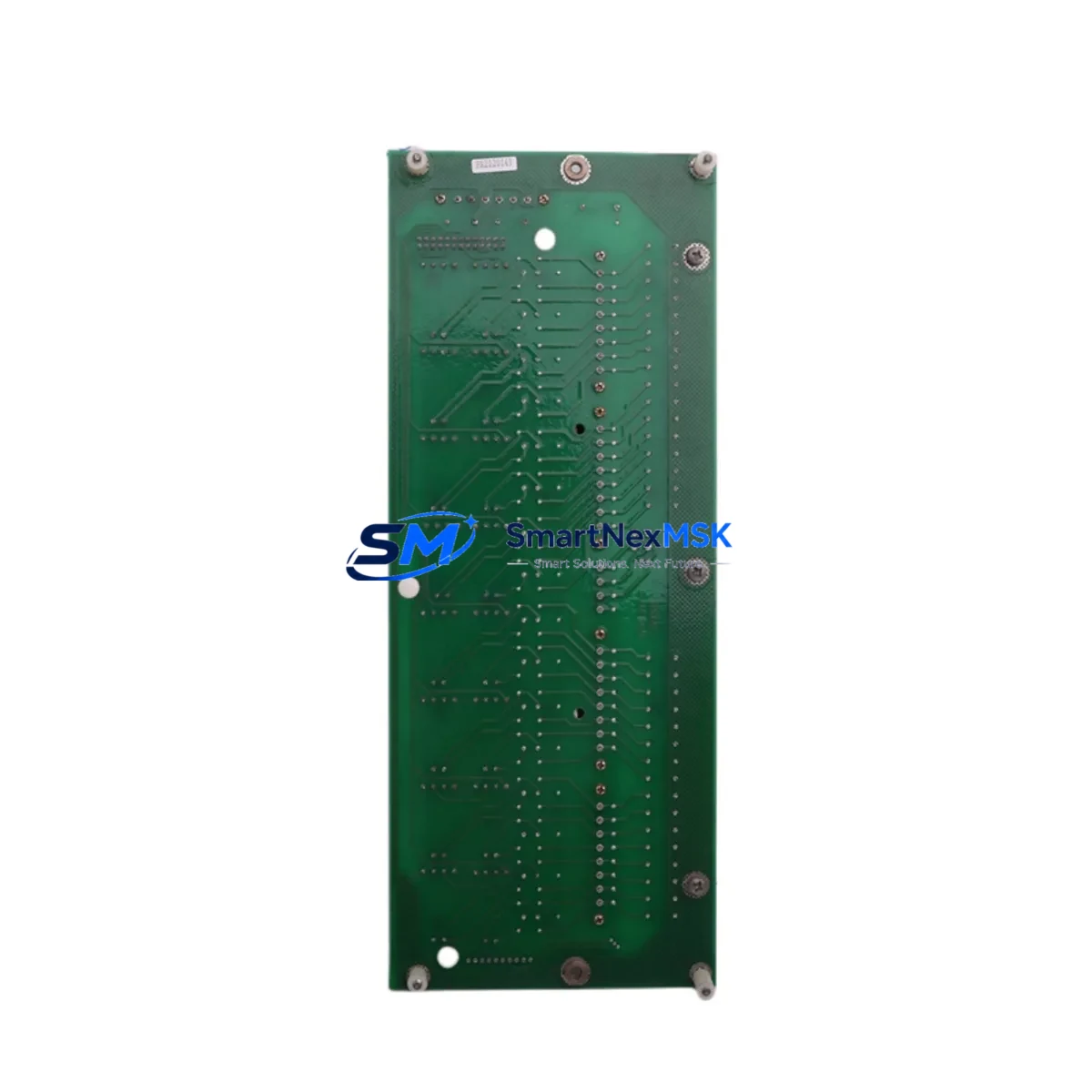

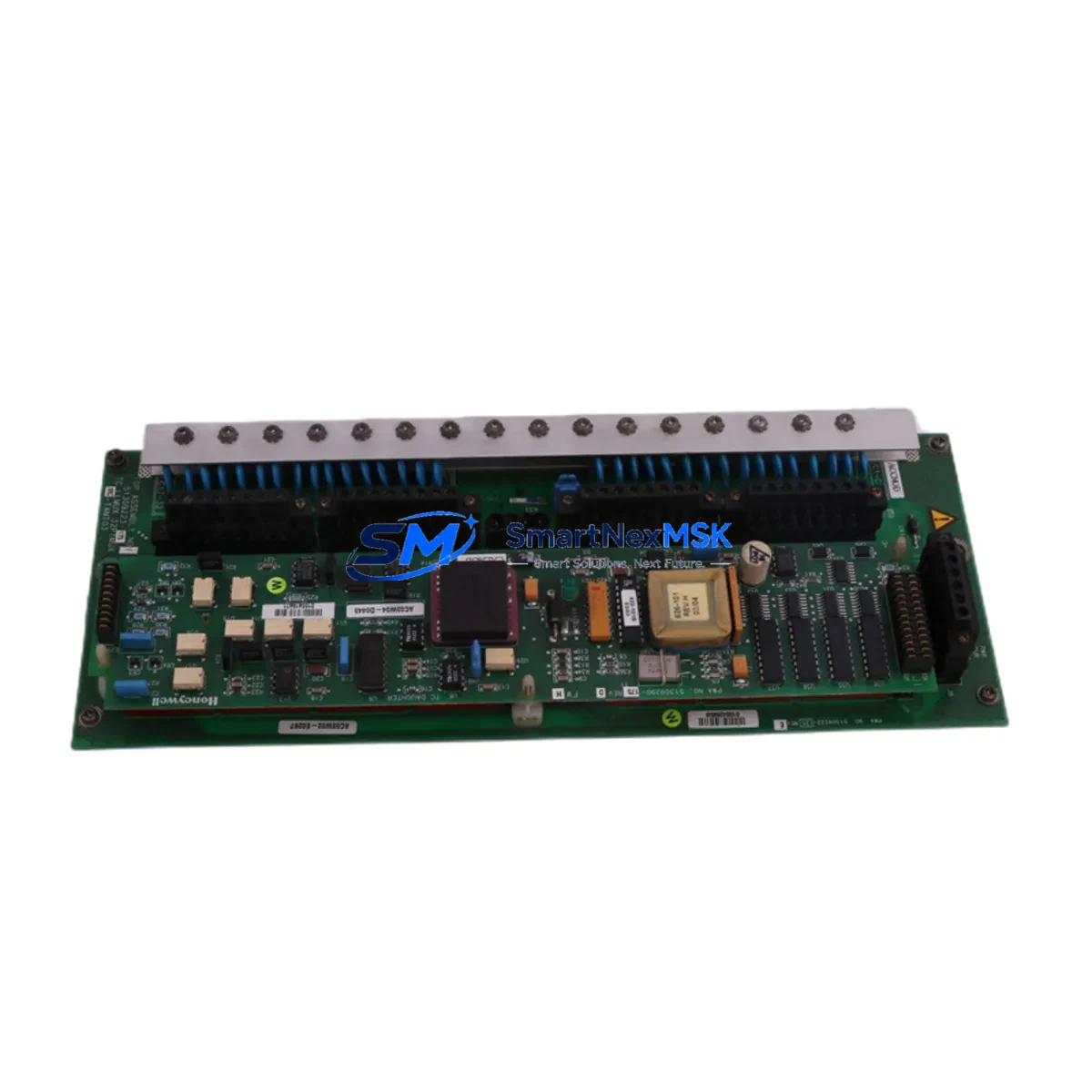

The Honeywell MC-TAMT03 (part number 51309223-175) is an original thermocouple multiplexer input module engineered for the Experion PKS distributed control system. In process industries where continuous uptime is non-negotiable — refining, petrochemical, power generation, and pulp and paper — this module serves as a critical interface between field thermocouples and the Experion PKS controller network. When this module fails or degrades, temperature measurement integrity is compromised across multiple loops simultaneously, creating immediate process risk. Maintaining a verified spare on the shelf is the single most effective strategy for minimizing mean time to repair (MTTR) and protecting production continuity.

This listing supplies an original Honeywell MC-TAMT03 51309223-175 module — not a third-party substitute — sourced, inspected, and tested prior to dispatch. Each unit ships with a 12-month warranty covering manufacturing defects and functional performance, giving maintenance and procurement teams documented assurance for spare parts budget justification and audit compliance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the MC-TAMT03 51309223-175 in an Experion PKS cabinet is rarely an isolated task. A disciplined maintenance engineer will treat this module swap as an opportunity to audit the surrounding I/O infrastructure and prevent secondary failures. During the same planned or emergency outage window, the following components should be inspected or replaced as part of a comprehensive cabinet review:

Power supply integrity is the first checkpoint. The Honeywell MC-PDIY22 or equivalent Experion PKS power supply module should be load-tested; a marginal power rail is a common root cause of intermittent thermocouple reading errors that are misdiagnosed as module failure. Verify DC bus voltage stability under full I/O load before re-commissioning the replaced MC-TAMT03.

IOTA and backplane connections deserve close attention. The MC-TAMT03 seats into an IOTA (I/O Termination Assembly), and oxidized or loose backplane connectors can cause erratic channel behavior even with a new module installed. Inspect the IOTA terminal blocks for corrosion, confirm torque on all field wiring terminations, and check the backplane ribbon or bus connector for mechanical damage.

Adjacent analog input modules — such as the MC-TAIH02 high-level analog input module or MC-TAIX02 — share the same backplane segment and power distribution. If the MC-TAMT03 failed due to an electrical transient, neighboring modules may have sustained latent damage. A channel-by-channel functional check of adjacent AI modules is recommended before returning the system to automatic control.

Signal wiring and thermocouple extension cables should be megger-tested for insulation resistance. Degraded TC extension cables introduce common-mode noise and ground loops that accelerate module wear. Replace any cable showing insulation resistance below 1 MΩ to ground.

Communication and controller modules in the same Experion PKS node — such as the C200 or C300 controller module — should be confirmed as fault-free in the Experion Station alarm summary. A module replacement that restores I/O without clearing upstream controller faults will not restore full loop control.

Fusing and surge protection on the field side of the IOTA should be verified. Blown fuses on thermocouple input channels are a leading indicator of field wiring faults that will damage a replacement module if not corrected first. Check and replace any suspect fuse elements and surge protection devices (SPDs) on the marshalling panel before energizing the new module.

HMI and historian configuration should be validated post-replacement. Confirm that Experion Station tag assignments for all channels on the MC-TAMT03 are correctly mapped, that engineering units and alarm limits are intact, and that the process historian is logging all channels without gaps. A module swap that is not followed by a configuration audit can leave operators with stale or missing temperature data.

Maintaining a minimum stock of one MC-TAMT03 51309223-175 per Experion PKS node — alongside spares for the MC-TAIH02, MC-PDIY22 power module, and relevant IOTA assemblies — is a recognized best practice for sites operating legacy or end-of-life Experion PKS configurations where OEM lead times may extend beyond acceptable downtime windows.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the fault is isolated to the MC-TAMT03 using Experion Station diagnostics. Check the module status LED and review the FIM (Fault Isolation Manual) alarm codes. Document all channel tag assignments before removal.

Step 2 — Safe isolation: Place all affected control loops in manual mode at the Experion Station operator console. Notify process operations of the planned I/O interruption. De-energize the IOTA field wiring per site LOTO (Lockout/Tagout) procedure.

Step 3 — Module removal and inspection: Remove the faulty MC-TAMT03 from the backplane. Inspect the backplane connector pins for damage or contamination. Clean with approved electronics contact cleaner if required.

Step 4 — Replacement installation: Insert the new MC-TAMT03 51309223-175 into the correct backplane slot. Confirm positive seating. Re-energize the IOTA and observe the module status LED for a healthy green indication.

Step 5 — Functional verification: From Experion Station, confirm all channels report valid process values within expected engineering unit ranges. Compare live readings against independent temperature references (portable calibrator or thermocouple simulator) on at least two channels per module.

Step 6 — Return to automatic: Return all affected control loops to automatic mode. Monitor for 15–30 minutes to confirm stable operation. Update the maintenance management system (CMMS) with the replacement record, including the new module serial number and date of installation.

This workflow applies equally to planned preventive replacement — where the MC-TAMT03 is swapped during a scheduled turnaround to extend system life — and to emergency corrective replacement following an unplanned failure. In both cases, the availability of a pre-tested, original spare is the decisive factor in minimizing process downtime.

Spare Parts Support FAQ

Q: Is this MC-TAMT03 51309223-175 an original Honeywell module or a compatible substitute?
A: This is an original OEM Honeywell module — part number MC-TAMT03, revision 51309223-175. No third-party or compatible substitutes are supplied under this listing. Each unit is individually inspected and function-tested before shipment to confirm it meets Honeywell’s original performance specifications.

Q: What warranty coverage is provided, and what does it include?
A: Every MC-TAMT03 51309223-175 supplied by SMARTNEXMSK carries a 12-month warranty from the date of delivery. The warranty covers manufacturing defects and functional performance failure under normal operating conditions. Warranty claims are supported by our technical team with replacement or refund resolution within agreed lead times.

Q: How do I confirm compatibility with my specific Experion PKS system revision?
A: The MC-TAMT03 51309223-175 is compatible with standard Experion PKS I/O backplane configurations. To confirm compatibility with your specific system revision, provide your Experion PKS node model, backplane assembly number, and current firmware version when placing your inquiry. Our technical team will cross-reference against Honeywell’s compatibility matrix before order confirmation.

Q: What is your typical lead time and how are units prepared for shipment?
A: In-stock units are prepared for shipment within 1–3 business days. Each module undergoes a pre-shipment functional test, is packed in anti-static ESD-safe packaging, and ships with a test report and warranty certificate. Express shipping options are available for emergency breakdown situations. Contact sales@smartnexmsk.com or +86 18259474341 for urgent requirements.
